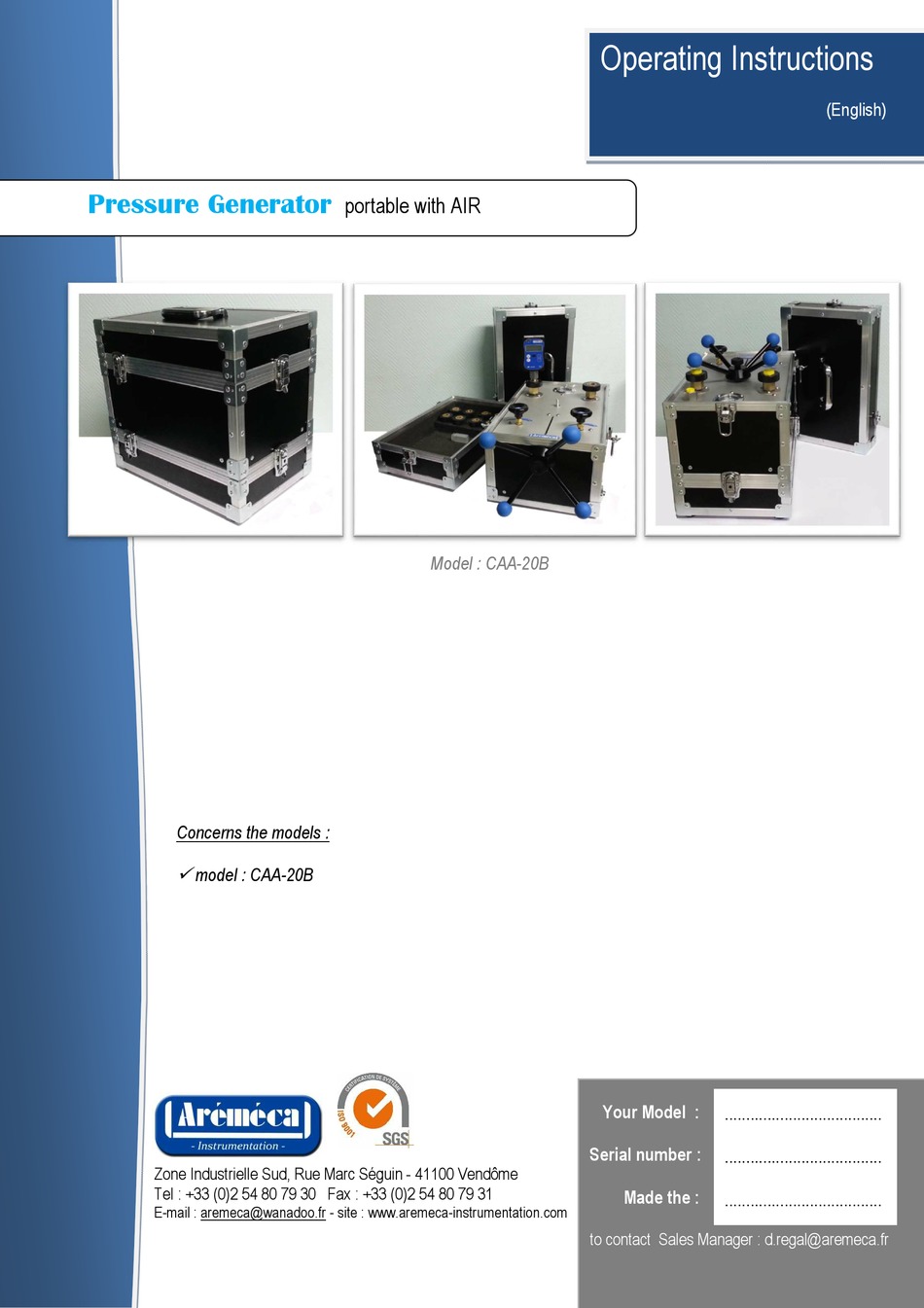

Pressure Generator
Concerns the models :
model : CAA-20B
Zone Industrielle Sud, Rue Marc Séguin - 41100 Vendôme
Tel : +33 (0)2 54 80 79 30 Fax : +33 (0)2 54 80 79 31
E-mail : aremeca@wanadoo.fr - site : www.aremeca-instrumentation.com
portable with AIR
Model : CAA-20B
Operating Instructions
Your Model :
.....................................
Serial number :
.....................................
Made the :
.....................................
to contact Sales Manager : d.regal@aremeca.fr
(English)
Advertisement
Table of Contents
Related Manuals for Aremeca CAA-20B
Summary of Contents for Aremeca CAA-20B
- Page 1 Zone Industrielle Sud, Rue Marc Séguin - 41100 Vendôme Tel : +33 (0)2 54 80 79 30 Fax : +33 (0)2 54 80 79 31 Made the : ........E-mail : aremeca@wanadoo.fr - site : www.aremeca-instrumentation.com to contact Sales Manager : d.regal@aremeca.fr...
- Page 2 RE. ENR.212 - Rév A - Le 21/10/14 page : 2...
-
Page 3: Table Of Contents
Installation ..............................c) Put into service ............................. d) Test run after installing ..........................10 4 - Procedure a) Pressure generator model CAA-20B ......................11 5 - Cleaning/Maintenance a) Cleaning ............................... 13 b) Maintenance ..............................13 c) Inspection ..............................13 d) Connectors .............................. - Page 4 RE. ENR.212 - Rév A - Le 21/10/14 page : 4...
- Page 5 41100 VENDOME - web site : www.aremeca-instrumentation.com - Contact : E-mail : aremeca@wanadoo.fr / Phone : +33 (0)2 54 80 79 30 / Fax : +33 (0)2 54 80 79 31 to Contact Sales Manager : d.regal@aremeca.fr RE. ENR.212 - Rév A - Le 21/10/14...
-
Page 6: Security
Chap.2 - Security a) Device Device Identification indicates the model of comparator ex : CAA-20B indicates the serial number of comparator indicates the date of commissioning of the unit Intended use of the device Before switching on the device, ensure that the technical characteristics (measuring range, precision, fluid etc...) correspond to your needs... -
Page 7: Put Into Service
> wear gloves : protect the skin against irritation, allergies. AREMECA provides for oil dead weight, a bottle of colorless mineral oil. Safety data sheet of used oils are available on request. Chap.3 - Put into service RE. ENR.212 - Rév A - Le 21/10/14... -
Page 8: A) Unpacking The Unit
- 1 manual Check that there isn't damage or breakages during transport. If there are missing items, please immediately notify AREMECA or your local distributor for what is missing. b) Installation Preferably, install your unit in a stable and controlled environment You will get better performance if : >... -
Page 9: C) Put Into Service
- if necessary, connect the pressure source 6 on the output ¼ cylindrical gas located at the rear of the generator 20 bar maxi Note : Use a clean gas, dry, no agressive and no toxic as nitrogen U. Provide a single regulator at the output of the pressure source. -
Page 10: Procedure
2. The device is now ready to use. Chap.4 - Procedure RE. ENR.212 - Rév A - Le 21/10/14 page : 10... - Page 11 > Observe the maximum operating pressures of the pressure generator Maximum operating pressure : CAA-20B 20 bar a) Install the reference instrument and the instrument to be tested on the connectors. b) Make sure tha the valve A is close, and open the valve B.
-
Page 12: Cleaning/Maintenance
c) Turn the capstan 1 in the direction of clockwise and place the cursor in position "z" d) Close the valves A and B. e) The device is now ready for use. You can adjust depression g) Use the capstan, turning in the opposite direction of clockwise. the cursor go in position "a" The maximum depression is -900 mbar. -
Page 13: B) Maintenance
The generator cleaning and checking fluid levels are the only periodic maintenance required. No additional maintenance should be necessary if all instructions are followed. We recommend a complete overhaul of the unite every 2 years. This operation can only be performed by the manufacturer. -
Page 14: Annexes
For these connectors guide ring, mark : 000 visible. The connector must be tightened by hand. Thread M12x150, M16x150, M18x150, M20x150, G1/4, G3/8, G1/2,1/4 BSP-TR, 3/8 BSP-TR, 1/2 BSP-TR, 1/4 NPT, 3/8 NPT, 1/2 NPT For these connectors guide ring, mark : * * * visible. The connector must be tightened by hand. - Page 15 Connectors OP0174 : Suitcase with 5 connectors metrics - M10x100 ; M12x150 ; M16x150 ; M18x150 ; M20x150 OP0171 : Suitcase with 4 connectors gas cylindrical - G1/8 ; G1/4 ; G3/8 ; G1/2 OP0172 : Suitcase with 4 connectors NPT - 1/8NPT ; 1/4NPT ; 3/8NPT ; 1/2NPT OP0173 : Suitcase with 4 connectors BSPTR - 1/8BSPTR ;...
