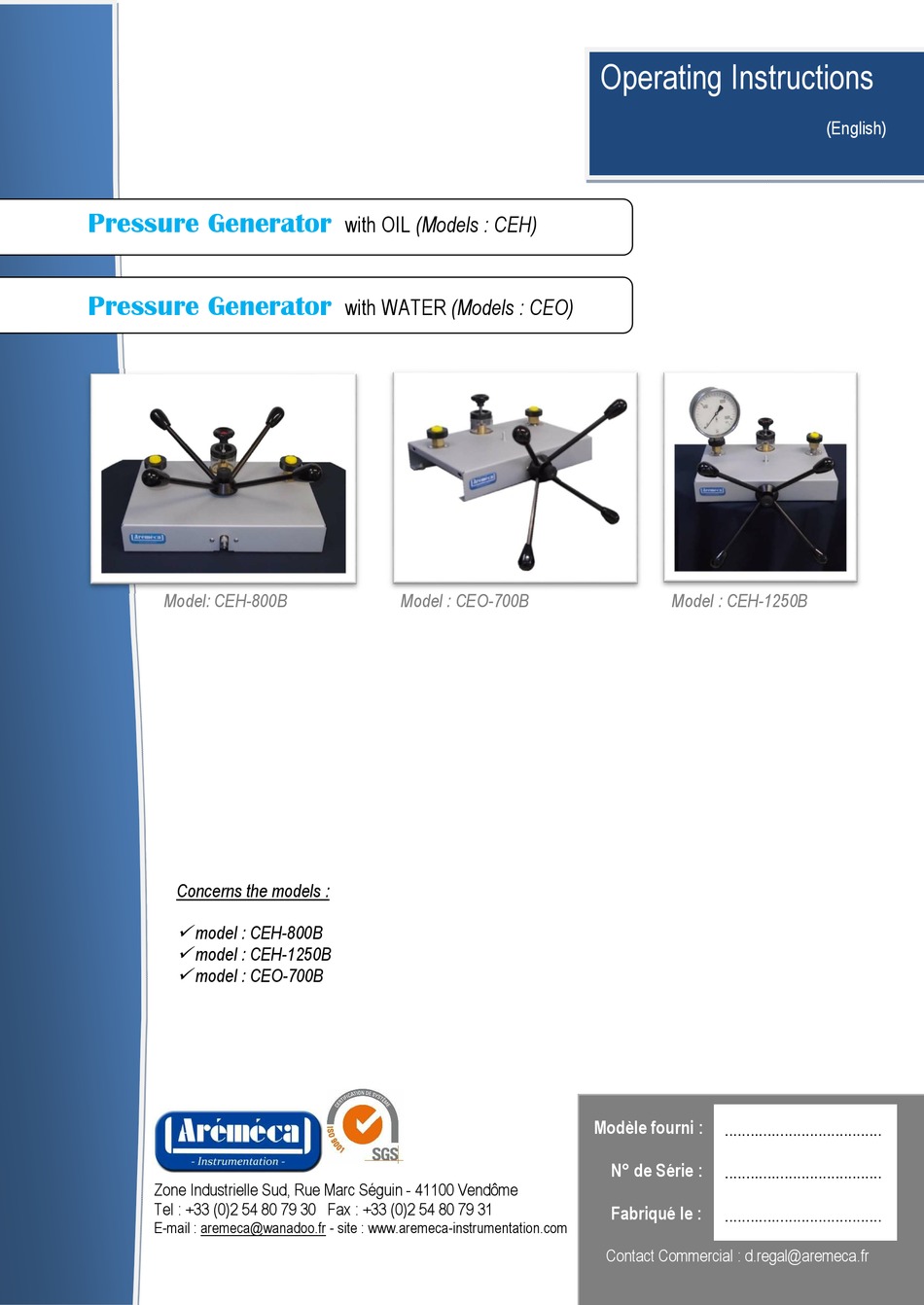

Pressure Generator
Pressure Generator
Model: CEH-800B
Concerns the models :
model : CEH-800B
model : CEH-1250B
model : CEO-700B
Zone Industrielle Sud, Rue Marc Séguin - 41100 Vendôme
Tel : +33 (0)2 54 80 79 30 Fax : +33 (0)2 54 80 79 31
E-mail : aremeca@wanadoo.fr - site : www.aremeca-instrumentation.com
with OIL (Models : CEH)
with WATER (Models : CEO)
Model : CEO-700B
Operating Instructions
Model : CEH-1250B
Modèle fourni :
.....................................
N° de Série :
.....................................
Fabriqué le :
.....................................
Contact Commercial : d.regal@aremeca.fr
(English)
Advertisement
Table of Contents
Related Manuals for Aremeca CEH Series
Summary of Contents for Aremeca CEH Series
- Page 1 Zone Industrielle Sud, Rue Marc Séguin - 41100 Vendôme Tel : +33 (0)2 54 80 79 30 Fax : +33 (0)2 54 80 79 31 Fabriqué le : ........E-mail : aremeca@wanadoo.fr - site : www.aremeca-instrumentation.com Contact Commercial : d.regal@aremeca.fr...
- Page 2 RE ENR.101 – Rèv E – Le 08/04/2014 page : 2...
-
Page 3: Table Of Contents
1/2 BSP-TR, 1/4 NPT, 3/8 NPT, 1/2 NPT ....................13 6 - Annexes Options .................................. 14 Read the instructions before handling and retain this information for future use All rights reserved AREMECA RE ENR.101 – Rèv E – Le 08/04/2014 page : 3... - Page 4 RE ENR.101 – Rèv E – Le 08/04/2014 page : 4...
- Page 5 41100 VENDOME - web site : www.aremeca-instrumentation.com - Contact : E-mail : aremeca@wanadoo.fr / Phone : +33 (0)2 54 80 79 30 / Fax : +33 (0)2 54 80 79 31 to Contact Sales Manager : d.regal@aremeca.fr RE ENR.101 – Rèv E – Le 08/04/2014...
-
Page 6: Security
Chap.2 - Security a) Device Device identification indicates the model of comparator ex : CEH-1250B indicates the serial number of comparator indicates the date of commissioning of the unit Intended use of the device Before switching on the device, ensure that the technical characteristics (measuring range, precision, fluid etc...) correspond to your needs >... -
Page 7: Put Into Service
> wear gloves : protect the skin against irritation, allergies. AREMECA provides for oil dead weight, a bottle of colorless mineral oil. Safety data sheet of used oils are available on request. Chap.3 - Put into service RE ENR.101 – Rèv E – Le 08/04/2014... -
Page 8: A) Unpacking The Unit
- 1 manual Check that there isn't damage or breakages during transport. If there are missing items, please immediately notify AREMECA or your local distributor for what is missing. b) Installation Preferably, install your unit in a stable and controlled environment You will get better performance if : >... -
Page 9: C) Put Into Service
Noted : This operation is not imperative if the generator is used for pressures lower than 400 bar ; in this case, insert 4 skates of stabilization supplied in 4 openings Ø 9 mm on the crankcase. - Make sure that o-ring are well positioned on the connectors 4. >... -
Page 10: D) Test Run After Installing
2. Unscrew the devices to be tested of the connectors 4. 3. Turn the capstan 1 in the direction of clockwise until the fluid is at the outputs 4. Screw the devices on connectors ; wipe off the excess fluid. 5. -
Page 11: Cleaning/Maintenance
> Hydraulic diagram > Pressure mounted > Observe the maximum operating pressures of the pressure generator Maximum operating pressure : CEH-800B 820 bar and CEH-1250B 1270 bar CEO-700B 720 bar a) Connect the instrument on the connector 4 (make sure that o-ring are well positioned). b) Check the valve is open and the capstan is in end position stop (turn in the opposite direction of clockwise). -
Page 12: B) Maintenance
We recommend a complete overhaul of the unite every 2 years. This operation can only be performed by the manufacturer. If necessary, send us your device for maintenance. A complete assessment of your device will be made and an estimate of rehabilitation will be sent. Instructions reminders : - Use only oil H32 for models CEH or water for models CEO. -
Page 13: D) Connectors
Thread M10x100, G1/8, 1/8 BSP-TR, 1/8 NPT For these connectors guide ring, mark : 000 visible. The connector must be tightened by hand. Thread M12x150, M16x150, M18x150, M20x150, G1/4, G3/8, G1/2,1/4 BSP-TR, 3/8 BSP-TR, 1/2 BSP-TR, 1/4 NPT, 3/8 NPT, 1/2 NPT For these connectors guide ring, mark : * * * visible. - Page 14 OP0173 : Suitcase with 4 connectors BSPTR - 1/8BSPTR ; 1/4BSPTR ; 3/8BSPTR ; 1/2BSPTR OP0037 : Suitcase with 17 connectors - all connectors Kit cleaning OP0025 : Cleaning kit for tank OP0062 : Cleaning bench for manometers OP0023 : Separator Transport OP0029 : Protective cover for economic generator RE ENR.101 –...
- Page 15 RE ENR.101 – Rèv E – Le 08/04/2014 page : 15...
