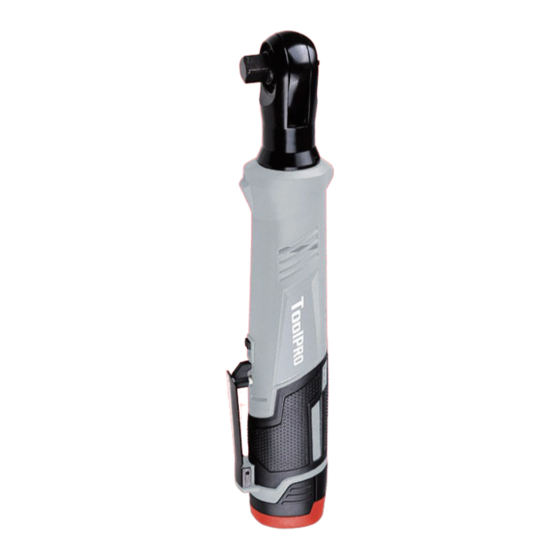

- Page 1 1/2” RATCHET WRENCH SKIN PLU: 610597...
-
Page 2: Table Of Contents
Contents Safety Information..........................3 In The Box............................8 Accessories......................8 Operating Instructions........................9 Maintenance......................16 Technical Data..........................17 Warranty......................18 Customer Helpline 1300 858 645... -
Page 3: Safety Information
12V 1/2” RATCHET WRENCH SKIN Safety Information Important - Please read these instructions fully before starting assembly Warning Symbols To reduce the risk of injury, Please read the instruction manual Warning Wear ear protection Wear eye protection Wear dust mask Indoor use only Do not expose to rain or water Do not burn... - Page 4 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
- Page 5 12V 1/2” RATCHET WRENCH SKIN Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 6 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
- Page 7 12V 1/2” RATCHET WRENCH SKIN Safety Information Important - Please read these instructions fully before starting assembly Safety Warnings for battery pack a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
-
Page 8: In The Box
In The Box Parts Sight light Direction selector On/off switch Battery pack Battery pack release button Locking switch Battery capacity indication Ratchet head Accessories 3/8’ Adaptor Customer Helpline 1300 858 645... -
Page 9: Operating Instructions
12V 1/2” RATCHET WRENCH SKIN Operating Instructions Intended Use This tool is intended for the fastening and loosening of bolts, nuts and various threaded fasteners. This tool is not intended for use as a drill, Please check manually to ensure safety after fastening, and we recommend tightening to manufactures specifications. - Page 10 Operating Instructions 2. INSTALLING AND REMOVING THE BATTERY PACK a) To remove the battery pack Press the Battery Pack Release Button (3) firmly first and then pull the Battery Pack out from your tool. b) To install the battery pack Push the fully charged Battery Pack onto the tool with sufficient force until it clicks into position.
- Page 11 12V 1/2” RATCHET WRENCH SKIN Operating Instructions Indicator lamps Remaining capacity Lighted Three green lights on Full Charged Two green lights on 30% to 60% One green lights on 10% to 30% NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.
- Page 12 Operating Instructions 6. LIGHTING UP THE FRONT LAMP CAUTION: Do not look in the light or see the source of light directly. 1. Switch lever 2. Lamp Pull the switch lever to light up the lamp. The lamp keeps on lighting while the switch lever is being pulled.
- Page 13 12V 1/2” RATCHET WRENCH SKIN Operating Instructions Assembly CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. 7. INSTALLING OR REMOVING SOCKET CAUTION: Before operation, make sure that the socket is properly locked onto the socket adaptor.
- Page 14 Operating Instructions Operation CAUTION: Hold the tool firmly especially when the bolt/nut reaches the seating position. The socket stops rotating and the motor reactiongenerate instant backlash to rotate the tool. NOTICE: Hold the tool pointed straight at the bolt/nut. Hold the tool firmly and place the socket over the bolt/nut.
- Page 15 12V 1/2” RATCHET WRENCH SKIN Operating Instructions Operating USING AS HAND TOOL You can use the tool as a hand ratchet wrench by turning the tool in the direction arrows as illustrated. In particular when loosening a stiff bolt/nut, loosen it by hand first then turn the tool on.
-
Page 16: Maintenance
Maintenance Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. -
Page 17: Technical Data
12V 1/2” RATCHET WRENCH SKIN Technical Data Technical Data Table Ratchet head 1/2” Square head No load speed 0-170/RPM Maximum Torque 80Nm Charger protection class Charger input 100-240V~50/60Hz, 35W Charger output 2000mA Machine weight 1.35kg (without battery) Optional battery 2.0/4.0Ah Li-ion battery packs 1hr for 2.0Ah battery pack Charging time 2hr for 4.0Ah battery pack... -
Page 18: Warranty
• The tool has not been misused, abused, neglected, altered, modified or repaired by anyone other than an authorized service centre. • Only genuine ToolPRO accessories and parts have been used on or with the product. • The tool has been subjected to fair wear and tear. - Page 19 12V 1/2” RATCHET WRENCH SKIN Staple your purchase receipt here Before returning this product for warranty or any other reason, please call. FREE CALL 1300 858 645 Email: sca@scheppach.com.au Customer Helpline 1300 858 645...
- Page 20 PLU: 610597 CODE: LCW699-9C Manufactured and packaged for SRGS PTY LTD ABN 23 113 230 050 6 Coulthards Avenue, Strathpine, Strathpine QLD 4500, Australia MADE IN CHINA...
