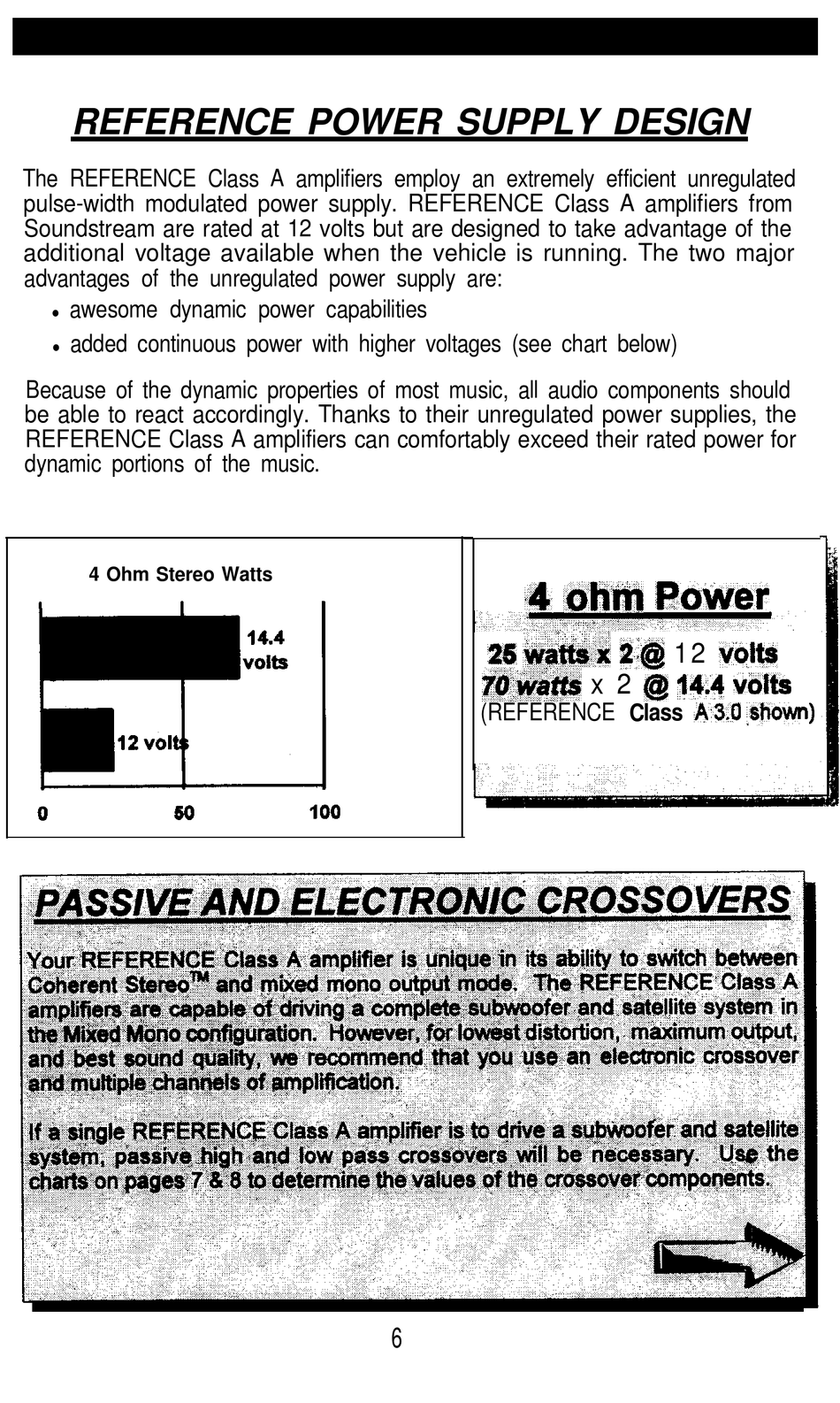

REFERENCE POWER SUPPLY DESIGN

The REFERENCE Class A amplifiers employ an extremely efficient unregulated

pulse-width modulated power supply. REFERENCE Class A amplifiers from

Soundstream are rated at 12 volts but are designed to take advantage of the

additional voltage available when the vehicle is running. The two major

advantages of the unregulated power supply are:

awesome dynamic power capabilities

added continuous power with higher voltages (see chart below)

Because of the dynamic properties of most music, all audio components should

be able to react accordingly. Thanks to their unregulated power supplies, the

REFERENCE Class A amplifiers can comfortably exceed their rated power for

dynamic portions of the music.

4 Ohm Stereo Watts

(REFERENCE Class 4~3.0 ,shown)
