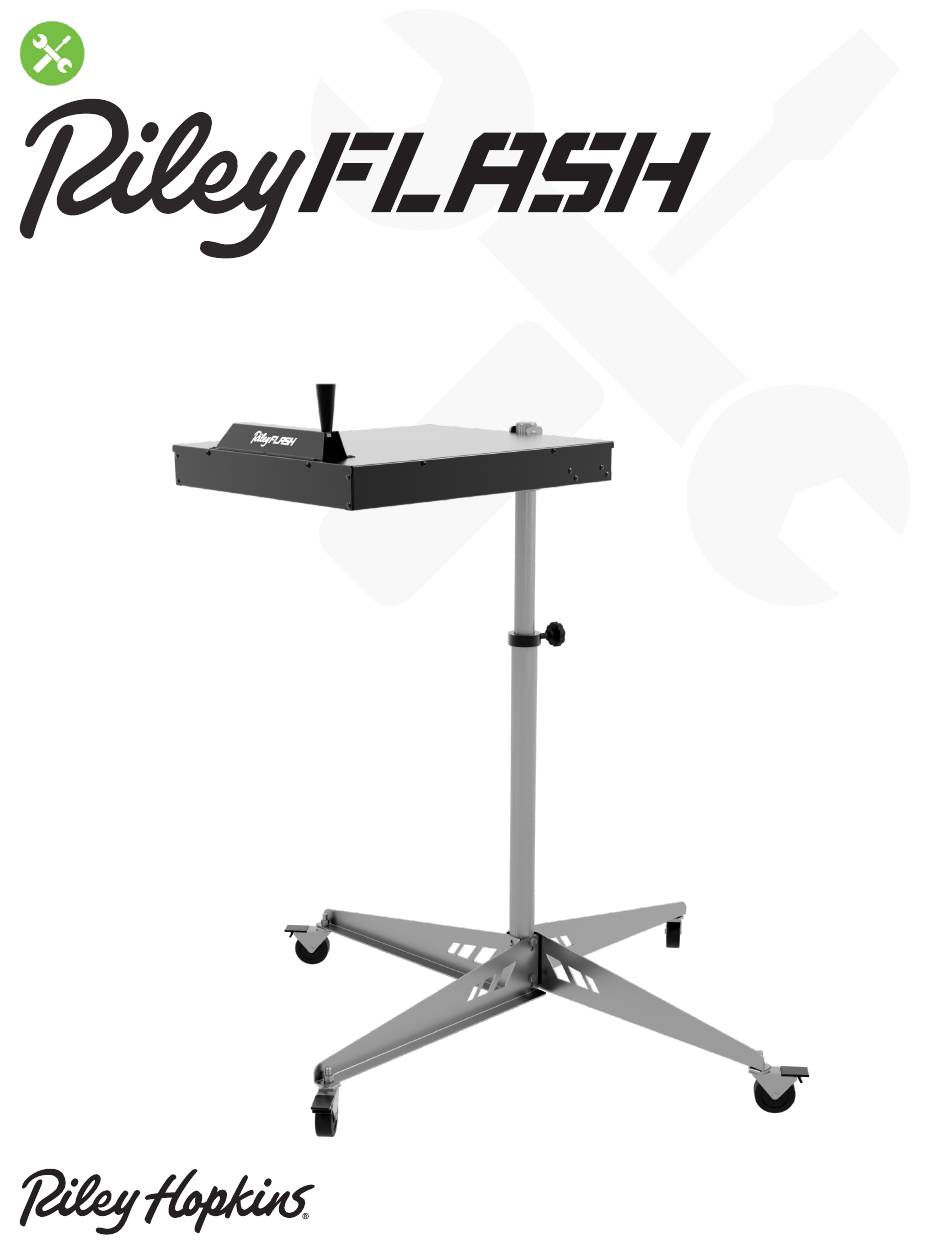

- Page 1 Assembly Instructions RILEY FLASH 16X16 & 18X18...
-
Page 2: Tools Required
Tools Required: • (x1) 7/16” Wrench • (x1) 9/16” wrench What’ s in the box Item Qty. Main flash panel assembly ZINC ATTACHMENT BRACKETS (RH & LH) LOWER STAND LEGS Hardware Kit UPPER STAND UPRIGHT POLE LOWER STAND UPRIGHT POLE... - Page 3 MFSA-RHFLASH-KIT Riley Hopkins 16x16 & 18x18 flash dryer hardware kit Item Description Qty. Caster, Medium Duty 2" Wheel MFCO-CSTR2X3/8ML 3/8" Stud MFCO-HANDLEVER Hand Lever knob tapered 3" long PRHD-CALR1INPIPE 1-3/8" id Locking Collar Fluted bracket 3/8-16 x 1-1/4" PRCO-KNBFLT3/8NC1-1/4ML Male Stud...
- Page 4 Step 1 Item Description QTY. UNIVERSAL RILEY FLASH DRYER FEET- MFPB-16X16FLFT FORMED 3/8-16 X 2-1/4 HEX CAP SCREW GRADE 5 PRHD-HC3/8NC2-1/4GR5ZC ZINC PRHD-FLN3/8NCGR5ZC 3/8-16 FLANGED WHIZ NUT ZINC MFPD-RHCRTSID RH CART SIDE PANEL (THREADED) Attach the legs to the lower stand upright pole (four holes). Use the upper set of holes to attach two of the opposite legs as shown.
- Page 5 Step 2 Item Description QTY. CASTER, MEDIUM DUTY 2" WHEEL 3/8" MFCO-CSTR2X3/8ML STUD PRHD-FLN3/8NCGR5ZC 3/8-16 FLANGED WHIZ NUT ZINC Attach the locking casters on all four of the mounting holes of the stand with a 9/16” wrench. The lower stand is completed.
- Page 6 Step 3 Item Description QTY. UNIVERSAL FLASH DRYER MOUNTING MFZC-16X16FLBKT1 & 2 BRACKET (LH & RH) PRHD-WA1/4USSGR5ZC 1/4 USS FLAT WASHER ZINC PRHD-LWA1/4ZC 1/4 SPLIT LOCK WASHER PRHD-HC1/4NC3/4GR5 1/4-20 X 3/4 HEX CAP SCREW ZINC Install the left and right mounting brackets to the main flash panel assembly. Use a 7/16” wrench but do not fully tighten at this step.
- Page 7 Step 4 Item Description QTY. PRHD-HC1/4NC1/2GR5 1/4-20 X 1/2 HEX CAP SCREW ZINC PRHD-LWA1/4ZC 1/4 SPLIT LOCK WASHER MFCO-HANDLEVER HAND LEVER KNOB TAPERED 3" LONG Install the hand lever on the desired side of the mounting channel. Install this based on which side of the press you are using the flash dryer and whether you are right- or left-handed.
- Page 8 Step 5 Item Description QTY. MFMS-FLUPRTUBE UPPER FLASH DRYER STAND TUBE PRHD-HC1/4NC3/4GR5 1/4-20 X 3/4 HEX CAP SCREW ZINC PRHD-FLN3/8NCGR5ZC 3/8-16 FLANGED WHIZ NUT ZINC Attach the upper stand upright pole to the mounting brackets of the flash dryer with a 9/16” wrench.
- Page 9 Step 6 Item Description QTY. FLUTED BRACKET 3/8-16 X 1-1/4" MALE PRCO-KNBFLT3/8NC1-1/4ML STUD PRHD-CALR1INPIPE 1-3/8" ID LOCKING COLLAR MFMS-FLUPRTUBE UPPER FLASH DRYER STAND TUBE Install the locking collar and fluted knob to the upper stand pole. This will set the overall height of the flash dryer.
- Page 10 Step 7 Slide the upper flash assembly into the lower stand assembly. Make any final adjustments to the overall height of the flash dryer. Once at press, you can also make any adjustments needed to the tilt angle of the flash panel. Plug the unit into a standard 110v 15 amp outlet to begin use.
-
Page 11: Limited Warranty
LIMITED WARRANTY While we take pride in our quality and do our best to ensure your satisfaction, Riley Hopkins™/ Ryonet® does not assume any liability for damages, whether consequential or incidental, that may result from the misuse of the below-stated specifications. -
Page 12: Additional Information
Riley Hopkins™ flash dryers. In the event the above warranty fails to correct the purchaser’s performance problems caused by defects in workmanship and/ or materials, the purchaser’s exclusive remedy shall be limited to payment for actual damages...
