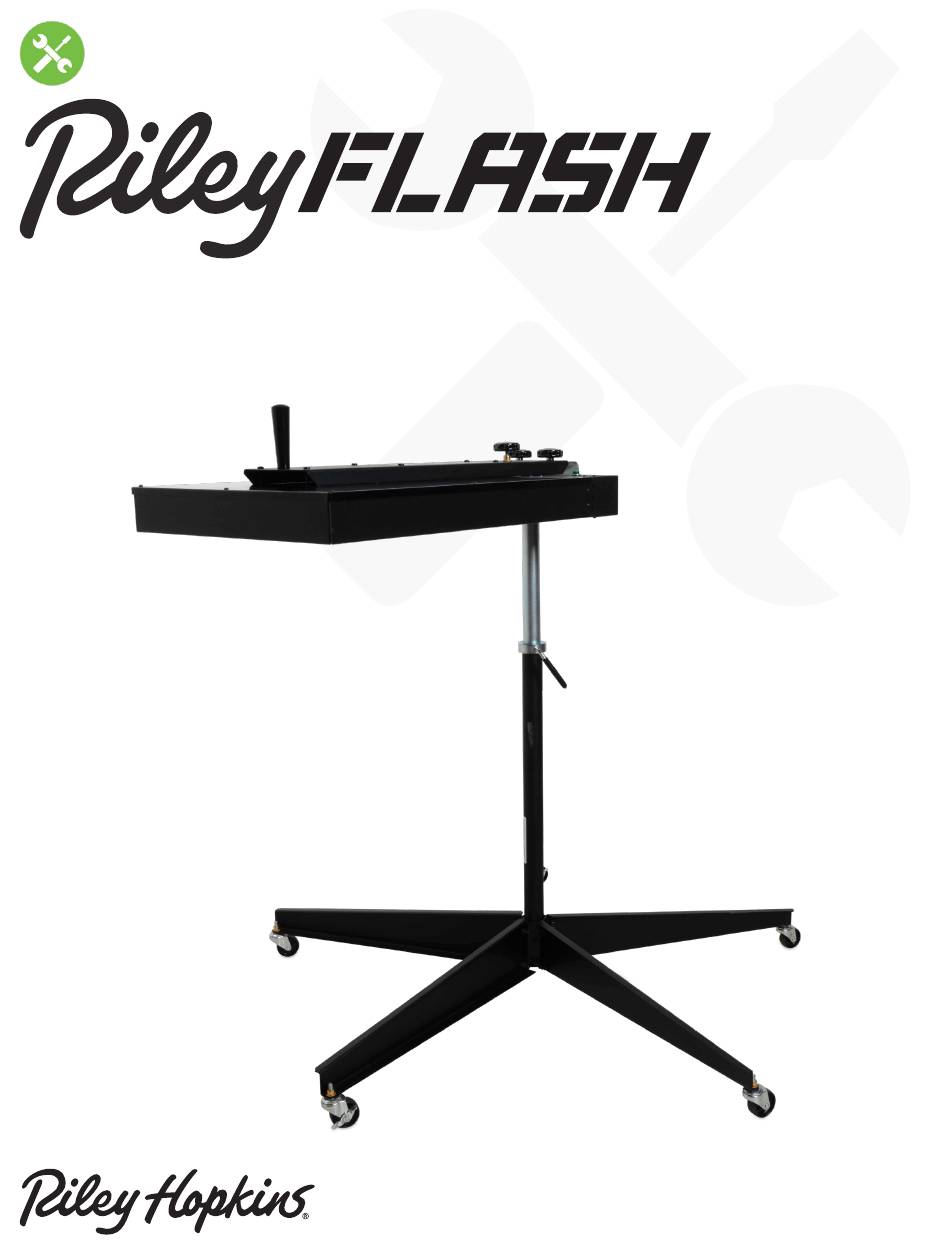

- Page 1 Assembly Instructions RILEY FLASH 18X18, 18X24...
-
Page 2: Tools Required
STANDARD DUTY STAND HF12-172 Tools Required: (x1) 1/2” open end wrench • (x1) 7/16” open end wrench • Tube washer What’ s in the box Part Number Item Qty. 97-190 TUBE ASSEMBLY 25-243 SCREW-10-32 X 1/2 TAPTITE 97-015 LEG 16” 25-025 BOLT 5/16-18 X3/4 SERRATED 24-012... - Page 3 HEAVY DUTY STAND HF12-174 Tube washer What’ s in the box Part Number Item Qty. 97-190 TUBE ASSEMBLY 25-243 SCREW-10-32 X 1/2 TAPTITE 97-003 LEG 24” 25-025 BOLT 5/16-18 X3/4 SERRATED 24-012 NUT 5/16-18 SERRATED 28-012-1 CASTER 2” 28-012 CASTER 2” W/BRAKE 90-580 LEVELING FEET 5/16-18 97-012...
- Page 4 Tube washer Screws STEP 1 1. Locate the Black Lower Tube. Black lower tube 2. Using a Phillips screwdriver, remove the (3) Screws from the end of the tube. The Screws are used in the next steps of this assembly. Black lower tube STEP 2 3.
- Page 5 STEP 4 7. Using (2) Hex-Bolts and Nuts, bolt the Screw first (2) Leg Assemblies together thru the Nuts Leg assembly mating holes. 8. Attach a third Leg Assembly using the remaining Removed Screw, threaded into the remaining hole in the Lower Hex bolts Tube.
- Page 6 Step 7 12. Lay your Flash Heater onto a smooth surface Top bracket so not to scratch the black surface of the heating element. Black handle 13. Locate the Top Bracket, ¼”-20 Hex-Bolt, Black Handle and (6) 1-3/4” self-tapping Screws. 14.
- Page 7 STEP 9 26. Slide the Upper Tube into the Black Lower Tube until the Heater assembly rests on the Height Adjustment Collar. 27. Move your Flash Heater and Stand Assembly over your Press’s Platen. 28. Using the (3) Level Adjustment Knobs, Level your Flash Heater to parallel with your Platen 29.
-
Page 8: Manufacture's Warranty
MANUFACTURE’S WARRANTY All products are warranted against defects in workmanship at the time of shipment. The obligation under the above warranty shall be limited to the repair or replacement of any part or parts manufactured by the dryer manufacturer without charge F.O.B. factory that may prove defective within 12 months from the date of shipment, which are returned to dryer manufacturer.
