MASTER VOLUME KNOB:
8.
STEREO OUTPUT:
9.
wide range of headphones. We recommend using either a stereo 3.5mm TRS cable
or a stereo splitter cable available at our Merch store:
https://endorphines.myshopify.com/products/y­splitter­adapter­3­5mm­trs­stereo­
to­l­r­3­5mm­ts­mono

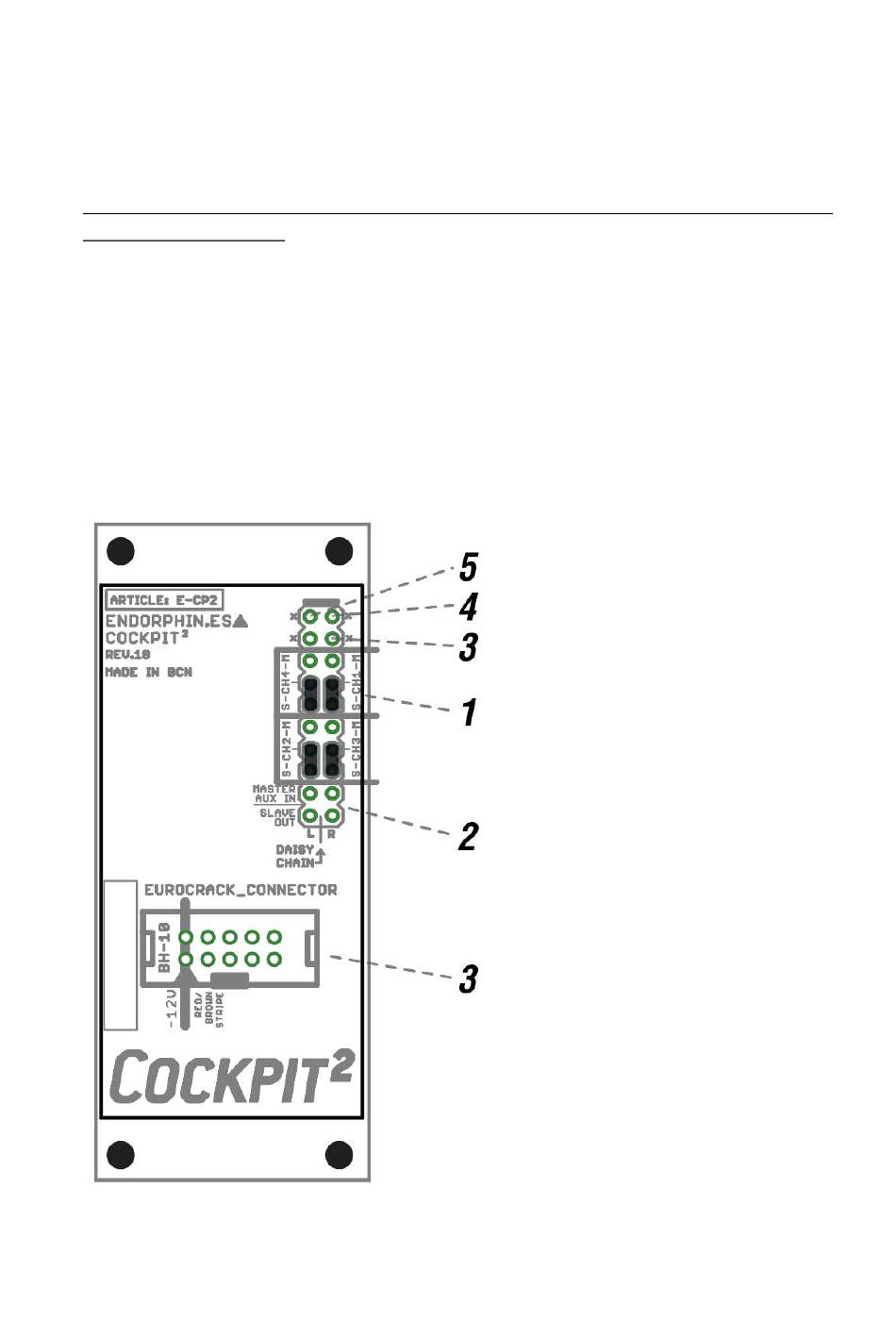

REAR CONNECTIONS

Both 1U and 3U versions feature extra rear connections, that are either used for
daisy chaining multiple modules together to act as one big mixer or to wire the
Inputs / Outputs to either other modules or ¼ inch TRS outputs via the Intellijel
Jacks IO v2 board.
 COCKPIT 2 / 3U:
adjusts the final mix output level.
final mix stereo output, with enough current to drive a
