VelociRAX Rack'em Fast Assembly And Instruction Manual page 13

S
TANDARD

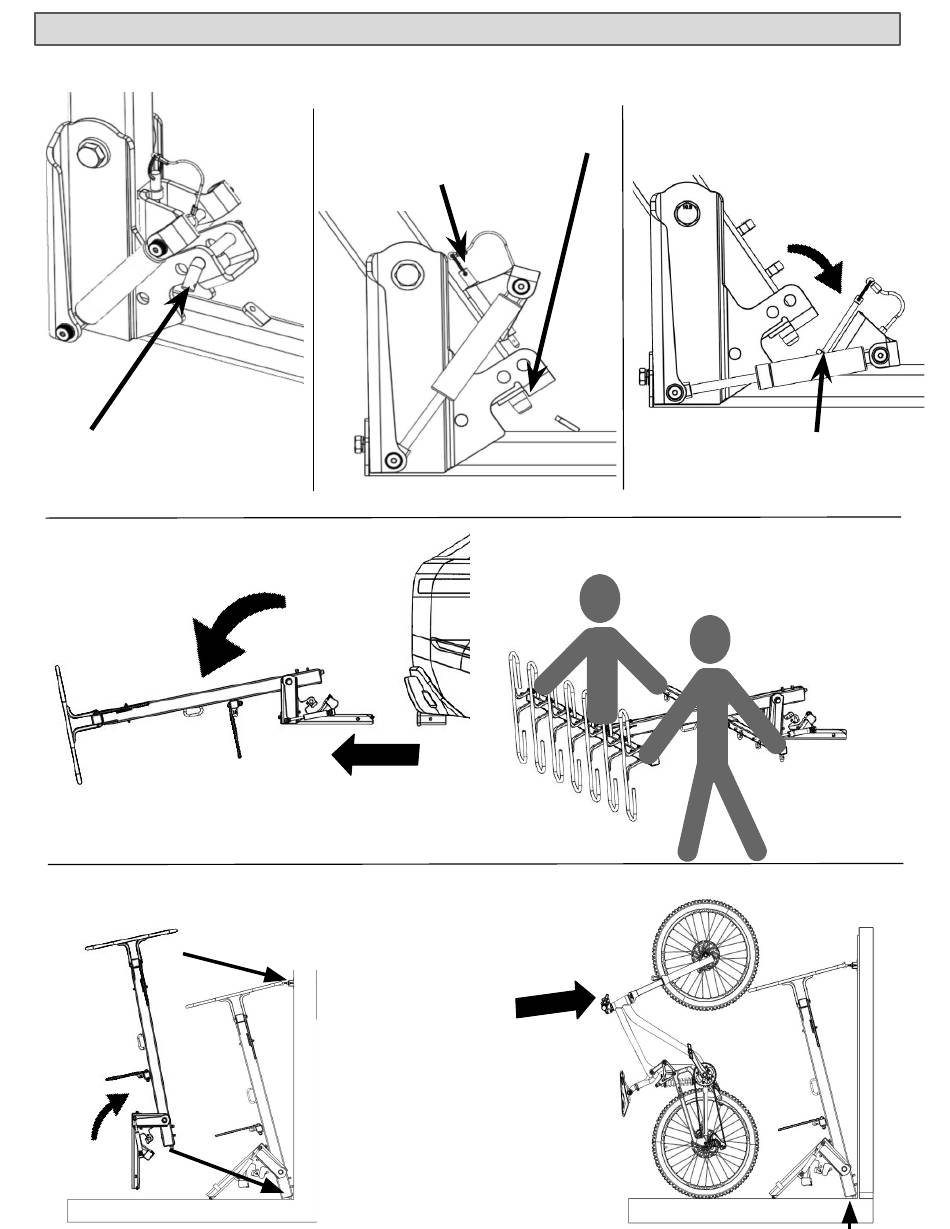

1.
Remove Hitch Pin and Loosen Anti-rattle
a) Remove Hinge Stop Pin
2.
Remove Rack From Vehicle
a) Lower rack
3.
Rotate Hitch and Hook into Garage Bracket and Store Bikes
G M
ARAGE
b) Hinge rack back
NOTE: Rack release pin stops rack
c) Pull Damper Pin
b) Pull out of hitch
a) Roll bike into
Tip: For extra long bikes
raise the garage bracket and
place a wood block under
the post as the rack and bike
weight is transferred to the
floor via the post.
- A U
ODE FTER SE
TIP: 2 person carry
tire basket
O V
N EHICLE
d) Roll Damper plate to
hitch bar
e) Insert damper pin to store
dampers
