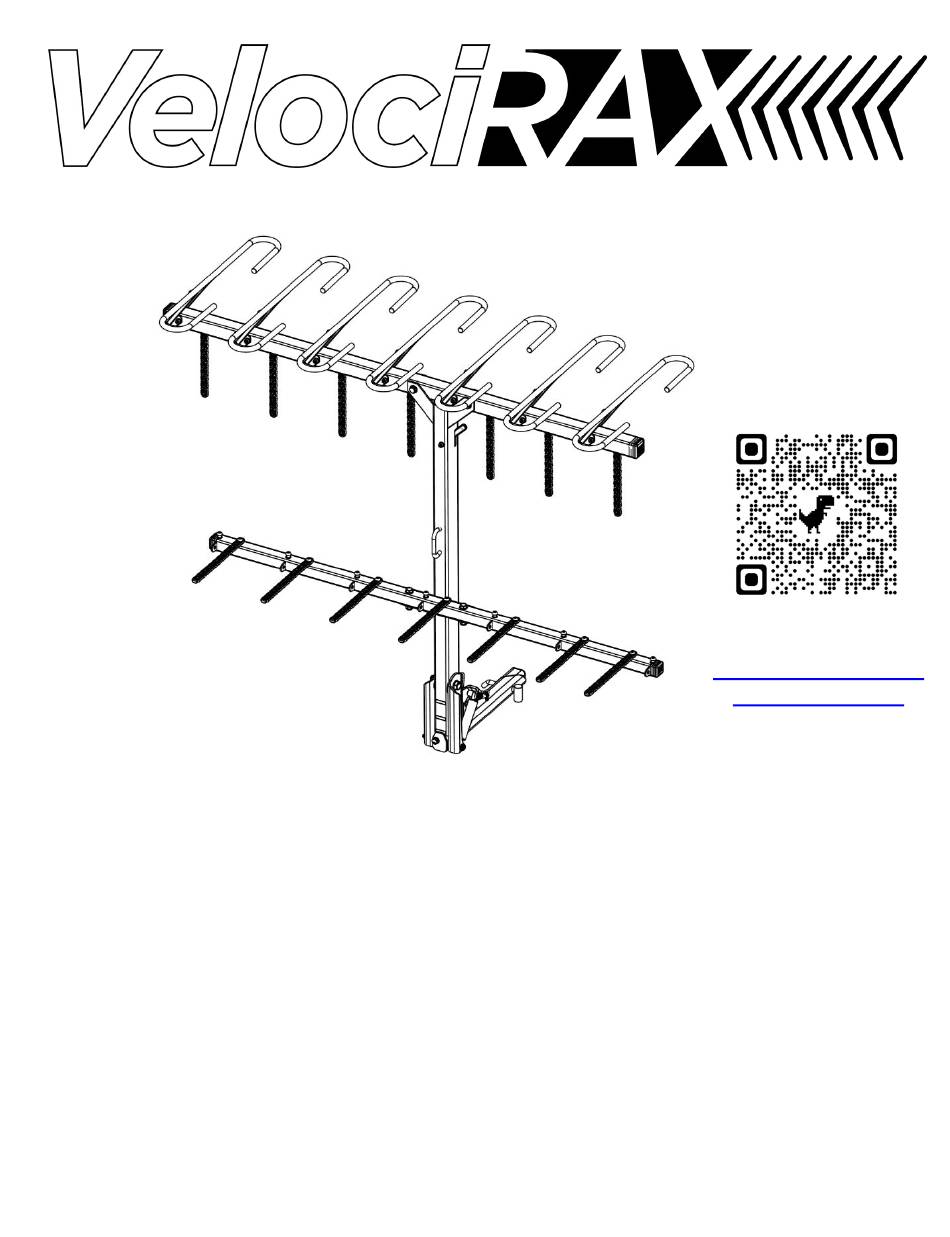

- Page 1 Rack'em Fast Latest instructions and videos: www.velocirax.com/ pages/assembly Assembly and Instruction Manual READ ALL INSTRUCTIONS BEFORE ASSEMBLY OR USE Rack’em on your vehicle AND Rack’em in the garage...
- Page 2 SECURED ANTI-RATTLE WEDGE. ● DO NOT HINGE A LOADED VELOCIRAX WITHOUT HINGE DAMPERS ENGAGED. ● DO NOT DRIVE VEHICLE WHILE THE VELOCIRAX IS IN THE HINGED OR LOADING POSITION. ● DO NOT TAKE VEHICLE THROUGH AUTOMATIC CAR WASH WITH RACK ON VEHICLE ●...
- Page 3 IAGRAM Top crossbar Front tire basket VelociRAX straps Vertical post Tire side stop Strap tie down Rack hinge lever Strap anchor Cable lock loop Bottom crossbar Back tire mount location Locking hitch pin Anti-rattle bolt Hydraulic hinge dampers Hinge Damper pin...
-
Page 4: Package Contents
(2) 2-9/16” (65 mm) bolts (8) washers (4) nylock nuts Garage mount bar Garage mount hardware Box 2. Tire Baskets and VelociRAX Straps Tire Baskets VelociRAX Straps Assembly hardware 3” (75 mm) hex bolts hex bolt washers hex bolt nylock nuts (Quantities depend on model ordered) Box 3. - Page 5 1 X 16MM ● ● 1 X 13mm SSEMBLY NSTRUCTIONS Latest instructions and videos: www.velocirax.com/pages/assembly Insert Hinge Assembly into Hitch and Lock in Place Tighten 17 mm (25 ft-lbs / 34Nm) Move rack while tightening Insert Bolt eliminates motion between receiver and rack...
- Page 6 Install Top Crossbar and Tighten in Place (2) 3-⅛ inch long bolt, washers and nylock nut Tighten 19 & 18 mm (16-18 ft-lbs / 22-24 Nm) Over tightening can deform crossbar Longer Shorter Longer portion of the bar on the driver’s side and tire basket holes should be on the upper half of the bar.
- Page 7 Install Bottom Crossbar and Tighten in Place (2) 2-9/16 inch long bolt, washers and nut Tighten 19 & 18 mm (7 ft-lbs / 9 Nm) Over tightening can deform crossbar Stretch VelociRAX straps onto the Anchors Tie down Anchor...
- Page 8 Activate Hydraulic Hinge Dampers Inactive Damper a) Remove hinge stop pin b) Pull damper pin Active Damper c) Rotate damper bracket, compress into place between tabs d) Insert damper pin Insert the Stop Pin in Desired Position Hinge Stop pin Position A (Allows no hinge motion) Position B (Allows medium hinge motion) Position C (Allows full hinge motion)
- Page 9 Loading Tips: Generally VelociRAX loading is dependent on bike geometry. Load the rack left to right starting with DH -> Enduro -> All mountain-> XC. If bike geometries are the same, load the rack, largest to smallest, left to right, based on wheelbase. If bikes touch, switch load order until clearance is found between all bikes.
- Page 10 Secure All Tire Straps a) Route VelociRAX Straps through tire/wheel. Straps should be stretched tight to fully secure on the tie down. Both tires should always be secured. Front Tire Back Tire Tie down Tie down Tip: Have a second person double check all straps are secure...
- Page 11 ARAGE IRST ETUP Assembly Garage Bracket Wall Bracket (2) 3.5 inch hook washers and nuts Install hooks into holes based on the rack size Tighten 16mm (16 ft-lbs / 21 Nm) Secure Garage Bracket to Wall Tip: Bracket height is the same for both solo mounting...
- Page 12 ARAGE OMPARISON Solo Mode Standard Mode Easier setup, Slightly Harder setup, Harder Bike Roll in/out Easier Bike Roll in/out ARAGE FTER EHICLE Remove Hitch Pin, Loosen Anti-rattle, and Hook on Garage Mount...
- Page 13 TANDARD ARAGE FTER EHICLE Remove Hitch Pin and Loosen Anti-rattle b) Hinge rack back d) Roll Damper plate to NOTE: Rack release pin stops rack hitch bar c) Pull Damper Pin e) Insert damper pin to store a) Remove Hinge Stop Pin dampers Remove Rack From Vehicle TIP: 2 person carry...
- Page 14 AINTENANCE Release lever and Pin Wipe/clean any dirt/grime off the exposed pin. Use compressed air to make sure any debris around the pin is removed. Retract the pin and apply graphite (non liquid lubrication only) to pin and into gap around pin to keep the release lever and pin moving smoothly.
- Page 15 Bike Loading Generally VelociRAX loading is dependent on bike geometry. Load the rack left to right starting with DH -> Enduro -> All mountain-> XC. If bike geometries are the same, load the rack, largest to smallest, left to right, based on wheelbase.
-
Page 16: Warranty Information
Congratulations on your VelociRAX purchase! It will take you and your bikes to epic trails for years to come. For support contact us at: Support@velocirax.com For the latest version of these instructions, along with helpful instructional videos, please go to: https://www.velocirax.com/pages/assembly...
