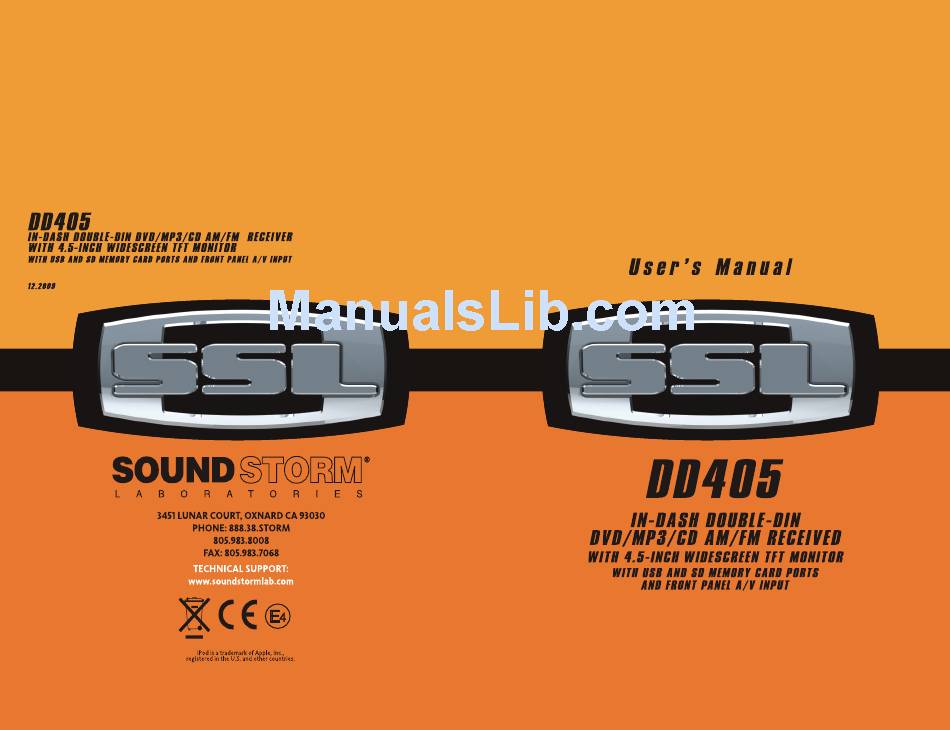

Sound Storm DD405 User Manual

In-dash double din dvd/mp3/cd am/fm receiver with 4.5" widescreen tft monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD405 and is the answer not in the manual?

Questions and answers

Related Manuals for Sound Storm DD405

Summary of Contents for Sound Storm DD405

  • Page 2 4.5" In-Dash Double-DIN DVD/MP3/CD Receiver with USB, SD Memory Card Ports and Front Panel AV Input...

  • Page 3: Handling Compact Discs

    1. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

  • Page 4: Installation

    2. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

  • Page 5: Din Rear-Mount (Method B)

    DIN REAR-MOUNT (METHOD B) Installation using the screw holes on the sides of the unit. Fastening the unit to the factory radio mounting bracket. Factory radio mounting bracket Screw Hook DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). PANEL RELEASE BUTTON Attaching the DCP...

  • Page 6: Electrical Connection

    3. ELECTRICAL CONNECTION a. Make sure your car battery is a 12 volt (6 filler caps) negative ground system (if not, a converter will be necessary). b. Before starting wiring connections, disconnect the power supply by removing the fuse from the fuse box.
  • Page 7 PANEL MUTE POWER RELEASE BUTTON BUTTON BUTTON ENCODER FUNCTION VOLUME SELECT KNOB BUTTON INFRARED REMOTE SENSOR DSP/ AMS/ LEFT/ PLAY/PAUSE RIGHT BUTTON BUTTON MODE BUTTON DISPLAY BUTTON E - 5 BAND/ LOUDNESS/ APL/NTSC BUTTON SCAN BUTTON BUTTON EJECT BUTTON TUNING / FM MONO / SEEK STEREO...
  • Page 8 E - 6...

  • Page 9: Basic Operation

    5. BASIC OPERATION PANEL RELEASE BUTTON Press this button to remove the control panel. POWER BUTTON Press power button to turn on/off the unit. DISPLAY BUTTON( DISP ) Press this button briefly, the LCD will display the clock for about 3 seconds, MUTE BUTTON ( MUTE) Press MUTE button to mute the sound quickly.

  • Page 10: System Setup

    6. SYSTEM SETUP Basic operation of menu setup 1. General setup menu " In main menu,touch 2.Choose menu setup * Touch cursor and choose setup menu. 3.Enter or exit menu * Touch in the menu and enter into * Touch in the SETTINGS menu to exit current setup menu.

  • Page 11: Radio Operation

    7 . RADIO OPERATION RADIO FUNCTION KEY Touch the icon in any mode to go back to the main menu and select"RADIO"to enter the radio mode. CH-00 87.50M Serial number Name Information CLOCK Radio MUTE TFT OFF LOUD MONO SCAN P1/2- P2/2 87.50MHZ 90.10MHZ...
  • Page 12 FM MONO / STEREO BUTTON (MONO) Use this control to select stereo or mono reception for FM radio stations. You can sometimes improve reception of distant stations by selecting mono mode. LOCAL / DX BUTTON (LOC) This control can be used to change between Local and Distant (-DX) tuning mode. Local mode improves reception in some areas where the signal is too strong.

  • Page 13: Name Function

    8. DISC/MULTI-MEDIA FILES OPERATIONS AUDIO MENU TITLE NAME FUNCTION Menu Information DESCRIPTION CURRENT DIRECTORY NAME DISPLAY DISC INFO RMATION BACK TO MAIN MENU MOVE CURSOR DIRECTION CONFIRM SELECTED INFORMATION PAUSE/PLAY REPEAT. REPI PREVIOUS MUSIC/ NEXT MUSIC BACKWARD/ FORWARD STOP BUTTON THIRD TIME TO MAKE THE OSD DISAPPEAR.
  • Page 14 MULTI-MEDIA FILE OR FOLDER SEARCHING CD SLOT Insert the disc into CD slot. The CD will begin to play. EJECT BUTTON Press this button to eject the CD from the unit. The receiver will switches to radio mode automatically. PLAY/PAUSE BUTTON ( Press this button briefly to pause disc play, press again to resume play.
  • Page 15 GO TO BUTTON (GO TO) Using GO TO feature to select track number or specific time. A. Press GO TO button,the screen will display the following message: T R K 0 0 1 / 0 2 1 B. Press Arrow Left/Right buttons to highlight the track number or the time option. C.
  • Page 16 9. PLAY MULTI-MEDIA FILES OPERATION Place a disc into the player, and the player will automatically search the directories saved files. After searching, it will auto go to the first directory saved files (to the disc containing both Music and Photo files;...
  • Page 17 10. MMC/SD CARD & USB DEVICE OPERATIONS START THE USB DEVICE MODE 1.The USB mini socket is accessible as indicated in picture 1.(P .1) 2.Plug in the USB drive / device completely as indicated in picture 2(P .2) and display will show “USB” to indicate that the USB drive / device is being plugged in correctly &...
  • Page 18 START THE SD/MMC MODE P .4 1.Press panel release button to release the front panel.(P .4) 2.The SD/MMC card slot is located on top of the front panel as indicated in (P .5). 3. Insert the SD/MMC card into the card slot in the correct direction until a “CLICK”...
  • Page 19 11. VIDEO DISC OPERATIONS DVD TT 01/05 CH 011/018 AUDIO MENU Name Function Information bar AUDIO TITLE 01:11:56 TITLE Description DISPLAY DISC INFO. ANGLE BACK TO MAIN MENU MOVE CURSOR UP/DOWN/LEFT/RIGHT CONFIRM SELECTED INFORMATION PAUSE/PLAY BACK TO MAIN MENU OF DISC PREVIOUS MUSIC/ NEXT MUSIC BACKWARD/...

  • Page 20: Play Button

    PLAY BUTTON ( Press this button briefly to pause disc play, press again to resume play. STOP BUTTON( Stop the current disc playback. Briefly press the STOP button to stop the unit playback,when the PLAY button is pressed,normal playback will continue. Press STOP two times consecutively to enter the clear stop mode.

  • Page 21: Numeric Buttons

    NUMERIC BUTTONS Use when playback disc which need numeric Selection or Input, like in the Goto function, etc. PAL/NTSC BUTTON (P/N) In order to achieve the best image display effect, you must adjust the player signal system to match your TV set. 3 types of TV color signal system are available: NTSC, PAL60 or Automatic mode.
  • Page 22 PBC FUNCTION BUTTON (PBC) Press the “PBC” button to turn on PBC function. The unit will show the song list on the screen of the monitor after the WARNING from the Video CD. Then you can choose the song by pressing the desired number key. Press PBC key return to manual of Video CD, NOTE:This only operates with the PBC function on VCD.

  • Page 23: Osd Button

    SUBTITLE BUTTON (SUBTITLE) 1. Press SUBTITLE button to bring up the subtitle information which will be shown on the top right corner of the screen. 2. Each time you press SUBTITLE, you can switch to another subtitle available in the disc. NOTE:This only operate if the disc with the SUB TITLE function.

  • Page 24: Setup Menu Operation

    12. SET UP MENU OPERATION General Steps of Setup Menu 1) Press the Setup button, the main setup menu appears. When the main menu displayed, the Video will auto pause. 2) Press the Left and Right arrow buttons to highlight the icon of the desired page, then press the Down or Right arrow button to activate that page;...

  • Page 25: Screen Saver

    4) Press the Arrow buttons to highlight the Exit Setup option, then press Enter or Setup again to exit Setup Menu. NOTE: When setup, the pressing setup buttons will turn off the setup menu, while the choices that have been changed will be saved. Setup Items Introduction 1) SYSTEM SETUP The system setup options are illustrated below:...

  • Page 26: Language Setup

    TV TYPE 16 : 9 (Wide Screen): Choose this setting if your screen TV. If you choose this setting and you don't have a wide screen TV, the images on the screen may appear distorted due to vertical compression. 4 : 3 LB (Letter Box): Choosing this setting if your ratio TV.
  • Page 27 OSD LANGUAGE Highlight the OSD LANGUAGE option, and press the Arrow buttons to choose the OSD language you prefer. Press Enter to confirm, and it will display OSD in that language. AUDIO LANG Highlight the AUDIO LANG option, and press the Arrow buttons to choose the audio language you prefer.

  • Page 28: Specifications

    13. SPECIFICATIONS CD PLAYER System Usable disc Sampling frequency No of quantization bits Frequency Number of channels S/N Ration RADIO SECTION Frequency Range Intermediate Frequency Usable Sensitivity Stereo Separation S/N Ratio AM (MW) Frequency Range Intermediate Frequency Usable Sensitivity S/N Ratio GENERAL Power Supply Polarity...
