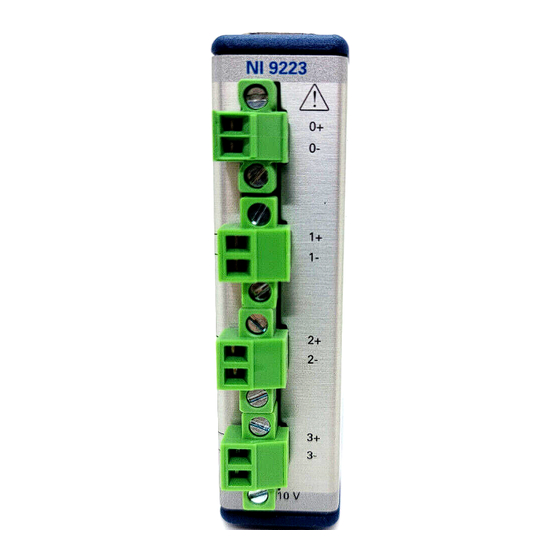

National Instruments NI 9223 Calibration Procedure
  1. Manuals
  2. Brands
  3. National Instruments Manuals
  4. Measuring Instruments
  5. NI 9223
  6. Calibration procedure

National Instruments NI 9223 Calibration Procedure

Hide thumbs Also See for NI 9223:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
CALIBRATION PROCEDURE
NI 9222/9223
This document contains the verification and adjustment procedures for the National
Instruments 9222 and National Instruments 9223. For more information on calibration, visit
ni.com/calibration
NI 9222/9223 with BNC are referred to inclusively as the NI 9222/9223.
Contents
Software.................................................................................................................................... 1
Documentation.......................................................................................................................... 2
Test Equipment......................................................................................................................... 2
Test Conditions......................................................................................................................... 3
Initial Setup............................................................................................................................... 3
Verification ............................................................................................................................... 4
Accuracy Verification....................................................................................................... 4
Adjustment................................................................................................................................ 6
Accuracy Adjustment ....................................................................................................... 6
EEPROM Update ..................................................................................................................... 7
Reverification ........................................................................................................................... 7
Accuracy Under Calibration Conditions .................................................................................. 7
Worldwide Support and Services ............................................................................................. 8
Software
Calibrating the NI 9222/9223 with screw terminal requires the installation of NI-DAQmx 9.2 or
later on the calibration system. Calibrating the NI 9222/9223 with BNC requires the installation
of NI-DAQmx 9.9 or later. You can download NI-DAQmx from
NI-DAQmx supports LabVIEW, LabWindows
When you install NI-DAQmx, you only need to install support for the application software that
you intend to use.
Français
Deutsch
ni.com/manuals
. In this document, the NI 9222/9223 with screw terminal and
ni.com/downloads
™
™
/CVI
, C/C++, C#, and Visual Basic .NET.
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NI 9223 and is the answer not in the manual?

Questions and answers

Related Manuals for National Instruments NI 9223

Summary of Contents for National Instruments NI 9223

  • Page 1 Deutsch ni.com/manuals This document contains the verification and adjustment procedures for the National Instruments 9222 and National Instruments 9223. For more information on calibration, visit . In this document, the NI 9222/9223 with screw terminal and ni.com/calibration NI 9222/9223 with BNC are referred to inclusively as the NI 9222/9223.
  • Page 2 Documentation Consult the following documents for information about the NI 9222/9223, NI-DAQmx, and your application software. All documents are available on and help files install with the ni.com software. NI cDAQ-9174/9178 USB Chassis Quick Start NI-DAQmx installation and hardware setup NI 9222/9223 Operating Instructions and Specifications NI 9222/9223 specific information, specifications, and calibration interval NI-DAQmx Readme...
  • Page 3 Connect the power source to the NI cDAQ-9178 chassis. Launch Measurement & Automation Explorer (MAX). Right-click the device name and select Self-Test to ensure that the module is working properly. NI 9222/9223 Calibration Procedure | © National Instruments | 3...
  • Page 4 Table 3. Timing Configuration Module Sample Mode Samples per Channel Rate NI 9222 Finite Sample 50 k 500 k NI 9223 Finite Sample 100 k Start the task. Average the readings. Clear the task. 4 | ni.com | NI 9222/9223 Calibration Procedure...
  • Page 5 If the calibrator outputs are truly floating, the negative output must be Note connected to a quiet earth ground as well as AI- to give the entire system a ground reference. NI 9222/9223 Calibration Procedure | © National Instruments | 5...
  • Page 6 Adjust the NI 9222/9223. Initialize a calibration session on the NI 9222/9223. The default password is Input the external temperature in degrees Celsius. Call the NI 9222/9223 get C Series adjustment points function to obtain an array of recommended calibration voltages for the NI 9222/9223. Set the calibrator to a reference value determined by the array of recommended calibration voltages.
  • Page 7 NI. National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world. For telephone support in the United States, create your service request at or dial ni.com/support...
  • Page 8 NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS.
