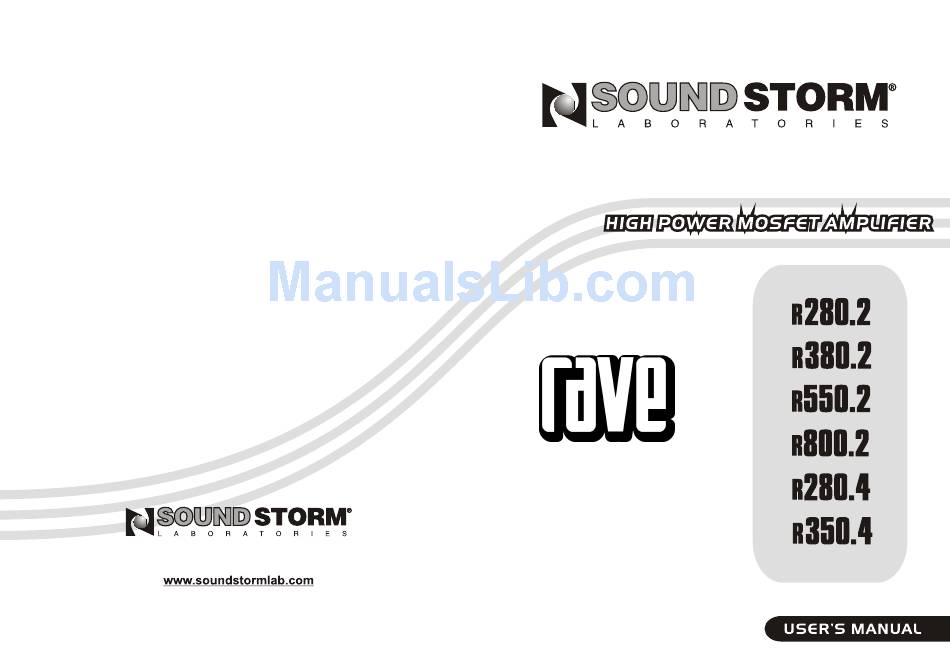

- Page 1 A M P L I F I E R S 3451 LUNAR COURT OXNARD, CA. 93030 Phone: 805.983.8008 NTL: 888.38.STORM Fax: 805.983.7068 Technical questions: ssltech@soundstormlab.com...
- Page 2 Congratulations! Specifications About Built-in Crossover A M P L I F I E R S Stereo Pre-Amp Output About Protection Circuitry Amplifiers and 2 Ohm Operation Electrical Wiring Remote Subwoofer Level Control Mounting The Amplifier High Level Input Wiring Low Level Input Wiring Multiple Amplifiers System Two Channel Speaker Wiring Bridged Speaker Wiring with a Two Channel Amplifier...
- Page 3 Two Channel Amplifiers: R280.2, R380.2, R550.2, R800.2 Two Channel Bridgeable Amplifier Heavy Duty Aluminum Alloy Heatsink Class A-B Operation Stereo Pre-Amp Output Continuously Variable Low Pass Crossover (40 Hz to 150 Hz) Bass Boost (0 to +18dB) Remote Subwoofer Level Control...
- Page 4 Electrical Wiring All SOUND STORM RAVE series power amplifiers are equipped with easy top access screw terminals. These terminals are 14K Gold-Plated in order to ensure excellent electrical contact and to resist corrosion. When making electrical connections to the amplifier, please observe the following: Use at least 8 gauge or heavier wire for power and ground connections.
- Page 5 Low Level Input Wiring Two Channel Amplifiers: R280.2, R380.2, R550.2, R800.2 Amplifiers From OUTPUT of HEAD UNIT Four Channel Amplifiers: R280.4, R350.4 Amplifiers REAR FRONT INPUTS INPUTS - 8 - System With Multiple Amplifiers HEAD UNIT - 9 -...
- Page 6 Two Channel Speaker Wiring Two Channel Amplifiers: R280.2, R380.2, R550.2, R800.2 Amplifiers LEFT SPEAKER RIGHT SPEAKER Bridged Speaker Wiring Two Channel Amplifiers: R280.2, R380.2, R550.2, R800.2 Amplifiers SPEAKER IMPEDANCE 4 - 8 OHMS! Connect the NEGATIVE SPEAKER TERMINAL to the LEFT CHANNEL NEGATIVE AMPLIFIER TERMINAL.
- Page 7 Four Channel Speaker Wiring Four Channel Amplifiers: R280.4, R350.4 Amplifiers CH 2 CH 3 CH 4 CH 1 SPEAKER SPEAKER SPEAKER SPEAKER Bridged Speaker Wiring Four Channel Amplifiers: R280.4, R350.4 Amplifiers SUBWOOFER SPEAKER IMPEDANCE 4 - 8 OHMS! SUBWOOFER SPEAKER SPEAKER IMPEDANCE 4 - 8 OHMS! - 12 -...
-
Page 8: Troubleshooting
Before you drill or cut any holes, investigate your car's layout very carefully. Take care when you work near the gas tank, fuel lines, hydraulic lines and electrical wiring. Do not operate the amplifier when it is not mounted. Attach all audio system components securely within the automobile to prevent damage, especially in case of an accident.
