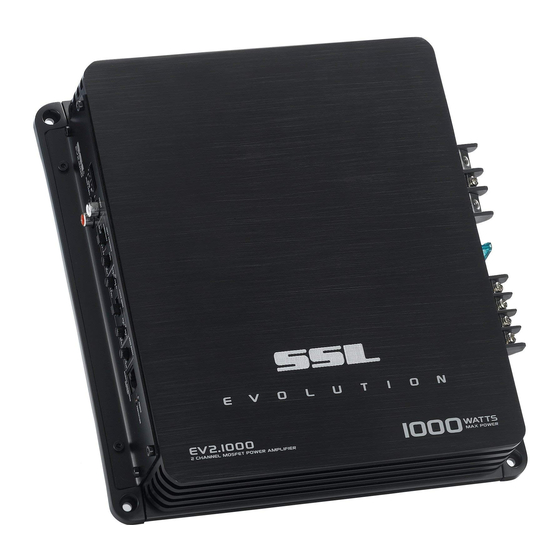

EV2.1000
EV2.1200
EV2.1600
EV2.2000
EV2.2600
EV2.3000
EV4.1600
EV4.2000
EV4.2400
EV4.2800
EV1500M
EV2500M
Congratulations on your
purchase of a Sound Storm
Laboratories EVOLUTION
Amplifier.
It has been designed, engineered
and manufactured to bring you
the highest level of performance
and quality, and will afford you
years of listening pleasure.
Thank you for making Sound
Storm your choice for car audio
entertainment!
Two Channel
MOSFET Car Audio
Amplifiers
Four Channel
MOSFET Car Audio
Amplifiers
MonoBlock
MOSFET Car Audio
Amplifiers
U S E R ' S M A N U A L
CONTENTS
page
2
Introduction
2
What is included?
3
Features
3
About 2 Ohm operation
4
General precautions
4
Installation precautions
4
Mounting the amplifier
5
Connecting the amplifier
6
Low level input wiring
9
High level input wiring
10 2CH Power and Speaker wiring
2CH and Bridged Modes
11 2CH Power and Speaker wiring
TriMode
12 4CH Power and Speaker wiring
4CH and Bridged Modes
13 4CH Power and Speaker wiring
TriMode
14 MonoBlock Power
15 Troubleshooting
16 Specifications
EVOLUTION MOSFET Amplifier User's Manual - page 1
Speaker wiring
and
Advertisement
Table of Contents
Related Manuals for Boss Evolution EV1500M
Summary of Contents for Boss Evolution EV1500M
- Page 1 EV4.2800 EV1500M MonoBlock MOSFET Car Audio EV2500M Amplifiers Congratulations on your purchase of a Sound Storm Laboratories EVOLUTION Amplifier. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will afford you years of listening pleasure.
-
Page 2: What Is Included
Introduction With the Sound Storm Laboratories EVOLUTION MOSFET amplifier series, we are introducing eleven new amplifiers, all designed in the USA. This new series includes a two monoblock amps, six 2-channel, and four 4-channel amplifiers. All EVOLUTION models feature variable low pass and high pass crossovers and variable input gain controls. -
Page 3: About 2 Ohm Operation
Features Your new EVOLUTION amplifier features the following: • Class A-B operation • Bridgeable outputs (except EV1500M and EV2500M) • Tri-Mode capable (except EV1500M and EV2500M) • MOSFET PWM (Pulse Width Modulated) Power Supply • 2 Ohm stable stereo operation with output power increase •... -
Page 4: General Precautions
General precautions Before installing and using your new Sound Storm amplifier, please become familiar with all the infor- mation contained in this manual. Please keep this manual in a safe place for future reference. • Do not open or attempt to repair this unit yourself. -
Page 5: Connecting The Amplifier
Connecting the amplifier Before doing any wiring, look through this manual and identify the diagrams to follow for power, input and speaker connections for your particular installation. Be sure you understand all the connections before you proceed. 1. Connect the power ground terminal to the closest point on the chassis of the car. -
Page 6: Low Level Input Wiring
Low Level Input Wiring Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance. NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time! 2-Channel Amplifiers EV2.1000, EV2.1200, EV2.1600, EV2.2000, EV2.2600, and EV2.3000... - Page 7 Low Level Input Wiring Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance. NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time! MonoBlock Amplifier EV1500M HIGH INPUTS...
-
Page 8: High Level Input Wiring
High Level Input Wiring The high level input(s) should only be used when your head unit lacks RCA outputs. If the RCA outputs are not present, connect the speaker outputs from the receiver to the high level input connector of the amplifier. Be sure to observe polarity to avoid audio phase problems. - Page 9 High Level Input Wiring The high level input(s) should only be used when your head unit lacks RCA outputs. If the RCA outputs are not present, connect the speaker outputs from the receiver to the high level input connector of the amplifier. Be sure to observe polarity to avoid audio phase problems.
-
Page 10: Power And Speaker Wiring
Power and Speaker Wiring 2 Channel and Bridged Modes Channel Mode GROUND REMOTE POWER CONNECTIONS E V O L U T I O N Chassis ground point to REMOTE TURN-ON terminal of head unit FUSE Battery Bridged SPEAKER Mode IMPEDANCE 4-8 OHMS GROUND REMOTE... - Page 11 Power and Speaker Wiring Tri-Mode Tri-mode operation allows you to connect this amplifier to a pair of main speakers plus a subwoofer on one pair of output channels. The main speakers will operate in STEREO while the subwoofer simultaneously operates in MONO. To set up the amplifier to run in this mode, put the crossover switches in the FULL position.
-
Page 12: Bridged Mode
Power and Speaker Wiring 4 Channel and Bridged Modes Four Channel IMPEDANCE Mode GROUND GROUND REMOTE REMOTE POWER POWER CONNECTIONS CONNECTIONS E V O L U T I O N E V O L U T I O N Chassis ground point to REMOTE... - Page 13 Power and Speaker Wiring Tri-Mode Tri-mode operation allows you to connect this amplifier to a pair of main speakers plus a subwoofer on one pair of output channels. The main speakers will operate in STEREO while the subwoofer simultaneously operates in MONO. To set up the amplifier to run in this mode, put the crossover switches in the FULL position.
- Page 14 Power and Speaker Wiring MonoBlock Mode Speaker GROUND REMOTE POWER CONNECTIONS E V O L U T I O N Chassis ground point to REMOTE TURN-ON terminal of head unit FUSE Battery EVOLUTION MOSFET Amplifier User’s Manual - page 14 MonoBlock Amplifiers EV1500M and EV2500M SPEAKER...
-
Page 15: Troubleshooting
Troubleshooting If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagram on the previous pages. If problems persist, read the following troubleshooting tips which may help eliminate the problems. SYMPTOM POSSIBLE REMEDY Amplifier will not Check to make sure you have a good ground connection. -
Page 16: Specifications
Specifications 2-Channel MOSFET Amplifiers MODEL EV2.1000 MAX POWER 500W x 2 into 2 Ohms RMS POWER 200W X 2 into 4 Ohms BRIDGED POWER 1000W X 1 into 4 Ohms Min. speaker 2 Ohm Stereo impedance 4 Ohm Mono Bridged 0.01% Frequency response 9Hz-50kHz...
