Sealey 2201HL Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear safety
instructions footwear
1. SAFETY
Ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement
9
of damaged parts.
Use genuine parts only. The use of unauthorised parts may be dangerous and will invalidate the warranty.
9
Locate the jack in a suitable, well lit, work area.
9
Keep work area clean and tidy and free from unrelated materials.
9
Use jack on a level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place suitable wheel chocks under wheels of the vehicle.
9
Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or "Park" if
9
automatic).
Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for
9
vehicle tilting.
Ensure there are no passengers in the vehicle.
9
Ensure all non-essential persons keep a safe distance whilst the jack is in use.
9
Only place jack saddle under those lifting points recommended by the vehicle manufacturer (see vehicle
9
handbook).
Check the lifting point is stable and centred on the jack saddle.
9
Ensure the jack wheels are free to move and that there are no obstructions.
9
Use suitable capacity axle stands under the vehicle before proceeding with any task.
9
Ensure there are no persons or obstructions beneath the vehicle before lowering.
9
Use a qualified person to maintain or repair the jack hydraulic system.
9
When not in use store jack, fully lowered, in a safe, dry, childproof area.
9
DANGER: Use the jack for lifting only.
8
DO NOT use for supporting the lifted load.
8
DO NOT operate the jack if damaged.
8
DO NOT allow untrained persons to operate the jack.
8
DO NOT exceed the rated capacity of the jack.
8
DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
8
DO NOT jack the vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8
DO NOT work under the vehicle until axle stands have been correctly positioned.
8
DO NOT use the jack for purposes other than that for which it is intended.
8
DO NOT top up the hydraulic system with brake fluid. Use hydraulic jack oil only.
8
DO NOT adjust the safety overload valve.
8
2. INTRODUCTION
High lift jack arm ideal when lifting a light commercial vehicle. Fitted with quick lift foot pedal. Heavy-duty long steel chassis provides easy
access to deep set jacking points. Fitted with one-piece hydraulic unit with built-in safety overload protection.
3. SPECIFICATION
Model No:................................................................. 2201HL
Capacity: .................................................................... 2000kg
Length: ..................................................................... 1350mm
Maximum Saddle Height: ........................................... 800mm
Minimum Saddle Height: ............................................ 140mm
4. ASSEMBLY
4.1. Loosen locating bolt at the side of the handle base. Push handle into socket and re-tighten locating bolt, ensuring that it fits correctly in the
groove.
© Jack Sealey Limited

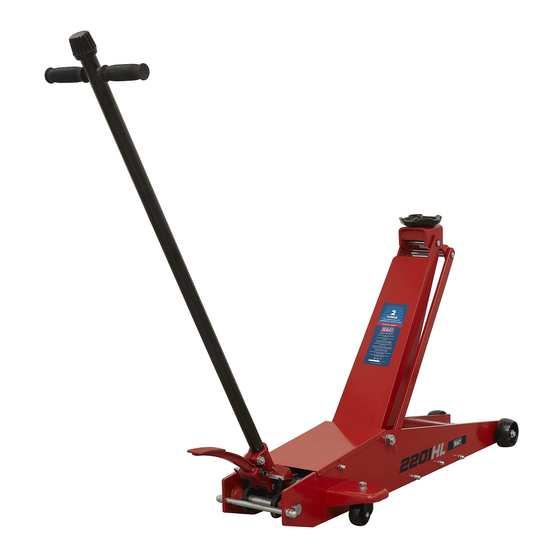

2TONNE LONG REACH HIGH LIFT
COMMERCIAL TROLLEY JACK
2201HL
MODEL NO:
Original Language Version
TJL3
Apply
h ndbr ke
1 3 5
2 4 R
Use on h rd level floor
Chock
wheels
j ck c p city
Close
Lower
OR
Lift & twist
to lower
Use suit ble xle st nds
X2
w w w . s e l e y. c o . u k
2201HL Issue 1 08/06/22
Never
exceed
R ise
R ise
