User's Manual
Before operating the monitor, please read this manual thoroughly. This manual should be retained for
future reference.
FCC Class B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
HG244PJB
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

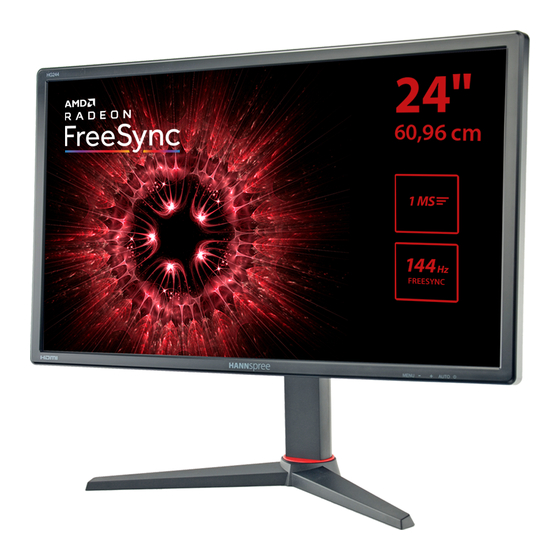

LCD Monitor
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Parts 15 of the FCC Rule. Operation is subject to the following two
conditions﹕ (1) this device may not cause harmful interference﹔ and (2) this device must accept any
interference received, including interference that may cause undesired operations.
This device complies with requirement of EMC directive 2014/30/EU with regard to
Electromagnetic Compatibility, and 2014/35/EU and 93/68/EEC with regard to Low Voltage
directive.
Trademark Notice:
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
(HSG1380)
Hannspree products incorporate High-Definition Multimedia Interface
TM
(HDMI
) technology.
2
OSD[V6.1]
OSD[V6.0]
Advertisement
Table of Contents
Related Manuals for HANNspree HG244PJB
Summary of Contents for HANNspree HG244PJB
- Page 1 This device complies with requirement of EMC directive 2014/30/EU with regard to Electromagnetic Compatibility, and 2014/35/EU and 93/68/EEC with regard to Low Voltage directive. Trademark Notice: Hannspree products incorporate High-Definition Multimedia Interface (HDMI ) technology. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
- Page 2 This device complies with requirement of EMC directive 2014/30/EU with regard to Electromagnetic Compatibility, and 2014/35/EU and 93/68/EEC with regard to Low Voltage directive. Trademark Notice: Hannspree products incorporate High-Definition Multimedia Interface (HDMI ) technology. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
- Page 3 User’s Manual RECYCLING INFORMATION We, the HANNspree care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels.
-
Page 4: Table Of Contents
User’s Manual TABLE OF CONTENTS SAFETY NOTICE ..................... 5 PRECAUTIONS....................5 SPECIAL NOTES ON LCD MONITORS ............6 BEFORE YOU OPERATE THE MONITOR ..........7 FEATURES......................7 CHECKING THE CONTENTS OF THE PACKAGE ........7 ... -
Page 5: Safety Notice
User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. -
Page 6: Special Notes On Lcd Monitors
User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the • Power Switch and then turn it on again to make sure the flicker disappears. -
Page 7: Before You Operate The Monitor
User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 60,97cm / 24.0” Wide Screen TFT Color LCD Monitor • Crisp, Clear Display for Windows • ® EPA ENERGY STAR 【Optional, depend on selected model】 • GP Green Product • Ergonomic Design •... -
Page 8: Installation Instructions
User’s Manual INSTALLATION INSTRUCTIONS INSTALL REMOVE Figure.1. Installing and Removing the Base INSTALLATION: 1. Align the monitor with the opening in the base. 2. Note that the longer section of the base points forward. 3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly. -
Page 9: Adjusting Display Height
User’s Manual ADJUSTING DISPLAY HEIGHT 1. In order to achieve the best visual effects, it is recommended that the display be adjusted so that the entire screen is facing you before you adjust the display height according to your personal preference. -
Page 10: Setting The Monitor On The Wall
*Installing the LCD Monitor requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. HANNspree bears no responsibility for improper mounting or mounting that results in accident or injury. You can ask a... -
Page 11: Making Connections
User’s Manual MAKING CONNECTIONS CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the DP cable to the back of the monitor and connect the other end to the computer’s DP port. 2. -
Page 12: Adjusting The Viewing Angle
User’s Manual ADJUSTING THE VIEWING ANGLE • For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. • Hold the stand so you do not topple the monitor when you change the monitor’s angle. •... -
Page 13: Operating Instructions
User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. -
Page 14: Front Panel Control
User’s Manual FRONT PANEL CONTROL • Power Button: Press this button to switch ON/OFF of monitor’s power. • Power Indicator: Green — Power On mode. Green flicker — Power Saving mode. • MENU / Enter: Turn the OSD menu on/off or enter to the previous menu. Adjust ▼◄: •... -
Page 15: How To Adjust A Settings
User’s Manual HOW TO ADJUST A SETTINGS BRIGHTNESS/ CONTRAST Adjust the brightness value of the display according to your BRIGHTNESS preference. Select「BRIGHTNESS」option to adjust the brightness value. Adjust the contrast value of the display according to your CONTRAST preference. Select「CONTRAST」option to adjust the contrast value. - Page 16 User’s Manual Select the 「 SHARPNESS」 option to adjust the sharpness of the SHARPNESS display. Set the value from 0 to 4. Choose「VIDEO MODE」or 「PC MODE」for video transmission. While using HDMI or HDMI to DVI ports for VIDEO MODE video transmission, the video will appear cut off slightly around the edge;...
- Page 17 User’s Manual Select the 「Factory reset」option to reset to the monitor’s default setting. This will erase the current settings. Enter the FACTORY RESET option and select On or Off. Display Horizontal frequency/Vertical frequency/Resolution INFORMATION information.
-
Page 18: Plug And Play
User’s Manual PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 19: Technical Support (Faq)
User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION POSSIBLE SOLUTION *Check if the Power Switch is in the ON position. Power LED is not on *Power Cord should be connected. *Check if the PC system is Plug & Play compatible. *Check if the Video Card is Plug &... - Page 20 60,97cm/ 24” (16:9) 62,5cm / 24.6 (16:9) 68,6cm / 27 ” (16:9) And if you still have display problem after doing the above procedure, please visit HANNspree support and Service Website: http://www.hannspree.eu/en/monitors Windows is a registered trademark of Microsoft Corporation.
-
Page 21: Error Message & Possible Solutions
User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED: 1. Check that the signal-cable is properly connected, if the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. - Page 22 User’s Manual 1440×900 @75Hz 70.635 74.984 1400×1050 @60Hz 64.744 59.948 1600×900 @60Hz 55.540 59.978 1680×1050 @60Hz 65.290 59.954 1920×1080 @60Hz 67.500 60.000 1920×1080@120Hz 137.28 120.00 1920×1080@144Hz 166.59 143.98 (Video mode) MODE RESOLUTION 640×480p @60Hz 720×480p @60Hz 720×576p @ 50Hz 1280×720p @50Hz 1280×720p @60Hz 1920×1080p @24Hz 1920×1080p @50Hz...
-
Page 23: Appendix
3.33 kg (7.34 lb) *** The above specification is subject to actual product specification and is subject to change without prior notice. NOTES: The Maximum Resolution will depends on the display card supporting. Related issue can refer to http://www.hannspree.eu/en/monitors. FAQ section.
