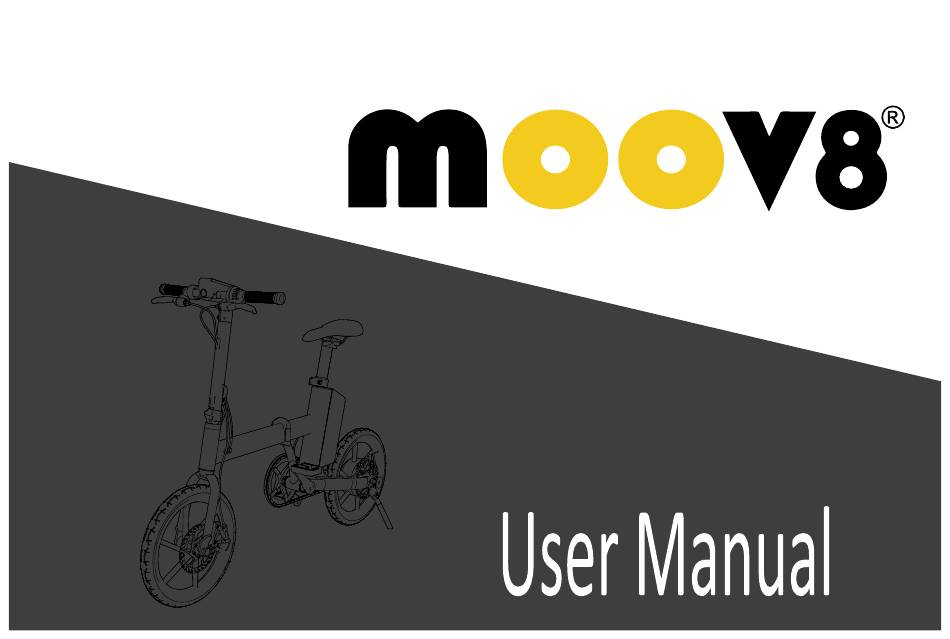

- Page 1 IVELO Model Health, Mobility, Adventure...
- Page 2 Dear Esteemed Buyer, Thanks for purchasing the Moov8 - M1. This bike is an electric pedal assist bike (EPAB or Pedalecs). It is equipped with pedals and a power-assisted electric motor, which can be driven by both manpower and with the assistance of electric power.
-
Page 3: Table Of Contents
Manual Guide Packing List M1 Diagram Assembly Remove/Install Ba�ery Charging Display Rou�ne Maintenance Ba�ery charging and maintenance Warning Specifica�on Warranty Product Statement & Disclaimer... -
Page 4: Packing List
Packing list Moov8 M1 User Manual User Manual Handle Ba�ery Pack Charger Accesssories： Mudguard *2 When unboxing your E-bike, please verify that the above items are included in the box. If you are missing any components, please contact your dealer/retailer. A�er verifying that all components are present and in good condi�on, you can assemble your new E-bike. -
Page 5: M1 Diagram
M1 Diagram Dashboard Warning light Brake Lever Headlight Bell Saddle Front Pole(stem) Seatpost Front brake line Tube clip Folding Part Ba�ery pack Power button Front Wheel Indicator & Taillight Charging port Magne�c chuck Brushless Motor Front disc brake rotor Pedal Rear Wheel Ba�ery Lock... -
Page 6: Assembly
Assembly 1.Open the magne�c chuck and unfold it. 2.Fasten the folding clamp. 3.Insert the handle bar into the frame, �ghten the posi�oning screw and pull up the handle bar. 4.Fasten the clamp. Readjust the handle posi�on if necessary. 5.Insert seatpost into the tube and adjust the saddle height. 6.Fasten the tube clip, install the pedals then long press the Check that safety line on the seat post to ensure it is within the limit. -
Page 7: Remove/Install Ba�Ery
Remove/Install the ba�ery Remove the ba�ery: Battery holding slot Insert the key, turn the key counter clockwise to unlock the ba�ery. Hold the bo�om of the ba�ery and push the ba�ery up, and then pull back to remove the ba�ery. Fixed hook Power connector Install the ba�ery:... -
Page 8: Charging
- Do not connect the charger if the charging port or charger cable is wet. - The M1 is fully charged when the LED light on the charger changes from red (charging) to green (charged). Note: When fully charged, the LED light on the ba�ery will be red. -
Page 9: Display
Err 07: Over-temperature For Err 07, stop riding for a while. Err 08: Ba�ery low voltage For Err 08, try to charge the M1. Err 10: Signal cable fault For Err 10, try to reconnect the wires inside the handle and stem. -
Page 10: Rou�Ne Maintenance
Rou�ne Maintenance Service Checklist Frequency Task Frequency Component Lubricant How to Lubricate Be sure ba�eries are fully charged Chain Derailleur Chain Lube or Light Oil Brush on or Squirt Check �re pressure Before every ride Pulleys Derailleurs Chain Lube or Light Oil Brush on or Squirt Check brake opera�on Weekly... -
Page 11: Ba�Ery Charging And Maintenance
Ba�ery charging and maintenance A well-maintained ba�ery can perform well even a�er many kilometers of riding. - Please keep the ba�ery 15 ℃ to 40 ℃ when the condi�on of charging. Do not store below/above - 20 ℃ ~ 50 ℃. Do not store or charge the ba�ery at temperatures outside the stated limits. -
Page 12: Warning
3. Please charge the ba�ery outside. Don’t charge inside your home. 4.Check that the folding mechanism is locked. 5.Check the ba�ery is charged. Don’t leave the M1 on charge overnight or una�ended. An overeheat ba�ery can catch fire. 6.Check that the front and rear lights are all working properly. - Page 13 As with all mechanical components, the e-bike is subject to wear and high stresses. Different materials and components may react to wear or stress fa�gue in different ways. If the design life of a component has been exceeded, it may suddenly fail possibly causing injuries to the rider. Any form of crack, scratches or change of colouring in highly stressed areas indicates that the life of the component has been reached and it should be replaced.
-
Page 14: Specifica�On
Specifica�ons Model No. Moov8 M1 Max. Speed 25km/h Typical Range 36V 7.8Ah: Max 55km; 9.6Ah: Max 75km (pedal assist) Max. Slope 12° Net Weight 18.9 kg Tyre 16’ inch Motor(Nominal Power) 36V, 250W Drive type 3 Level Pedal Assist and Pure electric (op�onal) -
Page 15: Warranty
3. charging/soring the ba�ery at temperatures outside the stated limits. - Other components are considered consumables and 4. Using M1 for any commercial ac�vi�es including but not limited to, delivery, are not covered by warranty. ren�ng, sub-leasing, courier etc. -
Page 16: Product Statement & Disclaimer
- M1 User Manual. 10. Do not try to modify or service the Moov8 - M1 by yourself. Should any problem 2. Do not let people who have not carefully read and fully understood the Moov8 - M1 User Manual use your bike. - Page 17 20. Use a so� cloth to wipe and clean the M1 body, and never try to flush it with powerful water jets or a high-pressure hose. Do not immerse Moov8 - M1 in water, or else errors such as uncontrollable malfunc�ons, abnormali�es or accidents may occur.
- Page 18 30. When riding Moov8 – M1, do not try to put your hand on another vehicle and get yourself dragged along. And avoid inappropriate behaviors like performing stunts or X-sports, etc. 31. When you need to ride Moov8 – M1 to a remote area, do not go alone. Even if you have partners on your journey, you s�ll have to prepare yourselves well for poten�al risks.
- Page 20 MOOV8.COM.AU Move out with Moov8...
