KitchenMate
• Always read the instructions completely and carefully before beginning assembly.
• Remove and check contents for damage and/or missing parts. Keep the original
cartons and packing materials, which are required for any authorized adjustment by
our dealers.
• These instructions are for reference only. Make sure installation procedures comply
with all applicable building codes in your area.

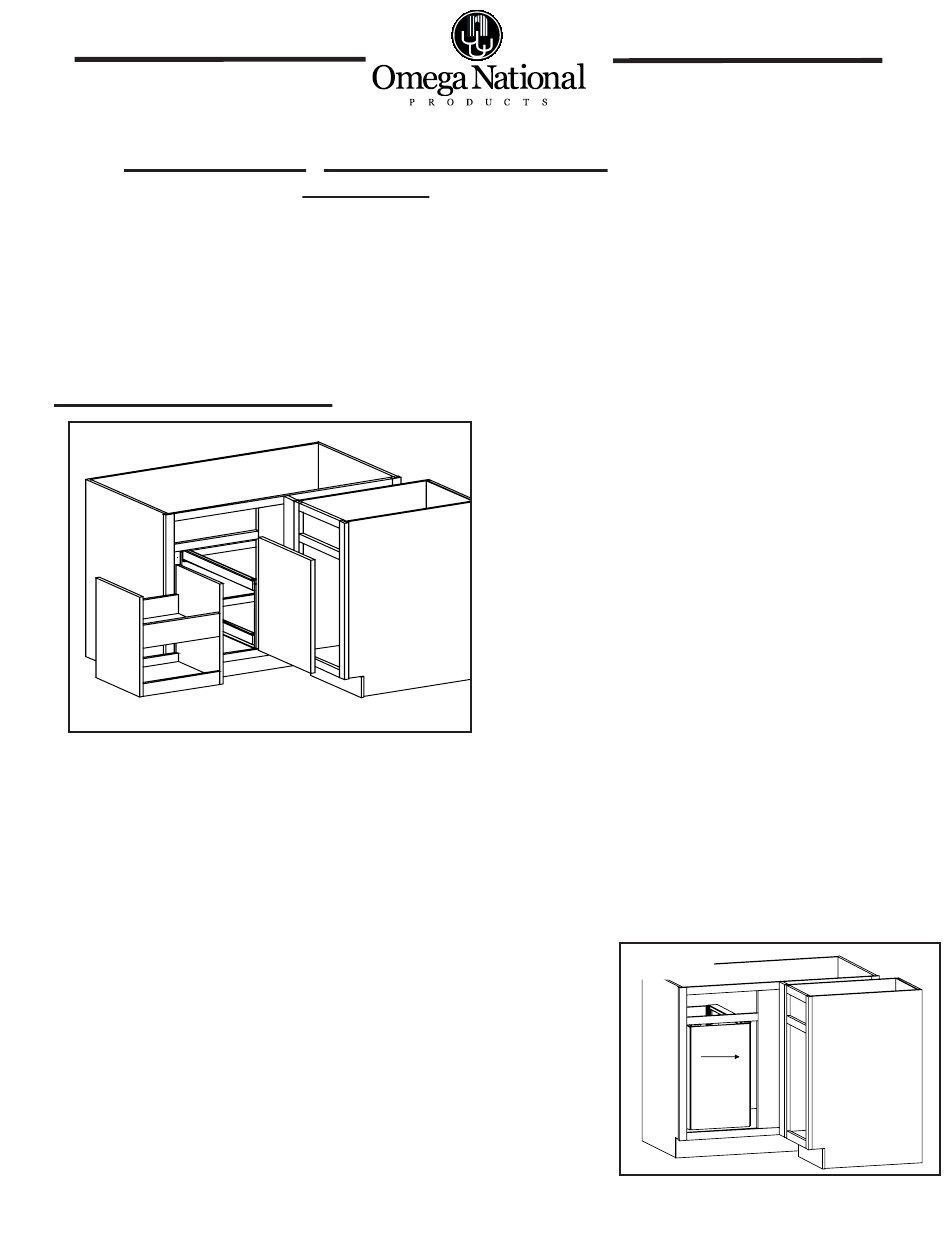

Assembly Instructions
Step 1:

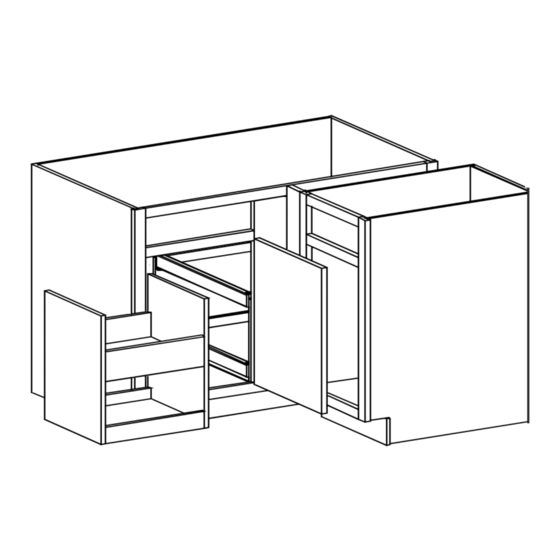

Turn drawer unit vertical with drawer fronts up
and slide unit into cabinet (See figure 1)
TM
Blind Corner Caddy
P0650MNL1
Important Notes
Notes:
Cabinet door opening must
be a minimun of 15 inches
wide to install this unit.
To allow corner caddy to
work properly cabinet door
must be attached to oppo-
site side of door opening
from corner caddy
Remove Cabinet door for
ease of installation.
Figure 1
Drawer Unit
Form OME-063, 01/2007
©Omega National Products
