Omega National Products KitchenMate WR3015DNL1 Assembly Instructions

KitchenMate
WR3015DNL1, WR3018DNL1, WR3021DNL1
• Always read the instructions completely and carefully before beginning assembly.
• Remove and check contents for damage and/or missing parts. Keep the original
cartons and packing materials, which are required for any authorized adjustment by
our dealers.
• These instructions are for reference only. Make sure installation procedures comply
with all applicable building codes in your area.

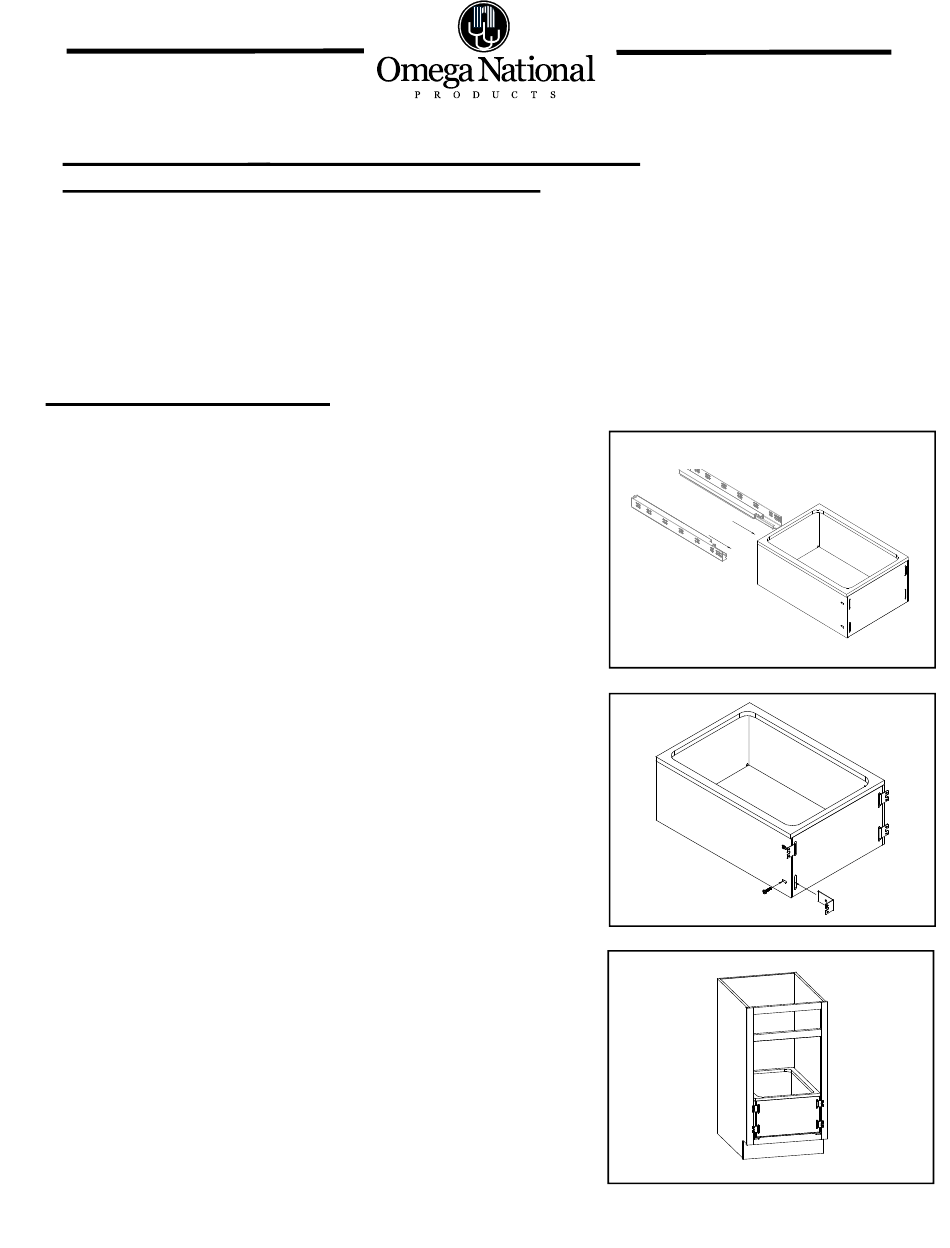

Assembly Instructions

Step 1:

Install undermount slide according to manufac-
turers instruction (see Figure 1).

Step 2:

Install 4 mounting brackets through the slots in
the drawer, push them in all the way and snug
the screws on the side (see Figure 2).

Step 3:

Fasten the undermount slide to the cabinet so
that the Waste and Recycle unit is centered in
the cabinet with the front even with the front of
the cabinet face frame (see Figure 3).
TM
Waste & Recycle Pullouts

Important Notes

Figure 1
Figure 2
Figure 3
Form OME-096, 04/2018
©Omega National Products
