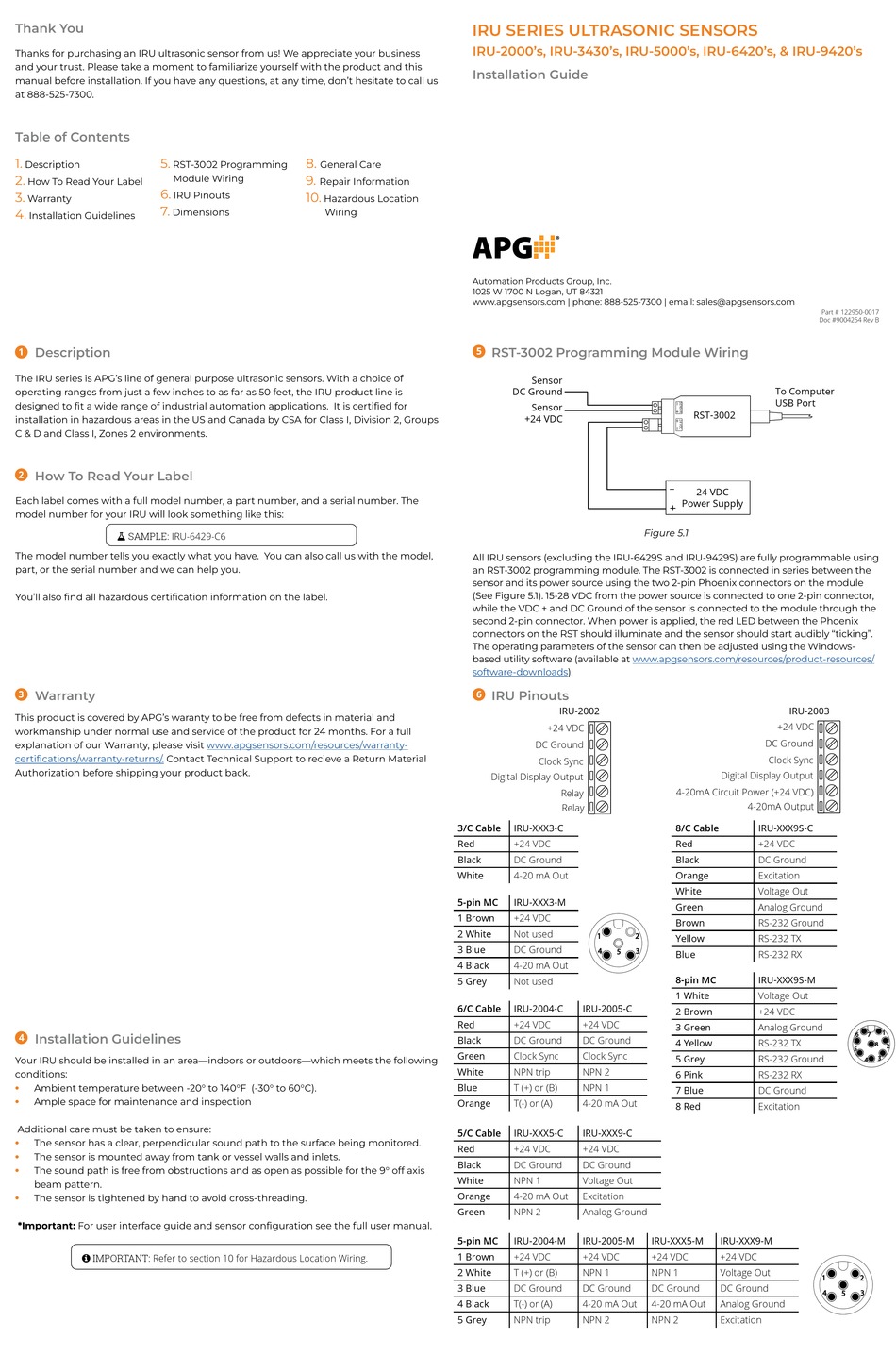

APG IRU Series Installation Manual

Thank You
Thanks for purchasing an IRU ultrasonic sensor from us! We appreciate your business
and your trust. Please take a moment to familiarize yourself with the product and this
manual before installation. If you have any questions, at any time, don't hesitate to call us
at 888-525-7300.
Table of Contents
1. 5.
Description RST-3002 Programming
2. Module Wiring
How To Read Your Label
6.
3. IRU Pinouts
Warranty
7.
4. Dimensions
Installation Guidelines
Description
1
The IRU series is APG's line of general purpose ultrasonic sensors. With a choice of
operating ranges from just a few inches to as far as 50 feet, the IRU product line is
designed to fit a wide range of industrial automation applications. It is certified for
installation in hazardous areas in the US and Canada by CSA for Class I, Division 2, Groups
C & D and Class I, Zones 2 environments.
How To Read Your Label
2
Each label comes with a full model number, a part number, and a serial number. The
model number for your IRU will look something like this:
 SAMPLE: IRU-6429-C6
The model number tells you exactly what you have. You can also call us with the model,
part, or the serial number and we can help you.
You'll also find all hazardous certification information on the label.
3 Warranty
This product is covered by APG's waranty to be free from defects in material and
workmanship under normal use and service of the product for 24 months. For a full
explanation of our Warranty, please visit
certifications/warranty-returns/.
Contact Technical Support to recieve a Return Material
Authorization before shipping your product back.
Installation Guidelines
4
Your IRU should be installed in an area—indoors or outdoors—which meets the following
conditions:
‫ب‬
Ambient temperature between -20° to 140°F (-30° to 60°C).
‫ب‬
Ample space for maintenance and inspection
Additional care must be taken to ensure:
‫ب‬
The sensor has a clear, perpendicular sound path to the surface being monitored.
‫ب‬
The sensor is mounted away from tank or vessel walls and inlets.
‫ب‬
The sound path is free from obstructions and as open as possible for the 9° off axis
beam pattern.
‫ب‬
The sensor is tightened by hand to avoid cross-threading.
*Important: For user interface guide and sensor configuration see the full user manual.
 IMPORTANT: Refer to section 10 for Hazardous Location Wiring.
8.
General Care
9.
Repair Information
10.
Hazardous Location
Wiring
www.apgsensors.com/resources/warranty-
IRU SERIES ULTRASONIC SENSORS
IRU-2000's, IRU-3430's, IRU-5000's, IRU-6420's, & IRU-9420's
Installation Guide
Automation Products Group, Inc.
1025 W 1700 N Logan, UT 84321
www.apgsensors.com | phone: 888-525-7300 | email: sales@apgsensors.com
RST-3002 Programming Module Wiring
5
Sensor
DC Ground
Sensor
+24 VDC
All IRU sensors (excluding the IRU-6429S and IRU-9429S) are fully programmable using
an RST-3002 programming module. The RST-3002 is connected in series between the
sensor and its power source using the two 2-pin Phoenix connectors on the module
(See Figure 5.1). 15-28 VDC from the power source is connected to one 2-pin connector,
while the VDC + and DC Ground of the sensor is connected to the module through the
second 2-pin connector. When power is applied, the red LED between the Phoenix
connectors on the RST should illuminate and the sensor should start audibly "ticking".
The operating parameters of the sensor can then be adjusted using the Windows-
based utility software (available at
software-downloads).
6 IRU Pinouts
IRU-2002
+24 VDC
DC Ground
Clock Sync
Digital Display Output
Relay
Relay
3/C Cable IRU-XXX3-C
Red +24 VDC
Black DC Ground
White 4-20 mA Out
5-pin MC IRU-XXX3-M
1 Brown +24 VDC
2 White Not used
1
3 Blue DC Ground
4 5
4 Black 4-20 mA Out
5 Grey Not used
6/C Cable IRU-2004-C IRU-2005-C
Red +24 VDC +24 VDC
Black DC Ground DC Ground
Green Clock Sync Clock Sync
White NPN trip NPN 2
Blue T (+) or (B) NPN 1
Orange T(-) or (A) 4-20 mA Out
5/C Cable IRU-XXX5-C IRU-XXX9-C
+24 VDC +24 VDC
Red
Black DC Ground DC Ground
White NPN 1 Voltage Out
Orange 4-20 mA Out Excitation
Green NPN 2 Analog Ground
5-pin MC IRU-2004-M IRU-2005-M
1 Brown +24 VDC +24 VDC
2 White T (+) or (B) NPN 1
3 Blue DC Ground DC Ground
4 Black T(-) or (A) 4-20 mA Out
5 Grey NPN trip NPN 2
To Computer
USB Port
RST-3002
_
24 VDC
Power Supply
+
Figure 5.1
www.apgsensors.com/resources/product-resources/
IRU-2003
+24 VDC
DC Ground
Clock Sync
Digital Display Output
4-20mA Circuit Power (+24 VDC)
4-20mA Output
8/C Cable IRU-XXX9S-C
Red +24 VDC
Black DC Ground
Orange Excitation
White Voltage Out
Green Analog Ground
Brown RS-232 Ground
2
Yellow RS-232 TX
3
Blue RS-232 RX
8-pin MC IRU-XXX9S-M
1 White Voltage Out
2 Brown +24 VDC
3 Green Analog Ground
4 Yellow RS-232 TX
5 Grey RS-232 Ground
6 Pink RS-232 RX
DC Ground
7 Blue
8 Red Excitation
IRU-XXX5-M IRU-XXX9-M
+24 VDC +24 VDC
NPN 1 Voltage Out
DC Ground DC Ground
4-20 mA Out Analog Ground
NPN 2 Excitation
Part # 122950-0017
Doc #9004254 Rev B
1 1
6 6 7 7
8 8
2 2
5 5
3 3
4 4
1 2
4 5 3
