Summary of Contents for Craftsman 973.2748.70

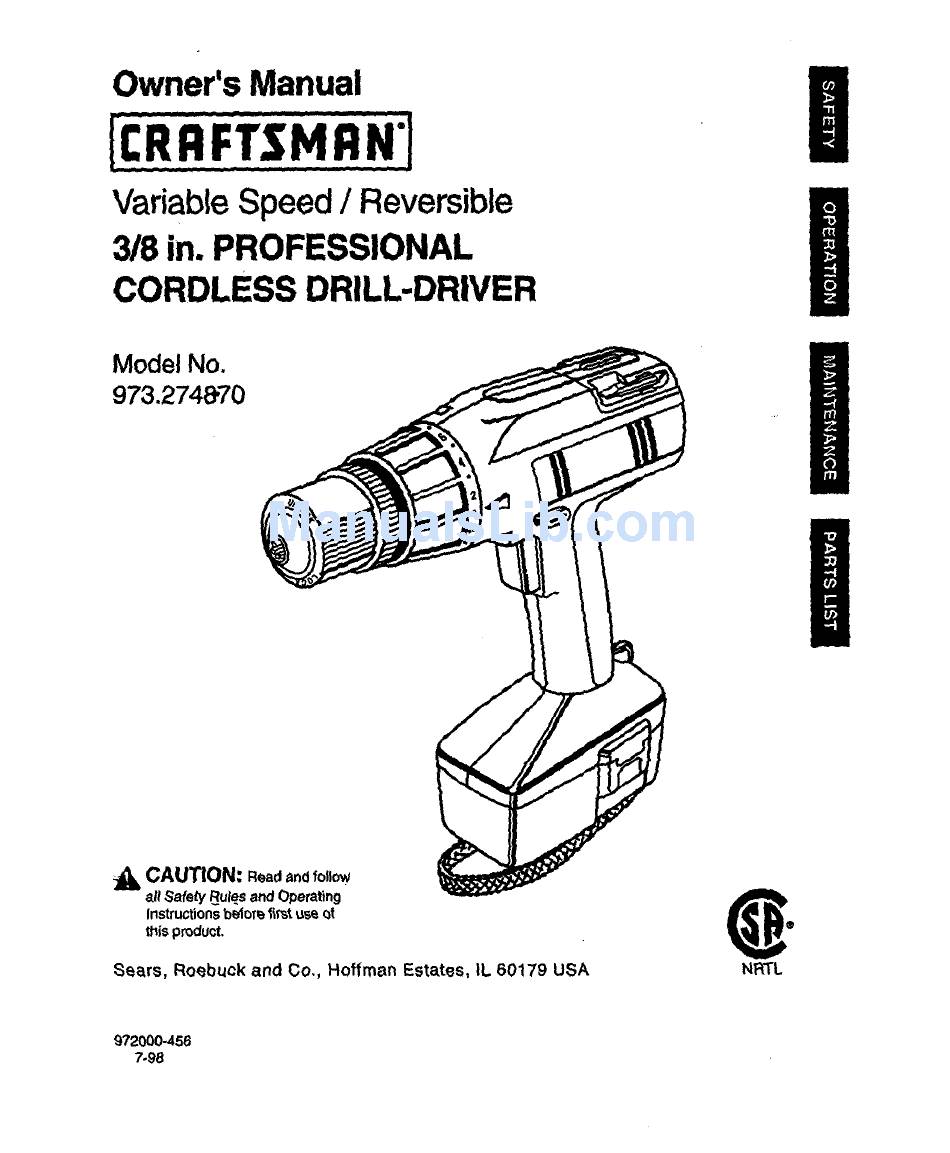

- Page 1 Owner's Manual Variable Speed / Reversible 318 in. PROFESSIONAL CORDLESS DRILL-DRIVER Model No. 973.2748.70 _1_ CAUTION: Read and follow all Safety Rules and Operating Instructions betor_ f_st _se _I this product. Sears, Roebuck and Co,, Hoffman Estates, IL 60179 USA...
- Page 2 Parts Ordedng / Service ... FULL ONE YEAR WARRANTY ON CRAFTSMAN If this rRRI=TSNRH Professional Cordless Drill-Driver fails due to a defect in material or workmanship within one year from the date of purchase, Sears will repair it, free of charge.
-
Page 3: Safety Alert Symbol
The purpose of safety symbols Is to attract your attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures. - Page 4 Avoid accidental starting. SECURE WORK before applying power. NEVER hold workpiece in your hand or across your legs. WHEN SERVICING USE ONLY IDENTICAL CRAFTSMAN IMPORTANT CHARGER Do not •...
- Page 5 RULES FOR SAFE OPERATI_ An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If extension cord must be used, make sure: That pins on plug of extension cord are the same number, size and shape as those of plug on charger.
- Page 6 The following recommended accessories are currently available at Sears Retail Stores. • 6-Pc. Extra Length Magnite Power Bit Set • 30-Pc. Power Screwdriver/Nutddver Set and Case • 17-Pc. Power Screwdfiver/Nutdriver Set and Case • High Speed Bits (For Wood or Metal)...3/4 inch Max. •...
- Page 7 _1= WARNING: Always wear safety goggles or safety glasses with side shields when operating tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. WARNING: Do not allow familiarity with your ddll-ddver to make you careless.
-
Page 8: To Install Battery Pack
SWITCH See Figure 2. To tum your drill ON, depress the switch tdgger. To tum it OFF, release the switch tdgger. CENTERPosmoN TRIGGER SWITCH LOCK See Figure 2. The switch trigger can be locked in the OFF position. This feature can be used to prevent the possibility of accidental starting when not in use. - Page 9 REVERSIBLE See Figure 4. This tool has the feature of being reversible. The direction of rotation is controlled by a selector located above the switch trigger. With the ddll held in normal operating position, the direction of rotation selector should be positioned to the left of the switch for drilling.
- Page 10 INSTALLING BITS See Figure 7. • Lock the switch trigger by placing the direction of rotation selector in center position. See Figure 2. • Open or close chuck jaws to a point where the opening is slightly larger than the bit size you intend to use.
- Page 11 BIT STORAGE See Figure 10. When not in use, bits provided with your ddll can be placed in the storage area located on the top of your drill as shown in figure 10. BIT STORAGE AREA WARNING: Always wear safety goggles or safety glasses with side shields when operating tools.
- Page 12 CHUCK REMOVAL See Figures 13, 14, and 15. The chuck must be removed in order to use some accessories. To remove: • Lock the switch tdgger by placing the direction of rotation selector in center position. • Insert a 5/16 inch or larger allen wrench (hex key wrench) into the chuck of your drilland tighten the chuck jaws securely.
- Page 13 WARNING: When servicing, use only identical Craftsman replacement parts. Use of any other part may create a hazard or cause product damage. Avoid using solvents when cleaning plastic pads. Most plastics ere susceptible to damage from various types of commemial solvents and may be damaged by their use.
- Page 14 Topreserve n atural r esources, please recycle or dispose ofexpired battery packproperly. Thisproduct c ontains nickel-cadmium battery. M ustbedisposed of properly. Local, state, or federal laws may prohibit disposal of nickel-cadmium batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.
-
Page 15: Parts List
CRAFTSMAN PROFESSIONAL number in all correspondence regarding your 3/8 In, CORDLESS DRILL-DRIVER or when ordering Them_de_numberwi__bef_und_naplateattachedt_them_t_rh__sing_A_waysmenti_nthem_de_ repair parts. SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS Part Number 616478-003 973015-001 967216-006 977399000 977412-001 974371-000 972000-456 * Can Be Purchased Thru RSOS ) Retail Special Order System) - Page 16 Fortherepairor replacement partsyouneed delivered directlyto yourhome Call7 am - 7 pm, 7 daysa week 1-800-366-PART (1-800-366-7278) . For repair service Call24 hours a day,7 daysa week 1.800-4-REPAIR (1-800-473-7247) Forthelocation of a Sears PartsandRepair Center inyourarea Call24 hours a day,7 daysa week 1-800-488-1222 Tho modelnumberof this toolwill be foundona serial plate attachedto the_mptor h ousing.When requesting serviceor...
