Vaddio™ IR Remote Commander
Enhanced IR Remote Controller
The Vaddio IR Remote Commander was designed to work with the Vaddio camera packages based on
the Vaddio HD-18, Sony® EVI-D70, EVI-D100 and BRC-300 Pan/Tilt/Zoom Cameras. The IR Remote is
compatible with the following list of Vaddio camera systems:
•
Vaddio ClearVIEW HD-18 Systems (Camera, WallVIEW and CCU Versions)
•
WallVIEW™ 70 PTZ, WallVIEW 100 PTZ, WallVIEW 300 PTZ
•
CeilingVIEW™ 70 PTZ and CeilingVIEW 70 PTZ HideAway
•
Vaddio EZCamera™ series Model 100 PTZ and Model 70 PTZ systems
•
Vaddio 100 PTZ and 70 PTZ Integrator's camera kits
The Vaddio IR Remote Commander is also a 100% compatible replacement IR remote for the Sony PTZ Cameras
Back Light
Compensation
On/off
Data Screen for BRC
Type Camera OSD
Standard Pan
Direction
Pan/Tilt controls
(burgundy buttons)
Auto Focus
On/off
Zoom Speed
SLOW
(Lt. Gray button)
Preset Set
Press and hold,
touch Preset 1
thru 6 to set
preset
6-Presets
Stored in the
Camera for
Recall
SAVE THESE
INSTRUCTIONS
© 2005 Vaddio 341-252 Rev. A
The information contained in this manual will help you install and operate you IR Remote
Commander. If these instructions are lost or misplaced, Vaddio keeps copies of Specifications,
Installation and User Guide
Power On/off
(Green button)
Camera Select
Three IR Frequencies
Reverse Pan
Direction
Camera Home Position
Pan/Tilt Reset
Zoom Speed
FAST
(Lt. Gray button)
Manual Focus Control
(Near- & Far+)
Preset Erase

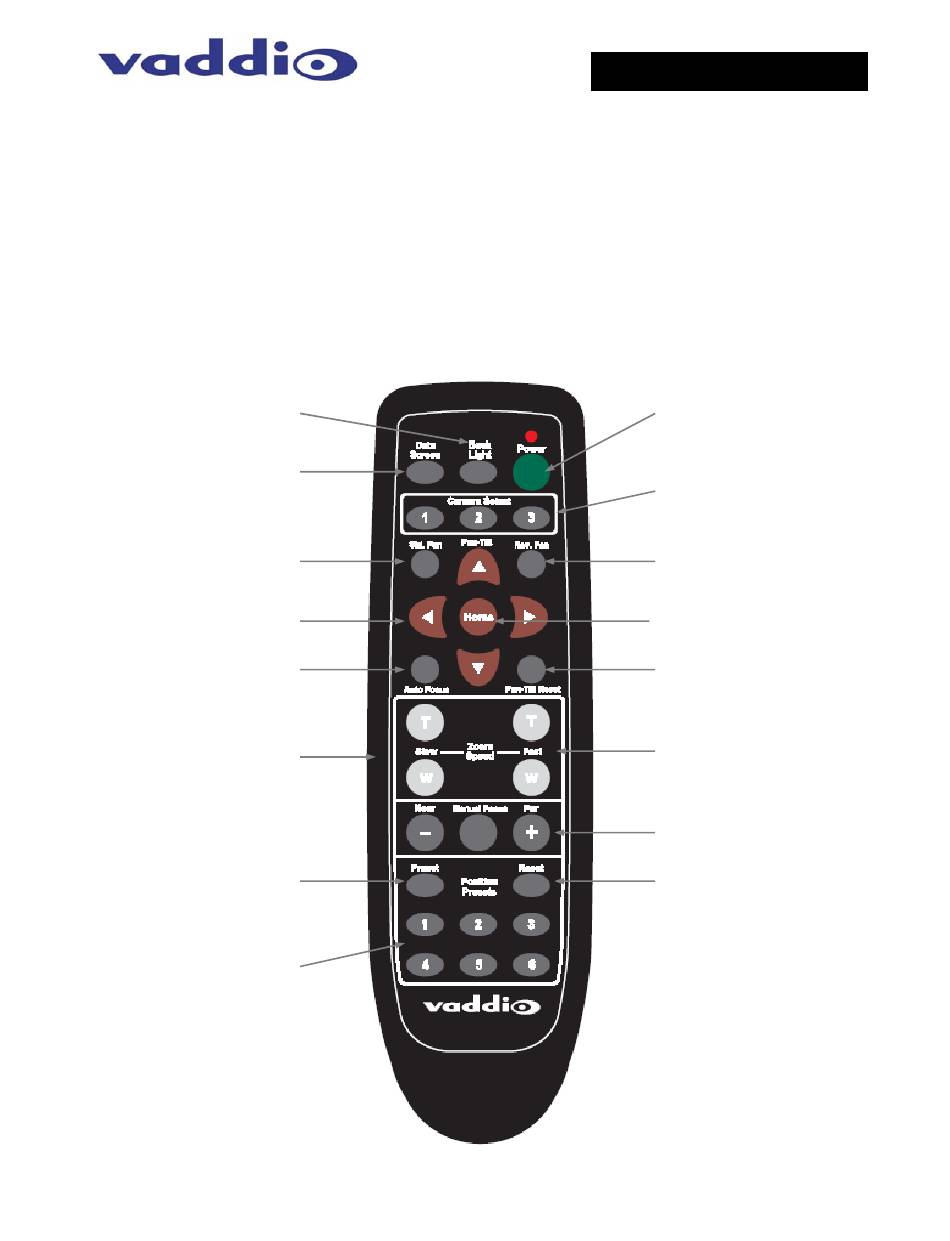

Figure 1:
Vaddio IR Remote Commander
Enhanced, ergonomically designed
and user-friendly handheld remote
control (Actual size)
