VADDIO TouchVIEW Installation & User Manual

TouchVIEW
433 MHz Wireless Positioning System

Introduction

The Vaddio TouchVIEW transmits positioning requests through the air instead of
hard wires, allowing greater flexibiliby. Position switches can now be used in any
location without running cable from the switches to Vaddio's ControlVIEW
wireless connection can extend over 100 feet.
• Carefully remove the device and parts from the packing material.
Unpacking
• Set the unit on a flat, solid surface. Unpack and identifiy the following parts:
Your
TouchVIEW
Setting Up TouchVIEW Receiver (see Figure 1)
The receiver ouputs are connected to
Your
Vaddio's ControlVIEW or ControlVIEW
TouchVIEW
Expander inputs.
• Using the terminal block, attach wires
from button outputs one through four to
the preset inputs on the back of the
ControlVIEW.
• Attach a wire from the ground (GND)
connection on the receiver to a ground
connection on the ControlVIEW.
• Plug the power supply into the receiver.
• Plug the other end of the power supply
into a power outlet.
™
– Four, single-position transmitters
– One, receiver
– One, eight contact female 5mm terminal block
– One, power supply
– Only one wire per connection,
connections can not be shared
with an input from another source
on the ControlVIEW.
– The outputs can be connected
to any one of the twelve inputs on
the ControlVIEW.
1
Installation & User Guide
•
12 VDC POWER
•
•
•
•
• • • • • • • •

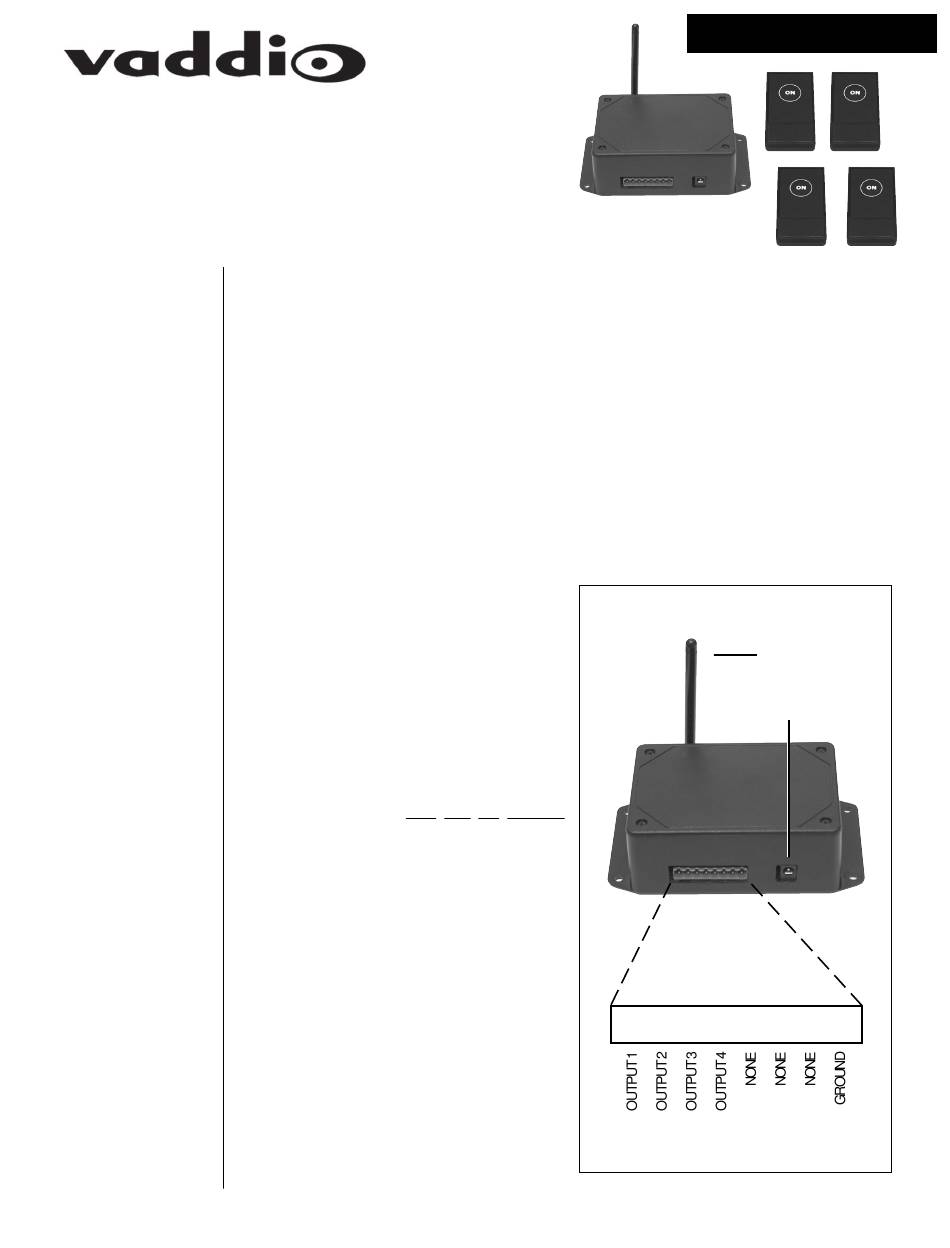

Figure 1 – TouchVIEW Receiver.
. The
™
ANTENNA
•
•
