Cura1 2701 Quick Start Manual

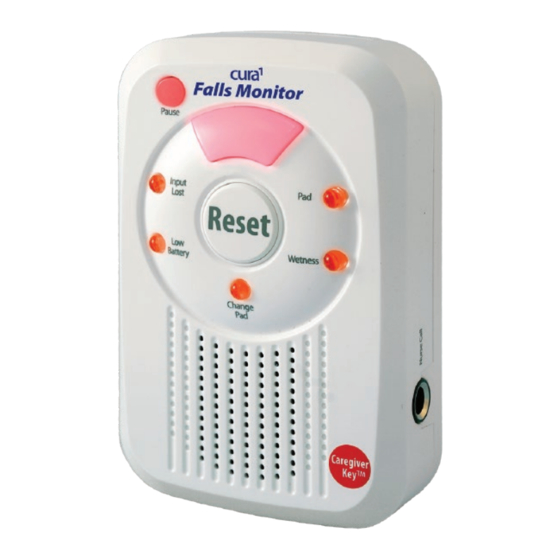

2701 - Standard Falls Monitor
with SafeTime
2701 Standard 2742 Soft 2699 2642
Falls Monitor with Monitor Fixing Caregiver
Batteries
Safetime Strap
Cover Reset Key
Compatible & Optional Accessories
All Premium, Safetime and Universal pads and mats. (Universal when
using USB to RJ10 break cord).
3504 ActiveCare Bracket, 2406 Plug Pack 6V Power Adaptor, 2642
Caregiver Reset Key, 2636 Easy Release Seatbelt, 2742 Soft Monitor
Cover, 2699 Fixing Strap.
Nurse Call Cables: 2643, 2646, 2460, 2461, 2493
cura
1
10 Gray Street, Kilkenny South Australia 5009
www.cura1.com
1300-12-CARE (2273)
All our products are supplied with a full warranty and are guaranteed
to be free from defects in material and workmanship.
Pause
Input
Lost
Low
Battery
QuickStart
3 X AA
User Guide
Caregiver Reset
Key option select
(Disables Alarm
Reset button
when on.)
Optional 6 Vdc
power supply.
UM-035e
Pad light will blink
when pad is in use.
Pad
Reset
Wetness
Change Pad light will
illuminate & Monitor
Change
will beep when SafeTime
Pad
Bed or Chair Pad expires.
Caregiver Reset Key
application point.
Caregiver Reset Key
(Resets the Monitor
after an alarm.)
(Normally Open /
Normally Closed)
Alarm
Reset
Button
NO / NC
selector for
Nurse Call
Systems.
Tone
Scale HI LO Decrease / Increase
Monitor auto-mutes
when connected to
a nurse call system
and volume is set to
minimum.
Optional Nurse
Call Cable.
Adjust alarm tone,
volume & delay settings.
Volume
