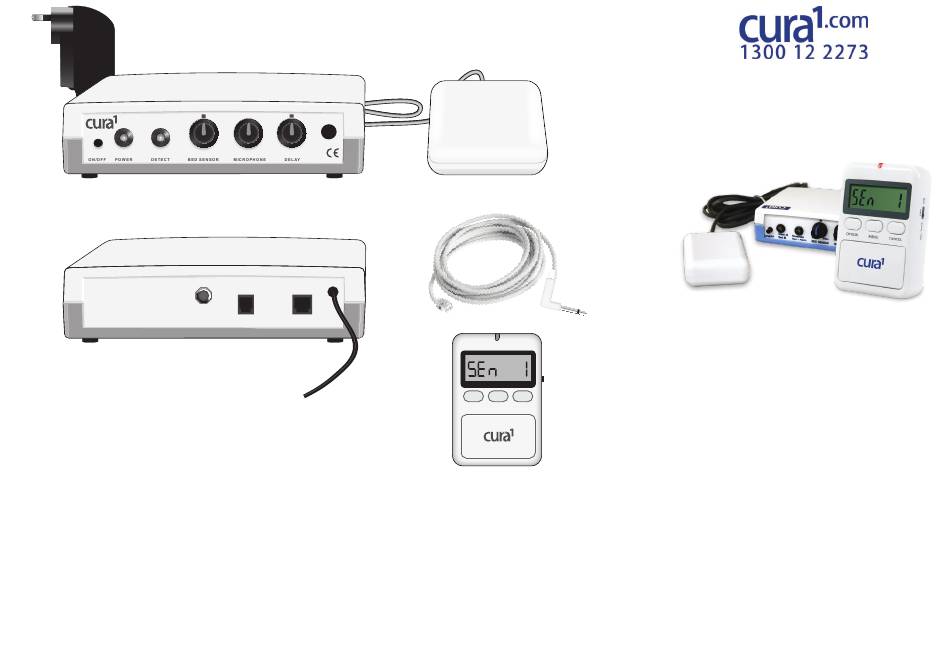

Cura1 SeizureAlert 3010 Quick Start Manual

9 3010 SeizureAlert Monitor
Min
1 2 3 4
Setup
10
1. On / Off Switch
2. Power LED
3. Detect LED
4. Bed Sensor Sensitivity Control
5. Front Panel Microphone Sensitivity Control
6. Alarm Delay Control
7. Front Panel Microphone
8. Bed Sensor
9. AC Power Adaptor
10. Setup Button
11. Bed Sensor RJ10 Input
12. 3rd Party Alarm Output
13. To AC Power Adaptor
14. 3rd Party Alarm Lead
15. 3501 ActiveCare Pager
Max Min Max Min Max
5 6 7
Sensor Out
11 12 13
What's in the Box:
3010 SeizureAlert Monitor
•
Bed Sensor
•
Alarm Lead - RJ10 to 6.35mm plug.
•
SeizureAlert QuickStart Instructions
3011 SeizureAlert Monitor Inc Pager Option
•
3010 SeizureAlert Monitor (as above)
•
3501 ActiveCare Pager
•
3506 Soft Cover for ActiveCare Pager
•
2 x AA Batteries
•
ActiveCare Pager QuickStart Instructions
8
14
15
OPTION MENU CANCEL
3010 SeizureAlert Monitor
& 3011 With ActiveCare Pager
Detect & raise an alarm if a convulsive seizure
occurs. 3010 SeizureAlert detects seizure
movement and sound and connects easily with
3rd party alarm devices including nurse call
systems (6.35 mm plug included).
(3011) Transmits a wireless alarm signal to the
pager unit.
*The range of wireless devices may vary and be dependent on your
specific environmental conditions.
Optional Accessories
3010: There are no accessories.
3011: Please see the accessory list for the
3501 ActiveCare Pager.
UM-009d
