ＰＴ－ＰＩＳ4ＰＢ1Ｓ－Ｍ Ｓｗｉｔｃｈ
Ｕｓｅｒ Ｍａｎｕａｌ
WWW.PROCETPOE.COM

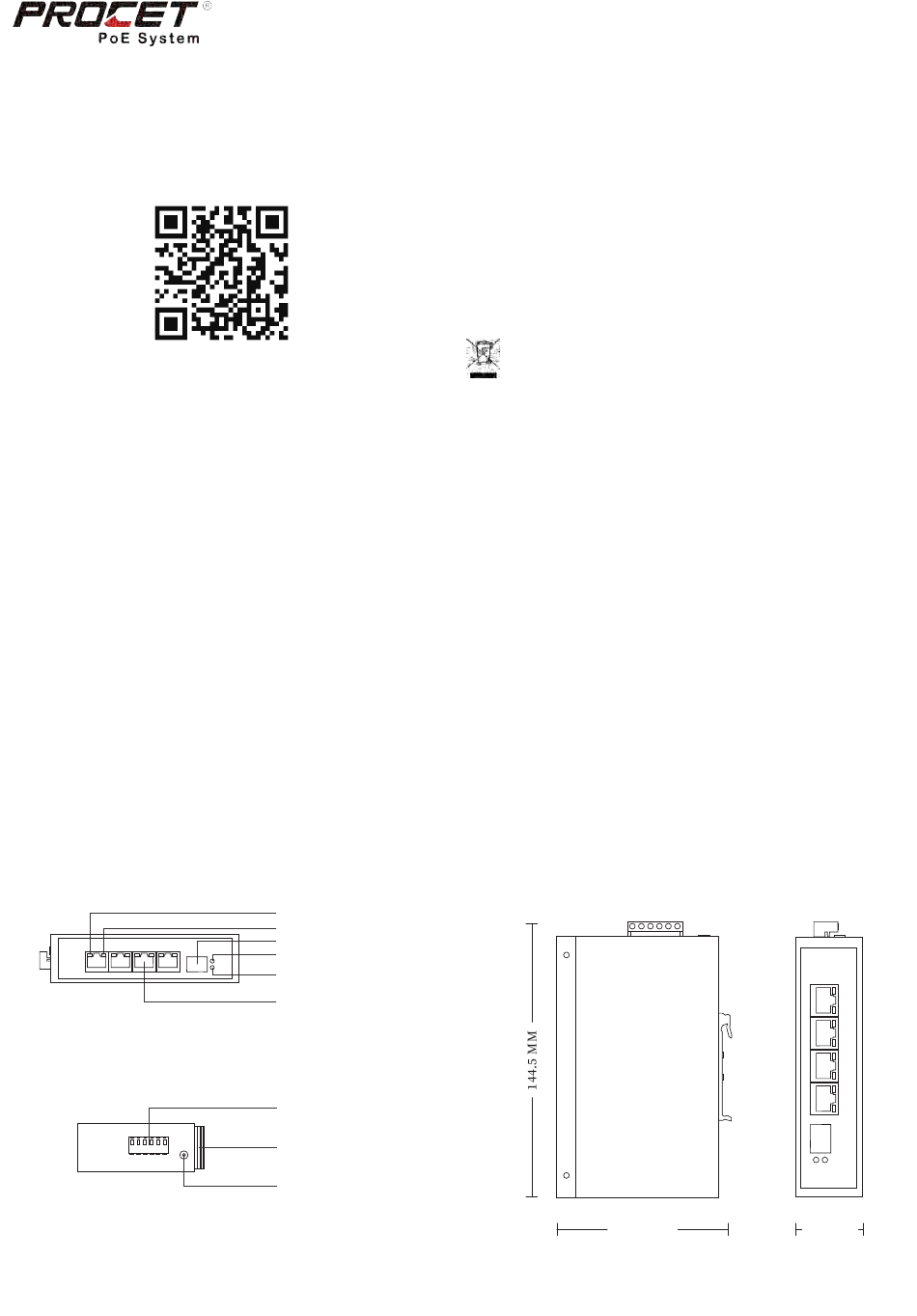

Ｏｖｅｒｖｉｅｗ
PT-PIS4PB1S-M, an industrial 4-port PoE switch with Managed Ethernet function. Supports IEEE 802.1Q VLAN
and port-based VLAN. We can access and manage the device via web browser, including IP configuration, port
configuration, VLAN configuration, PoE configuration, factory reset, etc. We can also view device information,
such as switch status, port status, PoE status, etc. In addition, the PoE port enables remote control of the
device' on/off.
Equipped detecting chip inside which will make the PoE identification handshake with IEEE802.3af/at/bt PDs.
Such as PTZ cameras, wireless APs, base stations, and other PoE-powered devices which need high power
watts. Protecting non-PoE powered devices. Each PoE output port delivers 1.75A up to 90W(max) power for
remote PDs over 4 pairs.
One fiber slot only supports 1000Mbps of optical module, while RJ45 copper port supports 10/100/1000Mbps.
Enclosed in an IP40 high-impact metal case with a DIN Rail mount bracket, designed for indoor use but can
work outdoors by covering it with a waterproof case. It works with an input voltage of 48-57Vdc and operates
under -40°C to +65°C. For planning purposes, the effective distance is 100 meters over Cat5/5e/6 cables.
Ａｐｐｅａｒａｎｃｅ
１ Ｐｒｏｄｕｃｔ Ｄｉａｇｒａｍ
Ｄｅｃｌａｒａｔｉｏｎ
�
�
�
�
�
�
1．Ｄａｔａ Ｉｎｄｉｃａｔｏｒ
2．ＰｏＥ Ｌｏａｄ Ｉｎｄｉｃａｔｏｒ
3．ＳＦＰ Ｉｎｐｕｔ Ｐｏｒｔ
�
4.ＳＦＰ Ｉｎｄｉｃａｔｏｒ
5.ＤＣ Ｐｏｗｅｒ Ｉｎｄｉｃａｔｏｒ
�
6.．ＰｏＥ Output Port
7.ＤＣ Input port
�
8.ＤＩＮ Rail Bracket
9.GND Terminal
Copyright ©2023 Creative Lianjie Network
Technology Co.Ltd
This document belongs to PROCET company. It is not allowed
to reproduce and modify without the original author'
spermission. It is PROCET's policy to improve its products as
new technology components, software , and firmware at any
time. PROCET, therefore, reserves the right to change
Specifications without prior notice.
Please follow WEEE (Waste Electrical and Electronic Equipment)
disposal instructions for old electronicproducts. Please do not
dispose of the old product in your general household waste bin.
The symbol indicates that the product should not be
discarded as unsorted waste but must be sent to separate
collection facilities for recovery.
��.� MM
All rights reserved.
��.� MM
２ Ｄｉｍｅｎｓｉｏｎ
