FEATURES
CONVERTER+CASAMBI+DALI+GATEWAY
Input: DC 12-24-48 Vdc
Command: CASAMBI APP
Local Control programmable from CASAMBI APP: n°1 button Normally Open
Casambi signal to DALI protocol converter and vice versa
Possibility to control devices with DALI control via CASAMBI APP
Ability to Address DALI Devices
Extended temperature range
100% Function Test
PRODUCT DESCRIPTION
The device receives the command signal from the Casambi APP and depending on the fixture set sends the signal in a predetermined
sequence of DALI addresses.
See pag.7 for the DALI Addresses map.
With the "CBU DALI GATEWAY" profile, the device receives commands from an external DALI Master and sends control signals to
the Casambi lamps of the network to which it is associated. Each Casambi lamp has a DALI address.
In the case of Casambi Tunable White or RGB/RBGW devices, these will be recognized by the DALI Master as DALI DT8.
The CASAMBI APP can be downloaded free of charge from the Apple App Store and the Google Play Store.
⇢ For the regularly updated manual, consult our website:www.dalcnet.com or QR Code
⇢ For the correct functioning of the CASAMBI APP, consult the forum on the Casambi website:
https://support.casambi.com/support/home
PRODUCT CODE
CODE
CBU-DALI-GATEWAY
PROTECTIONS
OVP
Over voltage protection
UVP
Under voltage protection
RVP
Reverse polarity protection
VET
Protection with input fuse
1
DALI bus power is required
Address management depends on the configuration of the Casambi module.
2
Protection on control logic
3
DALCNET S.r.l.
36077 Altavilla Vicentina (VI) – Italy
Via Lago Garda, 22

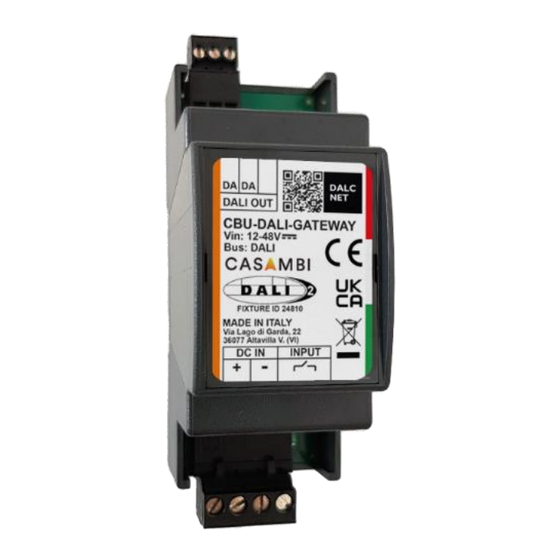

CBU-DALI-GATEWAY
POWER SUPPLY
1
12-24-48V DC
3
3
3
3
Device Manual
COMMAND
INCOMING
APP CASAMBI
DALI (DT6 and DT8)
COMMAND
TYPE OF LOCAL
OUTGOING
2
N° 1 N.O. Push Button
✓
✓
✓
✓
Phone +39 0444 1836680
www.dalcnet.com
Rev. 21/07/2023 - Pag. 1/12
Made in Italy
FIXTURE ID 24810
COMMAND
–
