Shower Column
Art.no: 30-9991
Mounting Instructions

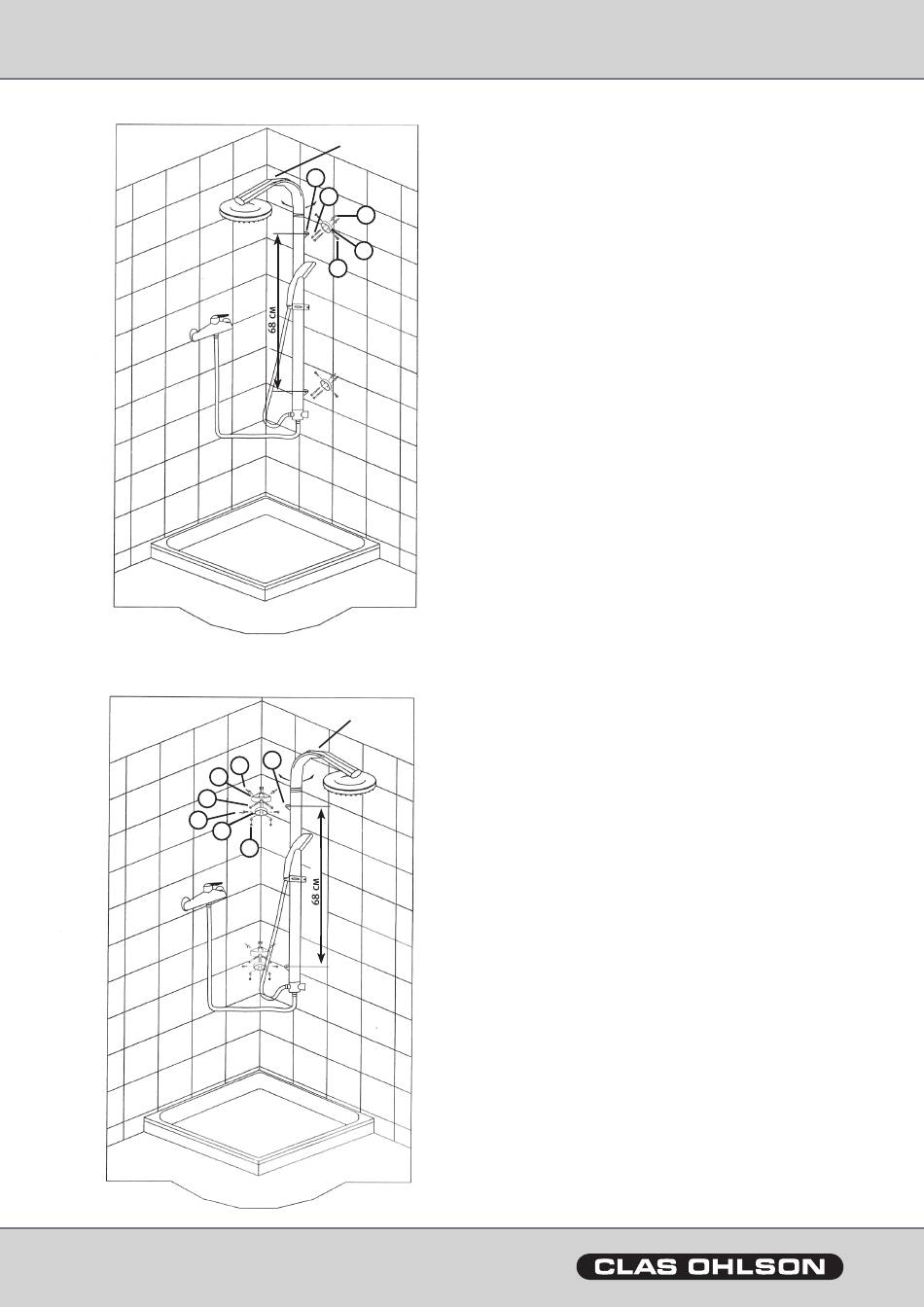

Wall configuration
1. Drill holes in the wall for both wall brackets (2),
four holes total.
2. Push the plugs (1) in both holes.
3. Mount the wall brackets (2) with the screws (3).
4. Mount the shower column on the wall brackets
(2) and secure with the four screws (4).
Corner configuration
1. Drill holes in the wall for both wall brackets (2),
four holes total.
2. Push the plugs (1) in both holes.
3. Mount the corner fittings (7) with the screws (3).
4. Mount the wall brackets (2) with the screws,
washers, and nuts (6).
5. Mount the shower column on the wall brackets
(2) and secure with the four screws (4).
Duschpanel
Art.no: 30-9991
Monteringsanvisningar
På vägg
1. Borra hål i väggen för båda väggfästena (2),
fyra hål totalt.
2. Tryck i pluggen (1) i hålen.
3. Montera väggfästena (2) med skruvarna (3).
4. Montera duschpanelen på väggfästena (2)
och säkra med de fyra skruvarna (4).
I hörn
1. Borra hål i väggen för båda väggfästena (2),
fyra hål totalt.
2. Tryck i pluggen (1) i hålen.
3. Montera hörnbeslagen (7) med skruvarna (3).
4. Montera väggfästena (2) med skruvarna,
brickorna och muttrarna (6).
5. Montera duschpanelen på väggfästena (2)
och säkra med de fyra skruvarna (4).
