Clas Ohlson PL805 Manual

Combination Shower Set
Art.no 40-8127 Model PL805
Please read the entire instruction manual before using the product and save it for future reference.
We reserve the right for any errors in text or images and any necessary changes made to technical data.
If you have any questions regarding technical problems please contact our customer services.

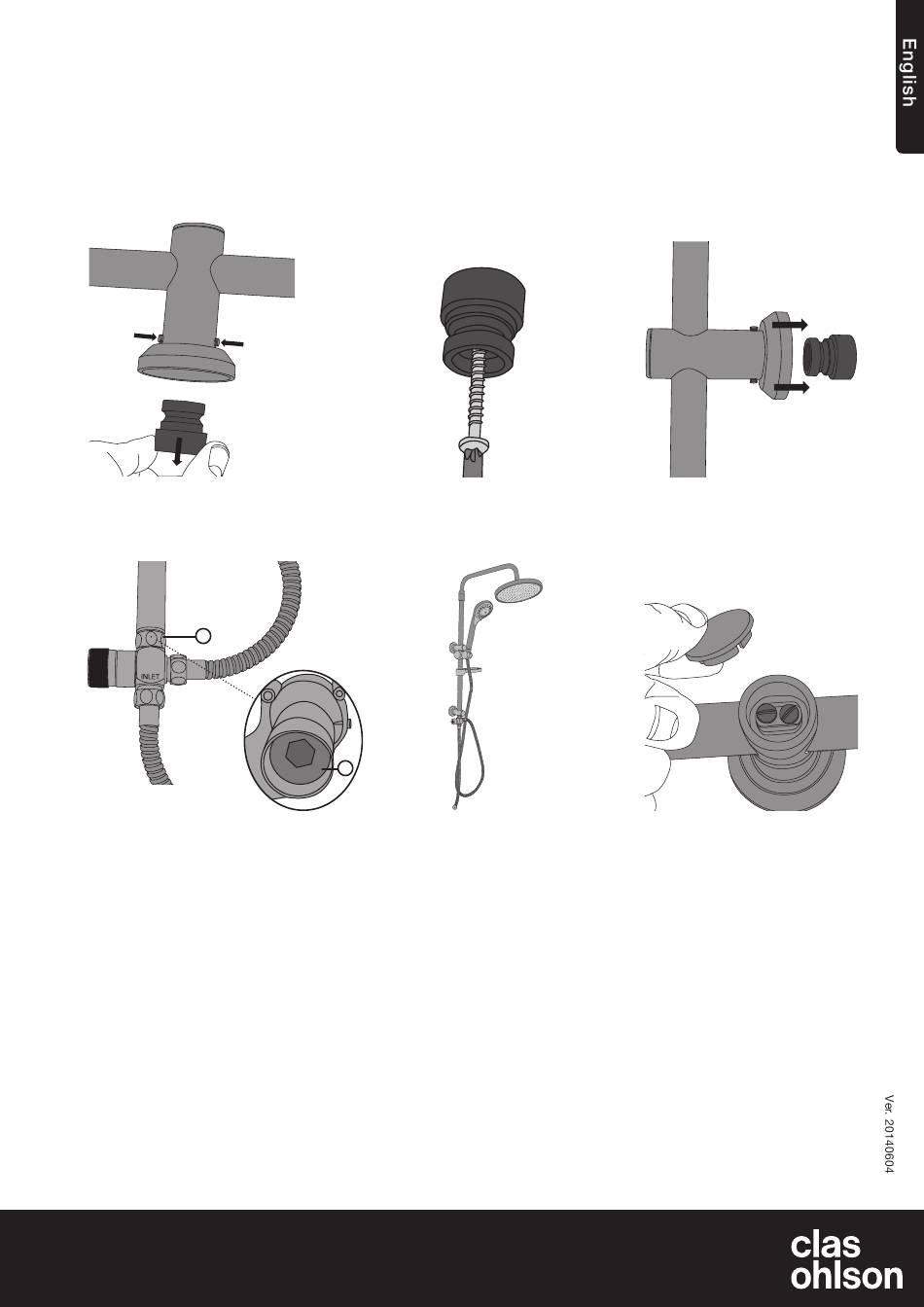

Assembly
1. Loosen the two retaining screws from the sides of the wall
bracket and remove the plugs.
b
4. Note: Before installing the shower, make sure that
the pipe bushing (a) which joins the swivel nut (b)
to the hose leading to the overhead shower rose is
tightened, otherwise the joint will leak. The bushing can
be tightened using an Allen key. Connect the incoming
water supply hose to the coupling marked INLET. Then,
connect the handset hose to the centre coupling.
Care and maintenance
Cleaning the handset and the overhead shower rose
• The small holes in the rose of the overhead shower and the handset can easily be clogged by limescale or minerals in the water. This will result
in a reduced or uneven flow of water and could even damage the overhead shower.
• To prevent the build-up of limescale, get into the habit of rubbing the rubber trim on the nozzles with your thumb regularly to ensure an even flow
of water.
• If any of the nozzles have become completely clogged they should be descaled by soaking them in vinegar, citric acid or other mild descaling
agent. Unscrew the shower head and immerse it in hot water together with the descaling agent for 1–2 hours before wiping it with a washing-
up sponge or microfibre cloth.
• If the shower head is very clogged the treatment may need to be repeated until all the deposits have been removed.
Disposal
Follow local ordinances when disposing of this product. If you are unsure about how to dispose of this product contact your municipality.
GREAT BRITAIN
customer service tel: 0845 300 9799 e-mail: customerservice@clasohlson.co.uk
internet: www.clasohlson.com/uk
2. Screw the plugs to the wall
no more than 54 cm apart c/c
(centre to centre).
a
5. Connect the handset to the hose
and the overhead shower rose
to its retaining bracket at the top
end of the riser rail.
3. Fit the wall brackets onto the plugs
and tighten the retaining screws.
6. Slide the rail into the wall brackets.
Remove the wall bracket screw
covers, adjust the position of the rail
and tighten the screws once in place.
Do not over tighten the plastic screws
because they are made of plastic.
