4 Hardware description
4.1 Dimensions
Module size: 16mmx22mm, 5 pin holes are reserved for the hardware (factory default with pins). The hole
diameter of the pin hole is 0.9mm, and the pin spacing is 2.54mm.
LK-LD2410C

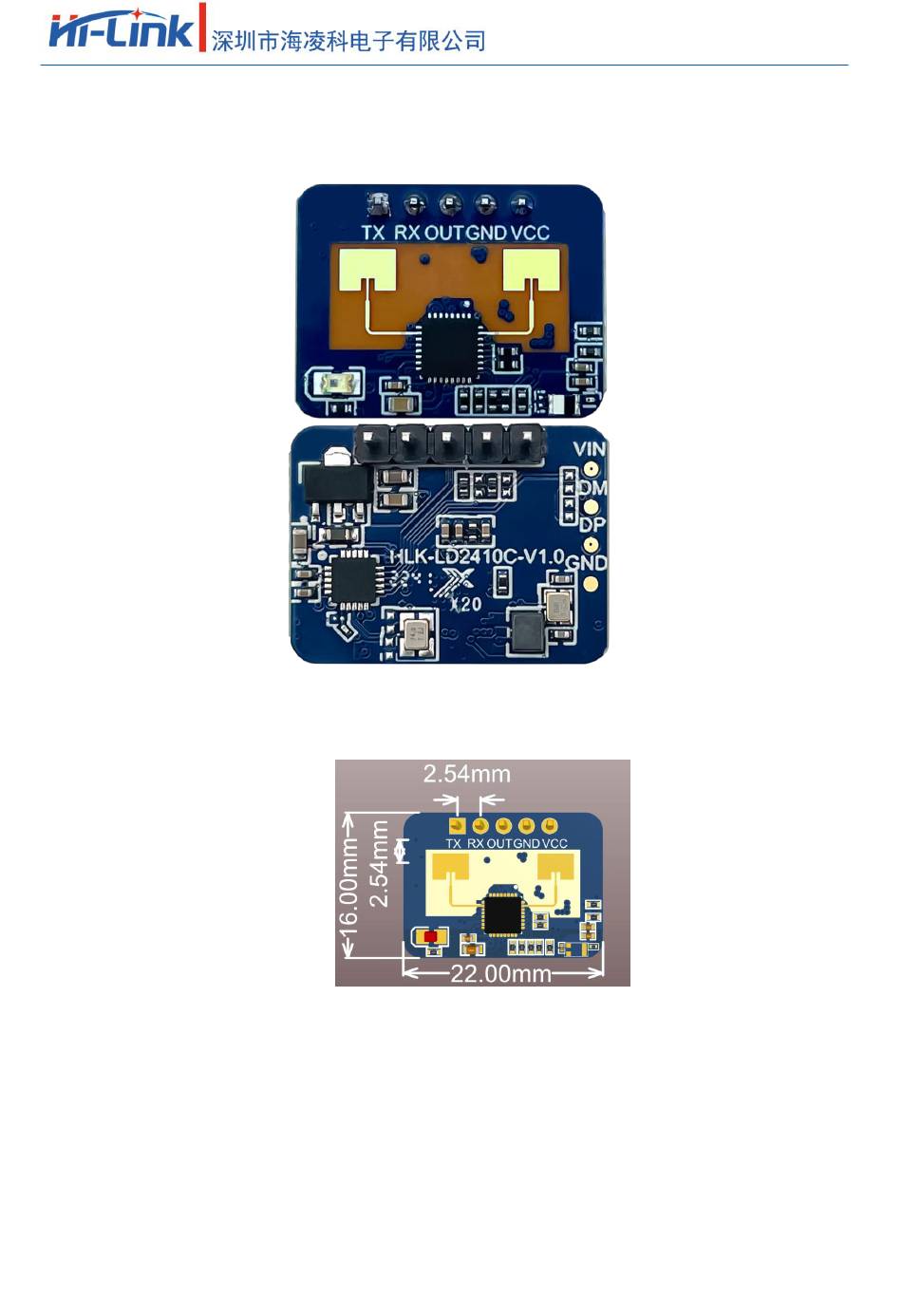

Figure 4 The physical picture of the module
Page 7 of 21
Figure 5 Module Dimensions
