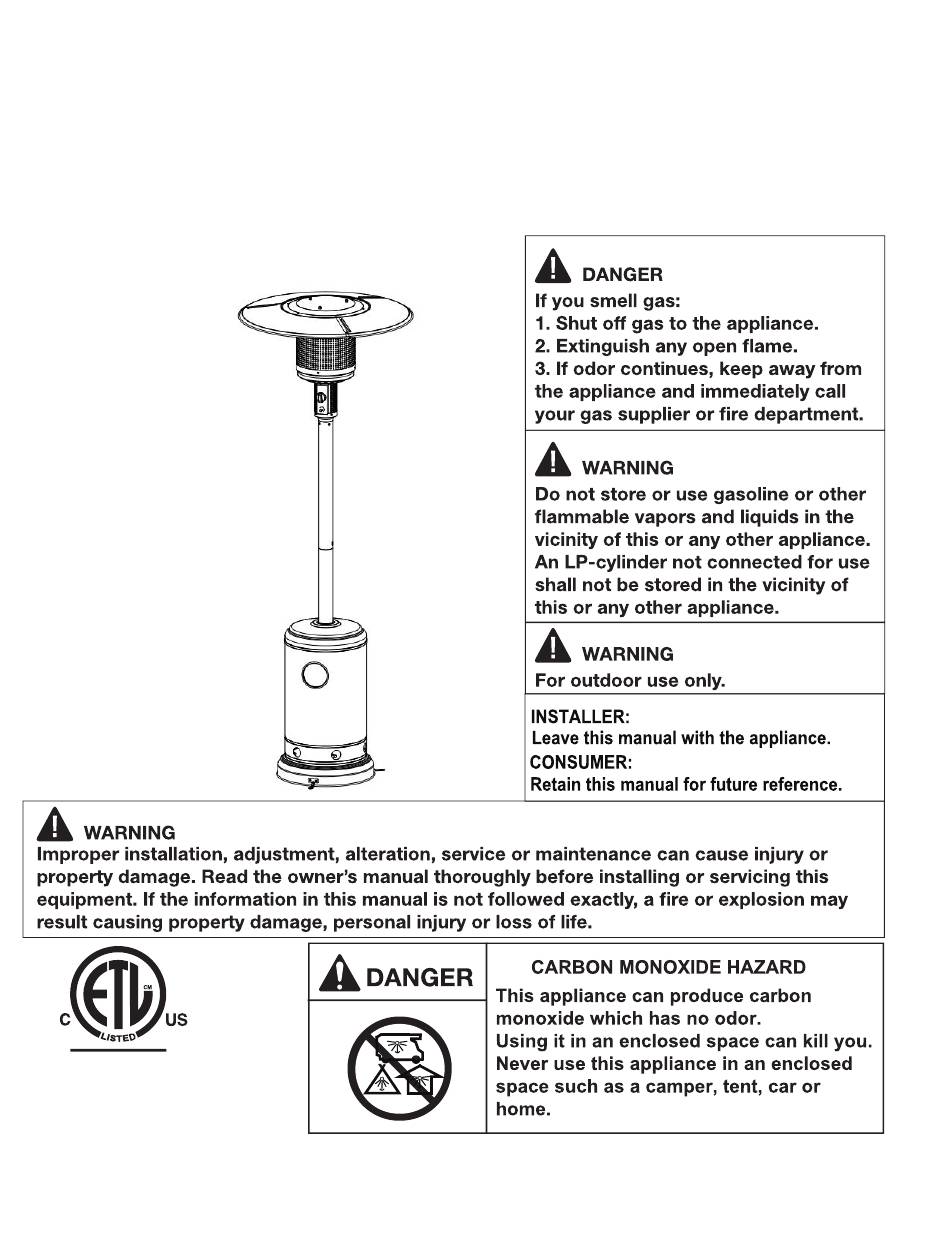

SAFETY INFORMATION Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so may result in a fire, explosion, injury or death. WARNING • The installation of this unit must adhere to local codes or Propane Storage and Handling Code, CSA B149.2.
Page 3
damaged parts should this occur. • Do not disconnect any part while unit is in use. • Do not store a spare propane tank on or near this unit. • If the heating unit is indoors, detach the propane tank and leave outdoors. •...
Page 4
SAFETY INFORMATION 48" BE CAREFUL: WHEN CERTAIN MATERIALS OR ITEMS ARE STORED ABOVE, BESIDE OR UNDER THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE 48" 48" SERIOUSLY DAMAGED. Combustible materials should not be within inches of the top of the unit, or within inches around the entire unit.
HARDWARE Item Description (packed with part I) M8 Nut (2 pcs packed with part I) Bolt M8x16 M6 Flange Nut (pre-assembled on part C) Bolt M6x10 Bolt M6x30 Reflector Spacer Washer (pre-assembled on part F) Post Bolt Screw M6x10 Cap Nut Wing Nut Wrench Anchoring Arm...
Page 6
CONTENTS Item Description Reflector Panel Center Reflector Burner Assembly Tank Housing Upper Post Lower Post Support Bracket Base Wheel Assembly Regulator Page 6...
Page 7
ASSEMBLY INSTRUCTIONS Step 1 Turn the base upside down, then attach wheel assembly (I) to base (H) using 2pcs M8 nuts (AA) and 2pcs bolts M8x16 (BB). Attach 3pcs anchoring arm (MM) to base (H) using 6pcs M6 nuts (OO) and 6pcs bolt M6x10 (NN). Be sure that the wheel assembly is parallel to the base.
Page 8
ASSEMBLY INSTRUCTIONS Step 4 Load tank housing onto post, slide tank housing down. Step 5 Remove the 4 pcs preassembled bolts M6x10 (DD) from the burner assembly (C). Insert the regulator (J) from the top end of the upper post (E), then attach the burner assembly (C) to upper post (E) using the four bolts removed at the beginning of this step.
Page 9
ASSEMBLY INSTRUCTIONS Step 7 WARNING: Remove protective cover before assembling. Note: If necessary for proper alignment of reflector sections. Attach 3 pcs reflector panels (A) to center reflector (B) using 9 pcs Screws M6x10 (II) and 9 pcs cap nuts (JJ). Fully tighten all of the screws.
Page 10
ASSEMBLY INSTRUCTIONS Step 9 Optional: Use the anchor (PP) to fasten the product into the ground. Hardware Used Anchor Step 10 Place the propane gas tank (not included) on the base. Tighten the belt to ensure the propane gas tank is fully secure.
OPERATION Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off” position. Brush a soap and water mixture on all connections. Turn the gas supply on; if bubbles occur on any connection there may be a leak.
MAINTENANCE • Before performing any maintenance always disconnect propane gas tank. • Keep the heating item free and clear from combustible materials. • Visually inspect burner for obstructions and keep tank enclosure free and clear from debris. • Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner is completely cooled down.
TROUBLESHOOTING Problem Cause Solution The burner will not light. The burner injector is clogged. Clean the burner injector. There is low gas supply pressure. Call your gas supplier. The burner flame goes off There is low gas pressure. Call your gas supplier. immediately after ignition.
WARRANTY The manufacturer warranty will be voided by, and manufacturer disclaims any responsibility for, the following actions: • Modification of the unit and/or components including the gas valve assembly. • Use of any component part not manufactured or approved by Manufacturer. •...
