Fortinet FortiWeb 1000E Quick Start Manual page 8

12 12

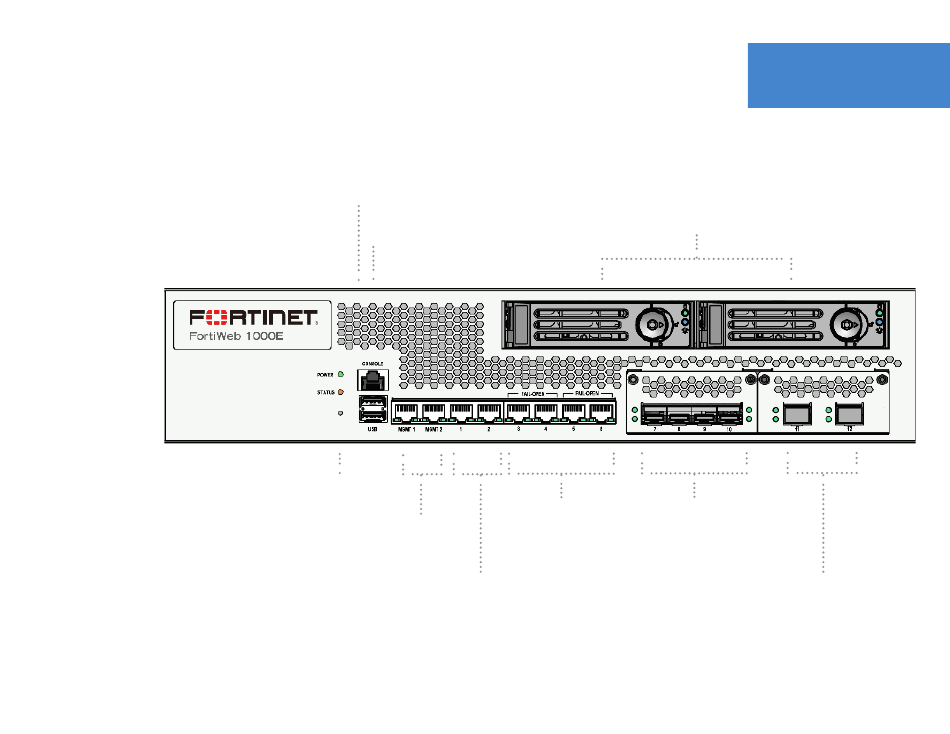

Console
Optional connection to the management
computer. Provides access to the CLI.
2x USB
Reserved for future use.
NMI Button
Reserved for software application.
2x MGMT ports
Dedicated Gigabit Ethernet Management
Port for system management.
2x HDD Bay
Hot-swappable HDD bays
for Log Disk usage.
4x RJ-45 Port 3-6 with FAIL-OPEN
4x RJ-45 Gigabit Ethernet ports
with hardware LAN bypass for
connections to your network.
2x RJ-45 Port 1-2
2x RJ-45 Gigabit Ethernet ports.
Device Guide
4x SFP Ports 7-10
4x SFP Gigabit Ethernet ports for
connections to your network.
2x SFP+ Ports 11-12
2x SFP+ 10 Gigabit Ethernet ports
for connections to your network.
