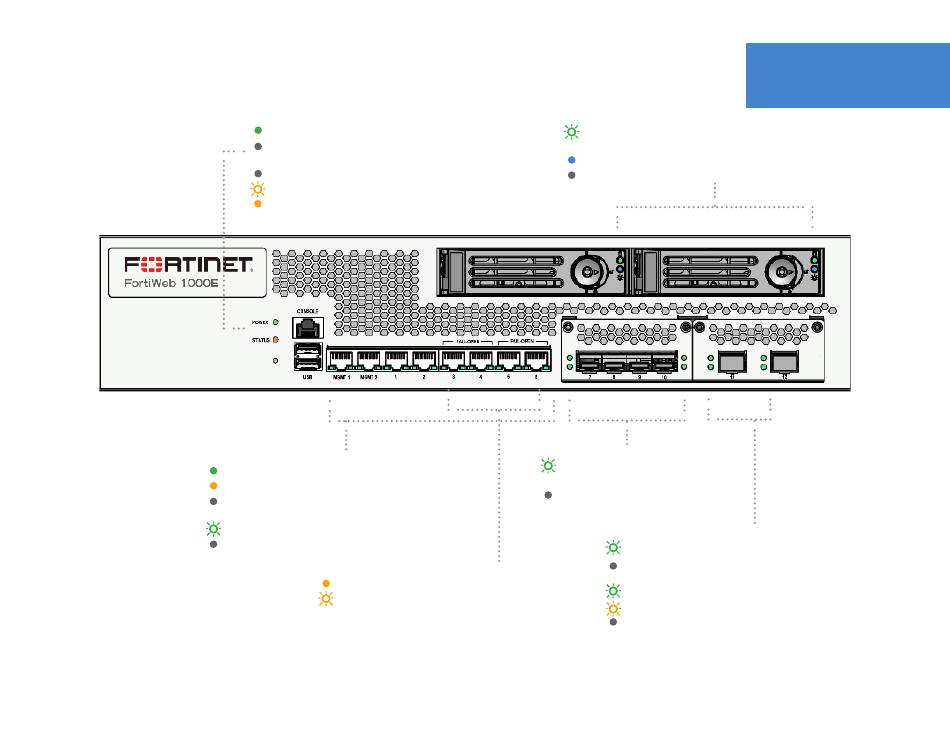

Power
Green:
The unit is ON.
Off: The unit is OFF.
Status
Off: System is normal.
Flashing Amber:
Minor system alarm.
Amber:
System failure. Refer to fail-open port
status during system failure.
RJ-45 Ethernet Port Speed (Left)
Green:
Port is connected at 1Gbps.
Amber:
Port is connected at 100Mbps.
Off: Port is connected at 10Mbps or is not in use.
RJ-45 Ethernet Port Link/Activity (Right)
Flashing Green:
Transmitting & receiving data.
Off: No link established.
Fail-open Port Status During System Failure (Port 3-6)
Amber:
Fail-open feature is working.
Flashing Amber:
HDD Activity Indicator
Flashing Green:
HDD Power Indicator
Blue:
Off: The HDD is OFF or not installed.
SFP Ethernet Port Link/Activity
Flashing Green:
receiving data at 1Gbps.
Off: No link established.
Fail-open feature is disabled.
Device Guide
HDD in use.
The HDD is in service.
Transmitting &
SFP+ Ethernet Port Link/Activity (Top)
Flashing Green:
Transmitting & receiving data.
Off: No link established.
SFP+ Ethernet Port Speed (Bottom)
Flashing Green:
Port is connected at 10Gbps.
Flashing Amber:
Port is connected at 1Gbps.
Off: No link established.
