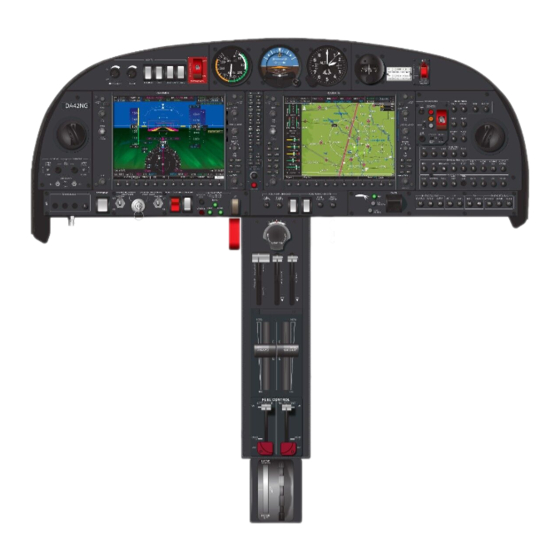

Garmin G1000 Diamond DA42NG Pilot's Manual

Garmin G1000 Diamond DA42NG Pilot's Manual

Integrated flight deck

Table of Contents

Advertisement

Quick Links

Download this manual

®

G1000

Integrated Flight Deck

®

Pilot's Guide

Diamond DA42NG

Table of Contents

Advertisement

Chapters

Table of Contents

Troubleshooting

Need help?

Need help?

Do you have a question about the G1000 Diamond DA42NG and is the answer not in the manual?

Questions and answers

Summary of Contents for Garmin G1000 Diamond DA42NG

Page 1 ® G1000 Integrated Flight Deck ® Pilot’s Guide Diamond DA42NG...
Page 3 SYSTEM OVERVIEW FLIGHT INSTRUMENTS AUDIO PANEL & CNS FLIGHT MANAGEMENT HAZARD AVOIDANCE AFCS ADDITIONAL FEATURES APPENDICES INDEX...
Page 4 AC-U-KWIK Organizations from any cause of action, claims or losses related to any actual or alleged inaccuracies in the information arising out of Garmin’s use of the information in the datasets. Some jurisdictions do not allow the limitation or exclusion of implied warranties or liability for incidental or consequential damages so the above limitations or exclusions may not apply to licensee.
Page 5 Within the warranty period, Garmin will, at its sole discretion, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and/or labor incidental to the direct repair of said product. Garmin may, at its discretion with prior approval, reimburse an authorized Garmin Service Center for associated labor costs incurred for removal and replacement of the panel mount product installed in an aircraft.
Page 6 Terrain data is obtained from third party sources. Garmin is not able to independently verify the accuracy of the terrain data. The displayed minimum safe altitudes (MSAs) are only advisory in nature and should not be WARNING: relied upon as the sole source of obstacle and terrain avoidance information.
Page 7 The GPS system is subject to changes which could affect the accuracy and performance of all GPS equipment. Portions of the Garmin G1000 utilize GPS as a precision electronic NAVigation AID (NAVAID). Therefore, as with all NAVAIDs, information presented by the G1000 can be misused or misinterpreted and, therefore, become unsafe.
Page 8 ANTI-REFLECTIVE COATING. It is very important to clean the lens using a clean, lint-free cloth and an eyeglass lens cleaner that is specified as safe for anti-reflective coatings. The Garmin G1000 does not contain any user-serviceable parts. Repairs should only be made by CAUTION: an authorized Garmin service center.
Page 9 Added ADS-B Traffic Added Iridium Satellite Telephone and SMS Added Profile View Added AC-U-KWIK Airport Directory references ® Updated SiriusXM references Updated database loading procedure Updated message advisories Updated softkey maps 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 10 REVISION INFORMATION lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 11: Table Of Contents
Split COM ............73 Altitude Alerting ..........125 Entertainment Inputs .......... 73 Low Altitude Annunciation 4.6 Audio Panel Preflight Procedure ....... 126 ..74 Minimum Descent Altitude/Decision Height Alerting 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 12 ............155 Nav Range Ring 6.2 GFDS Worldwide Weather ........310 ............156 Fuel Range Ring Registering the system for Garmin Flight Data Services ............ 157 Field of View (SVS) ..312 Accessing Worldwide Weather Products From GFDS ........158 Selected Altitude Intercept Arc ........
Page 13 Roll Hold Mode (ROL) ....533 Activating SiriusXM Satellite Radio Services ........450 Heading Select Mode (HDG) ..........535 Using SiriusXM Radio ...... 451 Navigation Modes (GPS, VOR, LOC, BC) 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 14 Frequently Asked Questions ........613 General TIS Information ..........617 ............. 617 Introduction ............617 TIS VS. TAS/TCAS ............617 TIS Limitations Map Symbols ..............619 INDEX Index ................I-1 Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 15: Section 1 System Overview
The Diamond DA42NG may be optionally equipped with a GFC 700 Automated Flight Control System (AFCS), providing flight director (FD), autopilot (AP), and manual electric trim (MET) functions of the G1000 System. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 16: Line Replaceable Units
HSDB connection. The IAUs are not paired together and do not communicate with each other directly. Refer to the Airplane Flight Manual (AFM) to determine whether SBAS functionality is approved. NOTE: Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 17 Magnetometer to obtain magnetic field information, with the ADC to obtain air data, and with both IAUs to obtain GPS information. AHRS operation is discussed in Section 1.4, System Operation. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 18 • GSR 56 (1) – The Iridium Transceiver provides voice communication by means of the pilot and copilot headsets. The GSR 56 is also used to obtain Worldwide Weather from Garmin Flight Data Services (GFDS) • GWX 68 (1) – Provides airborne weather and ground mapped radar data to the MFD, through the GDL 69A, via HSDB connection.
Page 19 The GSM 85 (or GSM 86) servo mounts are responsible for transferring the output torque of the servo actuators to the mechanical flight-control surface linkages (not displayed in Figure 1-1). 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 20 Pitch Servo Pitch Trim Servo Roll Servo Yaw Damper Servo Autopilot Calculations Autopilot Calculations Autopilot Calculations Yaw Damper Calculations (optional) (optional) (optional) (optional) Figure 1-1 G1000 System Block Diagram Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 21 For information on additional equipment shown in Figure 1-2, consult the applicable optional interface NOTE: user’s guide. This document assumes that the reader is already familiar with the operation of this additional equipment. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 22: Secure Digital (Sd) Cards
2) To eject the card, gently press on the SD card to release the spring latch. SD Card Slots Figure 1-3 Display Bezel SD Card Slots Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 23: System Power-Up
Navigation Map Page. Figure 1-4 PFD Initialization Figure 1-5 Example MFD Power-up 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 24: System Operation
IAU are flagged as invalid on the remaining display. The system reverts to backup paths for the AHRS, ADC, Engine/Airframe Unit, and Transponder, as required. The change to backup paths is completely automated for all LRUs and no pilot action is required. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 25: G1000 System Annunciations
LRUs. Upon G1000 power-up, certain instruments remain invalid as equipment begins to initialize. All instruments should be operational within one minute of power-up. If any instrument remains flagged, the G1000 should be serviced by a Garmin-authorized repair facility. GIA 63W...
Page 26: System Status
The System Status Page displays the statuses, serial numbers, and software version numbers for all detected system LRUs. Active LRUs are indicated by green check marks; failed, by red ‘X’ s . Failed LRUs should be noted and a service center or Garmin-authorized dealer informed. Viewing LRU information: 1) Use the FMS Knob to select the AUX - System Status Page.
Page 27 1) Use the FMS Knob to select the AUX - System Status Page. 2) Press the ANN TEST Softkey. Or : a) Press the MENU Key. b) Highlight ‘Enable Annunciator Test Mode’ and press the ENT Key. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 28: Ahrs Operation
Failure of the air data input has no effect on the AHRS output while AHRS is receiving valid GPS information. Invalid/unavailable airspeed data in addition to GPS failure results in loss of all attitude and heading information. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 29: Gps Receiver Operation
Use the FMS Knob to highlight the receiver which is not selected and press the ENT Key. Satellite Constellation Satellite Signal GPS Receiver Status Diagram Information RAIM Availability Prediction Satellite Signal Strength Bars Figure 1-11 GPS Status Page 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 30 3) Press the FMS Knob, and turn the large FMS Knob to hightlight ‘EGNOS’, ‘MSAS’, or ‘WAAS’. 4) Press the ENT Key to uncheck the box. 5) Press the FMS Knob to remove the cursor. Figure 1-12 Enable/Disable SBAS Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 31 • ‘RAIM AVAILABLE’—RAIM is predicted to be available for the specified waypoint, time, and date • ‘RAIM NOT AVAILABLE’—RAIM is predicted to be unavailable for the specified waypoint, time, and date 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 32 95% confidence horizontal and vertical accuracy values reported by the GPS receiver Refer to the Airplane Flight Manual (AFM) to determine whether SBAS functionality is approved. NOTE: Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 33: G1000 Controls
(outer) control portion. When a portion of the knob is not specified in the text, either may be used. Large (Outer) Knob Small (Inner) Knob Figure 1-14 Dual Concentric Knob 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 34 Displays a context-sensitive list of options for accessing additional features or making setting changes PROC Key Gives access to IFR departure procedures (DPs), arrival procedures (STARs), and approach procedures (IAPs) for a flight plan or selected airport Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 35: Softkey Function
(optional). Each softkey sublevel has a BACK Softkey which can be selected to return to the previous level. The ALERTS Softkey is visible at all softkey levels (label changes if messages are issued). 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 36 Displays/removes XM lightning information on Inset Map (optional) Displays Worldwide Weather lightning information on the Inset DL LTNG (optional) METAR Displays METAR flags on airport symbols shown on the Inset Map (optional) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 37 GPS: Waypoint identifier and GPS distance information ADF: Waypoint frequency Off: Removes window HSI FMT Displays softkeys to select the HSI format 360 HSI Displays HSI as a 360° compass rose 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 38 - ADF OPTN1 OPTN2 OPTN3 BACK ALERTS 360 HSI ARC HSI BACK ALERTS METERS BACK ALERTS PATHWAY SYN TERR HRZN HDG APTSIGNS BACK ALERTS Figure 1-18 PFD Configuration Softkeys Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 39 Press the BACK Softkey to return to the top-level softkeys. IDENT BKSP BACK ALERTS Press the IDENT or BACK Softkey to return to the top- level softkeys. Figure 1-19 XPDR Softkeys 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 40 DEC FUEL Decreases displayed fuel remaining in 1-gal increments INC FUEL Increases displayed fuel remaining in 1-gal increments RST FUEL Resets displayed fuel remaining to maximum fuel capacity for aircraft and fuel used to zero Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 41 Displays optional Flite Charts or Chart View charts (optional) CHKLIST Displays the Checklist Page DONE Selects the highlighted checklist item EXIT Returns to the top-level softkeys Immediately accesses the emergency procedures EMERGCY 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 42: Accessing G1000 Functionality
(FPL), nearest (NRST), and recently-entered (RECENT). The G1000 automatically fills in the identifier, facility, and city fields with the information for the selected waypoint. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 43 Press the ENT Key to confirm entry. 4) Press the FMS Knob or CLR Key to cancel data entry (the field reverts back to its previous information). 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 44: Page Groups
(or from the page menu). In this case, the page remains set to the selected page until a different page softkey is selected, even if a different page group is selected. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 45 - Approach Information (APR Softkey) - Weather Information (optional) (WX Softkey) Intersection Information NDB Information VOR Information Airport, Procedures User Waypoint Information and Weather Information Pages Figure 1-24 Waypoint Pages 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 46 Video (optional) Figure 1-25 Auxiliary Pages • Nearest Page Group (NRST) Nearest Airports Nearest Intersections Nearest NDB Nearest VOR Nearest User Waypoints Nearest Frequencies Nearest Airspaces Figure 1-26 Nearest Pages Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 47 Figure 1-28 Procedure Loading Pages Information on optional electronic checklist pages is offered later in this section. Checklist pages may be accessed from any page on the MFD using the CHKLIST Softkey. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 48: System Settings
1) Use the FMS Knob to select the AUX - System Setup Page. 2) Press the DFLTS Softkey. Or : a) Press the MENU Key. b) Highlight ‘Restore Defaults’ and press the ENT Key. Figure 1-29 AUX - System Setup Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 49 5) Use the FMS Knob to enter the desired time offset (±HH:MM) and press the ENT Key to confirm selection. Figure 1-31 Date/Time Settings (AUX - System Setup Page) 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 50 Engine Indication System (EIS) Fahrenheit Total Air Temperature (Trip Planning Page) Fuel and Gallons Fuel parameters (Trip Planning Page) Engine Indication System (EIS) Fuel Flow Imp Gallons Kilograms Liters Pounds Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 51 5) Use the FMS Knob to enter a profile name up to 16 characters long and press the ENT Key. Pilot profile names cannot begin with a blank as the first letter. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 52 6) In the next field, use the small FMS Knob to select the desired settings upon which to base the new profile. Profiles can be created based on Garmin factory defaults, default profile settings (initially based on Garmin factory defaults unless edited by the pilot), or current system settings.
Page 53: Timers
8) To reset the timer, press the ENT Key with ‘RESET?’ highlighted. The field changes back to ‘START?’ and the digits are reset. 9) To remove the window, press the CLR Key or the TMR/REF Softkey. Figure 1-34 Generic Timer (Timer/References Window) 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 54 Resetting the flight timer: 1) Use the FMS Knob to select the AUX - Utility Page. 2) Press the MENU Key. 3) With ‘Reset Flight Timer’ highlighted, press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 55 1) Use the FMS Knob to select the AUX - Utility Page. 2) Press the MENU Key. 3) Use the FMS Knob to highlight ‘Reset Departure Time’ and press the ENT Key. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 56: Electronic Checklists
Diamond DA42NG. The information described in this section is not intended to replace the checklist information described in the AFM or the Pilot Safety and Warning Supplements document. Garmin is not responsible for the content of checklists. Checklists are created by the aircraft NOTE: manufacturer.
Page 57 9) Press the EXIT Softkey or hold down the CLR Key momentarily to exit the Checklist Page and return to the page last viewed. Immediately accessing emergency procedures: 1) From any page, press the CHKLIST Softkey. 2) Press the EMERGCY Softkey. Figure 1-37 Sample Checklist 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 58: Display Backlighting
9) Turn the small FMS Knob in the direction of the green arrowhead to display ‘MFD KEY’ and repeat steps 4-7. 10) To remove the menu, press the CLR or MENU Key. Figure 1-38 PFD Setup Menu Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 59: Section 2 Flight Instruments
– Barometric setting • Course Deviation Indicator (CDI) – Selected altitude • Timer/References Window, showing • Vertical Deviation, Glideslope, and Glidepath – Generic timer Indicators – Vspeed values • Vertical Speed Indicator (VSI) – Barometric minimum descent altitude (MDA) • Vertical Navigation (VNV) indications • Wind data • Outside air temperature (OAT) The PFD also displays various alerts and annunciations. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 60 Selected Altitude Outside Air Temperature (OAT) COM Frequency Box Softkeys Navigation Status Box System Time Slip/Skid Indicator Transponder Data Box Attitude Indicator Heading Bug Figure 2-1 Primary Flight Display (Default) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 61 Required Vertical Speed Indicator DME Information Window Vertical Deviation Indicator Bearing Information Windows VNV Target Altitude Barometric Minimum Descent AFCS Status Annunciation Altitude / Decision Height Figure 2-2 Additional PFD Information 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 62: Flight Instruments
The trend vector is absent if the speed remains constant or if any data needed to calculate airspeed is not available due to a system failure. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 63 4) To remove all Vspeed flags, turn the FMS Knob to highlight All References Off and press the ENT Key. Restoring all Vspeed defaults: 1) Press the TMR/REF Softkey. 2) Press the MENU Key. 3) Turn the FMS Knob to highlight Restore Defaults and press the ENT Key. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 64: Attitude Indicator
The Slip/Skid Indicator is the bar beneath the roll pointer. The indicator bar moves with the roll pointer and moves laterally away from the pointer to indicate uncoordinated flight. Slip (inside the turn) or skid (outside the turn) is indicated by the location of the bar relative to the pointer. Figure 2-6 Slip/Skid Indication Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 65: Altimeter
Altitude Selected Altitude Indicated Altitude (Meters) Indicated Altitude Altitude Trend Vector Barometric Selected Minimums Altitude Barometric Barometric Setting Box Setting (Hectopascals) Figure 2-7 Altimeter Settings, In Hg and Metric 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 66 3) Press the IN Softkey to display the barometric pressure setting in inches of mercury (in Hg). Or , press the HPA Softkey to display the barometric pressure setting in hectopascals (hPa). 4) Press the BACK Softkey to return to the top-level softkeys. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 67: Vertical Speed Indicator (Vsi)
6) To cancel the selection, press the FMS Knob. Figure 2-9 Aux System Setup Page, Baro Transition Alert VERTICAL SPEED INDICATOR (VSI) The Vertical Speed Indicator (VSI) displays the aircraft vertical speed on a fixed scale with labels at 2000 and 4000 fpm and minor tick marks every 1000 fpm. Digits appear in the pointer when the climb or descent rate is greater than 100 fpm. If the rate of ascent/descent exceeds 4000 fpm, the pointer appears at the edge of the tape and the rate appears inside the pointer. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 68: Vertical Deviation
Indicator Indicator Deviation Pointer Indicator Required Vertical Speed Indicator Vertical Speed and Deviation Glideslope Indicator Glidepath Indicator Indicator (VSI and VDI) Figure 2-10 Vertical Speed and Vertical Deviation Indications Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 69: Horizontal Situation Indicator (Hsi)
Aircraft Symbol Turn Rate and Heading Trend Vector Course Deviation Indicator Current Heading (CDI) Rotating Compass Card Lubber Line OBS Mode Active Figure 2-11 Horizontal Situation Indicator (360˚ HSI) 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 70 Press the CRS Knob to re-center the CDI and return the course pointer to the bearing of the active waypoint or navigation station. Current Heading Heading Bug Selected Selected Heading Course Figure 2-13 Heading and Course Indications (Magnetic) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 71 • TRUE - References angles to true north (T) • MAGNETIC - Angles corrected to the computed magnetic variation (Mag Var) Figure 2-15 Navigation Angle Settings (AUX - System Setup Page) 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 72 Station Bearing Source Identifier Frequency Bearing Source Pointer 1 Pointer 2 Bearing Source Bearing 1 Information Window Bearing 2 Information Window Figure 2-17 HSI with Bearing and Distance Information Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 73 Displaying the DME Information Window: 1) Press the PFD Softkey. 2) Press the DME Softkey to display the DME Information Window. 3) To remove the DME Information Window, press the DME Softkey again. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 74: Course Deviation Indicator (Cdi)
Figure 2-18 Course Deviation Indicator The CDI can display two sources of navigation, GPS or VOR/LOC. The color indicates the current navigation source, magenta for GPS and green for VOR and LOC. The full scale limits for the CDI are defined by a GPS- derived distance when navigating GPS. When navigating using a VOR or localizer (LOC), the CDI uses the same angular deviation as a mechanical CDI. If the CDI exceeds the maximum deviation on the scale (two dots) while navigating with GPS, the crosstrack error (XTK) is displayed below the white aircraft symbol. Figure 2-19 Navigation Sources Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 75 Cycles through Navigation Sources Figure 2-20 Selecting a Navigation Source The system automatically switches from GPS to LOC navigation source and changes the CDI scaling accordingly when all of the following occur: • A localizer or ILS approach has been loaded into the active flight plan. • The final approach fix (FAF) is the active leg, the FAF is less than 15 nm away, and the aircraft is moving toward the FAF. • A valid localizer frequency has been tuned. • The GPS CDI deviation is less than 1.2 times full-scale deflection. GPS steering guidance is still provided after the CDI automatically switches to LOC until LOC capture, up to the Final Approach Fix (FAF) for an ILS approach, or until GPS information becomes invalid. Activating a Vector-to-Final (VTF) also causes the CDI to switch to LOC navigation source. GPS steering guidance is not provided after the switch. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 76 4) Turn the small FMS Knob to highlight the desired setting and press the ENT Key. 5) To cancel the selection, press the FMS Knob or the CLR Key. Figure 2-21 GPS CDI Settings (AUX-System Setup Page) When set to Auto (default), the GPS CDI scale automatically adjusts to the desired limits based upon the current phase of flight (Figure 2-22, Table 2-1). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 77 - If the active waypoint is part of the missed approach procedure, the active leg and the preceding missed approach legs must be aligned with the final approach segment course and the aircraft must not have passed the turn initiation point. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 78 Missed Approach 0.3 nm * Flight phase annunciations are normally shown in magenta, but when cautionary conditions exist the color changes to yellow. Table 2-1 Automatic GPS CDI Scaling Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 79 Mode. The flight plan on the moving map retains the modified course line. Selected OBS Mode Extended Enabled Course Line Pressing the OBS Pressing the OBS Softkey Enables Softkey Again OBS Mode Disables OBS Mode Figure 2-25 Omni-bearing Selector (OBS) Mode 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 80 SUSP appears on the HSI at the lower right of the aircraft symbol. The OBS Softkey label changes to indicate the suspension is active as shown in Figure 2-26. Pressing the SUSP Softkey deactivates the suspension and resumes automatic sequencing of approach waypoints. SUSP SUSP Softkey Annunciation Figure 2-26 Suspending Automatic Waypoint Sequencing Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 81: Supplemental Flight Data
PFD under normal display conditions. Temperature is displayed below the true airspeed in reversionary mode. Normal Display Reversionary Mode Figure 2-27 Outside Air Temperature 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 82 4) Turn the small FMS Knob to highlight either CELSIUS or FAHRENHEIT and press the ENT Key to confirm the selection. 5) To cancel the selection, press the FMS Knob or the CLR Key. Figure 2-28 Temperature Selection (AUX-System Setup Page) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 83: Wind Data
• OPTN 2: Wind direction arrow and numeric speed • OPTN 3: Total wind direction arrow with numeric headwind or tailwind and crosswind speed components 4) To remove the window, press the OFF Softkey. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 84: Vertical Navigation (Vnv) Indications
Current crosstrack or track angle error has exceeded limit Active altitude-constrained waypoint can not be reached within maximum allowed flight path angle and vertical speed Table 2-2 VNV Indication Removal Criteria Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 85: Pfd Annunciations And Alerting Functions
Warnings appear in red, cautions in yellow, advisory alerts in white, and safe operating annunciations in green. New alerts are displayed at the top of the Annunciation Window, regardless of priority. Once acknowledged, they are sequenced based on priority. Annunciation Window Alerts Window Softkey Annunciations Figure 2-31 G1000 Alerting System 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 86: Marker Beacon Annunciations
MFD page maps. Refer to the Hazard Avoidance Section and Appendix for more details about the Traffic Information Service (TIS) and optional Traffic Advisory Systems (TAS). When a traffic advisory (TA) is detected, the following automatically occur: • The PFD Inset Map is enabled and displays traffic. • A flashing black-on-yellow TRAFFIC annunciation appears to the top left of the Attitude Indicator for five seconds and remains displayed until no TAs are detected in the area. • A single “TRAFFIC” aural alert is heard, unless an optional Traffic Advisory System (TAS) is installed. Refer to the applicable TAS documentation for alerts generated by TAS equipment. If additional TAs appear, new aural and visual alerts are generated. Traffic Symbols Figure 2-33 Traffic Annunciation and Inset Map with TAS Traffic Displayed Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 87: Altitude Alerting
A Low Altitude Annunciation is available only when SBAS is available. NOTE: When the Final Approach Fix (FAF) is the active waypoint in a GPS SBAS approach using vertical guidance, a Low Altitude Annunciation may appear if the current aircraft altitude is at least 164 feet below the prescribed altitude at the FAF. A black-on-yellow LOW ALT annunciation appears to the top left of the Altimeter, flashing for several seconds, then remaining displayed until the condition is resolved. Figure 2-35 Low Altitude on GPS SBAS Approach 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 88: Minimum Descent Altitude/Decision Height Alerting
4) Use the small FMS Knob to enter the desired altitude from zero to 16,000 feet. 5) To remove the window, press the CLR Key or the TMR/REF Softkey. Figure 2-37 Barometric MDA/DH Alerting is inhibited while the aircraft is on the ground and until the aircraft reaches 150 feet above the MDA. If the aircraft proceeds to climb after having reached the MDA, once it reaches 50 feet above the MDA, alerting is disabled. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 89: Abnormal Operations
It is important to note that estimated navigation data supplied by the system in DR Mode may become increasingly unreliable and must not be used as a sole means of navigation. Refer to the Flight Management Section for more information on DR Mode 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 90: Unusual Attitudes
PFD: • Altimeter Barometric Setting • Flight Director Command Bars – Timer/References • Selected Altitude • Inset Map – Nearest Airports • VNV Target Altitude • Outside Air Temperature (OAT) – Flight Plan • DME Window • Wind Data – Messages • True Airspeed • Selected Heading Readout – Procedures • Marker Beacon Indicator • Selected Course Readout • Minimum Descent Altitude/ • Metric Altitude Display • Transponder Status Box Decision Height Readout • System Time Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 91: Section 3 Engine Indication System (Eis)
If sensory data to an instrument becomes invalid or unavailable, a red “X” is shown across the instrument. If a readout value is out of range, dashes ‘---’ are shown instead of a readout. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 92 Display (Figure 3-2). When a G1000 display enters Reversionary Mode, each EIS Display (Engine, System, Fuel) and the softkey functionality remains the same (refer to the System Overview for information about display Reversionary Mode). Display Figure 3-2 Primary Flight Display (Reversionary Mode) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 93 DEC FUEL Decreases displayed fuel remaining in 1-gal increments. INC FUEL Increases displayed fuel remaining in 1-gal increments. Resets displayed fuel remaining to maximum fuel capacity for aircraft and RST FUEL fuel used to zero. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 94: Engine Display
L and R indicate the fuel quantity in each tank Indicator ranges from 0 to 25 gal per side with tick marks every 5 gal; the red range indicates 1 gal of unusable fuel. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 95 ENGINE INDICATION SYSTEM Figure 3-4 Engine Display 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 96: System Display
Oil Pressure Indicator Displays oil pressure in bars (OIL BAR) Deice Fluid Indicator Displays the quantity of deice fluid; tick marks are located at quarter (DEICE FLUID) intervals (Optional) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 97 ENGINE INDICATION SYSTEM Figure 3-5 System Display 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 98: Fuel Display
Displays aircraft range in nautical miles (nm) based on the calculated fuel remaining (RANGE NM) Total Time in Service Displays the aircraft’ s total flight hours (hrs); activated when the aircraft (TTL TIME IN SVC) becomes airborne Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 99 From the Fuel Display, press the RST FUEL Softkey. This resets the displayed fuel remaining (GAL REM) to 50 gallons (or 76.4 gallons if optional aux fuel tanks are installed). The fuel used (GAL USED) is reset to zero. Figure 3-6 Fuel Display 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 100 ENGINE INDICATION SYSTEM lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 101: Section 4 Audio Panel And Cns
The Mode S transponder is controlled with softkeys and the FMS Knob located on the Primary Flight Display (PFD). The Transponder Data Box is located to the left of the System Time Box. The data box displays the active four-digit code, mode, and reply status (Figure 4-1). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 102: Mfd/Pfd Controls And Frequency Display
AUDIO PANEL AND CNS MFD/PFD CONTROLS AND FREQUENCY DISPLAY Figure 4-1 MFD/PFD Controls, NAV/COM Frequency Tuning Boxes, and ADF/DME Tuning Window (PFD Shown) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 103 Press the FMS Knob to turn the selection cursor on and off. The large knob moves the cursor in the window. The small knob selects individual characters for the highlighted cursor location. Transponder Data Box – Indicates the selected transponder code, operating mode, reply, and ident status for the transponder. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 104: Audio Panel Controls
COM2 MIC – Selects the #2 transmitter for transmitting. COM2 receive is simultaneously selected when this key is pressed allowing received audio from the #2 COM receiver to be heard. COM1 receive can be added by pressing the COM1 Key. COM2 – When selected, audio from the #2 COM receiver can be heard. COM3 MIC – Not used in DA42NG aircraft. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 105 PASS Knob – Turn to adjust Copilot/Passenger intercom volume or squelch. The MAN SQ Key must be selected to allow squelch adjustment. DISPLAY BACKUP Button – Manually selects Reversionary Mode. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 106: Com Operation
The other standby frequency is gray. Active Standby Fields Fields Top Section of the Audio Panel Tuning Box COM2 Radio is Selected on the Audio Panel Figure 4-3 Selecting a COM Radio for Transmit Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 107: Com Transceiver Manual Tuning
Automatic Squelch On or Off Key to Transfer COM Frequencies Between Active and Standby Frequency Boxes Turn the COM Knob to Tune the Frequency in the Tuning Box Figure 4-5 COM Frequency Tuning Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 108: Quick-Tuning And Activating 121.500 Mhz
Pressing and holding the COM Frequency Transfer Key for two seconds automatically loads the emergency COM frequency (121.500 MHz) in the active field of the COM radio selected for tuning (the one with the transfer arrow). In the example shown, pressing the Audio Panel COM2 MIC Key activates the transceiver. Press for Two Seconds to Load 121.500 MHz Figure 4-7 Quickly Tuning 121.500 MHz Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 109: Auto-Tuning The Com Frequency
4) Press the Frequency Transfer Key to transfer the frequency to the COM Active Frequency Field. Press the NRST Softkey to Open the Nearest Airports Window Figure 4-8 Nearest Airports Window (PFD) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 110 6) Press the Frequency Transfer Key to transfer the frequency to the COM Active Frequency Field. Nearest Airports Menu Nearest Frequencies Menu Nearest Airspaces Menu Figure 4-10 Nearest Pages Menus Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 111 Press ENT Key to Load Frequency into COM Standby Field. Cursor then Advances to Next Frequency. Press INFO-x Softkey for AIRPORT, RUNWAYS, FREQUENCIES, and AOPA Data Figure 4-11 WPT – Airport Information Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 112 AUDIO PANEL AND CNS COM frequencies can also be auto-tuned from the NRST – Nearest Airspaces, NRST – Nearest Frequencies, and NRST – Nearest Airports Pages on the MFD in a similar manner using the appropriate softkeys or MENU Key, the FMS Knob, and the ENT Key. Figure 4-12 NRST – Nearest Airspaces, NRST – Nearest Airports, and NRST – Nearest Frequencies Pages Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 113: Frequency Spacing
5) Press the ENT Key to complete the channel spacing selection. While the COM CONFIG Window is selected, the G1000 softkeys are blank. Select 8.33-kHz or 25.0-kHz COM Frequency Channel Spacing AUX - System Setup Page Figure 4-14 AUX – System Setup Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 114: Automatic Squelch
Volume level indication remains for two seconds after the change. COM Volume Level Remains for Two Seconds Figure 4-16 COM Volume Level Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 115: Nav Operation
Both active NAV frequencies are then displayed in white. Active Standby Fields Fields Tuning Box The NAV Radio is Selected by Pressing the CDI Softkey Figure 4-17 Selecting a NAV Radio for Navigation See the Flight Instruments Section for selecting the DME and Bearing Information windows and using VOR or ADF as the source for the bearing pointer. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 116: Nav Receiver Manual Tuning
Press the Frequency Transfer Key to Transfer NAV Frequencies Between Active and Standby Frequency Fields Turn the NAV Knob to Tune the Frequency in the Tuning Box Figure 4-19 NAV Frequency Tuning Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 117 When adjusting, the level is displayed in place of the standby frequencies. Volume level indication remains for two seconds after the change. NAV Volume Level Remains for Two Seconds Figure 4-22 NAV Volume Levels Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 118: Auto-Tuning A Nav Frequency From The Mfd
Key to Load a Highlighted Frequency into the NAV Standby Turn the FMS Frequency Box Knob to Scroll Through a List of Frequencies Figure 4-23 NAV Frequency Auto-Tuning from the MFD Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 119 6) Press the Frequency Transfer Key to transfer the frequency to the NAV Active Frequency Field. Nearest Airports Menu Nearest VOR Menu Nearest Frequencies Menu Nearest Airspaces Menu Figure 4-24 Nearest Pages Menus Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 120 Softkey to Place Softkey to Place the Cursor on the the Cursor on the VOR Identifier VOR Frequency Figure 4-25 Loading the NAV Frequency from the NRST – Nearest VOR Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 121 MENU Key, the FMS Knob, and the ENT Key. Figure 4-26 NRST – Nearest Frequencies, WPT – VOR Information, WPT – Airport Information, and NRST – Nearest Airports Pages Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 122 • If the current CDI navigation source is GPS, the approach frequency is transferred to the NAV1 active frequency field. The frequency that was previously in the NAV1 active frequency field is transferred to standby. • If the current CDI navigation source is GPS, and if the approach frequency is already loaded into the NAV1 standby frequency field, the standby frequency is transferred to active. • If the current CDI navigation source is NAV1 or NAV2, the approach frequency is transferred to the standby frequency fields of the selected CDI NAV radio. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 123: Marker Beacon Receiver
Pressing the HI SENS Key switches between high and low marker beacon receiver sensitivity. The HI SENS function (annunciator illuminated) is used to provide an earlier indication when nearing a marker during an approach. The LO SENS function (annunciator extinguished) results in a narrower marker dwell while over a station. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 124: Adf/Dme Tuning
Turning the large FMS Knob moves the selection cursor through the various fields (standby ADF frequency, ADF receiver mode, ADF radio volume, and DME tuning mode). Pressing the FMS Knob activates/deactivates the selection cursor in the ADF/DME Tuning Window. The ADF frequency is entered using the FMS Knob and the ENT Key. Active ADF Frequency Standby ADF Frequency Mode Volume Tuning Mode Figure 4-29 ADF/DME Tuning Window Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 125 1) Turn the large FMS Knob to place the selection cursor over the standby ADF frequency field. 2) Press the ENT Key to complete the frequency transfer. Press the ENT Key to Transfer the ADF Frequencies Figure 4-31 Transferring ADF Frequencies Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 126 1) Turn the large FMS Knob to place the selection cursor over the ADF volume field. 2) Turn the small FMS Knob to adjust volume as desired. Turn the Small FMS Knob to Select the Volume Figure 4-33 Adjusting ADF Receiver Volume Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 127 3) Press the ENT Key to complete the selection. Pressing the CLR Key or FMS Knob while in the process of DME pairing cancels the data entry and reverts back to the previously selected DME tuning state. Pressing the FMS Knob activates/deactivates the cursor in the ADF/DME Tuning Window. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 128: Gtx 33 Mode S Transponder
FMS Knob, but not a combination of both. Pressing the IDENT Softkey while in Mode or Code Selection initiates the ident function and reverts to the top-level softkeys. After 45 seconds of transponder softkey inactivity, the system reverts back to the top-level softkeys. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 129: Transponder Mode Selection
Mode S interrogations. When Standby Mode has been selected on the ground, the transponder can be returned to Ground Mode by pressing the GND Softkey. Mode Figure 4-36 Ground Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 130 ON Mode can be selected at any time by pressing the ON Softkey. ON Mode generates Mode A and Mode S replies, but Mode C altitude reporting is inhibited. In ON Mode, a green ON indication and transponder code appear in the mode field of the Transponder Data Box. ON Mode (No Altitude Reporting) Figure 4-38 ON Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 131 When the transponder sends replies to interrogations, a white R indication appears momentarily in the reply status field of the Transponder Data Box. Reply to Interrogation Figure 4-40 Reply Indication Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 132: Entering A Transponder Code
Turn the Large Enter Two Code FMS Knob Digits at a Time to Move the Cursor to the Next Code Field Figure 4-42 Entering a Code with the FMS Knob Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 133: Ident Function
After the IDENT Softkey is pressed while in Mode or Code Selection, the system reverts to the top-level softkeys. IDNT Indication Press the IDENT Softkey to Initiate the ID Function Figure 4-44 IDENT Softkey and Indication Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 134: Flight Id Reporting
AUDIO PANEL AND CNS FLIGHT ID REPORTING If the Flight ID is required but the system is not configured for it, contact a Garmin-authorized service NOTE: center for configuration. When the Flight ID must be entered before flight operation, the identifier is placed in the Timer/References Window on the PFD. The Flight ID is not to exceed seven characters. No space is needed when entering Flight ID. When a Flight ID contains a space, the system automatically removes it upon completion of Flight ID entry. Entering a Flight ID: 1) Press the TMR/REF Softkey to display the Timer/References Window.
Page 135: Additional Audio Panel Functions
Speaker audio is muted when the PTT is pressed. Certain aural alerts and warnings (autopilot, traffic, altitude) are always heard on the speaker, even when the speaker is not selected. The speaker volume is adjustable within a nominal range. Contact a Garmin-authorized service center for volume adjustment.
Page 136: Intercom
The passengers are isolated from the pilot and copilot but can communicate with each other. When both the PILOT and COPLT Annunciators are extinguished, everyone hears the selected radios, aural alerts, and is able to communicate with everyone else. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 137 VOL and SQ. Turn Copilot/Passenger to adjust Squelch when SQ Volume or Annunciation is lit, Volume Manual Squelch when VOL Annunciation is lit. Volume Annunciation Squelch Annunciation Figure 4-48 Volume/Squelch Control Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 138: Clearance Recorder And Player
PLAY Key selects the previously recorded memory block. Powering off the unit automatically clears all recorded blocks. MKR/MUTE Key Stops Play PLAY Key Controls the Play Function Figure 4-49 Marker Mute and Play Keys Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 139: Split Com
ENTERTAINMENT INPUTS XM RADIO ENTERTAINMENT XM Radio audio from the Data Link Receiver may be heard by the pilot and passengers simultaneously (optional: requires subscription to XM Radio Service). Refer to the Additional Features Section for more details on the Data Link Receiver. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 140: Audio Panel Preflight Procedure
6) Reset squelch to automatic, or adjust to the appropriate level manually. Once this procedure has been completed, the pilot and copilot can change settings, keeping in mind the notes above. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 141: Abnormal Operation
If there is a failure of the Audio Panel, a fail-safe circuit connects the pilot’ s headset and microphone directly to the COM1 transceiver. Audio is not available on the speaker. REVERSIONARY MODE The red DISPLAY BACKUP Button selects the Reversionary Mode. See the System Overview Section for more information on Reversionary Mode. Figure 4-54 Display Backup Button Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev A...
Page 142 AUDIO PANEL AND CNS lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 143: Section 5 Flight Management
The Direct-to Window, the Flight Plan Window, the Procedures Window, and the Nearest Airports Window can be displayed in the lower right corner of the PFD. Details of these windows are discussed in detail later in the section. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 144: Navigation Status Box
Figure 5-2 GPS Navigation Information on the MFD Navigation Page NAVIGATION STATUS BOX The Navigation Status Box located at the top of the PFD contains two fields displaying the following information: PFD Navigation Status Box Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 145 4) Turn the small FMS Knob to display and scroll through the data options list. 5) Select the desired data. 6) Press the ENT Key. Pressing the DFLTS Softkey returns all fields to the default setting. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 146: Using Map Displays
(track up, desired track up, or heading up). The map orientation is shown in the upper right corner of the map. Figure 5-3 Map Orientation • North up (NORTH UP) aligns the top of the map display to north (default setting). • Track up (TRK UP) aligns the top of the map display to the current ground track. • Desired track up (DTK UP) aligns the top of the map display to the desired course. • Heading up (HDG UP) aligns the top of the map display to the current aircraft heading. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 147 4) Turn the small FMS Knob to select the desired orientation. 5) Select the ENT Key to select the new orientation. 6) Press the FMS Knob to return to the base page. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 148: Map Range
Increase the minimum look ahead time to a value that limits the auto zoom to a minimum range that provides acceptable situational awareness. • Flight plans that have a combination of long and short legs cause the range to increase and decrease as waypoints sequence. To avoid this, auto zoom can be disabled or the maximum/minimum times can be adjusted. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 149 9) Repeat step 8 for ‘MIN LOOK FWD’ (zero to 99 minutes) and ‘TIME OUT’ (zero to 99 minutes). 10) Press the FMS Knob to return to the Navigation Map Page. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 150: Map Panning
The map is normally centered on the aircraft’s position. If the map has been panned and there has NOTE: been no pointer movement for about 60 seconds, the map reverts back to centered on the aircraft position and the flashing pointer is removed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 151 When any map feature or object is selected on the map display, pertinent information is displayed. Information about Point of Interest Map Pointer on Figure 5-9 Navigation Map - Map Pointer on Point of Interest 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 152 2) Move the Joystick to move the Map Pointer around the map. 3) Press the Joystick to remove the Map Pointer and recenter the map on the aircraft’s current position. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 153 3) Press the GO BACK Softkey, the CLR Key, or the ENT Key to exit the Waypoint Information Page and return to the Navigation Map showing the selected waypoint. NAVAID Information GO BACK Softkey Figure 5-11 Navigation Map - Information Window - NAVAID 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 154 Information Page for the selected airspace. 4) Press the CLR or ENT Key to exit the Airspace Information Page. Airspace Information Figure 5-12 Navigation Map - Information Window - Airspace Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 155: Measuring Bearing And Distance
5) To exit the Measure Bearing/Distance option, press the Joystick; or select ‘Stop Measuring’ from the Page Menu and press the ENT Key. Measurement Pointer Lat/Long Information Measurement Line Figure 5-13 Navigation Map - Measuring Bearing and Distance 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 156: Topography
1) Press the MENU Key with the Navigation Map Page displayed. The cursor flashes on the ‘Map Setup’ option. 2) Press the ENT Key. The Map Setup Menu is displayed. 3) Select the ‘Map’ group. 4) Press the ENT Key. 5) Highlight the ‘TOPO DATA’ field. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 157 In addition, the Navigation Map can display a topographic scale (located in the lower right hand side of the map) showing a scale of the terrain elevation and current elevation values. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 158 5) Select ‘On’ or ‘Off’. 6) Press the FMS Knob to return to the Navigation Map Page. TOPO SCALE On/Off Figure 5-17 Navigation Map Setup Menu - TOPO SCALE Setup Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 159: Map Symbols
LARGE CITY (> 200,000) 1500 MEDIUM CITY (> 50,000) SMALL CITY (> 5,000) States and Provinces (STATE/PROV) 1500 Rivers and Lakes (RIVER/LAKE) USER WAYPOINT Table 5-1 Land Symbol Information 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 160 Class C Airspace/TCA (CLASS C/TCA) Class D Airspace (CLASS D) Restricted Area (RESTRICTED) Military Operations Area [MOA(MILITARY)] Other/Air Defense Interdiction Zone (OTHER/ADIZ) Temporary Flight Restriction (TFR) 2000 Table 5-2 Aviation Symbol Information Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 161 7) Press the ENT Key to accept the selected size. 8) Select the desired range. 9) Press the ENT Key to accept the selected range. 10) Press the FMS Knob to return to the Navigation Map Page. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 162 PFD Inset Map two range levels smaller than the range selected in the Map Setup pages (e.g., a setting of 100 nm removes the item at ranges above 100 nm on MFD navigation maps, while the PFD Inset Map removes the same item at 50 nm). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 163 Decluttering the PFD Inset Map: 1) Press the INSET Softkey. 2) Select the DCLTR Softkey. The current declutter level is shown. With each selection, another level of map information is removed. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 164 Class B Airspaces/TMA Class C Airspaces/TCA Class D Airspaces Other Airspaces/ADIZ TFRs Obstacles Land/Country Text Cities Roads Railroads State/Province Boundaries River/Lake Names Table 5-3 Navigation Map Items Displayed by Declutter Level Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 165: Airways
When airways are selected for display on the map, the airway waypoints (VORs, NDBs and Intersections) are also displayed. Low Altitude Airway (Victor Airway) High Altitude Airway (Jet Route) Figure 5-22 Airways on MFD Navigation Page 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 166 5) To change the range setting, turn the small FMS Knob to display the range list. 6) Select the desired range using the small FMS Knob. 7) Press the ENT Key. 8) Press the FMS Knob to return to the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 167: Track Vector
6) Select ‘On’ or ‘Off’. Press the ENT Key to accept the selected option. The flashing cursor highlights the look ahead time field. Use the FMS Knob to select the desired time. Press the ENT Key. 7) Press the FMS Knob to return to the Navigation Map Page. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 168: Wind Vector
3) Select the ‘Map’ group. 4) Press the ENT Key. 5) Highlight the ‘WIND VECTOR’ field. 6) Select ‘On’ or ‘Off’. 7) Press the FMS Knob to return to the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 169: Nav Range Ring
7) Press the FMS Knob to return to the Navigation Map Page. The Nav Range Ring is referenced to either magnetic or true north, based on the selection on the AUX NOTE: - System Setup Page. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 170: Fuel Range Ring
8) To change the reserve fuel time, enter a time (00:00 to 23:59; hours:minutes). The default setting is 00:45 minutes. 9) Press the ENT Key. 10) Press the FMS Knob to return to the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 171: Field Of View (Svs)
4) Press the ENT Key. 5) Highlight the ‘FIELD OF VIEW’ field. 6) Select ‘On’ or ‘Off’. 7) Press the FMS Knob to return to the Navigation Map Page. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 172: Selected Altitude Intercept Arc
4) Press the ENT Key. 5) Highlight the ‘SEL ALT ARC’ field. 6) Select ‘On’ or ‘Off’. 7) Press the FMS Knob to return to the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 173: Waypoints
FMS Knob during the selection process. If duplicate entries exist for an identifier, a Duplicate Waypoints Window is displayed when the ENT Key is pressed. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 174: Airports
Page displays airport information in three boxes labeled ‘AIRPORT’, ‘RUNWAYS’, and ‘FREQUENCIES’. For airports with multiple runways, information for each runway is available. This information is viewed on the Airport Information Page by pressing the INFO softkey until INFO-1 is displayed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 175 The following descriptions and abbreviations are used on the Airport Information Page: • Usage type: Public, Military, Private, or Heliport • Runway surface type: Hard, Turf, Sealed, Gravel, Dirt, Soft, Unknown, or Water • Runway lighting type: No Lights, Part Time, Full Time, Unknown, or PCL Freq (for pilot-controlled lighting) • COM Availability: TX (transmit only), RX (receive only), PT (part time), i (additional information available) 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 176 Transportation Type Available Procedures High/Med/Low Clicks/Second • Approach: Approach Facility • Charts: Low Altitude Chart • FBO: Type, Frequencies, Name, Frequency, Frequency Number Services, Fees, Fuel, Credit Parameter Cards, Phone/Fax Numbers Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 177 25 nearest airports (three entries can be displayed at one time). If there are more than three they are displayed in a scrollable list. If there are no nearest airports available, “NONE WITHIN 200NM” is displayed. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 178 The selected airport is indicated by a white arrow, and a dashed white line is drawn on the navigation map from the aircraft position to the nearest airport. Up to five nearest airports, one runway, up to five frequencies, and up to five approaches are visible at one time. If there are more than can be shown, each list can be scrolled. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 179 4) Turn the FMS Knob to highlight the desired airport. (Pressing the ENT Key also moves to the next airport.) 5) Press the FMS Knob to remove the flashing cursor. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 180 5) Press the FMS Knob to remove the flashing cursor. Nearest Airport Criteria - Type of Runway Surface - Minimum Runway Length Figure 5-38 System Setup Page - Nearest Airport Selection Criteria Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 181: Intersections
2) Press the ENT Key or turn either FMS Knob to select an identifier in the Nearest Intersection Box. 3) Press the FMS Knob to remove the flashing cursor. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 182 Showing Nearest intersection from Intersection aircraft position Intersection Lat/Long Reference VOR Info - Identifier/Type (symbol) - VOR Frequency Nearest - Bearing/Distance to VOR Intersection Figure 5-40 Nearest Intersections Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 183: Ndbs
2) Press the ENT Key or turn either FMS Knob to select an identifier in the Nearest NDB Box. 3) Press the FMS Knob to remove the flashing cursor. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 184 Navigation Map - Bearing/Distance to NDB from aircraft Showing Selected position Nearest NDB NDB Information - Facility Name/City - Type - Lat/Long NDB Frequency Figure 5-42 Nearest NDB Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 185: Vors
2) Press the ENT Key or turn either FMS Knob to select an identifier in the Nearest VOR Box. 3) Press the FMS Knob to remove the flashing cursor. Or : 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 186 Navigation Map - Bearing/Distance to VOR Showing Nearest from aircraft position VOR Information - Facility Name/City - Class/Magnetic Variation - Lat/Long VOR Frequency Nearest VOR Figure 5-44 Nearest VOR Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 187: User Waypoints
2) Press the ENT Key or turn either FMS Knob to select an identifier in the Nearest USR Box. 3) Press the FMS Knob to remove the flashing cursor. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 188 6) If desired, change the storage method of the waypoint to “TEMPORARY” or “NORMAL” by moving the cursor to “TEMPORARY” and selecting the ENT Key to check or uncheck the box. 7) Press the FMS Knob to remove the flashing cursor. Or : Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 189 2) a menu pops up allowing a choice between ‘Review Airspaces’ or ‘Create User Waypoint’, or 3) a new waypoint is initiated with the default name being the selected map item. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 190 3) Press the ENT Key. The message ‘Do you want to rename the user waypoint AAAAAA to BBBBBB?’ is displayed. 4) With ‘YES’ highlighted, press the ENT Key. 5) Press the FMS Knob to remove the flashing cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 191 3) Select ‘NORMAL’ or ‘TEMPORARY’ as desired, and press the ENT Key. 4) Press the FMS Knob to remove the flashing cursor and return to the User Waypoint Information Page. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 192 2) Press the MENU Key. 3) Select ‘Delete All User Waypoints’. 4) Press the ENT Key twice to confirm the selection. 5) Press the FMS Knob to remove the flashing cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 193: Airspaces
Figure 5-48 Airspaces The Nearest Airspaces Page, Airspace Alerts Window, and Airspace Alerts on the PFD provide additional information about airspaces and the location of the aircraft in relationship to them. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 194 5) Press the FMS Knob to remove the flashing cursor. Airspace Alerts Box - Airspace Altitude Buffer - Alert On/Off (Default Settings Shown) DFLTS Softkey Figure 5-49 System Setup Page - Airspace Alerts Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 195 ENT Key. The cursor is placed in the ‘AIRSPACE ALERTS’ Box. 3) Select the desired airspace. 4) Press the FMS Knob to remove the flashing cursor. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 196 Special use airspace is near and ahead of the aircraft position. ahead. ARSPC NEAR – Airspace near – Special use airspace is within 2 nm of the aircraft position. less than 2 nm. Table 5-6 PFD Airspace Alert Messages Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 197: Direct-To-Navigation
- Facility Name VNV Constraints - Altitude at Arrival - Along Track Offset Direct-to Point Info - Bearing/Distance - Desired Course Activation Command Figure 5-52 Direct-to Window - PFD 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 198 1) Select the Active Flight Plan Page on the MFD, or the Active Flight Plan Window on the PFD. 2) Select the desired waypoint. 3) Press the Direct-to Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 199 5) Press the ENT Key again to activate the direct-to. Direct-to destinations may also be selected by using the pointer on the navigation map pages. If no airport, NAVAID, or user waypoint exists at the desired location, a temporary waypoint named ‘MAPWPT’ is automatically created at the location of the map arrow. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 200 3) With ‘Cancel Direct-To NAV’ highlighted, press the ENT Key. If a flight plan is still active, the G1000 resumes navigating the flight plan along the closest leg. Page Menu - Cancel Direct-To Navigation Figure 5-54 Direct-to Window - Cancelling Direct-to Navigation Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 201 6) Press the ENT Key. The cursor is now flashing in the VNV offset distance field. 7) Enter the desired along-track distance before the waypoint. 8) Press the ENT Key. The ‘Activate?’ field is highlighted. 9) Press the ENT Key to activate. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 202 2) Press the MENU Key. 3) With ‘Clear Vertical Constraints’ highlighted, press the ENT Key. Page Menu - Clear Vertical Navigation Constraints Figure 5-55 Direct-to Window - Clearing Vertical Constraints Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 203: Flight Planning
If that happens, the airway waypoints are changed to regular (non-airway) flight plan waypoints, and an alert is displayed (see Miscellaneous Messages in Appendix A). 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 204: Flight Plan Creation
- Vertical Speed Target Non-Active, - Flight Path Angle Flight Plan Leg - Vertical Speed Target - Time to Top of Descent - Vertical Deviation Figure 5-56 Active Flight Plan Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 205 3) Turn the small FMS Knob to display the Waypoint Information Window. (Turning it clockwise displays a blank Waypoint Information Window, turning it counter-clockwise displays the Waypoint Information Window with a waypoint selection submenu allowing selection of active flight plan, nearest, recent, user, or airway waypoints). 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 206 6) Repeat step numbers 4 and 5 to enter each additional flight plan waypoint. 7) When all waypoints have been entered, press the FMS Knob to return to the Flight Plan Catalog Page. The new flight plan is now in the list. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 207 9) Press the ENT Key again to confirm the import. Import/Export Softkeys List of Flight Plans to Import & Import Successful Details for the Selected File Figure 5-59 Flight Plan Import 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 208 The exported flight plan will not contain any procedures or airways. NOTE: Import/Export Softkeys Stored Flight Plan to be Exported & Export Successful Exported Flight Plan Name Figure 5-60 Flight Plan Export Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 209: Adding Waypoints To An Existing Flight Plan
Adding a waypoint to a stored flight plan: 1) On the Flight Plan Catalog Page, press the FMS Knob to activate the cursor. 2) Highlight the desired flight plan. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 210 5) Enter the identifier, facility, or city name of the waypoint or select a waypoint from the submenu of waypoints and press the ENT Key. The active flight plan is modified as each waypoint is entered. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 211: Adding Airways To A Flight Plan
“Load Airway”. The Select Airway Page is displayed. The LD AIRWY Softkey or the “Load Airway” menu item is available only when a valid airway entry waypoint has been chosen (the waypoint ahead of the cursor position). 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 212 Figure 5-65 Select Airway Page - Selecting Exit Point Inserted Airway Header - Airway Identifier: [airway identifier].[exit waypoint identifier] (e.g., V4.SLN) Figure 5-66 Active Flight Plan Page - Airway Inserted Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 213: Adding Procedures To A Stored Flight Plan
(arrival), and landing at an airport (approach). See the procedures section for more details. Flight Plan Name Flight Plan Waypoint List Softkeys Load Departure - Load Arrival - Load Approach - Activate Flight Plan - Figure 5-67 Stored Flight Plan Page 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 214 5) Select a runway served by the selected departure, if required. Press the ENT Key. 6) Select a transition for the selected departure. Press the ENT Key. 7) Press the ENT Key to load the selected departure procedure. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 215 Figure 5-69 Departure Loading Page - Selecting Transition Inserted Departure Header - Departure Identifier: [departure airport]-[departure runway]. [departure transition]. [departure end point] (e.g., KMKC-ALL.WLDCT2.SLN) Figure 5-70 Stored Flight Plan Page - Departure Inserted 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 216 5) Select a transition for the selected arrival. Press the ENT Key. 6) Select a runway served by the selected arrival, if required. Press the ENT Key. 7) Press the ENT Key to load the selected arrival procedure. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 217 Figure 5-72 Arrival Loading Page - Selecting the Transition Inserted Arrival Header - Arrival Identifier: [arrival airport]-[arrival transition]. [arrival].[arrival runway] (e.g., KCOS-TBE.DBRY1.ALL) Figure 5-73 Stored Flight Plan Page - Arrival Inserted 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 218 4) Select an approach. Press the ENT Key. 5) Select a transition for the selected approach. Press the ENT Key. 6) Press the ENT Key to load the selected approach procedure. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 219 Figure 5-75 Approach Loading Page - Selecting the Transition Inserted Approach Header - Approach Identifier: [approach airport].[runway and approach type] LPV) (e.g., KCOS-RNAV 35R Figure 5-76 Stored Flight Plan Page - Approach Inserted 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 220: Flight Plan Storage
4) With ‘OK’ highlighted, press the ENT Key. The flight plan is stored in the next available position in the flight plan list on the Flight Plan Catalog Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 221 1) Press the FPL Key and turn the small FMS Knob to display the Flight Plan Catalog Page. 2) Press the FMS Knob to activate the cursor, and turn the FMS Knob to highlight the desired flight plan. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 222: Flight Plan Editing
2) Press the FMS Knob to activate the cursor (not required on the PFD) and turn the large FMS Knob to highlight the waypoint to be deleted. 3) Press the CLR Key. The ‘Remove XXXXX?’ window is displayed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 223 7) With ‘OK’ highlighted, press the ENT Key. To cancel the request, press the CLR Key, or highlight ‘CANCEL’ and press the ENT Key. 8) Press the FMS Knob to remove the flashing cursor. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 224 7) With ‘OK’ highlighted, press the ENT Key. To cancel the request, press the CLR Key, or highlight ‘CANCEL’ and press the ENT Key. 8) Press the FMS Knob to remove the flashing cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 225: Along Track Offsets
An along track offset distance cannot be modified once entered. If the along track offset distance must be changed, the existing along track offset waypoint must be deleted and a new one created with the new offset distance. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 226: Parallel Track
Parallel Track. Parallel Track is also cancelled if a course change occurs greater than 120° or the parallel tracks overlap as a result of the course change. Vertical navigation is unavailable while the Parallel Track feature is active. NOTE: Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 227 5) Press the ENT Key to activate parallel track. Press the FMS Knob or the CLR Key to cancel the parallel track activation. Offset Direction Offset Distance Activation Prompt Figure 5-80 Parallel Track Window 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 228 Subdued Prompt (Unavailable) Unavailable Status Invalid Approach Geometry Active Figure 5-82 Parallel Track Unavailable Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 229 2) Press the MENU Key, highlight ‘Parallel Track’, and press the ENT Key. The Parallel Track Window is displayed with ‘CANCEL PARALLEL TRACK?’ highlighted. 3) Press the ENT Key. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 230: Activating A Flight Plan Leg
5) Press the FMS Knob to remove the flashing cursor. Current Active Leg Selected Destination Waypoint Activate Leg Softkey Figure 5-84 Active Flight Plan Page - Selecting the Leg Destination Waypoint Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 231: Inverting A Flight Plan
The ‘Invert and activate stored flight plan?’ window is displayed. 4) With ‘OK’ highlighted, press the ENT Key. To cancel the request, press the CLR Key, or highlight ‘CANCEL’ and press the ENT Key. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 232: Flight Plan Views
3) Press the WIDE Softkey to display the wide view, or press the NARROW Softkey to display the narrow view. 4) Press the BACK Softkey to return to the top level active flight plan softkeys. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 233 “To” or the “Next” waypoint is automatically expanded. When an airway is loaded, airways are automatically expanded to facilitate flight plan review. Q3.FEPOT Airway Collapsed View Expanded View Figure 5-88 Expanded/Collapsed Airways 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 234: Closest Point Of Fpl
(DIS) to the closest point along the flight plan to the selected reference waypoint and creates a user waypoint at this location. The name for the new user waypoint is derived from the identifier of the reference waypoint. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 235: Vertical Navigation
1) Press the FPL Key to display the Active Flight Plan Page on the MFD. 2) Press the CNCL VNV Softkey; or press the MENU Key, highlight ‘Cancel VNV’, and press the ENT Key. Vertical navigation is disabled. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 236 3) Press the VNV Direct-To Softkey; or press the MENU Key, highlight ‘VNV Direct-To’, and press the ENT Key. An ‘Activate vertical Direct-to to: NNNNNFT at XXXXXX?’ confirmation window is displayed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 237: Altitude Constraints
Small Light Blue Text Cross AT Small Light Blue or BELOW Subdued Text 3,000 ft Altitude Constraint Small White Text with Examples Altitude Restriction Bar Figure 5-91 Waypoint Altitude Constraints 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 238 (only before the FAF). When a database altitude restriction of type “AT or ABOVE” or “AT or BELOW” is activated, the system uses the “AT” portion of the restriction to define the vertical profile. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 239 3) Press the CLR Key. A ‘Remove or Revert to published VNV altitude of nnnnnFT?’ confirmation window is displayed. 4) Select ‘REMOVE’ and press the ENT Key. The manually entered altitude is deleted (it is replaced by a system calculated altitude, if available). 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 240 4) Select ‘EDIT’ and press the ENT Key. 5) Edit the value using the FMS Knobs, and press the ENT Key. 6) Press the FMS Knob to remove the flashing cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 241: Procedures
6) Select a runway (if required) and press the ENT Key. 7) Select a transition (if required) and press the ENT Key. ‘LOAD?’ is highlighted. 8) Press the ENT Key to load the departure procedure. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 242 FLIGHT MANAGEMENT Available Procedure Actions Departure Airport Loaded Procedures Departure Preview Departure Choices Figure 5-92 Departure Selection Loaded Departure Selected Departure Procedure Loading Page Selection Softkeys Figure 5-93 Departure Loading Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 243 4) With ‘OK’ highlighted, press the ENT Key. To cancel the removal request, highlight ‘CANCEL’ and press the ENT Key. 5) Press the FMS Knob to remove the flashing cursor. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 244: Arrivals
7) Select a runway (if required) and press the ENT Key. ‘LOAD?’ is highlighted. 8) Press the ENT Key to load the arrival procedure. Available Procedure Actions Destination Airport Loaded Procedures Arrival Preview Arrival Choices Figure 5-94 Arrival Selection Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 245 6) Turn the small FMS Knob to view the available runways. Press the ENT Key to select the runway. The cursor moves to the Sequence box. The arrival is previewed on the map. 7) Select the INFO-x Softkey to return to the Airport Information Page. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 246: Approaches
If the GPS receiver cannot be used for primary guidance, the appropriate navigation receiver must be used for the selected approach (e.g., VOR or Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 247 FOR GPS’ is displayed. GPS provides guidance to the approach, but the HSI must to be switched to a NAV receiver to fly the final course of the approach. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 248 Destination Airport Approach Preview Approach Choices Loaded Procedures Figure 5-96 Approach Selection Selected Approach Loaded Approach Procedure Loading Page Selection Softkeys LOAD or ACTIVATE? Annunciation Figure 5-97 Approach Loading Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 249 ‘NOT APPROVED FOR GPS’ is displayed. GPS provides guidance to the approach, but the HSI must to be switched to a NAV receiver to fly the final course of the approach. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 250 4) With ‘OK’ highlighted, press the ENT Key. To cancel the removal, highlight ‘CANCEL’ and press the ENT Key. 5) Press the FMS Knob to remove the flashing cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 251 Course to Altitude leg when the missed approach procedure is activated. Course to Altitude Leg Figure 5-98 Course to Altitude 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 252: Trip Planning
• Calibrated airspeed (CALIBRATED AS) - The primary source is from the air data system, and the secondary source of information is GPS ground speed. • Indicated altitude (IND ALTITUDE) - The primary source is the barometric altitude, and the secondary source of information is GPS altitude. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 253 • Enroute safe altitude (ESA) - The ESA is shown as nnnnnFT • Destination sunrise and sunset times (SUNRISE, SUNSET) - These times are shown as hours:minutes and are the local time at the destination. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 254 Figure 5-100 Trip Planning Page - Flight Plan Mode Selected Flight Plan Selected Leg(s) Not Available Not Available Selected Starting and Ending Waypoints Figure 5-101 Trip Planning Page - Waypoint Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 255 2) Turn the FMS Knobs to move the cursor onto the DEP TIME field and enter the desired value. Press the ENT Key. The statistics are calculated using the new value and the cursor moves to the next entry field. Repeat until all desired values have been entered. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 256: Raim Prediction
3) Turn the small FMS Knob to display the Waypoint Information Window. (Turning it clockwise displays a blank Waypoint Information Window, turning it counter-clockwise displays the Waypoint Information Window with a waypoint selection submenu allowing selection of active flight plan, nearest, recent, user, or airway waypoints). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 257 SBAS Status SBAS SELECTION Box - EGNOS Enable/Disable - MSAS Enable/Disable - WAAS Enable/Disable RAIM Softkey SBAS Softkey (displays RAIM (displays SBAS Selection) PREDICTION) Figure 5-103 SBAS Display - Active 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 258 SBAS Status SBAS SELECTION Box - EGNOS Enable/Disable - MSAS Enable/Disable - WAAS Enable/Disable RAIM Softkey SBAS Softkey (displays RAIM (displays SBAS Selection) PREDICTION) Figure 5-104 SBAS Display - Disabled Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 259: Navigating A Flight Plan
2) Figure 5-105 shows the aircraft on the assigned heading of 240º. ‘TERM’ (Terminal) is the current CDI flight phase displayed on the HSI indicating 1.0 nm CDI scaling. Figure 5-105 Assigned Heading of 240º 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 260 3) ATC now assigns routing to join V4. A heading of 290º is assigned to intercept V4. The aircraft turns to heading 290° as seen in Figure 5-106. Figure 5-106 Assigned Heading of 290º 4) Enter V4 into the flight plan. a) Press the FMS Knob to activate the cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 261 Turn the small FMS Knob to display the Waypoint Information Window. Enter the desired entry point for V4, Topeka VOR (TOP), as shown in Figure 5-108. Figure 5-108 Entering V4 Entry Point 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 262 Select the LD AIRWY Softkey to display the list of available airways for TOP as seen in Figure 5-110. Figure 5-110 List of Available Airways for TOP g) Turn either FMS Knob to highlight V4 in the list as seen in Figure 5-110. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 263 Press the ENT Key. The selected airway and exit are displayed, and the prompt “LOAD?” highlighted as in Figure 5-112. Figure 5-112 Ready to Load V4 k) Press the ENT Key. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 264 Select the ACT LEG Softkey. The confirmation window is now displayed as in Figure 5-114. Note the TOP to SLN leg is actually part of V4. Figure 5-114 Comfirm Active Leg Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 265 6) The aircraft continues on heading 290º. When crosstrack distance is less than 2.0 nm, the XTK disappears from the HSI and the CDI is positioned on the last dot indicating a 2.0 nm distance from the centerline of the next course. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 266 8) At SLN, Victor Airway 244 (V244) is intercepted. Turn prompts are displayed in the PFD Navigation Status Box as seen in Figure 5-117. Figure 5-117 Turn to Intercept V244 Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 267 FLIGHT MANAGEMENT 9) As seen in Figure 5-118, V244 is now the active flight plan leg. Figure 5-118 V244 Now Active Leg 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 268 Turn the large FMS Knob to select OPSHN in the flight plan list. c) Press the Direct-to ( ) Key. The Direct-to Window is now displayed as shown in Figure 5-120. Figure 5-120 Direct To OPSHN Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 269 Enter the offset, or distance from the waypoint at which to reach the selected altitude. In this case, three miles prior to OPSHN is entered. In other words, the G1000 gives vertical guidance so the aircraft arrives at an altitude of 10,000 feet three miles prior to OPSHN. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 270 12) The aircraft is proceeding to OPSHN. The expected approach is the RNAV LPV approach to runway 35R, so it is selected. a) Press the PROC Key to display the Procedures Window. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 271 Press the ENT Key. A list of available approaches for the destination airport is displayed as in Figure 5-125. Figure 5-125 List of Available Approaches d) Turn either FMS Knob to select the LPV approach for 35R as shown in Figure 5-125. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 272 To set ‘MINIMUMS’, turn the small FMS Knob to select ‘BARO’, and press the ENT Key. Turn the small FMS Knob to select the altitude, and press the ENT Key. Or : To skip setting minimums, press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 273 Figure 5-127 Barometric Minimums Set i) With ‘LOAD?’ highlighted, again press the ENT Key. The selected approach is added to the flight plan as seen in Figure 5-128. Figure 5-128 Loaded Approach 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 274 Vertical guidance from the FAF and on to the Missed Approach Point (MAP) is given using the WAAS GPS altitude source, therefore, the displayed altitude values are for reference only. Figure 5-129 Vertical Guidance is Active to the FAF Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 275 TOD that results in a -3.0 degree FPA descent to an altitude of 10,000 feet upon reaching the offset waypoint. Figure 5-130 Adjusting the Descent c) Press the ENT Key. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 276 Figure 5-131 Approaching Top of Descent (TOD) Target Altitude Vertical Deviation Indicator (VDI) Required Vertical Speed Indicator (RVSI) Figure 5-132 VDI & RVSI Upon Reaching Top of Descent (TOD) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 277 17) When the aircraft is one minute from the bottom of descent (BOD) it is annunciated as shown in Figure 5-134. Upon reaching the offset waypoint for OPSHN, the aircraft is at 10,000 feet. Figure 5-134 Approaching Bottom of Descent (BOD) at OPSHN Offset Waypoint 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 278 PFD as seen in Figure 5-135. Initiate the turn and maneuver the aircraft on a track through the turn radius to intercept the magenta line for the OPSHN to FSHER leg and center the CDI. Figure 5-135 Turn to intercept OPSHN to FSHER Leg Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 279 A descent to HABUK is in the next leg. Note the TOD point on the map. Annunciations for the upcoming turn and descent, as well as the VDI and RVSI, appear on the PFD as the flight progresses. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 280 FLIGHT MANAGEMENT Figure 5-137 Approaching PYNON Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 281 Turn the large FMS Knob to highlight ‘ACTIVATE APPROACH’ as shown in Figure 5-139. c) Press the ENT Key to activate the approach. Figure 5-139 Manually Activate Approach 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 282 22) The IAF is the next waypoint. At the TOD, establish a descent vertical speed as previously discussed in Step 16. The aircraft altitude is 9,000 feet upon reaching HABUK. Figure 5-140 Descending Turn to the Initial Approach Fix (IAF) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 283 “AT” 7,800 feet at the FAF. Note the altitude restriction lines over and under (At) the altitude in the ‘ALT’ field in Figure 5-141. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 284 Point (MAHP). In this case, the altitude would appear in the list of waypoints as ‘5500ft’. Again, if the aircraft altitude is lower than the prescribed altitude, a direct-to is established on a Course to Altitude leg when the missed approach procedure is activated. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 285 A direct-to is initiated to MOGAL, which is the Missed Approach Hold Point (MAHP) as seen in Figure 5-143. The aircraft is climbing to 10,000 feet. The CDI flight phase now changes from LPV to MAPR as seen on the HSI. Figure 5-143 Missed Approach Active 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 286 MAHP (MOGAL) as shown in Figure 5-144. Figure 5-144 Establishing the Holding Pattern 27) The aircraft maintains 10,000 feet while following the magenta line through the hold as in Figure 5-145. Figure 5-145 Hold Established Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 287: Abnormal Operation
Also, while the G1000 is in DR Mode, the autopilot does not couple to GPS, and both TAWS and Terrain Proximity are disabled. Additionally, the accuracy of all nearest information (airports, airspaces, and waypoints) is questionable. Finally, airspace alerts continue to function, but with degraded accuracy. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 288 The Inset Map is removed from the PFD any time aircraft pitch is greater than +30° or less than –20°, NOTE: or when a 65° bank angle is reached. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 289: Section 6 Hazard Avoidance
Weather • Garmin GDL 69/69A SiriusXM Weather and Temporary Flight Restrictions (Optional) • Garmin GSR 56 Garmin Flight Data Services Worldwide Weather and Temporary Flight Restrictions (Optional) • Garmin GDL 90 Flight Information Service - Broadcast (FIS-B) Weather (Optional) • Garmin GWX 68 Airborne Color Weather Radar (Optional) ® • L-3 Stormscope WX-500 Series II Weather Mapping Sensor (Optional) Terrain Avoidance • Terrain Proximity • Terrain-SVS (Included with SVS option) Traffic • Traffic Information Service (TIS) ® • Avidyne TAS600 Series Traffic Advisory System (TAS) (Optional) • Garmin GDL 90 Universal Accesses Transceiver (UAT) Traffic (Optional) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 290: Siriusxm Satellite Weather
4) Verify the desired services are activated. 5) Press the LOCK Softkey. 6) Turn the large FMS Knob to highlight ‘YES’. 7) To complete activation, press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 291: Using Siriusxm Weather Products
4) Turn the large FMS Knob to select ‘Display XM Weather’ and and press the ENT Key. The page title changes to ‘Weather Data Link (XM)’ to indicate SiriusXM is now the selected weather data link source. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 292 3) To remove the weather product information box, press the WX LGND Softkey again or deselect all active SiriusXM weather products on the PFD Inset Map. The age of the product is based on the time difference between when the data was assembled on the ground and the current GPS time. Weather products are refreshed at specific intervals (defined in the Refresh Rate column in Table 6-1). If for any reason, a weather product is not refreshed within the Expiration Time intervals (see Table 6-1), the data is considered expired and is removed from the display. This ensures that the displayed data is consistent with what is currently being provided by the SiriusXM Weather service. If more than half of the expiration time has elapsed, the color of the product age displayed changes to yellow. The system displays dashes instead of a product age when a product has expired. If a weather product is not available, the system displays ‘N/A’ instead of a product age. Table 6-1 shows the weather product symbols, the expiration times and the refresh rates. The refresh rate represents the interval at which SiriusXM Weather services broadcasts new signals that may or may not contain new weather data. It does not represent the rate at which weather data is updated or new content is received by the Data Link Receiver. Weather data is updated at intervals that are defined and controlled by SiriusXM and its data suppliers and are subject to change. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 293 Radar Coverage no product image (RADAR CVRG) Temporary Flight Restrictions no product image (TFRs) Terminal Aerodrome Reports no product image (TAFs) Table 6-1 SiriusXM Weather Product Symbols and Data Timing Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 294: Nexrad
Turbulence (TURB) No Radar Coverage TFRs TAFs * Winds Aloft data is available inside Profile View when enabled on the Navigation Map Page. Table 6-2 Sirius Weather Product Display Maps Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 295 PREV 21000 24000 27000 30000 33000 NEXT BACK 36000 LEGEND PREV 39000 42000 45000 NEXT BACK LEGEND Figure 6-3 Weather Data Link (XM) Page Softkeys The setup menus for the Navigation Map Page and the Weather Data Link (XM) Page control the map range settings above which weather products data are decluttered from the display. If a map range larger than the weather product map range setting is selected, the weather product data is removed from the map. The menus also provide a means in addition to the softkeys for enabling/disabling display of weather products. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 296 3) With ‘Weather Setup’ highlighted, press the ENT Key. 4) Press the MENU Key. 5) Highlight the desired default(s) to restore (all or for selection) and press ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 297 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-6 Navigation Map Page Menu Figure 6-7 Navigation Map Page Setup Menu Figure 6-8 Navigation Map Page Setup Menu, Weather Group If multiple weather data link services are installed, customizing the display settings for the corresponding weather products shown in Table 6-3 will result in identical settings for a comparable weather product from another service provider. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 298: Xm Lightning
3) Press the LEGEND Softkey to display the legends for the displayed weather products. 4) To remove the XM Weather Legends Window, press the LEGEND Softkey, the ENT or the CLR Key, or press the FMS Knob. Additional information about the following can be displayed by panning over the display on the map: Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 299 The map panning feature is enabled by pressing the RANGE Knob. The map range is adjusted by turning the RANGE Knob. If the map range is adjusted while panning is enabled, the map is re-centered on the Map Pointer. Additional Information about Item Selected with Map Pointer Available TFR Selected with Map Pointer Figure 6-9 Panning on the Weather Data Link (XM) Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 300 1) Press the MAP Softkey (for the PFD Inset Map, press the INSET Softkey). This step is not necessary on the Weather Data Link (XM) Page. 2) Press the NEXRAD Softkey. Composite data from all the NEXRAD radar sites in the United States is shown. This data is composed of the maximum reflectivity from the individual radar sweeps. The display of the information is color-coded to indicate the weather severity level. All weather product legends can be viewed on the Weather Data Link Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 301 Reflectivity is the amount of transmitted power returned to the radar receiver. Colors on the NEXRAD display are directly correlative to the level of detected reflectivity. Reflectivity as it relates to hazardous weather can be very complex. The role of radar is essentially to detect moisture in the atmosphere. Simply put, certain types of weather reflect radar better than others. The intensity of a radar reflection is not necessarily an indication of the weather hazard level. For instance, wet hail returns a strong radar reflection, while dry hail does not. Both wet and dry hail can be extremely hazardous. The different NEXRAD echo intensities are measured in decibels (dB) relative to reflectivity (Z). NEXRAD back to measures the radar reflectivity ratio, or the energy reflected the radar receiver (designated by the letter Z). The value of Z increases as the returned signal strength increases. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 302 • NEXRAD base reflectivity is sampled at the minimum antenna elevation angle. An individual NEXRAD site cannot depict high altitude storms at close ranges. It has no information about storms directly over the site. • When zoomed in to a range of 30 nm, each square block on the display represents an area of four square highest kilometers. The intensity level reflected by each square represents the level of NEXRAD data sampled within the area (Figure 6-12). • Any unknown precipitation below 52ºN is displayed as rain regardless of the actual precipitation type. Block Area is 4 km Figure 6-12 NEXRAD Data - Zoomed The following may cause abnormalities in displayed NEXRAD radar images: • Ground clutter • Strobes and spurious radar data • Sun strobes (when the radar antenna points directly at the sun) • Interference from buildings or mountains, which may cause shadows • Metallic dust from military aircraft, which can cause alterations in radar scans Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 303 HAZARD AVOIDANCE neXRaD l imitations anaDa • Radar coverage extends to 55ºN. • Any precipitation displayed between 52ºN and 55ºN is displayed as mixed regardless of actual precipitation type. No Coverage Above 55ºN Precipitation Above 52ºN Displays as Mixed Figure 6-13 NEXRAD Data - Canada Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 304 Displaying Echo Tops information: 1) Select the Weather Data Link (XM) Page. 2) Press the ECHO TOP Softkey. To display the Echo Tops legend (Figure 6-15), press the LEGEND Softkey when Echo Tops is selected for display. Since Echo Tops and Cloud Tops use the same color scaling to represent altitude, display of these weather products is mutually exclusive. When Echo Tops is activated, NEXRAD and Cloud Tops data are removed. No Radar Coverage Figure 6-15 Echo Tops Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 305 Figure 6-16 Cloud Tops Data Displaying Cloud Tops information: 1) Select the Weather Data Link (XM) Page. 2) Press the CLD TOP Softkey. To display the Cloud Tops legend (Figure 6-17), press the LEGEND Softkey when Cloud Tops is selected for display. Since Cloud Tops and Echo Tops use the same color scaling to represent altitude, display of these weather products is mutually exclusive. When Cloud Tops is activated, Echo Tops data is removed. Figure 6-17 Cloud Tops Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 306 1) Press the MAP Softkey (for the PFD Inset Map, press the INSET Softkey). This step is not necessary on the Weather Data Link (XM) Page. 2) Press the XM LTNG Softkey.. To display the SiriusXM Lightning legend on the Weather Data Link (XM) Page (Figure 6-19), press the LEGEND Softkey when SiriusXM Lightning is selected for display. Figure 6-19 SiriusXM Lightning Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 307 Navigation Map Setup Menu (see the procedure “Setting up and customizing weather data for the Navigation Map Page”). To display the Cell Movement legend on the Weather Data Link (XM) Page, (Figure 6-21), press the LEGEND Softkey when Cell Movement is selected for display. Figure 6-21 Cell Movement Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 308 3) To view the text of the SIGMET or AIRMET, press the RANGE Knob and move the Map Pointer over the icon. 4) Press the ENT key. Figure 6-23 shows sample SIGMET text. To display the SIGMET and AIRMET legend (Figure 6-24), press the LEGEND Softkey when SIGMETs and AIRMETs are selected for display. Figure 6-23 Sample SIGMET Text Figure 6-24 SIGMET/AIRMET Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 309 4) Use the FMS Knob or the ENT Key to scroll through the METAR and TAF text. METAR text must be completely scrolled through before scrolling through the TAF text. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 310 3) Turn the large FMS Knob to highlight the desired waypoint. The METAR text will appear in the ‘SELECTED WAYPOINT WEATHER’ window below. 4) When finished, press the FMS Knob to remove the cursor or press the FPL Key to exit the Active Flight Plan Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 311 3) Press the SFC Softkey. 4) Select the desired forecast time: CURRENT, 12 HR, 24 HR, 36 HR, or 48 HR. The SFC Softkey label changes to reflect the forecast time selected. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 312 Displaying Freezing Level information: 1) Select the Weather Data Link (XM) Page. 2) Press the MORE WX Softkey. 3) Press the FRZ LVL Softkey. To display the Freezing Level legend (Figure 6-31), press the LEGEND Softkey when Freezing Level data is selected to be displayed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 313 4) Select the desired altitude level: SFC (surface) up to 42,000 feet. Press the NEXT or PREV Softkey to cycle through the altitude softkeys. The WIND Softkey label changes to reflect the altitude selected. Figure 6-32 Winds Aloft Data at 9,000 Feet To display the Winds Aloft legend (Figure 6-33), press the LEGEND Softkey when Winds Aloft is selected for display. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 314 Figure 6-34 Winds Aloft Data Inside Profile View (Navigation Map Page) Arrows pointing to the left indicate headwind components; tailwind component arrows point to the right, as shown in Table 6-4. Headwind Tailwind Headwind/Tailwind Symbol Symbol Component None None Less than 5 knots 5 knots 10 knots 50 knots Table 6-4 Profile View Headwind/Tailwind Component Symbols Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 315 7) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-35 Navigation Map Page Menu Figure 6-36 Navigation Map Page Setup Menu Figure 6-37 Navigation Map Page Setup Menu, Weather Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 316: County Warnings
Displaying County Warning information: 1) Select the Weather Data Link (XM) Page. 2) Press the MORE WX Softkey. 3) Press the COUNTY Softkey. To display the County Warnings legend (Figure 6-39), press the LEGEND Softkey when County Warnings are displayed. Figure 6-39 County Warnings Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 317: Cyclone
Displaying cyclone (hurricane) track information: 1) Select the Weather Data Link (XM) Page. 2) Press the MORE WX Softkey. 3) Press the CYCLONE Softkey. To display the Cyclone legend (Figure 6-41), press the LEGEND Softkey when Cyclone data is displayed. Figure 6-41 Cyclone Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 318: Icing Potential (Cip And Sld) (Icng)
The ICNG Softkey label changes to reflect the altitude selected. Icing Potential SLD Threat Figure 6-42 Icing Data at 9,000 Feet To display the Icing Potential legend (Figure 6-43), press the LEGEND Softkey when Icing data is displayed. Figure 6-43 Icing Potential Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 319 The TURB Softkey label changes to reflect the altitude selected. Severe Turbulence Moderate Turbulence Light Turbulence Figure 6-44 Turbulence Data at 21,000 Feet To display the Turbulence legend (Figure 6-45), press the LEGEND Softkey when Turbulence is selected for display. Figure 6-45 Turbulence Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 320 6) Use the FMS Knob or the ENT Key to scroll through the PIREP or AIREP text. 7) Press the FMS Knob or the CLR Key to return to the Weather Data Link (XM) Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 321 Raw PIREP Text Figure 6-47 PIREP Text on the Weather Information Page To display the PIREP or AIREP legend (Figure 6-48), press the LEGEND Softkey when PIREPs or AIREPs are displayed. The PIREP color is determined by the type (routine or urgent). Figure 6-48 AIREPs & PIREPs Legend TFRS The Federal Aviation Administration (FAA) issues Temporary Flight Restrictions (TFRs) to designate areas where flight is restricted. TFRs are issued to restrict flight for a variety of reasons including national security, law enforcement, firefighting, natural disasters., airshows, and large sporting events. TFRs may be issued at any time, and TFR data displayed on the G1000 is only intended to supplement official TFR information obtained from official sources including Flight Service Stations (FSS), and air traffic control. The age of TFR data is not shown; however, if TFR data is not available or has expired, the system displays ‘TFR N/A’ in the upper-left corner of maps on which TFRs can be displayed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 322 Figure 6-50 Full Text for Selected TFR The setup menus for the Navigation Map Page control the map range settings above which TFR data is decluttered from the display. If a map range larger than the TFR product map range setting is selected, the TFR product data is removed from the map. Maps other than the Navigation Map Page use settings based on those selected for the Navigation Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 323 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-51 Navigation Map Page Menu Figure 6-52 Navigation Map Page Setup Menu Figure 6-53 Navigation Map Page Setup Menu, Aviation Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 324: Gfds Worldwide Weather
Refer to ‘Viewing the Weather Data Link (GFDS) Page’ procedure to change the data link source to GFDS prior to registration. 3) If the system displays the ‘Garmin Flight Data Service Registration’ window, proceed to step 6. Otherwise, press the MENU Key. The Page Menu window is now displayed as seen in Figure 6-54.
Page 325 Figure 6-54 Select Register With GFDS 4) Turn the large FMS Knob to select ‘Register With GFDS’ in the menu list. 5) Press the ENT Key. The Garmin Flight Data Service Registration window is displayed as shown in Figure 6-55. Figure 6-55 Enter Access Code Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 326: Accessing Worldwide Weather Products From Gfds
6) Enter the access code provided by Garmin Flight Data Services in the ‘ACCESS CODE’ field. 7) Press the ENT Key. ‘REGISTER’ will now be highlighted as in Figure 6-55. 8) Press the ENT Key. The system will contact Garmin Flight Data Services. System registration is complete when ‘REGISTERED’ is displayed in the STATUS field.
Page 327 Refresh Rate column in Table 6-5). If for any reason, a weather product is not refreshed within the defined Expiration Time intervals (see Table 6-5), the data is considered expired and is removed from the display. The age of the expired product is replaced by dashes. If more than half of the expiration time has elapsed, the color of the product age changes to yellow. Table 6-5 shows the GFDS Worldwide Weather product symbols, the expiration times and the refresh rates. The refresh rate represents the interval at which GFDS ground-based servers make available the most current available weather data. It does not necessarily represent the rate at which new content is received from weather sources. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 328: (Pireps)
Canadian radar precipitation data provided by Environment Canada. † ˆ Australian radar precipitation data provided by the Australian Bureau of Meteorology. Table 6-5 GFDS Weather Product Symbols and Data Timing Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 329 GFDS Data Link Lightning (DL LTNG) SIGMETs/AIRMETs (SIG/AIR) METARs Winds Aloft (WIND) PIREPs No Radar Coverage TFRs TAFs Table 6-6 GFDS Worldwide Weather Product Display Maps Softkeys control the display of weather information on most MFD pages and the PFD Inset Map (Figure 6-57 shows the weather product softkeys for the Weather Data Link (GFDS) Page). When a weather product is selected for display, the corresponding softkey label changes to gray to indicate the product display is enabled. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 330 7) Press the ENT Key to select an option. 8) Press the FMS Knob or CLR Key to return to the Weather Data Link (GFDS) Page with the changed settings. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 331 Winds Aloft Not Available (WIND) (WIND) Pilot Weather Report Pilot Weather Report Not Available (PIREPs) (PIREPs) Table 6-7 Shared Weather Data Link Map Settings for Corresponding Data Link Weather Products Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 332 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-60 Navigation Map Page Menu Figure 6-62 Navigation Map Page Setup Menu, Weather Group Figure 6-61 Navigation Map Page Setup Menu Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 333 PFD Inset Map. 3) To remove the weather product information box, press the WX LGND Softkey again. Additional information about the following can be displayed by panning over the display on the map: • Infrared Satellite (IR SAT) • METARs • SIGMETs • TFRs • AIRMETs • PIREPs The map panning feature is enabled by pressing the RANGE Knob. The map range is adjusted by turning the RANGE Knob. If the map range is adjusted while panning is enabled, the map is re-centered on the Map Pointer. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 334: Gfds Weather Data Requests
4) Turn the large FMS Knob to highlight the desired coverage option(s) and press the ENT Key to check or uncheck one of more of the following coverage selections (Figures 6-65, 6-66): • PRESENT POSITION – Requests data based on current location. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 335 FMS Knob to return to the Weather Data Link (GFDS) Page without requesting weather data. Figure 6-64 Weather Data Link (GFDS) Page Menu Figure 6-65 GFDS Data Request Window Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 336 Figure 6-66 GFDS Weather Data Request Results with Precipitation and Infrared Satellite Displayed During a GFDS Data Request, the Request Status box initially displays “Contacting GFDS...”. Once a connection is established, the Request Status Box displays “Receiving Wx Data... Time Remaining:” with an estimated data transfer time (either in minutes or seconds). If desired, the GFDS Data Request window may be closed while the data request is processing by pressing the FMS Knob; the data request will continue to process in the background. GFDS Data Requests typically take between 1 to 4 minutes to complete depending on the size of the selected weather coverage area and Iridium signal strength. The system retrieves all available GFDS weather products within the selected coverage area during an initial GFDS Data Request, regardless of which products (if any) are currently enabled for display. On subsequent requests, previously retrieved textual data (such as METARs and TAFS) is retained if it has not expired, while new textual weather data matching the current coverage area and all graphical weather data is downloaded during every data request. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 337 Press the ENT Key to immediately send an immediate GFDS Data Request. Or : Press the FMS Knob to return to the Weather Data Link (GFDS) Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 338: Worldwide Weather Products
Weather Data Link (GFDS) Page. 2) Press the PRECIP Softkey. Radar data shown represents highest level, composite reflectivity, of radar returns. The display of the information is color-coded to indicate the weather severity level. All weather product legends can be viewed on the Weather Data Link (GFDS) Page. For the Precipitation legend (Figure 6-68), press the LEGEND Softkey when Precipitation is selected for display. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 339 ReciPitation imitations Radar images may have certain limitations: • Radar composite reflectivity does not provide sufficient information to determine precipitation characteristics (wet hail vs. rain). For example, it is not possible to distinguish between wet snow, wet hail, and rain. • The radar beam may overshoot precipitation occurring below the lowest antenna beam tilt angle (0.5°), causing no precipitation to be displayed. An individual radar site cannot depict high altitude storms at close ranges. It has no information about storms directly over the radar site. • When zoomed in to a range of 30 nm, each square block on the display represents an area of four square kilometers. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 340 HAZARD AVOIDANCE Block Represents 4 km Figure 6-69 Precipitation Data - Zoomed The following may cause abnormalities in displayed radar images: • Ground clutter • Strobes and spurious radar data • Sun strobes (when the radar antenna points directly at the sun) • Interference from buildings or mountains, which may cause shadows • Metallic dust from military aircraft, which can cause alterations in radar scans Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 341 Figure 6-70 Infrared Satellite Data on the Weather Data Link (GFDS) Page Displaying Cloud Tops information: 1) Select the Weather Data Link (GFDS) Page. 2) Press the IR SAT Softkey. To display the Infrared Satellite legend (Figure 6-71), press the LEGEND Softkey when Infrared Satellite data is selected for display. Figure 6-71 Infrared Satellite Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 342 1) Press the MAP Softkey (for the PFD Inset Map, press the INSET Softkey). This step is not necessary on the Weather Data Link (GFDS) Page. 2) Press the DL LTNG Softkey. To display the GFDS Data Link Lightning legend on the Weather Data Link (GFDS) Page (Figure 6-73), select the LEGEND Softkey when GFDS Data Link Lightning is selected for display. Figure 6-73 GFDS Data Link Lightning Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 343 3) To view the text of the SIGMET or AIRMET, press the RANGE Knob and move the Map Pointer over the icon. 4) Press the ENT key. Figure 6-75 shows sample SIGMET text. To display the SIGMET and AIRMET legend (Figure 6-76), press the LEGEND Softkey when SIGMETs and AIRMETs are selected for display. Figure 6-76 SIGMET/AIRMET Legend Figure 6-75 Sample SIGMET Text Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 344 4) Use the FMS Knob or the ENT Key to scroll through the METAR and TAF text. METAR text must be completely scrolled through before scrolling through the TAF text. 5) Press the FMS Knob or the CLR Key to return to the Weather Data Link (GFDS) Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 345 3) Turn the large FMS Knob to highlight a waypoint with an associated METAR. The METAR text will appear in the ‘SELECTED WAYPOINT WEATHER’ window below. 4) When finished, press the FMS Knob to remove the cursor or press the FPL Key to exit the Active Flight Plan Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 346 4) Select the desired altitude level: SFC (surface) up to 42,000 feet. Press the NEXT or PREV Softkey to cycle through the altitude softkeys. The WIND Softkey label changes to reflect the altitude selected. Figure 6-80 Winds Aloft Data at 9,000 Feet Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 347 Figure 6-81 Winds Aloft Data with Legend Headwind and tailwind components aloft are available inside the Profile View on the Navigation Map Page (Figure 6-82). The displayed components are relative to current aircraft altitude and track, but not to aircraft speed. Profile View Path Enabled Wind Component Velocity and Direction Altitude Scale Arrows Figure 6-82 Winds Aloft Data Inside Profile View (Navigation Map Page) Arrows pointing to the left indicate headwind components; tailwind component arrows point to the right, as shown in Table 6-8. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 348 6) Turn the small FMS Knob to select ‘On’ or ‘Off’. 7) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 349 HAZARD AVOIDANCE Figure 6-83 Navigation Map Page Menu Figure 6-84 Navigation Map Page Setup Menu Figure 6-85 Navigation Map Page Setup Menu, Weather Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 350 Figure 6-86 PIREPs on the Weather Data Link (GFDS) Page Displaying PIREP text: 1) Select the Weather Data Link (GFDS) Page. 2) Press the MORE WX Softkey. 3) Press the PIREPS Softkey. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 351 Figure 6-88 AIREPs & PIREPs Legend TFRS Temporary Flight Restriction (TFR) data from GFDS is only available in the United States (not NOTE: including any U.S. territories.) Refer to fly.garmin.com/fly-garmin/gfds-weather for GFDS product coverage information. In the United States, the Federal Aviation Administration (FAA) issues Temporary Flight Restrictions (TFRs) to designate areas where flight is restricted. TFRs are issued to restrict flight for a variety of reasons including Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 352 4) If necessary, turn the FMS Knob to select ‘Review Airspaces’ and press the ENT Key. The system displays the TFR Information window (Figure 6-90). 5) Press the FMS Knob or the CLR Key to remove the TFR Information window. Figure 6-90 Full Text for Selected TFR Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 353 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-91 Navigation Map Page Menu Figure 6-93 Navigation Map Page Setup Menu, Weather Group Figure 6-92 Navigation Map Page Setup Menu Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 354: Abnormal Operations
A server error has occurred or invalid data received. GFDS Login Invalid There is a problem with the GFDS registration. Contact Garmin Flight Data Services at 1-866-739- 5687 in the United States or 913-397-8200, ext. 1135 for assistance. GFDS Server...
Page 355 HAZARD AVOIDANCE WORLDWIDE WEATHER IN REVERSIONARY MODE When the G1000 is operating in Reversionary Mode, only those weather products which can be displayed on the PFD Inset map will be available for display (see Table 6-5 for a list of weather products and their associated map availability). If manual weather data requests were enabled prior to entering Reversionary Mode, no new GFDS weather data can be retrieved while operating in Reversionary Mode. If automatic weather data requests were enabled prior to Reversionary Mode operation, the system will continue the automatic data requests in Reversionary Mode (provided automatic requests have not been inhibited due to a system error). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 356: Fis-B Weather
5) Turn the small FMS Knob to select ‘Display FIS-B Weather’ and press the ENT Key. The page title will display ‘MAP - WEATHER DATA LINK (FIS-B)’ to indicate FIS-B is now the selected weather data link source. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 357 Product Data Age in Minutes Figure 6-94 Weather Data Link (FIS-B) Page When a FIS-B weather product is active on a map, the age of the data is displayed on the screen to the right of the product symbol (Figure 6-94). The age of the product is based on the time difference between when the data was assembled on the ground and the current GPS time. Weather products are refreshed at specific intervals (defined in the Refresh Rate column in Table 6-10). If for any reason, a weather product is not refreshed within the Expiration Time intervals (see Table 6-10), the data is considered expired and is removed from the display. This ensures that the displayed data is consistent with FIS-B broadcast data. If more than half of the expiration time has elapsed, the color of the product age displayed changes to yellow. The system displays dashes instead of a product age when a product has expired. If a weather product is not available or has not been received, the system displays ‘N/A’ instead of a product age. The system displays a ‘TFR N/A’ annunciation in the upper-left portion of map pages to indicate Temporary Flight Restriction (TFR) data is not available with FIS-B weather from the GDL 90. Table 6-10 shows the FIS-B weather product symbols, the expiration time and the refresh rate. The refresh rate represents the interval at which FIS-B GBTs broadcast new signals that may or may not contain new weather data. It does not represent the rate at which weather data is updated or new content is received by the GDL 90. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 358 Terminal Aerodrome Reports no product image (TAFs) Table 6-10 Weather Product Symbols and Data Timing Table 6-11 shows which FIS-B weather products can be displayed (indicated with a ‘+’ symbol) on specific maps. FIS-B Weather Product PRECIP METARs TAFs Table 6-11 FIS-B Weather Product Display Maps Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 359 BACK 15000 LEGEND PREV 18000 21000 24000 27000 30000 NEXT LEGEND BACK BACK PREV 21000 24000 27000 30000 33000 36000 NEXT LEGEND 42000 BACK PREV 39000 45000 NEXT LEGEND Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 360 Figure 6-96 Navigation Map Page Menu Figure 6-98 Navigation Map Page Setup Menu, Weather Group Figure 6-97 Navigation Map Page Setup Menu The setup menus for the Navigation Map Page and the Weather Data Link (FIS-B) Page control the map range settings above which weather products data are decluttered from the display. If a map range larger than the weather product map range setting is selected, the weather product data is removed from the map. The menus also provide a means in addition to the softkeys for enabling/disabling display of weather products. If optional GSR 56 Garmin Flight Data Services (GFDS) Worldwide Weather or GDL 90 Flight Information Service - Broadcast weather data has also been installed, customizing the display settings for the corresponding weather products shown in Table 6-12 will result in identical settings for all data link weather services. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 361 7) Press the ENT Key to select an option. 8) Press the FMS Knob or CLR Key to return to the Weather Data Link (FIS-B) Page with the changed settings. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 362 3) With ‘Weather Setup’ highlighted, press the ENT Key. 4) Press the MENU Key. 5) Highlight the desired default(s) to restore (all or for selection) and press ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 363 3) Press the LEGEND Softkey (available if one or more FIS-B weather products are enabled for display). 4) To remove the Legend Window, press the LEGEND Softkey, the ENT or the CLR Key, or press the FMS Knob. Additional information about METARs can be displayed by panning over a METAR flag on the map: The map panning feature is enabled by pressing the RANGE Knob. The map range is adjusted by turning the RANGE Knob. If the map range is adjusted while panning is enabled, the map is re-centered on the Map Pointer. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 364 FIS-B regional radar precipitation is based on WSR-88D, or NEXRAD (NEXt-generation RADar), a network of high-resolution Doppler radar systems that are operated by the National Weather Service (NWS). The maximum range of a single NEXRAD radar site is 250 nm. In addition to a wide array of services, the NEXRAD network provides important information about severe weather and air traffic safety. Radar precipitation data is not real-time. The lapsed time between collection, processing, and dissemination of composite radar images can be significant and may not reflect the current radar synopsis. Due to the inherent delays and the relative age of the data, it should be used for long-range planning purposes only. Never use NEXRAD data or any radar data to penetrate hazardous weather. Rather, use it in an early-warning capacity of pre-departure and enroute evaluation. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 365 Weather Data Link (FIS-B) Page. 2) Press the PRECIP Softkey. The Regional Radar Precipitation product coverage area varies, as it is determined by the data received from ground-based sources. When the Regional Radar Precipitation product is enabled, a white hashed boundary rectangle encloses this area to indicate the geographic limits of the regional radar coverage being displayed. The system shows composite radar data from all available NEXRAD sites inside of this boundary area. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 366 Figure 6-104 Regional Radar Precipitation Data Legend The display of radar coverage is enabled when PRECIP is selected for display. Areas within the coverage boundary where radar precipitation data is not currently available, has not yet been received, or is not being collected are indicated in gray shade of purple. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 367 NEXRAD radar images may have certain limitations: • NEXRAD base reflectivity does not provide sufficient information to determine cloud layers or precipitation characteristics (wet hail vs. rain). For example, it is not possible to distinguish between wet snow, wet hail, and rain. • NEXRAD base reflectivity is sampled at the minimum antenna elevation angle. An individual NEXRAD site cannot depict high altitude storms at close ranges. It has no information about storms directly over the radar site. • When zoomed in to a range of 30 nm, each square block on the display represents an area of four square highest kilometers. The intensity level reflected by each square represents the level of NEXRAD data sampled within the area (Figure 6-105). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 368 HAZARD AVOIDANCE Block Area is 4 km Figure 6-105 Regional Radar Data - Zoomed The following may cause abnormalities in displayed NEXRAD radar images: • Ground clutter • Strobes and spurious radar data • Sun strobes (when the radar antenna points directly at the sun) • Interference from buildings or mountains, which may cause shadows • Metallic dust from military aircraft, which can cause alterations in radar scans Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 369 METAR. The system displays colored flags at airports with report(s) available. Instructions for Viewing METAR and TAF Text Selected Airport Figure 6-106 METAR Flags on the Weather Data Link Page TAFs (Terminal Aerodrome Forecasts) are predications of expected weather conditions for an area within five statute miles of the center of an airport’ s runway complex. The National Weather Service issues scheduled TAFs four times each day, and additional amended TAFs if conditions warrant. TAFs typically span a forecast period of 24 hours, but may be scheduled for a longer period. TAFs may include forecast wind, visibility, significant weather phenomena, and sky conditions using METAR codes. METAR and TAF text are available on the Weather Information Page. METAR data is displayed first in a decoded fashion, then as raw text. TAF information, when available, appears only as raw text. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 370 METAR Text for the Selected Airport METAR Symbol TAF Text for the Selected Airport Figure 6-107 METAR and TAF Text on the Weather Information Page Raw METAR text is also accessible while panning the map cursor over a METAR flag on any map page on which a METAR is displayed. The METAR text is shown in a box near the METAR flag. In addition, METAR flags and their associated text are displayed on the Active Flight Plan Page on the MFD. METAR flags appears next to waypoints in the flight plan with an associated METAR. A solid METAR flag indicates the METAR observations are available for specific waypoint; a hollow METAR flag indicates an off- route METAR is available near the waypoint. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 371 4) When finished, press the FMS Knob to remove the cursor or press the FPL Key to exit the Active Flight Plan Page. To display the METAR legend on the Weather Data Link (FIS-B) Page (Figure 6-108), press the LEGEND Softkey when METARs are selected for display. The METAR flag color is determined by the information in the METAR text. The system displays a gray METAR flag when the METAR text does not contain adequate classification information. Figure 6-108 METAR Legend Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 372: Airborne Color Weather Radar
Airborne weather radar should be used to avoid severe weather, not for penetrating severe weather. The decision to fly into an area of radar targets depends on target intensity, spacing between the targets, aircraft capabilities, and pilot experience. Pulse type weather radar detects only precipitation, not clouds or turbulence. The display may indicate clear areas between intense returns, but this does not necessarily mean it is safe to fly between them. Only Doppler radar can detect turbulence. Airborne weather radar has other capabilities beyond weather detection. It also has the ability to detect and provide distance to cities, mountains, coastlines, rivers, lakes, and oceans. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 373 18,000 ft. Range (nautical miles) Figure 6-109 Radar Beam from a 12 inch Antenna The curvature of the earth can also be a factor in missing areas of precipitation, especially at range settings of 150 nautical miles or more. Here the beam overshoots the precipitation at less than 320 nautical miles. 320 nm Figure 6-110 Radar Beam in Relation to the Curvature of the Earth Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 374 Never fly into these shadowed areas and never assume that all of the heavy precipitation is being displayed unless another cell or a ground target can be seen beyond the heavy cell. The WATCH ® feature of the GWX 68 Weather Radar system can help in identifying these shadowed areas. Areas in question appear as shadowed or gray on the radar display. Proper use of the antenna tilt control can also help detect radar shadows. Attenuation can also be due to poor maintenance or degradation of the radome. Even the smallest amount of wear and scratching, pitting, and pinholes on the radome surface can cause damage and system inefficiency. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 375 Figure 6-111 Precipitation Type and Reflectivity Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 376 The angle at which the radar beam strikes the target is called the Angle of Incidence. The figure illustrates the incident angle (‘A’). This directly affects the detectable range, the area of illumination, and the intensity of the displayed target returns. A large incident angle gives the radar system a smaller detectable range and lower display intensity due to minimized reflection of the radar energy. Figure 6-112 Angle of Incidence A smaller incident angle gives the radar a larger detectable range of operation and the target display shows a higher intensity. Since more radar energy is reflected back to the antenna with a low incident angle, the resulting detectable range is increased for mountainous terrain. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 377: Safe Operating Distance
9.16 ft. for 10” antenna Figure 6-113 MPEL Boundary BASIC ANTENNA TILT SETUP The following discussion is a simple method for setting up the weather radar antenna tilt for most situations. It is not to be considered an all encompassing setup that works in all situations, but this method does provide good overall parameters for the monitoring of threats. Ultimately, it is desired to have the antenna tilted so the bottom of the radar beam is four degrees below parallel with the ground. The following example explains one way of achieving this. With the aircraft flying level, adjust the antenna tilt so ground returns are displayed at a distance that equals the aircraft’ s current altitude (AGL) divided by 1,000. For example, if the aircraft is at 14,000 feet, adjust the tilt so the front edge of ground returns are displayed at 14 nautical miles. Note this antenna tilt angle setting. Now, raise the antenna tilt 6 degrees above this setting. The bottom of the radar beam is now angled down 4º from parallel with the ground. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 378 Therefore, with the antenna tilt set so that the bottom of the beam is four degrees below parallel with the ground, a target return at 10 nm is approximately 4,000 feet below the aircraft; at 20 nm, 8,000 feet; at 50 nm, 20,000 feet. In other words, at this tilt setting, a ground return (such as a mountain peak) being displayed at 10 nm would have a maximum distance below the aircraft of 4,000 feet. A ground target return being displayed at 5 nm would have a maximum distance below the aircraft of 2,000 feet. This setup provides a good starting point for practical use of the GWX 68. There are many other factors to consider in order to become proficient at using weather radar in all situations. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 379: Weather Mapping And Interpretation
50 dBZ and greater > 2 Table 6-13 Precipitation Intensity Levels hunDeRstoRms Updrafts and downdrafts in thunderstorms carry water through the cloud. The more severe the drafts, the greater the number and size of the precipitation droplets. With this in mind, the following interpretations can be made from what is displayed on the weather radar. Avoid these areas by an extra wide margin. • In areas where the displayed target intensity is red or magenta (indicating large amounts of precipitation), the turbulence is considered severe. • Areas that show steep color gradients (intense color changes) over thin bands or short distances suggest irregular rainfall rate and strong turbulence. • A reas that show red or magenta are associated with hail or turbulence, as well as heavy precipitation. Vertical scanning and antenna tilt management may be necessary to identify areas of maximum intensity. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 380 Figure 6-116 The Blind Alley - Horizontal Scan Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 381 Hail results from updrafts carrying water high enough to freeze. Therefore, the higher the top of a thunderstorm, the greater the probability that it contains hail. Vertically scanning the target return can give the radar top of a thunderstorm that contains hail. Radar top is the top of a storm cell as detected by radar. It is not the actual top, or true top of the storm. The actual top of a storm cell is seen with the eyes in clear air and may be much higher than the radar top. The actual top does not indicate the top of the hazardous area. Hail can fall below the minimum reflectivity threshold for radar detection. It can have a film of water on its surface, making its reflective characteristics similar to a very large water droplet. Because of this film of water, and because hail stones usually are larger than water droplets, thunderstorms with large amounts of wet hail return stronger signals than those with rain. Some hail shafts are extremely narrow (100 yards Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 382 In Reversionary mode, the weather radar system automatically switches to Standby mode. The system remains in Standby mode until both displays are restored. In Reversionary mode, the weather radar system cannot be controlled. Antenna Radar Mode Stabilization Status Scan Line Figure 6-118 Horizontal Scan Display Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 383 4) Turn the RANGE Knob to select the desired map range. 5) The horizontal scan is initially displayed (Figure 6-120). If desired, press the VERTICAL Softkey to change to vertical scanning. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 384 7) Press the FMS Knob to remove the cursor. 8) To select a new area to be vertically scanned, press the HORIZON Softkey to return to the Horizontal Scan view and repeat the previous steps. The RANGE Knob can also be used to adjust bearing from left to right. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 385 2) Turn the small FMS Knob to select the desired antenna tilt angle. 3) Press the ENT Key. 4) Press the FMS Knob to remove the cursor. The RANGE Knob can also be used to adjust tilt up and down. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 386 2) Turn the small FMS Knob to adjust the antenna tilt angle. The selected tilt angle is implemented when Horizontal Scan is selected again. The RANGE Knob can also be used to adjust tilt. Tilt Line Scan Line Figure 6-122 Adjusting Tilt on Vertical Scan Display Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 387 3) Press the FMS Knob to remove the cursor. 4) Press the GAIN Softkey again to recalibrate the gain. CALIBRATED is displayed in the GAIN field. Manual Gain Set Below Calibrated Calibrated Gain Figure 6-123 Gain Calibration Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 388 6) If desired, readjust the Bearing Line as discussed previously to change the center of the Sector Scan. 7) Press the BRG Softkey again to remove the Bearing Line and cursor. The bearing reference is reset to 0º. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 389 To activate or deactivate the WATCH ® feature, press the WATCH Softkey. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 390 Horizontal Scan With WATCH Horizontal Scan Without WATCH ® Figure 6-126 Horizontal Scan Without and With WATCH eatheR leRt The Weather Alert feature indicates the presence of heavy precipitation between the ranges of 80 and 320 nm regardless of the currently displayed range. Weather Alert targets appear as red bands along the outer range ring at the approximate azimuth of the detected returns. If a Weather Alert is detected within ±10° of the aircraft heading, an alert is displayed on the PFD in the Alerts Window. If the antenna tilt is adjusted too low, a weather alert can be generated by ground returns. To avoid unwanted weather alerts, deselect the WX ALRT Softkey.. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 391: Ground Mapping And Interpretation
GROUND MAPPING AND INTERPRETATION A secondary use of the weather radar system is for the presentation of terrain. This can be a useful tool for verifying aircraft position. A picture of the ground is represented much like a topographical map that can be used as a supplement to the navigation map on the MFD. Ground Map mode uses a different gain range than Weather mode. Different colors are also used to represent the intensity levels. The displayed intensity of ground target returns are defined in the table below. Use of the GAIN and TILT controls help improve contrast so that specific ground targets can be recognized more easily. As previously discussed, the type and orientation of the target in relation to the aircraft affects the intensity displayed. When the weather radar system is in either the Weather or Ground Map mode, the system automatically switches to Standby mode upon landing. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 392 6) Adjust the antenna tilt angle by turning the small FMS Knob to display ground returns at the desired distance. 7) Press the FMS Knob to remove the cursor. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 393: System Status
The system is not receiving valid data from the radar unit. The system RADAR FAIL should be serviced. Table 6-17 Abnormal Radar Status Annunciations on the Weather Radar Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 394: Stormscope
5) When an item is highlighted, turn the small FMS Knob to select the option. 6) Press the ENT Key. 7) Press the FMS Knob to return to the Navigation Map Page (Figure 6-131). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 395 HAZARD AVOIDANCE The following options are available (Figure 6-130): • STRMSCP LTNG – Turns the display of Stormscope data on or off. • STRMSCP MODE – Selects the CELL or STRIKE mode of lightning activity. Cell mode identifies clusters or cells of electrical activity. Strike mode indicates the approximate location of lightning strikes. • STRMSCP SMBL – Selects the range at which Stormscope data displays. Stormscope data is removed when a map range greater than the STRMSCP SMBL value is selected. Figure 6-129 Navigation Map Page Menu Figure 6-130 Map Setup Menu Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 396 Figure 6-131 Navigation Map Page with Stormscope Lightning Data If heading input is lost, strikes and/or cells must be cleared manually after the execution of each turn. This is to ensure that the strike and/or cell positions are depicted accurately in relation to the nose of the aircraft. Manually clearing Stormscope data on the Navigation Map: 1) Press the MENU Key. 2) Select ‘Clear Stormscope Lightning’ (Figure 6-132). ® 3) Press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 397 6) Turn the small FMS Knob to select the maximum display range. 7) Press the ENT Key. 8) Press the FMS Knob to return to the Navigation Map Page. To change the display range on the Navigation Map Page, turn the RANGE Knob clockwise to zoom out or counter-clockwise to zoom in. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 398: Selecting The Stormscope Page
2) Press the VIEW Softkey. The 360 and ARC softkeys are displayed. Press the 360 Softkey to display a 360˚ viewing area or press the ARC Softkey to display a 120˚ viewing area. 3) Press the BACK Softkey to return to the main Stormscope page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 399: Terrain Proximity
flight path in relation to the surrounding terrain and obstacles. In this way, the pilot can view predicted dangerous terrain and obstacle conditions. DISPLAYING TERRAIN PROXIMITY DATA The Map - Terrain Proximity Page is the principal page for viewing terrain and obstacle information. The symbols and colors in the figure and table below are used to represent obstacles and aircraft altitude when the Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 400 1) Press the MAP Softkey (for the PFD Inset Map, press the INSET Softkey). 2) Press the TERRAIN Softkey to display terrain and obstacle data. When Terrain Proximity is selected on maps other than the Terrain Proximity Page, an icon to indicate the feature is enabled for display and a legend for Terrain Proximity colors are shown (Figure 6-139). The Navigation Map Page Setup Menu provides a means in addition to the softkey for enabling/disabling display of terrain and obstacles. The setup menu also controls the map range settings above which terrain and obstacle data are decluttered from the display. If a map range larger than the map range setting is selected, the data is removed from the map. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 401 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-136 Navigation Map Page Menu Figure 6-137 Navigation Map Page Setup Menu Figure 6-138 Navigation Map Page Setup Menu, Map Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 402: Terrain Proximity Page
Press the 360 or ARC Softkey to select the desired view. Or : a) Press the MENU Key. b) Select ‘View Arc’ or ‘View 360º’ (choice dependent on current state) and press the ENT Key to change the view. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 403 Black Terrain (Terrain More than 1000’ Below the Aircraft Altitude) Red Lighted Obstacle Terrain Legend (Above or Within 100’ Below Aircraft Altitude) Figure 6-141 Terrain Proximity Page (ARC View) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 404: Profile View Terrain
Table 6-20 Profile View Terrain/Obstacle Colors and Symbology Accessing Profile View: 1) Select the Navigation Map Page. 2) Press the MAP Softkey. 3) Press the PROFILE Softkey to enable or disable Profile View. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 405: Profile View Display
Navigation Map Range Terrain Legend Altitude Scale Profile View Length is One Half of the Navigation Map Range Distance Scale Figure 6-143 Profile View on Navigation Map with Terrain Display Enabled Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 406 0.6 nm Departure 0.6 nm Terminal 2.0 nm Enroute 4.0 nm Oceanic 4.0 nm Table 6-21 Profile View Width Scale PROFILE PATH The Profile Path displays the horizontal and lateral boundaries of the Profile View. The path is shown as a white rectangle on the Navigation Map Page (Figure 6-143) and is only available when Profile View is enabled. White range markers both edges of the Profile Path rectangle match the range markers along the distance scale inside the Profile View display window whenever the profile range is at least 4 nm (or 7.5 km if configured for metric units). The Profile Path rectangle may be configured on or off, and the Navigation Map range at which the Profile Path is removed from map display can be changed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 407 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Figure 6-144 Navigation Map Page Menu Figure 6-145 Navigation Map Page Setup Menu Figure 6-146 Navigation Map Page Setup Menu, Profile Group Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 408: Terrain-Svs
Note that all obstructions may not be available in the terrain and obstacle database. No terrain and obstacle information is shown without a valid 3-D GPS position. The G1000 GPS receiver provides the horizontal position and altitude. GPS altitude is derived from satellite position. GPS altitude is then converted to the height above geodetic sea level (GSL), which is the height above mean sea level calculated geometrically. GSL altitude is used to determine terrain and obstacle proximity. GSL altitude accuracy is affected by satellite geometry, but is not subject to variations in pressure and temperature that normally affect pressure altitude sensors. GSL altitude does not require local altimeter settings to determine MSL altitude. It is a widely-used MSL altitude source. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 409: Displaying Terrain-Svs Data
1000 ft below the aircraft altitude Table 6-22 Terrain-SVS Obstacle Colors and Symbology Potential Impact Alert Type Example Annunciation Point Symbol Warning Caution Table 6-23 Terrain-SVS Potential Impact Point Symbols with Alert Types Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 410 • TERRAIN DATA – Turns the display of terrain data on or off and sets maximum range at which terrain is shown • OBSTACLE DATA – Turns the display of obstacle data on or off and sets maximum range at which obstacles are shown Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 411: Terrain-Svs Page
2) Turn the small FMS Knob to select the Terrain-SVS Page. Changing the Terrain-SVS Page view: 1) Press the VIEW Softkey. 2) Press the 360 or ARC Softkey to select the desired view. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 412 Altitude) (Between 100’ and 1000’ Below the Aircraft Altitude) Yellow Lighted Obstacles (Between Terrain Legend 100’ and 1000’ Annunciation Below Aircraft Window Altitude) Figure 6-152 Terrain-SVS Page (360 View) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 413: Terrain-Svs Alerts
Red Lighted Obstacle Annunciation (Above or Within Window 100’ Below Aircraft Altitude) Figure 6-153 Terrain-SVS Page (ARC View) TERRAIN-SVS ALERTS Alerts are issued when flight conditions meet parameters that are set within Terrain-SVS software algorithms. Terrain-SVS alerts typically employ a CAUTION or a WARNING alert severity level, or both. When an alert is issued, visual annunciations are displayed and aural alerts are simultaneously issued. Table 6-24 shows Terrain- SVS alert types with corresponding annunciations and aural messages. When an alert is issued, annunciations appear on the PFD and MFD. The Terrain-SVS Alert Annunciation is shown to the upper left of the Altimeter on the PFD and below the Terrain Legend on the MFD. If the Terrain- SVS Page is not displayed at the time, a pop-up alert appears on the MFD. To acknowledge the pop-up alert: • Press the CLR Key (returns to the currently viewed page), or • Press the ENT Key (accesses the Terrain-SVS Page) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 414 HAZARD AVOIDANCE PFD Alert Annunciation MFD Pop-up Alert Figure 6-154 Terrain-SVS Alert Annunciations Terrain Display Enabled Terrain Legend Alert Annunciation Figure 6-155 Navigation Map Page (After Terrain-SVS Pop-up Alert Acknowledgment) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 415 Reduced Required Terrain Clearance (RTC) and Reduced Required Obstacle Clearance (ROC) alerts are issued when the aircraft flight path is above terrain, yet is projected to come within the minimum clearance values in Figure 6-156. When an RTC alert is issued, a potential impact point is displayed on the Terrain-SVS Page. Imminent Terrain Impact (ITI) and Imminent Obstacle Impact (IOI) alerts are issued when the aircraft is below the elevation of a terrain or obstacle cell in the aircraft’ s projected path. ITI and IOI alerts are accompanied by a potential impact point displayed on the Terrain-SVS Page. The alert is annunciated when the projected vertical flight path is calculated to come within minimum clearance altitudes in Figure 6-156. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 416 Select ‘Inhibit Terrain-SVS’ or ‘Enable Terrain-SVS’ (choice dependent on current state) and press the ENT Key. If Terrain-SVS alerts are inhibited when the Final Approach Fix is the active waypoint on a GPS SBAS approach, a ‘LOW ALT’ annunciation may appear on the PFD next to the Altimeter if the current aircraft altitude is at least 164 feet below the prescribed altitude at the Final Approach Fix. See the Flight Instruments Section for details. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 417 † Annunciation is shown on Terrain-SVS Page and the Navigation Map Page when Terrain is enabled. * “Terrain System Available” will be heard when sufficient GPS signal is recieved, or Terrain database coverage area re- entered. Table 6-25 Terrain-SVS System Status Annunciations Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 418: Traffic Information Service (Tis)
TIS also provides a vector line showing the direction in which the traffic is moving, to the nearest 45°. Traffic information for which TIS is unable to determine the bearing (non-bearing traffic) is displayed in the center of the Traffic Map Page (Figure 6-162) or in a banner at the lower left corner of maps other than the Traffic Map Page on which traffic can be displayed (Figure 6-158). The altitude difference between the requesting aircraft and other intruder aircraft is displayed above/below the traffic symbol in hundreds of feet. If the other aircraft is above the requesting aircraft, the altitude separation appears above the traffic symbol; if below, the altitude separation appears below. Altitude trend is displayed as an up/down arrow (for speeds greater than 500 fpm in either direction) to the right of the target symbol. Traffic symbols for aircraft without altitude reporting capability appear without altitude separation or climb/descent information. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 419: Displaying Traffic Data
1) Press the INSET Softkey. 2) Press the TRAFFIC Softkey to display traffic data on the inset map (TRFC-1). 3) Press the softkey again to display the traffic-only inset (TRFC-2). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 420 6) Turn the small FMS Knob to scroll through options for each product (ON/OFF, range settings, etc.). 7) Press the ENT Key to select an option. 8) Press the FMS Knob or CLR Key to return to the Navigation Map Page with the changed settings. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 421: Traffic Map Page
Press the OPERATE Softkey to begin displaying traffic. Or : a) Press the MENU Key. b) Select ‘Operate Mode’ (shown if TIS is in Standby Mode) and press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 422: Tis Alerts
Figure 6-162 Traffic Map Page Voice Alert TIS ALERTS When the number of TAs on the Traffic Map Page increases from one scan to the next, the following occur: • A single “Traffic” voice alert is generated. • A ‘TRAFFIC’ Annunciation appears to the top left of the Attitude Indicator on the PFD, flashing for 5 seconds and remaining displayed until no TAs are detected in the area. • The PFD Inset Map is automatically displayed with traffic. To reduce the number of nuisance alerts due to proximate aircraft, the “Traffic” voice alert is generated only when the number of TAs increases. For example, when the first TA is displayed, a voice and visual annunciation are generated. As long as a single TA remains on the display, no additional voice alerts are generated. If a second TA appears on the display or if the number of TAs initially decreases and then subsequently increases, another voice alert is generated. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 423: System Status
Or : a) Press the MENU Key. b) Select ‘‘’Not Available” Mute On’ (shown if TNA muting is currently off) and press the ENT Key. SYSTEM STATUS The G1000 performs an automatic test of TIS during power-up. If TIS passes the test, TIS enters Standby Mode (on the ground) or Operating Mode (in the air). If TIS fails the power up test, an annunciation is shown in the center of the Traffic Map Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 424 FAILED The transponder has failed* UNAVAILABLE TIS is unavailable or out of range * Contact a service center or Garmin dealer for corrective action Table 6-27 TIS Failure Annunciations System Test has Failed Data Not...
Page 425 Select ‘Operate Mode’ or ‘Standby Mode’ (choice dependent on current state) and press the ENT Key. The annunciations to indicate the status of traffic information appear in a banner at the lower left corner of maps on which traffic can be displayed (Table 6-29). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 426 The traffic service is unavailable or out of range *Shown as symbol on Traffic Map Page **Shown in center of Traffic Map Page Table 6-29 TIS Traffic Status Banner Annunciations Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 427: Avidyne Tas600 Traffic
Non-Threat Traffic Proximity Advisory (PA) Traffic Advisory (TA) Traffic Advisory Off Scale Table 6-30 TAS Symbol Description A Non-threat Advisory, shown as an open white diamond, indicates that an intruding aircraft is at greater than ±1200 feet relative altitude or the distance is beyond 5 nm. A Proximity Advisory indicates that the intruding aircraft is within ±1200 feet and is within 5 nm range, but is still not considered a threat. A Traffic Advisory (TA) alerts the crew to a potentially hazardous intruding aircraft. Closing rate, distance, and vertical separation meet TA criteria. A Traffic Advisory that is beyond the selected display range is indicated by a half TA symbol at the edge of the screen at the relative bearing of the intruder. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 428: Displaying Traffic Data
The Traffic Map Page shows surrounding TAS traffic data in relation to the aircraft’ s current position and altitude, without basemap clutter. Aircraft orientation is always heading up unless there is no valid heading. Map range is adjustable with the RANGE Knob from 2 to 24 nm, as indicated by the map range rings. The traffic mode and altitude display mode are annunciated in the upper left corner. Displaying traffic information (maps other than the Traffic Map Page): 1) Select the MAP Softkey. 2) Select the TRAFFIC Softkey to display traffic data. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 429: Altitude Display
2) Select one of the following Softkeys: BELOW • • NORMAL ABOVE • UNREST (unrestricted) • 3) To return to the Traffic Page, select the BACK Softkey. Or : Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 430: Traffic Map Page Display Range
• TRAFFIC SMBL – Selects the maximum range at which traffic symbols are shown • TRAFFIC LBL – Selects the maximum range at which traffic labels are shown with the option to turn off Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 431: Tas Alerts
Figure 6-169 Navigation Map Page Setup Menu, Setup Menu Traffic Group TAS ALERTS Refer to the TAS600 documentation for information on alerts generated by the TAS equipment. NOTE: When the number of TAs on the Traffic Map Page increases from one scan to the next, the following occur: • A “Traffic” voice alert is generated followed by the clock position, relative altitude and range of the TA. • A TRAFFIC Annunciation appears at the top right of the airspeed on the PFD, flashing for 5 seconds and remaining displayed until no TAs are detected in the area. • The PFD Inset Map is automatically displayed with TA traffic. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 432: System Status
Traffic Mode Annunciation Traffic Display Enabled Icon Mode (Traffic Map Page) (Other Maps) OPERATING TAS Operating TAS Failed* FAIL * See Table 6-32 for additional failure annunciations Table 6-31 TAS Modes Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 433 Data is not being received from the TAS unit *Shown as symbol on Traffic Map Page **Shown in center of Traffic Map Page Table 6-33 TAS Traffic Status Annunciations Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 434: Uat (Ads-B) Traffic
UAT systems, such as the GDL 90, represent one component of the ADS-B system. UAT technology is intended primarily for aircraft operating below 18,000 feet. No ground infrastructure is necessary for a UAT- equipped aircraft to detect another nearby aircraft transmitting on the UAT frequency. A second component of the ADS-B system are 1090 MHz Extended Squitter (1090 ES) transponders. The 1090 ES system is intended primarily for aircraft operating at or above 18,000 feet. 1090 ES transponders broadcast aircraft position reports comparable to UAT reports, but on the 1090 MHz (Mode S) frequency. An aircraft broadcasting a 1090 ES report may detect other nearby 1090 ES traffic without ground infrastructure, provided the aircraft has ADS-B In capability needed to display 1090 ES traffic. It is important to note, however, that UAT-only aircraft and 1090 ES-only aircraft cannot detect each other directly without the presence of a GBT. The GBT receives both UAT and 1090 ES reports, and then broadcasts the combined traffic data for both UAT and 1090 ES aircraft within line-of-sight reception of the UAT. This GBT service is known as ADS-Rebroadcast (ADS-R). The GBTs also provide this traffic data to air traffic control (ATC) facilities. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 435 The traffic displays are not intended to be used as a collision avoidance system and the system not relieve the pilot’ s responsibility to “see and avoid” other aircraft. The traffic displays must not be used for avoidance maneuvers during IMC or other times when there is no visual contact with the intruder aircraft. The ADS-B system is intended only to assist in visual acquisition of other aircraft. It does not provide avoidance maneuvers. TRAFFIC DESCRIPTION UAT traffic operation is similar to the TAS system discussed previously in section 6.10, with the exception of symbology. The system displays the traffic using the symbols shown in the table below. Above or below the traffic symbol is the traffic identifier, and altitude (if available). A small up or down arrow next to the traffic symbol indicates that the traffic is climbing or descending at a rate of at least 500 feet per minute. The vector line that extends beyond the point of the traffic arrow is just further indication of the intruder aircraft track, if directional information is available. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 436 Table 6-34 UAT (ADS-B) Traffic Symbology The PFD can display the following traffic symbols when the Synthetic Vision System (SVS) option is installed and enabled. See the Additional Features Section for details. ADS-B Symbol on the Description PFD (SVS Only) Proximity Advisory (PA) Traffic Advisory (TA) Non-threat traffic Table 6-35 PFD ADS-B Symbology (SVS Only) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 437 “Non-Bearing” Traffic, Non-Aircraft Ground Traffic, 5000’ Above, Descending, Distance is 8.0 nm, 1100’ 1000’ Below Undetermined Direction Above and Descending Figure 6-173 Traffic Map Page Displaying UAT (ADS-B) Traffic Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 438 1) Press the MENU Key. 2) If necessary, turn the small FMS Knob to select ‘Show Flight IDs’ or ‘Hide Flight IDs’ (choice dependent on current state.) 3) Press the ENT Key. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 439 HAZARD AVOIDANCE The Traffic Map Page displays the following information: • Current aircraft location • Surrounding traffic • Range marking rings • Current traffic mode • OPERATING • FAIL • Traffic alert messages • FAILED • DATA FAILED • NO DATA • UNAVAILABLE Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 440 HAZARD AVOIDANCE lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00-00962-02 Rev. A...
Page 441: Section 7 Automatic Flight Control System
• Manual Electric Trim (MET) — The pitch trim servo provides manual electric trim capability when the autopilot is not engaged. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 442: Afcs Controls
Selects/deselects Flight Level Change Mode YD Key Engages/disengages the yaw damper HDG Key Selects/deselects Heading Select Mode APR Key Selects/deselects Approach Mode VNV Key Selects/deselects Vertical Path Tracking Mode for Vertical Navigation flight control NOSE UP/NOSE Control the mode reference in Pitch Hold, Vertical Speed, and Flight Level Change DN Keys modes 1045 Figure 7-1 Dedicated MFD AFCS Controls Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 443 Manual trim commands are generated only when both sides of the switch are operated simultaneously. If either side of the switch is active separately for more than three seconds, MET function is disabled and ‘PTRM’ is displayed as the AFCS Status Annunciation on the PFD. The function remains disabled until both sides of the switch are inactivated. The AP TRIM Switch is located on the left control stick. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 444: Flight Director Operation
**The selected navigation receiver must have a valid VOR or LOC signal or active GPS course before NAV or APR Key press activates flight director. Table 7-1 Flight Director Activation Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 445: Afcs Status Box
Status Lateral Modes Status Vertical Modes Armed Active Active Mode Armed Reference AFCS Status Box Selected Altitude Command Bars GPS is Selected Navigation Source Figure 7-2 PFD AFCS Display 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 446: Command Bars
A flashing yellow mode annunciation and annunciator light indicate loss of sensor (ADC) or navigation data (VOR, LOC, GPS, VNV, SBAS) required to compute commands. When such a loss occurs, the system automatically begins to roll the wings level (enters Roll Hold Mode) or maintain the pitch angle (enters Pitch Hold Mode), depending on the affected axis. The flashing annunciation stops when the affected mode key is pressed or another mode for the axis is selected. If after 10 seconds no action is taken, the flashing annunciation stops. Figure 7-4 Loss of VOR Signal The flight director is automatically disabled if the attitude information required to compute the default flight director modes becomes invalid or unavailable. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 447: Vertical Modes
**** Level mode can only become activated as a function of Electronic Stability and Protection (ESP). Refer to the Additional Features section for a detailed discussion of the optional ESP feature. Table 7-2 Flight Director Vertical Modes 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 448: Pitch Hold Mode (Pit)
• Using the NOSE UP/NOSE DN Keys • Pressing the CWS Button, hand-flying the aircraft to establish a new pitch reference, then releasing the CWS Button Pitch Hold Selected Altitude Mode Active Capture Mode Armed Selected Altitude Command Bars Maintain Desired Pitch Reference Figure 7-5 Pitch Hold Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 449: Selected Altitude Capture Mode (Alts)
Figure 7-6 Automatic Mode Transitions During Altitude Capture CHANGING THE SELECTED ALTITUDE Pressing the CWS Button while in Selected Altitude Capture Mode does not cancel the mode. NOTE: Use of the ALT Knob to change the Selected Altitude while Selected Altitude Capture Mode is active causes the flight director to revert to Pitch Hold Mode with Selected Altitude Capture Mode armed for the new Selected Altitude. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 450: Altitude Hold Mode (Alt)
CWS Button is released at the desired altitude, the new altitude is established as the Altitude Reference. Altitude Hold Altitude Mode Active Reference Selected Altitude Selected Altitude Command Bars Hold Pitch Attitude to Maintain Altitude Reference Figure 7-7 Altitude Hold Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 451: Vertical Speed Mode (Vs)
Altitude Capture Mode Active Reference Mode Armed Selected Vertical Altitude Speed Reference Vertical Speed Reference Command Bars Indicate Climb to Attain Vertical Speed Reference Figure 7-8 Vertical Speed Hold Mode 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 452: Flight Level Change Mode (Flc)
Selected Change Mode Airspeed Altitude Capture Active Reference Mode Armed Airspeed Reference Airspeed Reference Command Bars Indicate Climb to Attain Selected Altitude Figure 7-9 Flight Level Change Mode (IAS) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 453: Vertical Navigation Modes (Vpth, Altv)
When a vertical profile (VNV flight plan) is active and the VNV Key is pressed, Vertical Path Tracking Mode is armed in preparation for descent path capture. ‘VPTH’ (or ‘/V’ when Glidepath or Glideslope Mode is concurrently armed) is annunciated in white in addition to previously armed modes. If applicable, the appropriate altitude capture mode is armed for capture of the next VNV Target Altitude (ALTV) or the Selected Altitude (ALTS), whichever is greater. Figure 7-10 Vertical Path Tracking Armed Annunciations 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 454 Selected VNV Target Altitude Below Altitude VNV Target Vertical Deviation Indicator Required Vertical Speed Bug GPS is Terminal Selected Phase of Navigation Flight Source Figure 7-11 Vertical Path Capture Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 455 Adjusting the altimeter barometric setting creates discontinuities in VNV vertical deviation, moving the descent path. For large adjustments, it may take several minutes for the aircraft to re- establish on the descent path. If the change is made while nearing a waypoint with a VNV Target Altitude, the aircraft may not re-establish on the descent path in time to meet the vertical constraint. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 456 Pitch Hold, Vertical Speed, and Flight Level Change modes can also be used to fly non-path descents while VNV flight control is selected. If the VS or FLC Key is pressed while Vertical Path Tracking Mode is selected, Vertical Path Tracking Mode reverts to armed along with the appropriate altitude capture mode to allow profile re-capture. Figure 7-13 Flight Level Change VNV Non-Path Descent To prevent immediate profile re-capture, the following must be satisfied: • At least 10 seconds have passed since the non-path transition was initiated • Vertical deviation from the profile has exceeded 250 feet, but is now less than 200 feet Pressing the VNV Key twice re-arms Vertical Path Tracking for immediate profile re-capture. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 457 VNV Target Altitude or the Selected Altitude, depending on which altitude is to be intercepted first. VNV target altitudes can be changed while editing the active flight plan (see the Flight Management Section for details). 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 458: Glidepath Mode (Gp) (Sbas Only)
MDA even if the MDA is set in the altitude preselect. Upon reaching the glidepath, the flight director transitions to Glidepath Mode and begins to capture and track the glidepath. Figure 7-15 Glidepath Mode Armed Once the following conditions have been met, the glidepath can be captured: • The active waypoint is at or after the final approach fix (FAF) • Vertical deviation is valid • The CDI is at less than full scale deviation • Automatic sequencing of waypoints has not been suspended (no ‘SUSP’ annunciation on the HSI) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 459 AUTOMATIC FLIGHT CONTROL SYSTEM GPS Approach Glidepath Mode Active Mode Active Command Bars Indicate GPS is LNAV/VNAV Descent on Glidepath Selected Approach Navigation Active Glidepath Source Indicator Figure 7-16 Glidepath Mode 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 460: Glideslope Mode (Gs)
Active ILS Frequency Approach Glideslope Tuned Mode Active Mode Active Command Bars Indicate Descent NAV2 (localizer) is Selected on Localizer/Glideslope Path Navigation Source Glideslope Indicator Figure 7-18 Glideslope Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 461: Go Around Mode (Ga)
Level mode is activated. The autopilot will engage and provide input to bring the aircraft back into straight and level flight based on zero degrees roll angle and zero feet per minute vertical speed. An aural “ENGAGING AUTOPILOT” alert sounds and the lateral and vertical flight director annunciations will display “LVL”. The AFCS will remain in Level mode until the pilot selects another mode. Figure 7-20 Level Mode 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 462: Lateral Modes
Features section for a detailed discussion of the optional ESP feature. Table 7-3 Flight Director Lateral Modes The CWS Button does not change lateral references for Heading Select, Navigation, Backcourse, or Approach modes. The autopilot guides the aircraft back to the Selected Heading/Course upon release of the CWS Button. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 463: Roll Hold Mode (Rol)
Table 7-4 Roll Hold Mode Responses CHANGING THE ROLL REFERENCE The roll reference can be changed by pressing the CWS Button, establishing the desired bank angle, then releasing the CWS Button. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 464: Heading Select Mode (Hdg)
CWS Button. Turns are commanded in the same direction as Selected Heading Bug movement, even if the bug is turned more than 180° from the present heading (e.g., a 270° turn to the right). However, Selected Heading changes of more than 340° at a time result in turn reversals. Heading Select Altitude Hold Mode Active Mode Active Selected Selected Heading Heading Command Bars Track Selected Heading Figure 7-22 Heading Select Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 465: Navigation Modes (Gps, Vor, Loc, Bc)
The armed annunciation appears in white to the left of the active roll mode. Figure 7-23 GPS Navigation Mode Armed When the CDI has automatically switched from GPS to LOC during a LOC/ILS approach, GPS Navigation Mode remains active, providing GPS steering guidance until the localizer signal is captured. LOC Navigation Mode is armed when the automatic navigation source switch takes place. If the APR Key is pressed prior to the automatic navigation source switch, LOC Navigation Mode is armed. If Navigation Mode is active and either of the following occur, the flight director reverts to Roll Hold Mode (wings rolled level): • Different VOR tuned while in VOR Navigation Mode (VOR Navigation Mode reverts to armed) • Navigation source manually switched (with the CDI Softkey) • During a LOC/ILS approach the FAF is crossed while in GPS Navigation Mode after the automatic navigation source switch from GPS to LOC 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 466 Intercept Selected Altitude Source Figure 7-24 Navigation Mode Backcourse Pitch Hold Mode Active Mode Active Command Bars Hold Pitch Attitude LOC2 is Selected Navigation Source Figure 7-25 Backcourse Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 467: Approach Modes (Gps, Vapp, Loc)
2) Ensure that LOC is the selected navigation source (use the CDI Softkey to cycle through navigation sources if necessary). 3) Press the APR Key. Or : 1) Ensure that GPS is the selected navigation source (use the CDI Softkey to cycle through navigation sources if necessary). 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 468: Level Mode (Lvl)
Level mode is activated. The autopilot will engage and provide input to bring the aircraft back into straight and level flight based on zero degrees roll angle and zero feet per minute vertical speed. An aural “ENGAGING AUTOPILOT” alert sounds and the lateral and vertical flight director annunciations will display “LVL”. The AFCS will remain in Level mode until the pilot selects another mode. Figure 7-27 Level Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 469: Autopilot And Yaw Damper Operation
The yaw damper uses yaw rate and roll attitude to dampen the aircraft’ s natural Dutch roll response. It also uses lateral acceleration to coordinate turns. Yaw damper operation is independent of autopilot engagement. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 470: Engaging The Autopilot And Yaw Damper
Autopilot Engaged Figure 7-28 Autopilot and Yaw Damper Engaged CONTROL WHEEL STEERING During autopilot operation, the aircraft may be hand-flown without disengaging the autopilot. Pressing and holding the CWS Button disengages the pitch and roll servos from the flight control surfaces and allows the aircraft to be hand-flown. At the same time, the flight director is synchronized to the aircraft attitude during the maneuver. CWS activity has no effect on yaw damper engagement. The ‘AP’ annunciation is temporarily replaced by ‘CWS’ in white for the duration of CWS maneuvers. In most scenarios, releasing the CWS Button reengages the autopilot with a new reference. Refer to the flight director modes section for CWS behavior in each mode. Control Wheel Steering Figure 7-29 CWS Annunciation Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 471: Disengaging The Autopilot And Yaw Damper
This means that the yaw damper can remain operational in some cases where the autopilot automatically disengages. The yaw damper also disengages upon a localized failure in the yaw damper system. Figure 7-32 Automatic Autopilot Disengagement 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 472: Example Flight Plan
The Vertical Speed Reference may be adjusted after Vertical Speed Mode is selected using the NOSE UP/ NOSE DN Keys or pushing the CWS Button while hand-flying the aircraft to establish a new Vertical Speed Reference. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 473 At 50 feet from the Selected Altitude, the green ‘ALT’ annunciation flashes for up to 10 seconds; the autopilot transitions to Altitude Hold Mode and levels the aircraft. Selected Altitude of 12,000 MSL ALT Mode KMKC Figure 7-34 Departure 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 474: Intercepting A Vor Radial
Mode and the ‘VOR’ annunciation flashes green. The autopilot begins turning to intercept the Selected Course. 3) The autopilot continues the turn until the aircraft is established on the Selected Course. Figure 7-35 Intercepting a VOR Radial Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 475: Flying A Flight Plan/Gps Course
2) Following the flight plan, the autopilot continues to steer the aircraft under GPS guidance. Note that in GPS Navigation Mode, course changes defined by the flight plan are automatically made without pilot action required. Figure 7-36 Transition to GPS Flight Plan 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 476: Descent
The green ‘ALT’ annunciation flashes for up to 10 seconds upon reaching 50 feet from the Selected Altitude; the autopilot transitions to Altitude Hold Mode and levels the aircraft. Cruise Altitude of 12,000 MSL ALT Mode Selected Altitude of 10,000 MSL ALT Mode Figure 7-37 FLC Descent Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 477 ALT Mode Cruise Altitude of 12,000 MSL ALT Mode VNAV Target Altitude of 10,000 MSL Selected Altitude (set below VNAV Target Altitude) OPSHN 3 nm Figure 7-38 VPTH Descent 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 478 The green ‘ALT’ annunciation flashes for up to 10 seconds upon reaching 50 feet from the VNV Target Altitude; the autopilot transitions to Altitude Hold Mode and levels the aircraft at the vertical waypoint. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 479: Approach
3) There are two options available at this point, as the autopilot flies the ILS approach: • Push the AP DISC Switch at the decision height and land the aircraft. • Use the GA Button to execute a missed approach. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 480 4) There are two options available at this point, as the autopilot flies the approach: • Push the AP DISC Switch at the Decision height and land the aircraft. • Use the GA Button to execute a missed approach. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 481 AUTOMATIC FLIGHT CONTROL SYSTEM KCOS CEGIX FALUR HABUK PYNON Figure 7-41 LPV Approach to KCOS 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 482: Go Around/Missed Approach
Altitude Hold Mode and levels the aircraft. 4) The autopilot flies the holding pattern after the missed approach is activated. Annunciations are displayed in the Navigation Status Box, above the AFCS Status Box. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 483 AUTOMATIC FLIGHT CONTROL SYSTEM MOGAL KCOS Figure 7-42 Go Around/Missed Approach 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 484: Afcs Annunciations And Alerts
Doing so may cause the preflight system test to fail or never Preflight Test to start. Cycle power to the servos if this occurs. Preflight system test failed; aural alert sounds at failure Table 7-5 AFCS Status Alerts Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 485: Overspeed Protection
KAP 140 equipped aircraft only: Each time the CDI Softkey is pressed or the navigation source NOTE: is changed (i.e. missed approach), the following message appears in the message window, “NAV Source Changed – Select Desired Autopilot Mode.” 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 486 AUTOMATIC FLIGHT CONTROL SYSTEM lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 487: Section 8 Additional Features
The optional SiriusXM Satellite Radio entertainment audio feature of the GDL 69A Data Link Receiver handles more than 170 channels of music, news, and sports. SiriusXM Satellite Radio offers more entertainment choices and longer range coverage than commercial broadcast stations. Satellite telephone is an optional subscription service offered through Garmin Flight Data Services and Iridium Satellite LLC. Voice and SMS messaging communications are through the Iridium Satellite Network. The optional Garmin Electronic Stability and Protection (ESP ™ ) system discourages aircraft operation outside a desired flight envelope.
Page 488: Synthetic Vision System (Svs) (Optional)
Terrain alerts are displayed in red and yellow shading on the PFD. The terrain display is intended for situational awareness only. It may not provide the accuracy or fidelity on which to base decisions and plan maneuvers to avoid terrain or obstacles. Navigation must not be predicated solely upon the use of the Terrain–SVS terrain or obstacle data displayed by the SVS. The following SVS enhancements appear on the PFD: • Pathways • Airport Signs • Flight Path Marker • Runway Display • Horizon Heading Marks • Terrain Alerting • Traffic Display • Obstacle Alerting Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 489: Svs Operation
TERR Softkey, the HRZN HDG, APTSIGNS, and PATHWAY softkeys may be activated in any combination to display desired features. When system power is cycled, the last selected state (on or off) of the SYN TERR, HRZN HDG, APTSIGNS, and PATHWAY softkeys is remembered by the system. • PATHWAY Softkey enables display of rectangular boxes that represent course guidance. • SYN TERR Softkey enables synthetic terrain depiction. • HRZN HDG Softkey enables horizon heading marks and digits. • APTSIGNS Softkey enables airport signposts. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 490 1) Press the PFD Softkey. 2) Press the SYN VIS Softkey. 3) Press the APTSIGNS Softkey. Display of airport signs will cycle on or off with the APTSIGNS Softkey. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 491: Svs Features
The color of the rectangular boxes may be magenta, green, or white depending on the route of flight and navigation source selected. The active GPS or GPS overlay flight plan leg is represented by magenta boxes that correspond to the Magenta CDI. A localizer course is represented by green boxes that correspond to a green CDI. An inactive leg of an active flight plan is represented by white boxes corresponding to a white line drawn on the Inset map or MFD map indicating an inactive leg. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 492 Pathways are displayed along the flight plan route at the highest of either the selected altitude or the programmed altitude for the leg. Climb profiles cannot be displayed due to the variables associated with aircraft performance. Flight plan legs requiring a climb are indicated by pathways displayed at a level above the aircraft at the altitude selected or programmed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 493 Climbs NOT displayed by pathway Selected Altitude for Step Down Programmed descent displayed by pathway Selected Altitude or Programmed Altitude (whichever is higher) Figure 8-5 SVS Pathways, Enroute and Descent 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 494 Selected Altitude or Programmed Altitude (whichever is higher) Turn Segment Climbs NOT displayed NOT displayed by pathway by pathway MAHP Figure 8-6 SVS Pathways, Approach, Missed Approach, and Holding Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 495 flight path extending above the FPM could indicate a potential conflict, even before an alert is issued by the Terrain-SVS system. However, decisions regarding terrain and/or obstacle avoidance should not be made using only the FPM. Flight Path Marker (FPM) Wind Vector Figure 8-7 Flight Path Marker and Pathways ZERO PITCH LINE The Zero Pitch Line is drawn completely across the display and represents the aircraft attitude with respect to the horizon. It may not align with the terrain horizon, particularly when the terrain is mountainous or when the aircraft is flown at high altitudes. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 496 Airport signs are activated and deactivated by pressing the APTSIGNS Softkey. Traffic Airport Airport Sign Sign with without Identifier Identifier (Between (Between 4.5 nm and 8 nm and 8 nm) 15 nm) Figure 8-8 Airport Signs Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 497 As the aircraft gets closer to the runway, more detail such as runway numbers and centerlines will be displayed. Other Runway Runway Selected for on Airport Approach Figure 8-9 Airport Runways 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 498 In these cases, the conflict is outside the SVS field of view to the left or right of the aircraft. TERRAIN Annunciation Terrain Caution Potential Impact Point Figure 8-10 Terrain Alert Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 499: Field Of View
1) While viewing the Navigation Map Page, press the MENU Key to display the PAGE MENU. 2) Turn the large FMS Knob to highlight Map Setup and press the ENT Key. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 500 6) Press the FMS Knob to return to the Navigation Map Page. The following figure compares the PFD forward looking depiction with the MFD plan view and FIELD OF VIEW turned on. Lines Depict PFD Field of View Field of View on the MFD SVS View on the PFD Figure 8-13 PFD and MFD Field of View Comparison Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 501: Safetaxi
• NDB Information Page During ground operations the aircraft’ s position is displayed in reference to taxiways, runways, and airport features. In the example shown, the aircraft is on taxiway Bravo inside the High Alert Intersection boundary on KSFO airport. Airport Hot Spots are outlined in magenta. When panning over the airport, features such as runway holding lines and taxiways are shown at the cursor. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 502 1) While viewing the Navigation Map Page, press the MENU Key to display the PAGE MENU. 2) Turn the large FMS Knob to highlight the Map Setup Menu Option and press the ENT Key. Figure 8-15 Navigation Map PAGE MENU, Map Setup Option Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 503 7) Press the ENT Key to complete the selection. 8) Press the FMS Knob to return to the Navigation Map Page. SAFETAXI Option SafeTaxi Range Options Figure 8-16 MAP SETUP Menu, Aviation Group, SAFETAXI Range Options 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 504 Select the MFD1 DB Softkey to place the cursor in the DATABASE window. Scroll through the listed information by turning the FMS Knob or pressing the ENT Key until the SafeTaxi database information is shown. The SafeTaxi database cycle number shown in the figure, 12S1, is deciphered as follows: 12 – Indicates the year 2012 S – Indicates the data is for SafeTaxi 1 – Indicates the first issue of the SafeTaxi database for the year The SafeTaxi EFFECTIVE date 13–JAN–12 is the beginning date for the current database cycle. SafeTaxi EXPIRES date 10–MAR–12 is the revision date for the next database cycle. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 505 PFD1. As before, scroll through the listed information by turning the FMS Knob or pressing the ENT Key until the SafeTaxi database information is shown. Refer to Updating Garmin Databases in Appendix B for instructions on revising the SafeTaxi database. Current Date is before Effective Date SafeTaxi Database has Expired SafeTaxi Database Not Installed Figure 8-19 AUX –...
Page 506: Chartview (Optional)
Area Off-Scale Areas Figure 8-20 Sample Chart Indicating Off-Scale Areas Do not maneuver the aircraft based solely upon the geo-referenced aircraft symbol. NOTE: The ChartView database subscription is available from Jeppesen, Inc. Available data includes: • Arrivals (STAR) • Airport Diagrams • Departure Procedures (DP) • NOTAMs • Approaches Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 507: Chartview Softkeys
PLAN PROFILE MINIMUMS FIT WDTH FULL SCN BACK Pressing the BACK Softkey returns to the Chart Selection Softkeys. Figure 8-21 ChartView SHW CHRT, Chart Selection, and Chart Option Softkeys 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 508: Terminal Procedures Charts
CHART NOT AVAILABLE appears on the screen. The CHART NOT AVAILABLE banner does not refer to the Jeppesen subscription, but rather the availability of a particular airport chart selection or procedure for a selected airport. Figure 8-23 Chart Not Available Banner If there is a problem in rendering the data (such as a data error or a failure of an individual chart), the banner UNABLE TO DISPLAY CHART is then displayed. Figure 8-24 Unable To Display Chart Banner Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 509 9) Press the ENT Key to complete the chart selection. Chart Scale Select Desired Approach Chart From Menu Scroll Through Chart With the Joystick Figure 8-25 Approach Information Page, Chart Selection 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 510 (Figure 8-29). If the Chart Scale Box displays a banner NOT TO SCALE, the aircraft symbol is not shown. The Aircraft Not Shown Icon may appear at certain times, even if the chart is displayed to scale. Pressing the CHRT Softkey switches between the ChartView diagram and the associated map in the WPT page group. In the example shown, the CHRT Softkey switches between the Colorado Springs, CO (KCOS) Airport Diagram and the navigation map on the WPT – Airport Information page. Press CHRT Softkey to Switch Between ChartView and WPT - Airport Information Page Figure 8-26 CHRT Softkey, Airport Information Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 511 Another source for additional airport information is from the INFO Box above the chart for certain airports. This information source is not related to the INFO-1 or INFO-2 Softkey. When the INFO Box is selected using the FMS Knob, the G1000 softkeys are blank. The Charlotte, NC airport has five additional charts offering information; the Airport Diagram, Take-off Minimums, Class B Airspace, Airline Parking Gate Coordinates, and Airline Parking Gate Location. (The numbers in parentheses after the chart name are Jeppesen designators.) Aircraft Current Position Figure 8-27 Airport Information Page, INFO View, Full Screen Width 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 512 Figure 8-28 Airport Information Page, Class B Chart Selected from INFO View Pressing the DP Softkey displays the Departure Procedure Chart if available. Chart Not To Scale Aircraft Not Shown Icon Figure 8-29 Departure Information Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 513 To Scale Change Range and Scroll Through the Chart With the Joystick Aircraft Not Shown Icon Figure 8-30 Arrival Information Page Pressing the APR Softkey displays the approach chart for the airport if available. Figure 8-31 Approach Information Page 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 514 Available WX Softkey Selected Figure 8-32 Weather Information Page A subdued softkey label indicates the function is disabled. NOTE: Recent NOTAMS applicable to the current ChartView cycle are included in the ChartView database. Pressing the NOTAM Softkey shows the local NOTAM information for selected airports, when available. When NOTAMS are not available, the NOTAM Softkey label appears subdued and is disabled as shown in Figure 8-32. The NOTAM Softkey may appear on the Airport Information Page and all of the chart page selections. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 515 Figure 8-33 NOTAM Softkey Highlighted Local NOTAM on This Airport NOTAM Softkey Selected Figure 8-34 Airport Information Page, Local NOTAMs Pressing the NOTAM Softkey again removes the NOTAMS information. Pressing the GO BACK Softkey reverts to the previous page (Navigation Map Page, Nearest Pages, or Flight Plan Page). 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 516: Chart Options
ADDITIONAL FEATURES CHART OPTIONS Pressing the CHRT OPT Softkey displays the next level of softkeys, the chart options level (Figure 8-21). Pressing the ALL Softkey shows the complete approach chart on the screen. Complete Chart Shown Figure 8-35 Approach Information Page, ALL View Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 517 Pressing the HEADER Softkey shows the header view (approach chart briefing strip) on the screen. Approach Chart Briefing Strip Figure 8-36 Approach Information Page, Header View Pressing the PLAN Softkey shows the approach chart two dimensional plan view. Approach Chart Plan View Figure 8-37 Approach Information Page, Plan View 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 518 Figure 8-38 Approach Information Page, Profile View, Full Screen Width Pressing the MINIMUMS Softkey displays the minimum descent altitude/visibility strip at the bottom of the approach chart. Minimum Descent Altitude/ Visibility Strip Figure 8-39 Approach Information Page, Minimums View, Full Screen Width Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 519 If the chart scale has been adjusted to view a small area of the chart, pressing the FIT WIDTH Softkey changes the chart size to fit the available screen width. Press FIT WDTH Softkey to Show Full Chart Width Figure 8-40 Airport Information Page, FIT WDTH Softkey Pressed 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 520 Information Press FULL SCN Softkey to Switch Between Full Screen and Chart with Info Window Figure 8-41 Airport Information Page, Full Screen and Info Window Pressing the BACK Softkey, or waiting for 45 seconds reverts to the chart selection softkeys. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 521 3) Turn the large FMS Knob to move between the FULL SCREEN and COLOR SCHEME Options. 4) Turn the small FMS Knob to choose between the On and Off Full Screen Options. Chart Setup Option Full Screen On/Off Selection Figure 8-42 Page Menus 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 522: Day/Night View
The display must be changed in order for the new setting to become active. This may be accomplished by selecting another page or changing the display range. 6) Press the FMS Knob when finished to remove the Chart Setup Menu. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 523 ADDITIONAL FEATURES Figure 8-44 Arrival Information Page, Day View Figure 8-45 Arrival Information Page, Night View 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 524: Chartview Cycle Number And Expiration Date
Figure 8-46 Power-up Page, ChartView Database Power-up Page Display Definition Blank Line. system is not configured for ChartView. Contact a Garmin- authorized service center for configuration. System is configured for ChartView but no chart database is installed. Contact Jeppesen for a ChartView database.
Page 525 ChartView Data Figure 8-47 AUX – System Status Page, ChartView Current and Available The ChartView database is provided directly from Jeppesen. Refer to Updating Jeppesen Databases in Appendix B for instructions on revising the ChartView database. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 526 ChartView has Expired, but is not Disabled ChartView Database is Disabled ChartView Database is Not Available Figure 8-48 AUX – System Status Page, ChartView Database Status Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 527: Flitecharts
FIT WDTH FULL SCN BACK Pressing the BACK Softkey returns to the Chart Selection Softkeys. Figure 8-49 FliteCharts SHW CHRT, Chart Selection, and Chart Option Softkeys 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 528: Terminal Procedures Charts
The CHART NOT AVAILABLE banner does not refer to the FliteCharts subscription, but rather the availability of a particular airport chart selection or procedure for a selected airport. Figure 8-51 Chart Not Available Banner If there is a problem in rendering the data (such as a data error or a failure of an individual chart), the banner UNABLE TO DISPLAY CHART is then displayed. Figure 8-52 Unable To Display Chart Banner Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 529 9) Press the ENT Key to complete the chart selection. Chart Not To Scale Select Desired Approach Chart from Menu Scroll Through Chart With the Joystick Aircraft Not Shown Icon Figure 8-53 Approach Information Page, Chart Selection 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 530 Joystick centers the chart on the screen. The aircraft symbol is not shown on FliteCharts. The Chart Scale Box displays a banner NOT TO SCALE, and the Aircraft Not Shown Icon is displayed in the lower right corner of the screen. Pressing the CHRT Softkey alternates between the FliteCharts diagram and the associated map in the WPT page group. In the example shown, the CHRT Softkey switches between the Charlotte, NC (KCLT) Airport Diagram and the navigation map on the WPT – Airport Information page. Press CHRT Softkey to Switch Between FliteCharts and Navigation Map Page Figure 8-54 CHRT Softkey, Airport Information Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 531 1 or INFO-2 Softkey. When the INFO Box is selected using the FMS Knob, the G1000 softkeys are blank. The Charlotte, NC airport has three additional charts offering information; the Airport Diagram, Alternate Minimums, and Take-off Minimums. Info Box Selected Figure 8-55 Airport Information Page, INFO View with Airport Information 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 532 ADDITIONAL FEATURES In the example shown in Figure 8-55, TAKE OFF MINIMUMS is selected. Pressing the ENT Key displays the Take-off Minimums and Departure Procedures Chart (Figure 8-56). Figure 8-56 Airport Information Page, TAKE OFF MINIMUMS Selected from INFO View Pressing the DP Softkey displays the Departure Procedure Chart if available. Figure 8-57 Departure Information Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 533 ADDITIONAL FEATURES Pressing the STAR Softkey displays the Standard Terminal Arrival Chart if available. Figure 8-58 Arrival Information Page Pressing the APR Softkey displays the approach chart for the airport if available. Figure 8-59 Approach Information Page 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 534 When Available Chart Not To Scale Softkeys are Blank during Info Box Selection WX Softkey Selected Figure 8-60 Weather Information Page, WX Softkey Selected Pressing the GO BACK Softkey reverts to the previous page (Navigation Map Page or Flight Plan Page). Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 535: Chart Options
ADDITIONAL FEATURES CHART OPTIONS Pressing the CHRT OPT Softkey displays the next level of softkeys, the chart options level (Figure 8-49). Pressing the ALL Softkey shows the complete chart on the screen. Complete Chart Shown Figure 8-61 Airport Information Page, ALL View Selected 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 536 Press FIT WDTH Softkey to Show Full Chart Width Figure 8-62 Approach Information Page, FIT WDTH Softkey Selected Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 537 Press FULL SCN Softkey to Switch Between Chart on Full Screen and Chart with Info Window Figure 8-63 Airport Information Page, Full Screen and Info Window Pressing the BACK Softkey, or waiting for 45 seconds reverts to the chart selection softkeys. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 538 3) Turn the large FMS Knob to move between the FULL SCREEN and COLOR SCHEME Options. 4) Turn the small FMS Knob to choose between the On and Off Full Screen Options. Chart Setup Option Full Screen On/Off Selection Figure 8-64 Page Menus Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 539: Day/Night View
The display must be changed in order for the new setting to become active. This may be accomplished by selecting another page or changing the display range. 6) Press the FMS Knob when finished to remove the Chart Setup Menu. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 540 ADDITIONAL FEATURES Figure 8-66 Approach Information Page, Day View Figure 8-67 Approach Information Page, Night View Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 541: Flitecharts Cycle Number And Expiration Date
Figure 8-68 Power-up Page, FliteCharts Database Power-up Page Display Definition Blank Line. system is not configured for FliteCharts. Contact a Garmin- authorized service center for configuration. System is configured for FliteCharts but no chart database is installed. Refer to Updating Garmin Databases in Appendix B for the FliteCharts database Normal operation.
Page 542 Select the MFD1 DB Softkey to place the cursor in the DATABASE window. Scroll through the listed information by turning the FMS Knob or pressing the ENT Key until the FliteCharts database information is shown. The FliteCharts database cycle number shown in the figure, 1202, is deciphered as follows: 12 – Indicates the year 2012 02 – Indicates the second issue of the FliteCharts database for the year The FliteCharts EFFECTIVE date 10–FEB–12 is the first date that this database is current. The FliteCharts EXPIRES date 10–MAR–12 is the last date that this database is current. The DISABLES date 06–SEP–12 is the date that this database becomes inoperative. FliteCharts Data Figure 8-69 AUX – System Status Page, FliteCharts Current and Available Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 543 Current Date is Before Effective Date FliteCharts Expired, but is not Disabled FliteCharts Database is Disabled FliteCharts Database is Not Available Figure 8-70 AUX – System Status Page, FliteCharts Datbase Status 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 544: Airport Directory
2) Turn the small FMS Knob to select the AIRPORT INFORMATION Page. Initially, information for the airport closest to the aircraft’s present position is displayed. 3) If necessary, select the INFO softkey until INFO-2 is displayed. Figure 8-71 Airport Directory Information on the Airport Information Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 545: Airport Directory Database Cycle Number And Revision
ADDITIONAL FEATURES AIRPORT DIRECTORY DATABASE CYCLE NUMBER AND REVISION The Airport Directory databases are revised every 56 days and offered on a subscription basis. Check fly. garmin.com for the current database. The Airport Directory is always available for use after the expiration date. When turning on the system, the Power-up Page indicates whether the databases are current, out of date, or not available. Airport Directory Database Figure 8-72 Power-up Page, Airport Directory Database...
Page 546 Figure 8-73 AUX – System Status Page, AOPA Airport Directory Database Status Airport Directory information appears in blue and yellow text. The EFFECTIVE date appears in blue when data is current and in yellow when the current date is before the effective date. The EXPIRES date appears in blue when data is current and in yellow when expired (Table 8-4). NOT AVAILABLE appears in blue in the REGION field if Airport Directory data is not available on the database card. An expired Airport Directory database is not disabled and will continue to function indefinitely. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 547: Siriusxm Satellite Radio (Optional)
3) Select the next to last page in the AUX Page Group. 4) Press the INFO Softkey to display the XM Information Page. 5) Verify that the desired services are activated. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 548 Radio ID Weather Products Window LOCK Softkey RADIO is Used to Save and INFO Activation Data Softkeys During Initial Figure 8-74 XM Information Page Setup If SiriusXM Satellite Weather services have not been activated, all the weather product boxes are blank on the XM Information Page and a yellow Activation Required message is displayed in the center of the Weather Data Link Page (Map Page Group). The Service Class refers to the groupings of weather products available for subscription. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 549: Using Siriusxm Radio
1) While on the XM Radio Page, press the CHNL Softkey. 2) Press the CH + Softkey to go up through the list in the Channel Box, or move down the list with the CH – Softkey. Or : 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 550 Turn the small FMS Knob to display the Categories list. Highlight the desired category with the small FMS Knob and press the ENT Key. Selecting All Categories places all channels in the list. Figure 8-76 Categories List Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 551 Softkey is pressed, the volume can also be adjusted using the small FMS Knob.) 3) Press the MUTE Softkey to mute the audio. Press the MUTE Softkey again to unmute the audio. Figure 8-78 Volume Control 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 552: Satellite Telephone Services (Optional)
The pilot or copilot can place and answer calls on the Iridium satellite network as well as to or from the telephone handset in the cabin, when installed. Calls can also be answered or made from the cabin phone, however, only actions initiated from the cockpit phone will be discussed here. See the cabin handset user guide for more information. Control and monitoring of telephone functions are accomplished through the AUX-TELEPHONE Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 553 1) With the AUX-TELEPHONE Page displayed, select the MENU Key on the MFD to display the Page Menu. 2) Turn either FMS Knob to place the cursor on ‘Enable Iridium Transmission’. 3) Press the ENT Key. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 554 Phone is disabled Phone is reserved for data transmission Calling other phone or incoming call from other phone Other phone is on hold Phones are connected Table 8-5 Telephone Symbols Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 555 2) Turn either FMS Knob to place the cursor on ‘Disable Incoming Call Alerts’. 3) Press the ENT Key. The voice and pop-up alert will not be displayed now when an incoming call is received. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 556 Press the MENU Key to display the Page Menu. c) Turn either FMS Knob to place the cursor on ‘Dial a Phone Call’. d) Press the ENT Key. Figure 8-83 Initiating a Call Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 557 Ellipso 8812 or 8813 Iridium 8816 or 8817 Globalstar 8818 or 8819 4) Press the ENT Key. ‘OK’ is highlighted as in Figure 8-84. Figure 8-84 Make the Call 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 558 5) Press the ENT Key. The system will begin calling the number, as in Figure 8-85. Figure 8-85 System is Making the Connection When the phone is answered, the connection is established as shown in Figure 8-86. To exit the call, press the HANGUP Softkey. Figure 8-86 Phone is Answered, Connection Complete Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 559: Text Messaging (Sms)
Figure 8-87 Text Messaging Page Message Symbol Description Received text message that has not been opened Received text message that has been opened Saved text message, draft not sent 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 560 Press the VIEW Softkey to view the message (Figure 8-89). Selecting the IGNORE Softkey will extinguish the pop-up window and leave the text message unopened. Selecting the IGNR ALL Softkey will extinguish the pop-window and ignore all future incoming text messages. Selecting the SMS Softkey will display the AUX-TEXT MESSAGING Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 561 2) Turn either FMS Knob to place the cursor on ‘Disable New Message Popups’ or ‘Enable New Message Popups’. 3) Press the ENT Key. The pop-up alert will not be displayed when an incoming text message is received. Figure 8-90 Disabling New Text Message Pop-Ups 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 562 Press the MENU Key to display the Page Menu. b) Turn either FMS Knob to place the cursor on ‘Draft New Message’. c) Press the ENT Key. Figure 8-91 Composing a New Text Message Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 563 2) Turn either FMS Knob to select ‘Edit Predefined Messages’ as shown in Figure 8-92. 3) Press the ENT Key. The PREDEFINED MESSAGES view is now displayed. 4) Press the NEW Softkey. Or : 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 564 2) The TEXT MESSAGE DRAFT Window is now displayed with the cursor in the ‘TO’ field. Enter the desired telephone number or email address. Entry can be accomplished through a combination of the FMS Knob on Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 565 Figure 8-94 Composing a New Text Message 4) Press the PREDEFD Softkey. The PREDEFINED MESSAGE MENU Window is displayed as seen in Figure 8-95. Figure 8-95 Predefined Message List 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 566 2) Turn either FMS Knob to place the cursor on ‘Show Inbox Messages’. 3) Press the ENT Key. The message box selected for viewing is indicated at the bottom left of the list window. Figure 8-96 Text Message Inbox Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 567 3) Press the ENT Key. The sorting selection is indicated at the bottom center of the list window. Viewing messages sorted by address: While viewing the AUX-TEXT MESSAGING Page, press the ARRANGE Softkey, then press the ADDRESS Softkey. Or : 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 568 Press the ENT Key. Message content is displayed as shown in Figure 8-97. Figure 8-97 Viewing Message Content 5) To close the text message, press the CLOSE Softkey. Or : Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 569 Or : a) Press the MENU Key to display the Page Menu. b) Turn either FMS Knob to place the cursor on ‘Delete Selected Message’. c) Press the ENT Key. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 570: Electronic Stability And Protection (Esp ™ )
ADDITIONAL FEATURES 8.8 ELECTRONIC STABILITY AND PROTECTION (ESP ™ Refer to the Airplane Flight Manual to determine approval of ESP functionality. NOTE: The optional Garmin Electronic Stability and Protection (ESP ™ ) system is available only when the GFC 700 AFCS is installed. This system is designed to provide automatic control inputs to discourage aircraft operation outside a desired flight envelope. Garmin ESP ™...
Page 571: Roll Engagement
ESP Engage (45°) ESP Disengage (30°) Aircraft Roll Attitude = 44° Aircraft Roll Attitude = 46° Before ESP Engage After ESP Engage Figure 8-99 Roll Increasing to ESP Engagement 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 572: Pitch Engagement
15° and 20° nose-up and between 18° and 23° nose-down, as indicated in Figure 8-102. Maximum opposing force is applied between 20° and 50° nose-up and between 23° and 50° nose-down. ESP ™ disengages when 50° is exceeded in a nose-up or nose-down attitude. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 573: High Airspeed Protection
(Force Increases as Pitch Increases & Decreases as Pitch Decreases) HIGH AIRSPEED PROTECTION ™ Exceeding Vne will result in ESP applying force to raise the nose of the aircraft. When the high airspeed condition is remedied, ESP ™ force is no longer applied. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 574: Scheduler
Use the FMS Knob to enter the desired time (HH:MM) and press the ENT Key. 10) Press the ENT Key again or use the large FMS Knob to move the cursor to enter the next message. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 575 4) Press the CLR Key to clear the message text. If the CLR Key is pressed again, the message is restored. 5) Press the ENT Key while the message line is cleared to clear the message text. Scheduler messages appear in the Messages Window on the PFD. When a scheduler message is waiting, the ALERTS Softkey label changes to ADVISORY. Pressing the ADVISORY Softkey opens the Messages Window and acknowledges the scheduler message. The softkey label reverts to ALERTS when pressed. Pressing the ALERTS Softkey again removes the Messages Window from the display, and the scheduler message is deleted from the message queue. Figure 8-104 PFD Messages Window 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 576: Electronic Checklists
DA42NG. The information described in this section is not intended to replace the checklist information described in the POH. Garmin is not responsible for the content of checklists. Checklists are created by the aircraft NOTE: manufacturer. Modifications or updates to the checklists are coordinated through the aircraft manufacturer.
Page 577 1) From any page on the MFD, select the CHKLIST Softkey or turn the large FMS Knob to select the Checklist Page. 2) Select the EMERGCY Softkey. 3) Turn the FMS Knob to select the desired emergency checklist and press the ENT Key. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 578 7) Select the RETURN Softkey to return to the previous checklist. 8) Select the EXIT Softkey to exit the Checklist Page and return to the page last viewed. Figure 8-107 Emergency Checklist Page Example Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 579: Flight Data Logging
• Fuel Pressure (psi) • Wind Direction (degrees) • OAT (degrees C) • Voltage 1 and/or 2 • Wind Speed (knots) • True airspeed (knots) • Amps 1 and/or 2 • Active Waypoint Identifier • Pitch Attitude Angle (degrees) • Engine RPM • Distance to next waypoint (nm) • Roll Attitude Angle (degrees) • Oil Pressure (psi) • Bearing to next waypoint • Lateral and Vertical G Force (g) (degrees) • Oil Temperature (deg. F) • Ground Speed (kts) • Magnetic variation (degrees) • Manifold Pressure (in. Hg) • Ground Track (degrees • Autopilot On/Off • CHT magnetic) • AFCS roll/pitch modes • EGT • Latitude (degrees; geodetic; +North) • AFCS roll/pitch commands 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 580 Nearest Airport (A blank will be Local Date Local 24hr Time inserted if no YYMMDD HHMMSS airport is found) log_120210_104506_KIXD.csv Figure 8-108 Log File Format Data logging status can be monitored on the AUX-UTILITY Page. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 581: Auxiliary Video (Optional)
1) While viewing the AUX - VIDEO Page press the MENU Key to display the Page Menu OPTIONS. 2) Turn the large FMS Knob to highlight the desired video adjustment option and press the ENT Key. Once the ENT key is pressed on any option, the page menu closes and returns to the AUX - VIDEO Page. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 582: Video Setup
6) Press the BACK Softkey to return to the previous softkey level. DISPLAY SELECTION Pressing the HIDE MAP Softkey removes the map and displays video on the full screen. The softkey label changes to grey with black characters. Pressing the HIDE MAP Softkey again restores the map view and the small video image. The softkey label returns to white characters on a black background. Video Display View Figure 8-111 AUX - Video Split-Screen Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 583: Zoom/Range
Figure 8-112 Full Screen Video Display ZOOM/RANGE Pressing the VID ZM + or VID ZM - Softkeys increases or decreases video display magnification between 1x and 10x. The RANGE Knob can be used to increase or decrease the range setting on the map display or zoom in and out on the video display. While in the Split-Screen mode, pressing the MAP ACTV or VID ACTV Softkey determines which display the RANGE Knob adjusts. Pressing the softkey to display MAP ACTV allows the RANGE Knob to control the range setting of the map display. Pressing the softkey to display VID ACTV allows the RANGE Knob to control the zoom setting of the video display. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 584: Abnormal Operation
SVS becomes disabled without the following data resources: • Attitude data • Heading data • GPS position data • 9 Arc-second Terrain data • Obstacle data • Terrain function is not available, in test mode, or failed • The position of the aircraft exceeds the range of the terrain database. REVERSIONARY MODE SVS can be displayed on the Multifunction Display (MFD) in Reversionary Mode. If it is enabled when switching to Reversionary Mode, SVS will take up to 30 seconds to be displayed. The standard, non-SVS PFD display will be shown in the interim. Figure 8-113 SVS Reversionary Mode Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 585: Unusual Attitudes
The blue colored bar is also displayed when terrain gradient is great enough to completely fill the display. Blue Band Terrain Completely Fills Display Figure 8-115 Blue Sky Bar with Full Display Terrain 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 586: Gdl 69/69A Data Link Receiver Troubleshooting
2) Turn the small FMS Knob to select the System Status Page (the last page in the AUX Page Group). Figure 8-116 LRU Information Window on System Status Page Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 587 Weather Datalink Page - center of page within last five minutes ACTIVATION REQUIRED Weather Datalink Page - center of page SiriusXM subscription is not activated Table 8-7 GDL 69/69A Data Link Receiver Error Messages 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 588 ADDITIONAL FEATURES lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 589: Annunciations And Alerts
Line Replaceable Unit (LRU). See the G1000 System Annunciations Section for more information. System Annunciation Red ‘X’ Annunciation Window Alerts Window Softkey Annunciation Figure A-1 G1000 Alerting System 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 590 Press the MENU Key. b) Highlight ‘Enable Annunciator Test Mode’ and press the ENT Key. Press to Test Annunciation Tone Figure A-2 Annunciation Tone Testing (AUX-System Status Page) Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 591 ‘ADVISORY’ Softkey annunciation. Selecting the ADVISORY Softkey acknowledges the presence of the message advisory alert and displays the alert text message in the Alerts Window. Figure A-3 Softkey Annunciation (ALERTS Softkey Labels) 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 592 R FUEL PRESS Right engine fuel pressure is low. DOOR OPEN Front, rear, or baggage door is not closed. * Optional (KAP 140 equipped aircraft only) Table A-1 Warning Alerts Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 593 Left fuel transfer from aux to main in progress.  R AUXPUMP ON Right fuel transfer from aux to main in progress.   Optional Table A-3 Advisory Alerts 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 594 “Traffic Advisory System Played when the TAS system fails a pilot-initiated self test. Test Failed” “Engaging autopilot The ESP system is engaging the autopilot. See Additional Features section for more details. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 595 3) Turn the large FMS Knob to highlight the voice in the Audio Alert Box. 4) Turn the small FMS Knob to select the desired voice, press the ENT Key. Figure A-4 Audio Alert (AUX - System Setup Page) 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 596 If any window continues to remain flagged, the G1000 System should be serviced by a Garmin-authorized repair facility. When an LRU or an LRU function fails, a large red ‘X’ is typically displayed on windows associated with the failed data (refer to Figure B-1 for all possible flags and the responsible LRUs).
Page 597 AHRS. Indications indicates that the field is not Display system is not receiving receiving valid data. valid true airspeed information from air data computer. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 598 The PFD1 voltage is low. The G1000 system should be serviced. voltage. Reducing power usage MFD1 VOLTAGE – MFD1 has low The MFD voltage is low. The G1000 system should be serviced. voltage. Reducing power usage Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 599 The MFD and/or PFD detected a failure in the FliteCharts database (optional feature). database error exists. Ensure that the data card is properly inserted. Replace data card. If problem persists, the G1000 system should be serviced. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 600 GIA1 COOLING – GIA1 temperature too low. The GIA1 and/or GIA2 temperature is too low to operate correctly. Allow units to warm up to operating temperature. GIA2 COOLING – GIA2 temperature too low. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 601 G1000 system should be serviced. transfer key is stuck. LOI – GPS integrity lost. Crosscheck GPS integrity is insufficient for the current phase of flight. with other NAVS. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 602 The G1000 system should be serviced. AHRS1 GPS – AHRS1 not receiving The #1 AHRS is not receiving backup GPS information. The G1000 system should be backup GPS information. serviced. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 603 GDC1 is reporting that the altitude error correction is unavailable. correction is unavailable. ADC1 AS EC – ADC1 airspeed error GDC1 is reporting that the airspeed error correction is unavailable. correction is unavailable. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 604 The GWX 68 indicates severe weather within ±10 degrees of the aircraft heading at a ahead. range of 80 to 320 nm. MANIFEST – GWX software The GWX 68 has incorrect software installed. The G1000 system should be serviced. mismatch, communication halted. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 605 SLCT NAV – Select NAV on CDI for The system notifies the pilot to set the CDI to the correct NAV receiver. Set the CDI to approach. the correct NAV receiver. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 606 LOC1 / [LOC ID] is [CRS]°. degrees. CHECK CRS – Database course for Selected course for LOC2 differs from published localizer course by more than 10 LOC2 / [LOC ID] is [CRS]°. degrees. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 607 The SD card in the bottom card slot of the specified PFD or MFD contains invalid data. 2 is invalid. ESP CONFIG – ESP config error. The ESP function is not installed correctly. Esp is not available. The system should be Config service req’d serviced. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 608: Afcs Status Annunciations
Doing so may cause the preflight system test to fail or never Preflight Test to start. Cycle power to the servos if this occurs. Preflight system test failed; aural alert sounds at failure Table 7-5 AFCS Status Alerts Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 609: Svs Terrain Alerts
No GPS position or excessively “Terrain System Not Available” degraded GPS signal System Test in progress None System Test pass None “Terrain System Test OK” GPS signal is re-established None “Terrain System Available” 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 610: Database Management
SD cards are required for database storage as well as Jeppesen navigation and ChartView database updates. Not all SD cards are compatible with the G1000. Use only SD cards supplied by Garmin or the aircraft manufacturer. When downloading updates to the Jeppesen Navigation Database, copy the data to an SD card CAUTION: other than a Garmin Supplemental Data Card.
Page 611 9) Turn the large FMS Knob to select the AUX Page group on the MFD. 10) Turn the small FMS Knob to select the System Status Page. 11) Press the Display Database Selection Softkey to show navigation database information for each display 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 612 2) Verify that an SD card is inserted in the bottom slot of the PFD and the MFD. 3) Turn the system ON. A prompt similar to the following is displayed. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 613 6) As instructed on the display, press any key to continue. The display will now appear as shown in Figure B-5. Figure B-6 Navigation Database Verification Prompt 7) Press any key to continue. The display will now appear as shown in Figure B-6. Figure B-7 Active Navigation Database Prompt 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 614: Garmin Databases
‘DB Mismatch’ if they are not identical. Similarly, if the standby databases on the PFD and the MFD are not identical, the system will display a ‘DB Mismatch’ alert for the standby navigation databases. GARMIN DATABASES The following databases are stored on Supplemental Data Cards provided by Garmin: • Expanded basemap • Airport terrain • SafeTaxi...
Page 615 This database is updated on a 56-day cycle. The data contained in the terrain and obstacle databases comes from government agencies. Garmin NOTE: accurately processes and cross-validates the data, but cannot guarantee the accuracy and completeness of the data.
Page 616 An indication of ‘Complete’ still requires a power cycle before the synchronized databases will be used by the system. Figure B-5 AUX-System Status Page, Database Window Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 617 Table B-1 Database Synchronization Error Messages UPDATING GARMIN DATABASES The Garmin database updates can be obtained by following the instructions detailed in the ‘Aviation Databases’ section of the Garmin website (fly.garmin.com). Once the updated files have been downloaded from the website, a PC equipped with an appropriate SD card reader is used to unpack and program the new databases onto an existing Supplemental Data Card.
Page 618 APPENDIX B In some cases it may be necessary to obtain an unlock code from Garmin in order to make the database product functional. It may also be necessary to have the system configured by a Garmin authorized service facility in order to use some database features.
Page 619 1) With ‘OK’ highlighted, as shown in Figure B-9, press the ENT Key on the MFD. A progress monitor is displayed as shown in Figure B-10. Figure B-10 Uploading Database to GRS 2) When the upload is complete, the system is ready for use. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 620 APPENDIX B lank Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 621: Glossary
Cockpit Reference Guide auxiliary CRNT current AWOS Automated Weather Observing Crosstrack Error The distance the aircraft is off a System desired course in either direction, left or right 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 622 Course From Fix to DME Distance Efficiency A measure of fuel consumption, flight director expressed in distance per unit of fuel Fault Detection and Exclusion Exhaust Gas Temperature FFLOW fuel flow Engine Indication System Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 623 INFO information Ground Track see Track in HG inches of mercury Garmin Reference System intersection(s) 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 624 (inches Hg) Primary Flight Display MAN SQ Manual Squelch Procedure Turn to Course Intercept Missed Approach Point PIT, PTCH pitch MASQ Master Avionics Squelch POSN position maximum parts per million Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 625 Secure Digital TMR/REF Timer/Reference second(s) Topo topographic SEL, SLCT select Track Direction of aircraft movement surface relative to a ground position; also SIAP Standard Instrument Approach ‘Ground Track’ Procedures 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 626 VFOM Vertical Figure of Merit Visual Flight Rules Very High Frequency Heading Vector to Intercept VLOC VOR/Localizer Receiver Heading Vector Manual Termination Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 627: Frequently Asked Questions
If a particular aspect of G1000 operational capability is not addressed by these commonly asked questions or in the index, contact Garmin (see the copyright page or back cover for contact information) or a Garmin-authorized dealer. Garmin is dedicated to supporting its products and customers.
Page 628 G1000 automatically activates the next waypoint in the flight plan once the aircraft has crossed the present active waypoint. Normal (OBS not activated) • Automatic sequencing of waypoints • Manual sequencing - ‘holds’ on selected waypoint • Manual course change on HSI not possible • Manually select course to waypoint from • Always navigates ‘TO’ the active waypoint • Indicates ‘TO’ or ‘FROM’ waypoint • Must be in this mode for final approach • Cannot be set for final approach course or course published holding patterns Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 629 1.0 nm (terminal mode). At 2.0 nm before the FAF during an active approach, the CDI scale transitions down further based on the type of approach activated (LNAV, LNAV/VNAV, LPV). When a missed approach is activated, the CDI is set to 0.3 nm. See the Flight Instruments Section for more details on CDI scaling. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 630 To activate a new approach to a different airport, press the Direct-to Key and select the desired airport using the FMS Knobs. Press the ENT Key to accept the selected airport, then follow the steps in the preceding paragraph to select an approach for the new airport. Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 631: General Tis Information
• TIS is dependent on two-way, line-of-sight communications between the aircraft and the Mode-S radar antenna. Whenever the structure of the aircraft comes between the transponder antenna and the ground- based radar antenna, the signal may be temporarily interrupted. • Other limitations and anomalies associated with TIS are described in the AIM. 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 632 APPENDIX E Garmin is not responsible for Mode S geographical coverage. Operation of the ground stations WARNING: is the responsibility of the FAA. Refer to the AIM for a Terminal Mode S radar site map. TIS is unavailable at low altitudes in many areas of the United States. This is often the case in NOTE: mountainous regions.
Page 633: Map Symbols
Prohibited Area VOR/ILS Alert Area Restricted Area Caution Area Training Area VORTAC Danger Area Unknown Area TACAN Class C Terminal Radar Service Area Mode C Area Military Operations Area (MOA) 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 634 Loss of hazard avoidance feature Parallel Track Waypoint (loss of GPS position) Turbulence Unanchored Flight Path Waypoint Icing Potential Top of Descent (TOD) PIREPs Bottom of Descent (BOD) AIREPs Navigating using Dead Reckoning Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 635 Yellow obstacle is between 100 ft and 1000 ft below the aircraft altitude Gray obstacle is more than 1000 ft below aircraft altitude Table F-1 Obstacle Colors 190-00962-02 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 636 Phone status not known Phone is disabled Phone is reserved for data transmission Calling other phone or incoming call from other phone Other phone is on hold Phones are connected Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-02 Rev. A...
Page 637 Altitude alerting --------------------------------------------- 73 Bearing pointer ---------------------------------------------- 58 Altitude capture ------------------------------------- 435, 443 Bearing source ---------------------------------------------- 59 Altitude Hold Mode (ALT) ---------------------------------436 Bus voltage -------------------------------------------------- 82 Altitude Reference ---------------------------- 435, 436, 443 190-00962-01 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 638 Flight Plan Pages (FPL) ------------------------------------- 33 An entire procedure ----------------------------- 209, 210 Flight timer --------------------------------------------------- 40 An individual waypoint -------------------------- 208, 209 FliteCharts ------------------------------------------- 473, 513 Flight Plan Items ----------------------------------------208 Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-01 Rev. A...
Page 639 Mode S ----------------------------------------------- 114, 115 Heading Select Mode (HDG) ---------------------- 450, 459 Mode selection softkeys ----------------------------------115 HI SENS ------------------------------------------------------109 Morse code identifier --------------------------------------103 Horizontal scan -------368, 369, 370, 371, 372, 376, 377 190-00962-01 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 640 Pitch modes, flight director ------------------------ 433–439 PFD ---------------------------------------------------- 21–23 Pitch Reference ---------------------------------------------434 Speaker ------------------------------------------------------121 Power-up page ---------------------------------------------562 Split COM Operation --------------------------------------125 Power up settings ------------------------------------------121 STAB ---------------------------------------------------------375 Power-up, system --------------------------------------------- 9 Standby database ------------------------------------------598 Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-01 Rev. A...
Page 641 Nearest -------------------------------------------- 179–180 Transponder data box ----------------------------------87, 89 VOR selection -----------------------------------------------101 Transponder ground mode -------------------------------115 VSI ------------------------------------------------------------263 Transponder standby mode ------------------------------116 VS TGT ------------------------------------------------ 223, 261 Transponder status box ------------------------------------ 46 190-00962-01 Rev. A Garmin G1000 Pilot’s Guide for the Diamond DA42NG...
Page 642 XM satellite radio ----------------------------- 533, 535, 537 XM Satellite Radio -------------------------------------------- 4 XM Satellite Weather AIRMETs ------------------------------------------- 294, 329 SIGMETs ------------------------------------------- 294, 329 XM service class --------------------------------------------534 Zoom Auto -------------------------------------------------------134 Garmin G1000 Pilot’s Guide for the Diamond DA42NG 190-00962-01 Rev. A...
