Issue Date: 04/01/2021
Publication: AHP225XI-101
© AHP Welding Systems

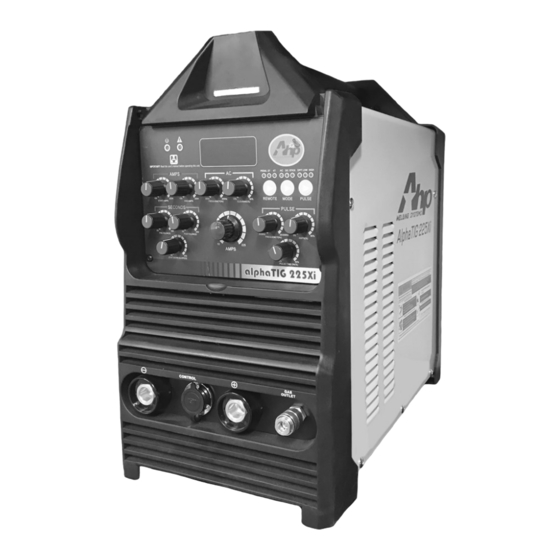

alphaTIG 225Xi
OPERATOR'S MANUAL
SAFETY AND USE INSTRUCTIONS
Purchase Date (Attach Receipt to Cover For Proof of Purchase)
Serial Number
380 Swift Ave. #11 South San Francisco, CA 94080

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the alphaTIG 225Xi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AHP WELDS alphaTIG 225Xi

Summary of Contents for AHP WELDS alphaTIG 225Xi

  • Page 1 Need Information? alphaTIG 225Xi Contact: sales@ahpwelds.com 925-391-3599 Technical Issues? OPERATOR’S MANUAL Contact: tech@ahpwelds.com 925-391-3599 (Ext. 102) SAFETY AND USE INSTRUCTIONS Purchase Date (Attach Receipt to Cover For Proof of Purchase) Serial Number Issue Date: 04/01/2021 Publication: AHP225XI-101 © AHP Welding Systems...

  • Page 2: Table Of Contents

    CONTENTS Shipping Issues? CA Proposition 65 Warning Safety First Information Safety Warning, Dangers, Cautions and Instructions About the AlphaTIG 225Xi Warranty Statement Specifications Generator Operation Information Duty Cycle Performance Required Routine Maintenance HF Point Gap Maintenance TIG Shielding Gas Information...

  • Page 3: Shipping Issues

    SHIPPING ISSUES? IMPORTANT! This unit has been thoroughly tested and inspected for function at the factory. However, you should be prepared to inspect and test this unit completely within 72 hours after receipt. Please do not delay in doing this. AHP needs to know if there is any damage caused in shipping as soon as possible.

  • Page 4: Ca Proposition 65 Warning

    WARNING! California Proposition 65 Warning: This product, when used for welding or cutting, produces fumes or gases which contain chemicals known to the State of California to cause birth defects and, in some cases, can- cer. (California Health & Safety Code § 25249.5 et seq.) Warning: Cancer and/or Reproductive Harm www.P65warnings.ca.gov NOTICE:...

  • Page 5: Safety First Information

    SAFETY FIRST! AHP Welding Systems takes safety seriously. You should as well. Please read this entire manual before using. Keep a copy of this manual available for all employees or potential users of this machine to read and thoroughly review before use.

  • Page 6: Safety Warning, Dangers, Cautions And Instructions

    Safety Warnings, Dangers, Cautions and Instructions NOTICE. This unit manual is intended for users with a basic working knowledge and skillset in weld- ing. It is your responsibility to make certain that the use of this welder is restricted to persons who have read, understand and follow the warnings and instructions in this manual.
  • Page 7 Safety Warnings, Dangers, Cautions and Instructions DANGER! Welding and cutting operations pose serious inhalation hazards. Some of these hazards are immediate while others are cumulative in their effect. Do not weld in enclosed spaces or in areas without adequate ventilation. Fumes and gases released in the welding and cutting opera- tions can be toxic.
  • Page 8 Safety Warnings, Dangers, Cautions and Instructions CAUTION! Welded metal can stay hot long after welding is completed. Burns may occur. Always wear gloves or use tongs/pliers when handling welded or cut metal. Remember the heat from the metal may catch other material on fire. Always have a fire-proof area ready to place welded compo- nents until they fully cool.

  • Page 9: About The Alphatig 225Xi

    3 years from date of purchase against breakage, malfunction, or other unit failure resulting from manufacturing de- The AlphaTIG 225Xi is the latest evolution of the long running Al- fect. The faulty unit will either be repaired or an exchange will be phaTIG series.

  • Page 10: Specifications

    225Xi Specifications and Need-to-Know Information Feature and Range AlphaTIG 225Xi Specifications Feature Range Start Type HF Start Input/Output Operating Range Process AC/DC TIG and Stick Input Voltage Welding Process Operating Range Amp Control 2T/4T Switch Control Sequencer or Pedal Control...

  • Page 11: Generator Operation Information

    225Xi Specifications and Need-to-Know Information Generator Operation Information intentionally and repeatedly surpassing the duty cycle will shorten the lifespan of the unit. Routine overheating damage will usually leave signs that can be determined during warranty repair. Damage This unit may be used with any clean power rated 240V caused by intentional abuse of the duty cycle will not be covered un- generator with a 9000 Surge Watt rating.

  • Page 12: Hf Point Gap Maintenance

    225Xi Specifications and Need-to-Know Information status during the duration of your warranty. However, under no cir- normal cleaning/maintenance does not fall under the warranty terms cumstances should you attempt to modify or make unauthorized for this welder. If you have any issues or questions concerning point changes to the welder or its programming.

  • Page 13: Tig Shielding Gas Information

    225Xi Specifications and Need-to-Know Information TIG Shielding Gas Information refuse the gas, and insist on pure Argon, or find another store willing to sell 100% pure argon. (Medical grade purity is not necessary). Pure Argon is recommended for use in your AHP TIG welder. This The regulator is a floating ball type.

  • Page 14: Tig Polarity And Tungsten Type

    225Xi Specifications and Need-to-Know Information TIG Polarity and Tungsten Type that are found in Lanthanated. Overall, however, Ceriated is a suitable Never tungsten type for most inverter welder general applications. use pure tungsten (green band) or Zirconiated ( usually brown Selecting the correct TIG polarity of the connections is band).

  • Page 15: Tungsten Preparation

    225Xi Specifications and Need-to-Know Information Tungsten Preparation However, if you do not have one, you may use a bench grinder with a fine grit stone that is dedicated to grinding tungsten only. Proper tungsten electrode preparation is important to arc stability...
  • Page 16 225Xi Specifications and Need-to-Know Information penetration. However, in certain conditions, if the work piece be- but especially for E6011 with this machine. For general purpose fab- comes magnetized, or some part of the welding table does, then the rication, and practical use, consider using E7014. This is considered a arc may become highly unstable while welding in DCEP.

  • Page 17: Front Panel Features

    225Xi Component Identification and Explanation of Function Front Panel Features electrode holder. The stick torch should remain in the positive while welding in AC as well. In TIG mode this is always the loca- tion of the work clamp.
  • Page 18 225Xi Component Identification and Explanation of Function America. The standard plug only uses three wires for 240V opera- tion. There is no neutral in a welder circuit. Do not change, length- This unit uses a reliable high output fan mounted in the rear NOTICE: en, or otherwise alter the input cable or plug.

  • Page 19: Control Panel Features

    225Xi Component Identification and Explanation of Function Control Panel Features The control panel layout has been arranged with convenience and speed of adjustment in mind. The graphics on the panel have been grouped and color coded (the brackets themselves) to remind the user what value the controls are indexed in and/or what function the con- trols are related to.
  • Page 20 225Xi Component Identification and Explanation of Function Control Panel Features 5. Down-Slope (Seconds, 0-10). The Down-Slope is used exclusively with the 2T/4T settings while the torch switch is in use. This provides a “crater fill” time and gradually diminishes the welding amperage down to the End Amps setting. This provides the user time to properly fill the crater left at the end of the weld pool.
  • Page 21 225Xi Component Identification and Explanation of Function Control Panel Features 11. Pulse Functions. Pulse can be used to control heat, wetting and warpage on thin materials. It can help improve arc control at higher frequencies, or im- prove weld appearance at lower frequencies (typically 1-3 Hz) by helping the user to time filler metal addition and forward travel speeds. Pulse is actually the oscillation of the welding amperage between a relatively high amp value, and a lower amp value.

  • Page 22: Using Ac Controls In Tig Welding

    225Xi Component Identification and Explanation of Function Using AC Controls in TIG Welding balance control on this unit as a tool that can be used to divide the AC weld cycle from 10% electrode positive all the way up to 90% electrode positive.

  • Page 23: Using 2T/4T/Pedal Functions

    225Xi Component Identification and Explanation of Function nice broad range that balances arc cone width, tungsten life, and noise 30% Positive 50% Positive levels without presenting problems associated with either extremely low AC frequency or extremely high AC frequency.

  • Page 24: Pulse Use And Operation

    225Xi Component Identification and Explanation of Function and proceed to the next one or group of functions. range from minimum to the maximum amperage set on the panel. When the pedal is backed down, and eventually released, the amperage 2T operation is the simplest way of welding.

  • Page 25: Starting The Tig Arc

    225Xi Component Identification and Explanation of Function “duty cycle”. This machine uses the term “Pulse Time On” to help con- See the illustration below how to properly start a TIG arc with HF vey the meaning and use of the function. See the illustration below for selected on the machine.

  • Page 26: Welding In Stick Mode

    225Xi Component Identification and Explanation of Function metal. This should not be an exaggerated motion, but a tight con- trolled one for best results. Use the illustration below to guide you in performing arc starts in the stick welding mode.

  • Page 27: Useful Tig Settings

    225Xi Component Identification and Explanation of Function Useful TIG Settings Pulse Time On: 50-65% It is very hard to recommend a welding setting that is good for all applications. In reality, there is no such setting. However we have compiled a few basics that you can use to help you in many different settings.

  • Page 28: Series Air-Cooled Tig Torch Information

    225Xi Component Identification and Explanation of Function 26 Series Air-Cooled Welding Torch (Typical Type) Parts and Assembly. Typical Everlast and NOVA Torch Assembly (17,18, 26 Series) (Some parts may not appear exactly the same but are equal in assembly order and type.) Tungsten not included.

  • Page 29: Pinout Connector Information

    225Xi Component Identification and Explanation of Function 7 PIN CONNECTOR Bridge a Jumper to Pin 7 To Pedal or Torch Switch ON/OFF Bridge a Jumper to Pin 6 To Pedal or Torch Switch ON/OFF High Middle Potentiometer (VR)

  • Page 30: Troubleshooting

    225Xi Troubleshooting Trouble/Description Possible Cause Solution Unit will not turn on. No lights on panel. Unit Not plugged in. Bad Outlet Main Breaker tripped. Investigate cause and remedy. If switch is suspected contact AHP. Check Faulty welder switch. simplest issues first.
