Insportline IN 24292 User Manual

IN 24292 Removable Seat for E-Scooter W-TEC Tendeal

SAFETY INSTRUCTIONS

•
Read the manual before use and keep it for future reference.
•
Prior to use, make sure that the seat is not damaged. If you notice any defect, remove the seat
immediately and do not use it until repaired.
•
Prior to use, make sure that the seat is properly secured.
•
Do not use the seat if sharp edges appear.
•
The seat is designed to transport one person.
•
Only one person may use the scooter with the seat at the same time.
•
Clean the seat with lukewarm water and a mild detergent.
•
Store the seat in a dry and shady place.
•
Load capacity: 120 kg

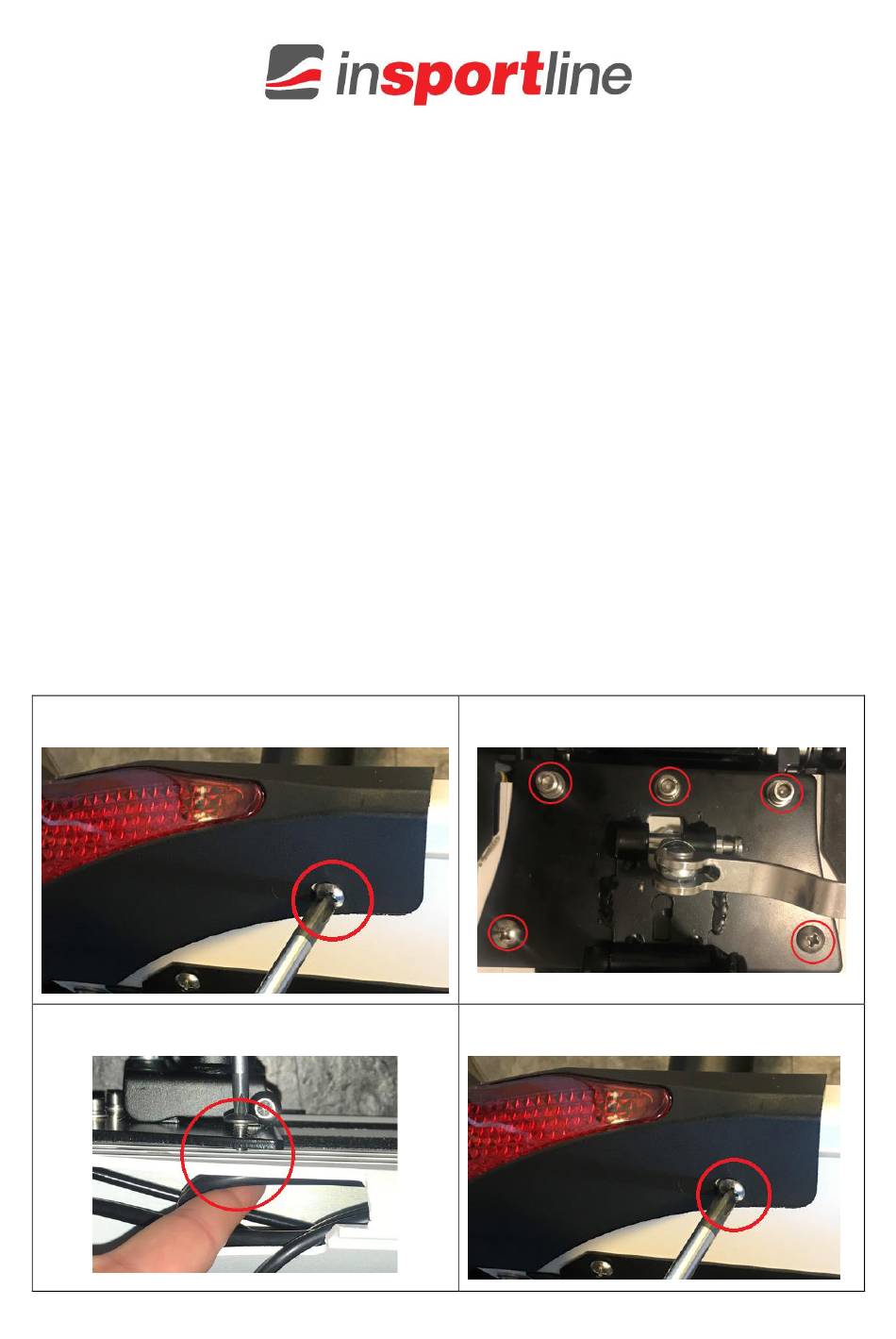

ASSEMBLY

1. Unscrew the side turn signal, the turn signal is
fastened with 1x screw on the bottom.
3. Tighten 3x Allen screws, fasten 2x Phillips
screws under the turn signal with nuts.
USER MANUAL – EN
2. The seat is fastened with 3x Allen screws and
2x Phillips screws with nut.
4. Reattach the side turn signal using the Phillips
screw on the bottom.
