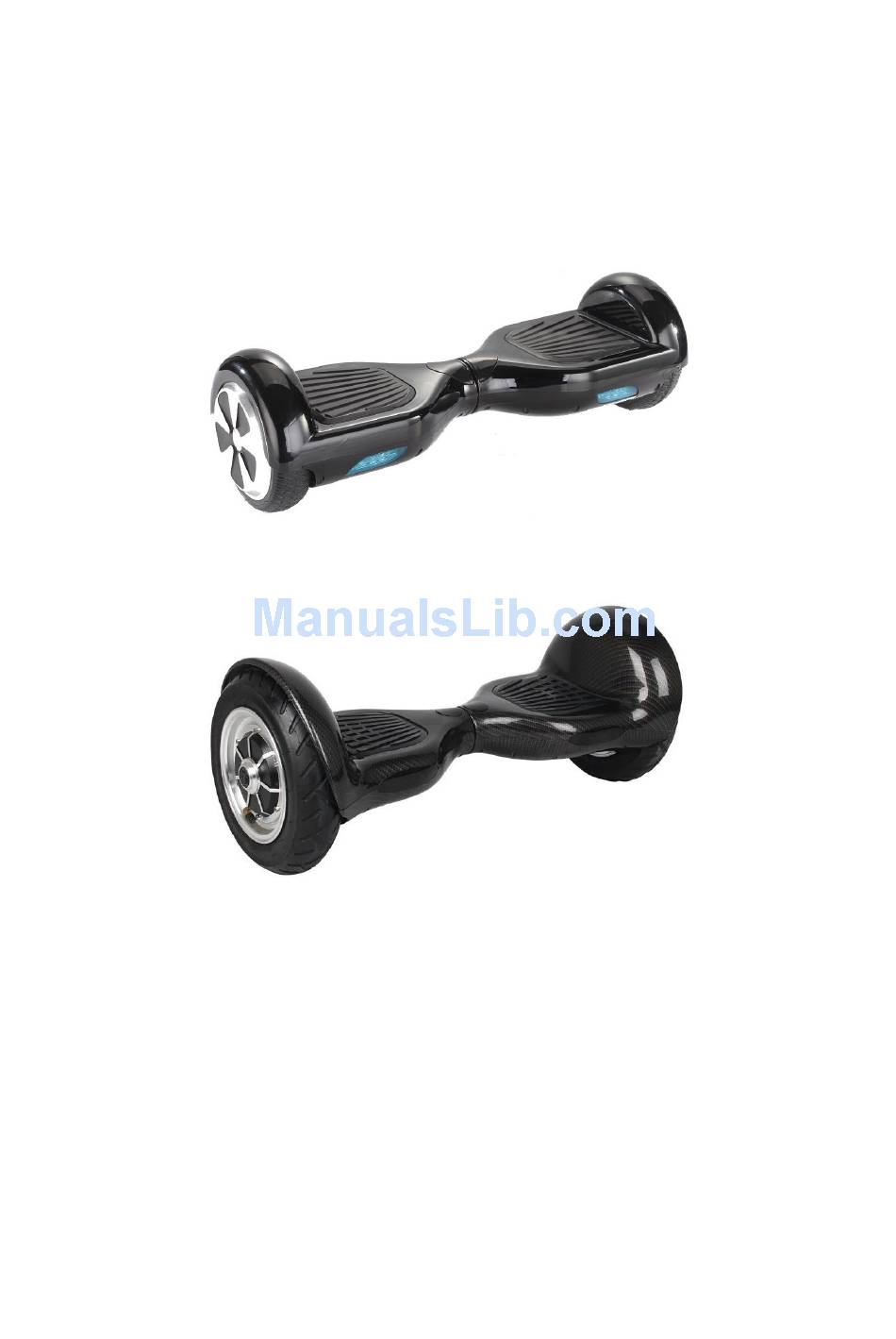

- Page 1 USER MANUAL – EN IN I1-6.5 Electroboard RayeeTech I1 IN I6-10 Electroboard RayeeTech I6 Rambo Pictures for illustration purposes only. Colour may vary.
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........................3 PRODUCT DESCRIPTION ........................4 DESCRIPTION OF DEVICE ........................ 4 WORKING PRINCIPLES ......................... 5 WEIGHT LIMIT ............................5 MAXIMAL TRAVEL DISTANCE ......................5 SPEED LIMIT ............................5 SAFE USING ............................6 OPERATION PROCEDURE ........................ 6 CONTROL AND INFORMATION DISPLAY DEVICE ................7 MAT SENSOR ............................. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please, read this manual carefully before using this device. Pay attention to all precautions and warnings to increase your safety. Keep this manual for possible references in the future. Read this manual carefully before first riding. Check your device that all components fit well. -
Page 4: Product Description
Don’t ride on slippery or wet roads and don’t use it in rain. Don’t ride on uneven surface. Don’t use it in snow or in icy terrain. Avoid obstacles, dirts, small stones and steep slopes. Use this device only on flat and clean surface. -
Page 5: Working Principles
WORKING PRINCIPLES This device uses gyroscopes and acceleration sensors to control balance intelligently depending on the gravity centre. It uses a servo-control system to drive the motor. It adapts to the human body. When you stand on it and lean your body forward or backwards, the power plant controls the wheels in the same direction to keep balance. -
Page 6: Safe Using
RayeeTech I6 Rambo: Item Parameter Remark N.W. 14 kg Maximum user weight 130 kg Minimum user weight 20 kg Maximum speed limit 15 km/h Range approx. 20 km Battery Li-Sanyo 36V, 4.4 AH 10” Tire Charging time 3 hours SAFE USING To use this device safely pay attention to these warnings and precautions. -
Page 7: Control And Information Display Device
Body leaning Correct and incorrect position Turning WARNING: 1. Do not turn sharply or at high speed to avoid a danger. 2. Do not ride on steep slopes or on uneven surface to avoid an injury or damage. CONTROL AND INFORMATION DISPLAY DEVICE MAT SENSOR There are 4 sensors under the mat. -
Page 8: Protection Functions
B. Running LED When the operator triggers the foot switches, the running light will light up. This means that device has entered the running state. In case of any operational error, the running LED light will turn to red. PROTECTION FUNCTIONS If the system will detect some error or abnormality, it will prompt the user in different ways such as: alarm indicator shining, sound alarm (buzzer sounds intermittently), loss of balance. -
Page 9: Battery
Use this device outdoors only if you can handle it perfectly. Ride only on a flat and smooth surface and avoid uneven terrain or potholes. Control your speed and reduce it in case of any danger. Slow down on an unsuitable surface. ... -
Page 10: Battery Description
BATTERY DESCRIPTION Contents Parameters Battery Li-Sanyo 36V, 4.4 AH Charging time approx. 3 hours Voltage Working temperature -15°C ~ 50°C 0°C ~ 40°C Charging temperature Storage time (-20°C - 25°C) 12 months Storage humidity 5%-95% WARNING: Lithium battery contains dangerous essences. Ship it only according to local laws. MAINTENANCE AND CLEANING This device requires the user to do a routine maintenance. - Page 11 According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not conclude and execute the Contract in order to run or promote his own trade or business activities. “The Buyer who is not the End Customer”...
