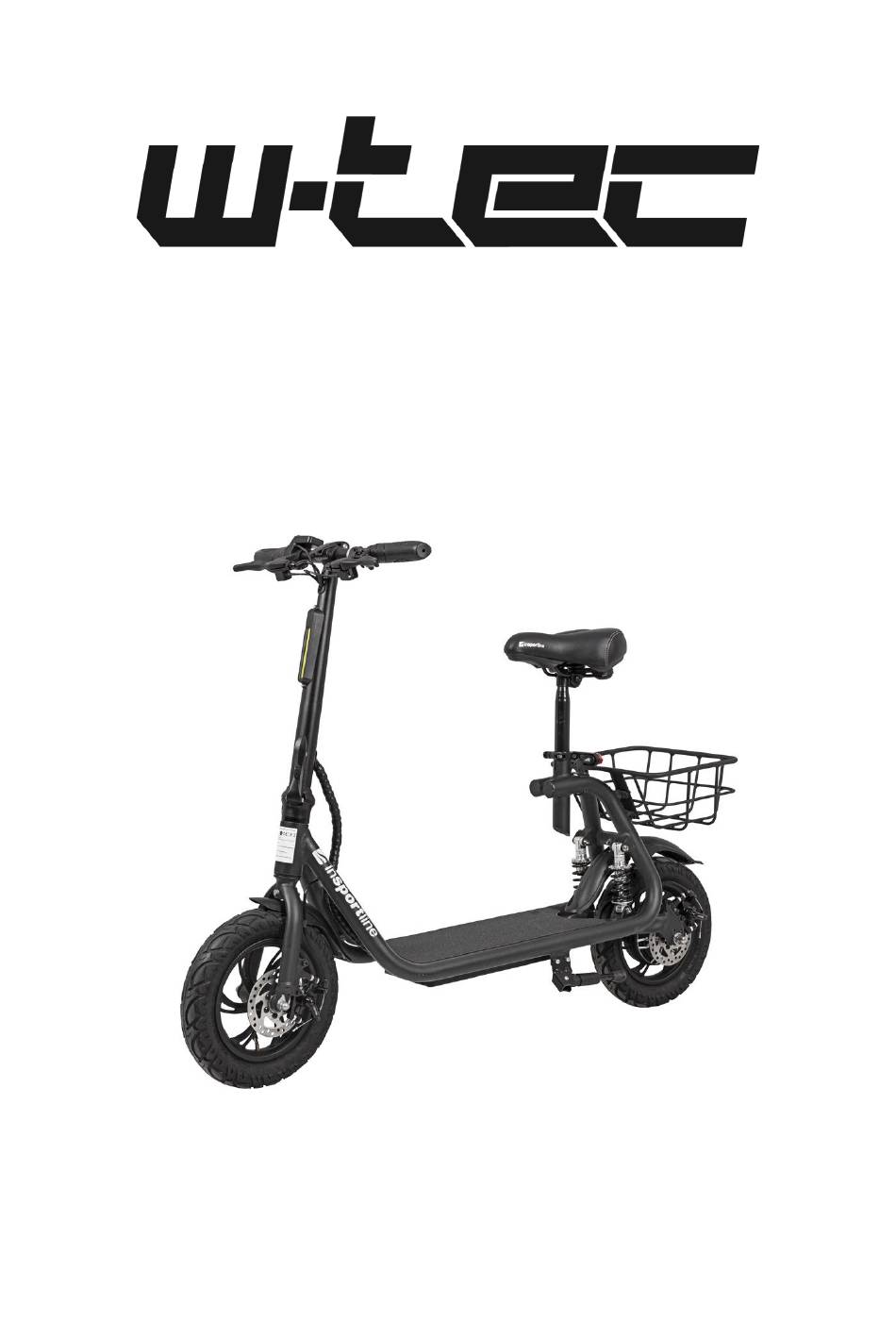

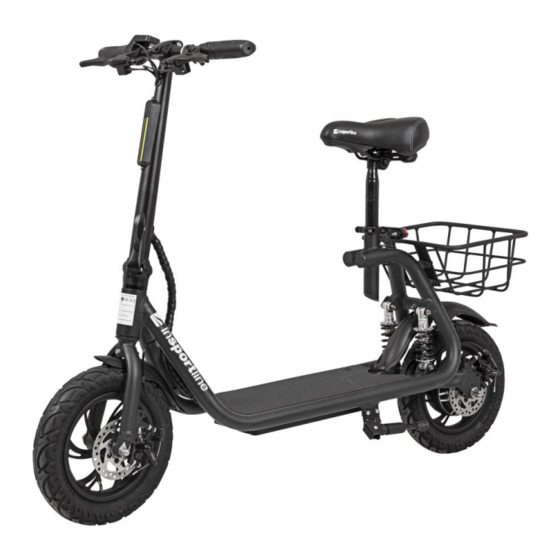

- Page 1 USER MANUAL – EN IN 23927 E-scooter W-TEC Billar II 500W 12''...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 ASSEMBLY ............................. 4 TECHNICAL PARAMETERS ....................... 6 PANEL DISPLAY AND FUNCTIONS ....................6 DISPLAY .............................. 6 USE ..............................7 SETTINGS ............................7 PARAMETERS ............................ 7 BRAKE ADJUSTMENT ........................... 8 BATTERY ..............................9 USE ............................... 10 RIDING TECHNIQUE .......................... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Read the manual carefully and keep it for future reference. • The scooter is designed to carry one person at the same time. • Wear a helmet and other protective equipment, incl. proper boots. • Do not ride on dangerous or ineligible roads. •... -
Page 4: Assembly
• Do not ride in the rain or on wet roads. There is a risk of damaging electronic part and battery. • Weight limit: 120 kg • Product meets standards: EN 55014-1: 2006+A1:2009+A2:2011; EN 55014-2:20015; EN 61000-3-2:20014; EN61000-3-3:2013; EN 60335-1:2012+A11:2014 ASSEMBLY 1. - Page 5 4. With quickrelease lever adjust the seat height. 5. Check the pressure in tires. 6. Check rear and front lights. Check battery and ring.
-
Page 6: Technical Parameters
CONTROL PANEL Turn the key to start the scooter. button to change speed modes , order: (1 – 2 – 3 – 2 – 1) Press the Hold the button to turn on / off lights. TECHNICAL PARAMETERS Rated voltage: Rated current: 20 mA -20 °... -
Page 7: Use
Total distance: Speed mode: Lights: button to switch speed modes (1 – 2 – 3 – 2 – 1). Turn the key to start / stop the scooter. Use the When turned on, the display shows the current distance traveled (TRIP). Press the button, to changed display information in order: currently traveled distance (TRIP), total distance traveled (ODO), battery voltage (VOL). -
Page 8: Brake Adjustment
No function No function No function Maximum current limit, unit: A, range 0 - 255, default value 13 To reset the distance traveled, hold the M(mode) button No function No function No function Headlights – 0 (off), 1 (on), default: 0 No function No function No function... -
Page 9: Battery
• The charging port is located at the rear side of the foot rest. • Connect the charger to the charging port. Make sure the charger and port are dry. • The indicator is red when the battery is charging. When the indicator turns green, the battery is fully charged. -
Page 10: Use
• During charging, the battery (or the product being charged) must always be under constant supervision. Charge the battery away from flammable or combustible objects. Unplug the charger from the battery and socket after charging. • Battery lifespan is limited. If you use a battery that exceeds normal lifespan, the charging frequency may increase, and the scooter range will be reduced. - Page 11 Turning – it is the same as on a surf or snowboard. The handlebar should be parallel to the body. Before turning look at the approaching direction to be sure the operation is safe. Braking – shift your weight backwards so that the braking is realized through your feet and not through handlebar and steering system.
-
Page 12: Technical Parameters
TECHNICAL PARAMETERS Material Aluminium Battery voltage 36 V Maximum range up to 38 km Maximal speed 25 km/h Weight 20 kg Maximal load capacity 120 kg Climbing angle 7,2° Display Tire size Front / rear 12‘‘ Tire pressure Front 2.8 bar, rear 2.5 bar Brakes Front / rear disc brakes Spaced dimensions... - Page 13 “The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the purpose of using the Goods or services for his own business activities. The Buyer conforms to the General Purchase Agreement and business conditions. These Conditions of Warranty and Warranty Claims are an integral part of every Purchase Agreement made between the Seller and the Buyer.
- Page 14 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk...
-
Page 15: Es Declaration
ES DECLARATION IMPORTER: Seven sport s.r.o., Strakonická 1151/2C Praha 5-Hlubočepy 150 00 IČ: 268 47 264 Czech republic Declares on its own responsibility that product: IN 23927 E-scooter W-TEC Billar (C1) This product meets the following standards CERTIFICATE SGS: SHES210801682785HSC / 05.11.2021 EN ISO 12100:2010 EN 17128:2020 CERTIFICATE: HQ20181200370...
