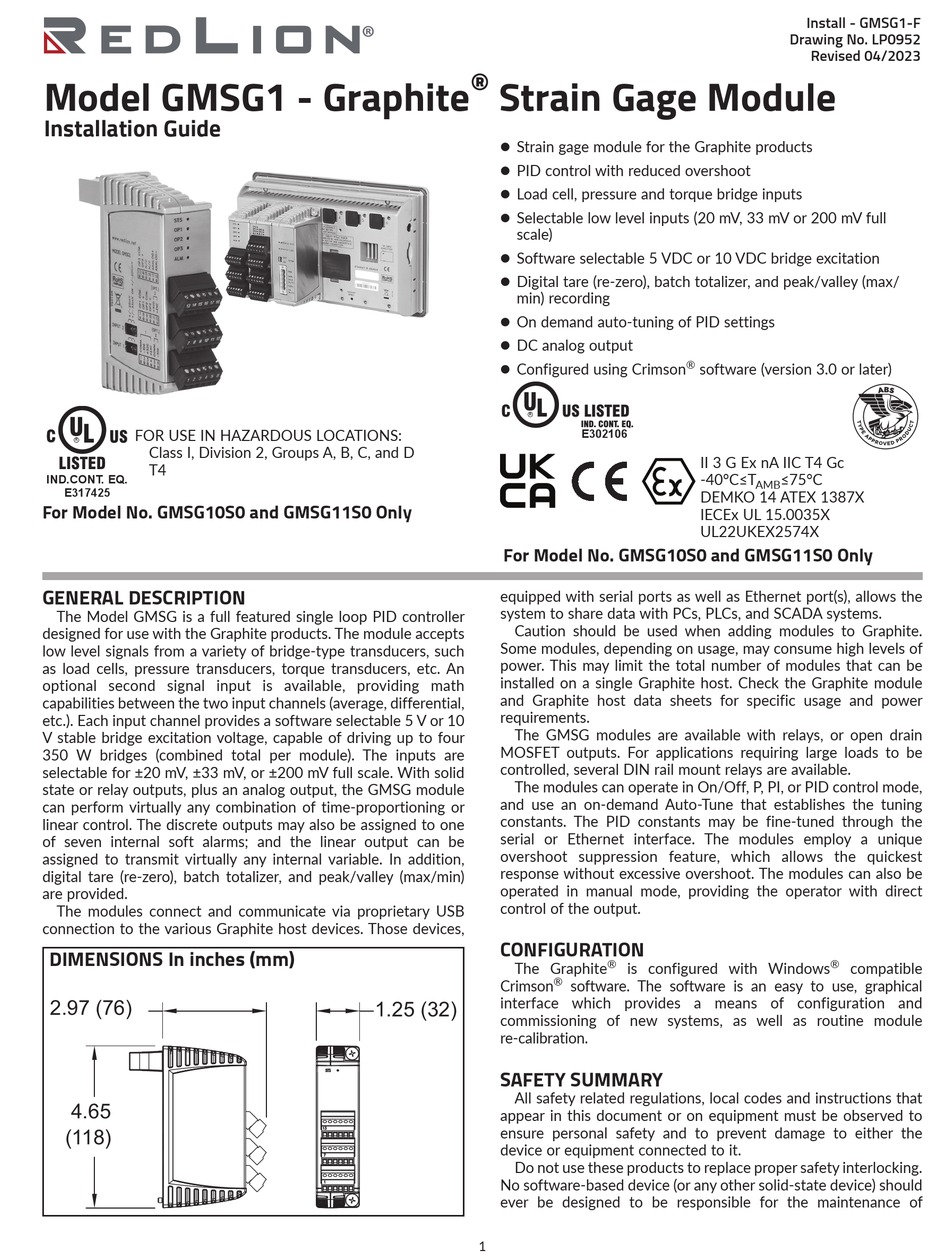

Redlion Graphite GMSG1 Installation Manual

Model GMSG1 - Graphite
Installation Guide
U L
FOR USE IN HAZARDOUS LOCATIONS:
C C US US
R
Class I, Division 2, Groups A, B, C, and D
LISTED
T4
IND.CONT. EQ.
E317425
For Model No. GMSG10S0 and GMSG11S0 Only

GENERAL DESCRIPTION

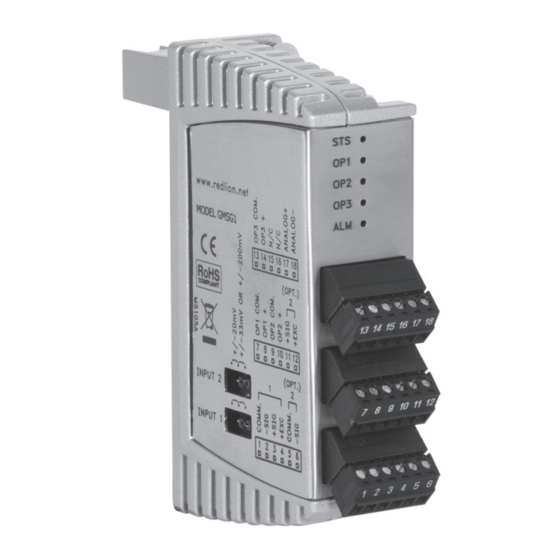

The Model GMSG is a full featured single loop PID controller
designed for use with the Graphite products. The module accepts
low level signals from a variety of bridge-type transducers, such
as load cells, pressure transducers, torque transducers, etc. An
optional second signal input is available, providing math
capabilities between the two input channels (average, differential,
etc.). Each input channel provides a software selectable 5 V or 10
V stable bridge excitation voltage, capable of driving up to four
350 W bridges (combined total per module). The inputs are
selectable for ±20 mV, ±33 mV, or ±200 mV full scale. With solid
state or relay outputs, plus an analog output, the GMSG module
can perform virtually any combination of time-proportioning or
linear control. The discrete outputs may also be assigned to one
of seven internal soft alarms; and the linear output can be
assigned to transmit virtually any internal variable. In addition,
digital tare (re-zero), batch totalizer, and peak/valley (max/min)
are provided.
The modules connect and communicate via proprietary USB
connection to the various Graphite host devices. Those devices,
DIMENSIONS In inches (mm)
2.97 (76)
4.65
(118)
®
Strain Gage Module
z Strain gage module for the Graphite products
z PID control with reduced overshoot
z Load cell, pressure and torque bridge inputs
z Selectable low level inputs (20 mV, 33 mV or 200 mV full
scale)
z Software selectable 5 VDC or 10 VDC bridge excitation
z Digital tare (re-zero), batch totalizer, and peak/valley (max/
min) recording
z On demand auto-tuning of PID settings
z DC analog output
z Configured using Crimson
U L
C C
R
For Model No. GMSG10S0 and GMSG11S0 Only
equipped with serial ports as well as Ethernet port(s), allows the
system to share data with PCs, PLCs, and SCADA systems.
Caution should be used when adding modules to Graphite.
Some modules, depending on usage, may consume high levels of
power. This may limit the total number of modules that can be
installed on a single Graphite host. Check the Graphite module
and Graphite host data sheets for specific usage and power
requirements.
The GMSG modules are available with relays, or open drain
MOSFET outputs. For applications requiring large loads to be
controlled, several DIN rail mount relays are available.
The modules can operate in On/Off, P, PI, or PID control mode,
and use an on-demand Auto-Tune that establishes the tuning
constants. The PID constants may be fine-tuned through the
serial or Ethernet interface. The modules employ a unique
overshoot suppression feature, which allows the quickest
response without excessive overshoot. The modules can also be
operated in manual mode, providing the operator with direct
control of the output.
Configuration
The Graphite
®
Crimson
interface which provides a means of configuration and
1.25 (32)
commissioning of new systems, as well as routine module
re-calibration.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that
appear in this document or on equipment must be observed to
ensure personal safety and to prevent damage to either the
device or equipment connected to it.
Do not use these products to replace proper safety interlocking.
No software-based device (or any other solid-state device) should
ever be designed to be responsible for the maintenance of
1
®
software (version 3.0 or later)
US LISTED US LISTED
IND. CONT. EQ.
E302106
II 3 G Ex nA IIC T4 Gc
-40°C≤T
DEMKO 14 ATEX 1387X
IECEx UL 15.0035X
UL22UKEX2574X
®
is configured with Windows
software. The software is an easy to use, graphical
Install - GMSG1-F
Drawing No. LP0952
Revised 04/2023
≤75°C
AMB
®
compatible
