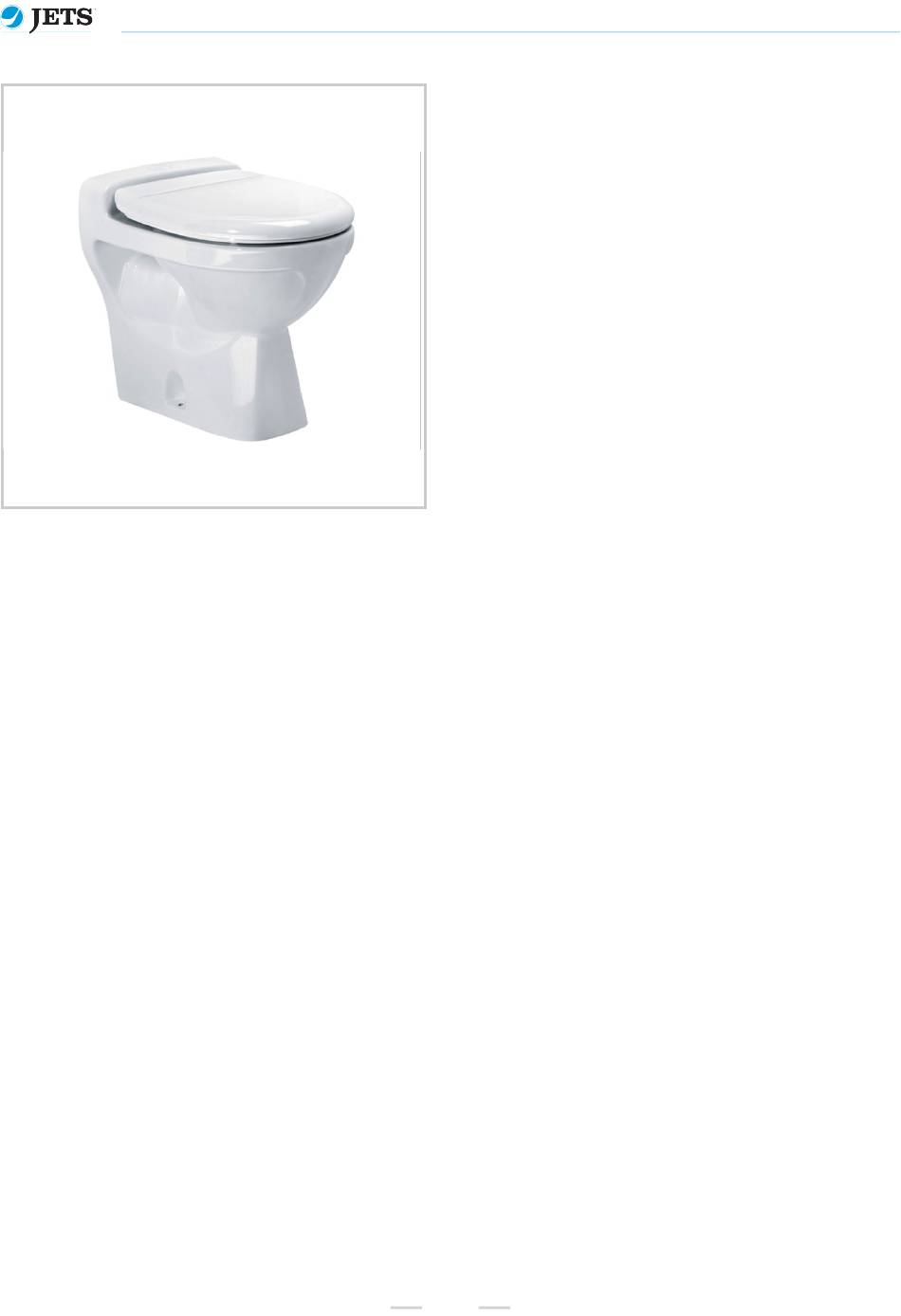

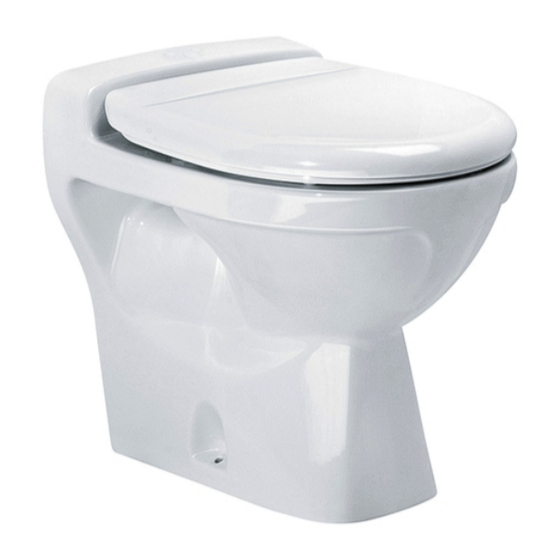

Jets™ 50M Toilet
Product No. TO650PO
Jets™ 50M Toilet is a pedestal pan design. With a focus on both
simple elegant design and comfort, this floor mounted toilets
contemporary look complements any installation.
Disclaimer
Note: Our products and services are offered and sold subject to Jets
Vacuum AS' General Sales Conditions, copies of which will be
furnished upon request. Information provided herein is solely for
information purposes, does not constitute any warranty or
representation of any kind and is subject to change without notice.
We strive to reproduce product colors reasonably accurate. Without
prior written approval, this document or any part of may not be
reproduced in any form. Jets™, Vacuumarator™, Helivac™, VC™,
VOD™, CVS™ and Softsound™ are trademarks and/or registered
trademarks of Jets. © Jets AS. All rights reserved.
Technical Data
Outside Dimensions
............................................................................................
Weight
.................................................................................................................
General Tolerance
...............................................................................................
Discharge Valve Outlet
........................................................................................
Water Connection
................................................................................................
Generic Material
..................................................................................................
Coating
................................................................................................................
Operating Data
Flushing Time
......................................................................................................
Discharge Time
...................................................................................................
Water Pressure
...................................................................................................
Operating Vacuum
...............................................................................................
Air Consumption
..................................................................................................
Water Consumption
.............................................................................................
Temperature Range
.............................................................................................
Note:
...................................................................................................................
Values may vary depending on selected components.
* Water Consumption 1L (3bar) listed above is factory set.
The water consumption can be adjusted between 0.4L
and 3.2L depending on water pressure, selected valve
and choice of nozzle on the VPC-V.
1
Doc. Rev.: 4 (2019-01-31)
550 x 385 x 475 mm (LxWxH)
Bowl dimensions ±2%
Outside diameter Ø 50 mm
Recommended 30-55 % Vacuum
Approx. 48 liters at 50% Vacuum
to Maximum 60°C
(unless frost protection measures are taken)
Tel. +47 70 03 91 00
www.jetsgroup.com
Approx. 25 kg
½" male BSP
Porcelain
Vitreous China
5 seconds
2 seconds
2-7 bar
1L (3 bar)
Minimum 1°C
.
Advertisement
Table of Contents
Related Manuals for Jets TO650PO
Summary of Contents for Jets TO650PO
- Page 1 ..................... Minimum 1°C to Maximum 60°C (unless frost protection measures are taken) Jets™ 50M Toilet is a pedestal pan design. With a focus on both Note: ........................Values may vary depending on selected components. simple elegant design and comfort, this floor mounted toilets contemporary look complements any installation.
- Page 2 Jets™ 50M Toilet Tel. +47 70 03 91 00 www.jetsgroup.com Product No. TO650PO Doc. Rev.: 4 (2019-01-31) Components Accessories Construction Characteristics Toilet Bowl JETS 50M ..........................................063600100* Vacuum Breaker Kit..................... 034507320 Flushing ring ............................................069510500* Rubber Elbow, ø50 w/Hose Clip................. 034505450 Hose Clip 13-20mm ..........................................
-
Page 3: Dimension Drawings
80mm R.......................... 235mm B-1 / B-2 / B-3 Pipe Connection Dimensions - All measurements given are based on use of a Jets™ rubber elbow/sleeve (required between the pipe and the valve). B-2-1 Minimum wall cutout for water connection/vacuum breaker/release button. -
Page 4: Important Health And Safety Information
Goods to be protected against shock, dust, humidity and frost. Suitable adequately dimensioned transporting equipment is to be used. Note that the equipment may contain components that are easily damaged as a result of inappropriate handling. Jets Vacuum AS is not responsible for or liable for delivery delays resulting from occurrences outside of Jets Vacuum AS' immediate control. - Page 5 Standards and Regulations To install a Jets™ product, it is first required that the room be prepared according to all local, state and federal standards and requirements. Industry specific standards must also be met. Considerations that must be made include but are not limited to: ●...
- Page 6 Jets™ 50M Toilet Tel. +47 70 03 91 00 www.jetsgroup.com Product No. TO650PO Doc. Rev.: 4 (2019-01-31) Toilet Connections Installation may vary depending on plumbing arrangements. Note that the following methods are available for the toilet type. Installation Alternative 1.
-
Page 7: Cleaning Instructions
Spare Parts and Accessories Available spare parts are indicated in the component list for the toilet. Spare parts and accessories can be ordered via your local Jets Vacuum AS supplier. For multi-toilet installations, a complete recommendation for spare parts is available. Contact your Jets Vacuum AS supplier for details. -
Page 8: Troubleshooting
Troubleshooting Jets Vacuum AS provides the following troubleshooting information to assist in resolving issues that may arise with your installation. For more detailed information or assistance, please contact Jets Vacuum AS. Problem... - Page 9 Jets™ 50M Toilet Tel. +47 70 03 91 00 www.jetsgroup.com Product No. TO650PO Doc. Rev.: 4 (2019-01-31) Backflow in the installation. Check the pipes have been correctly installed. The Non-return Valve on the discharge Clean the Non-return Valve. line (if installed) is malfunctioning.
