Jets™ Opal Wall Toilet
Product No. TO615PO

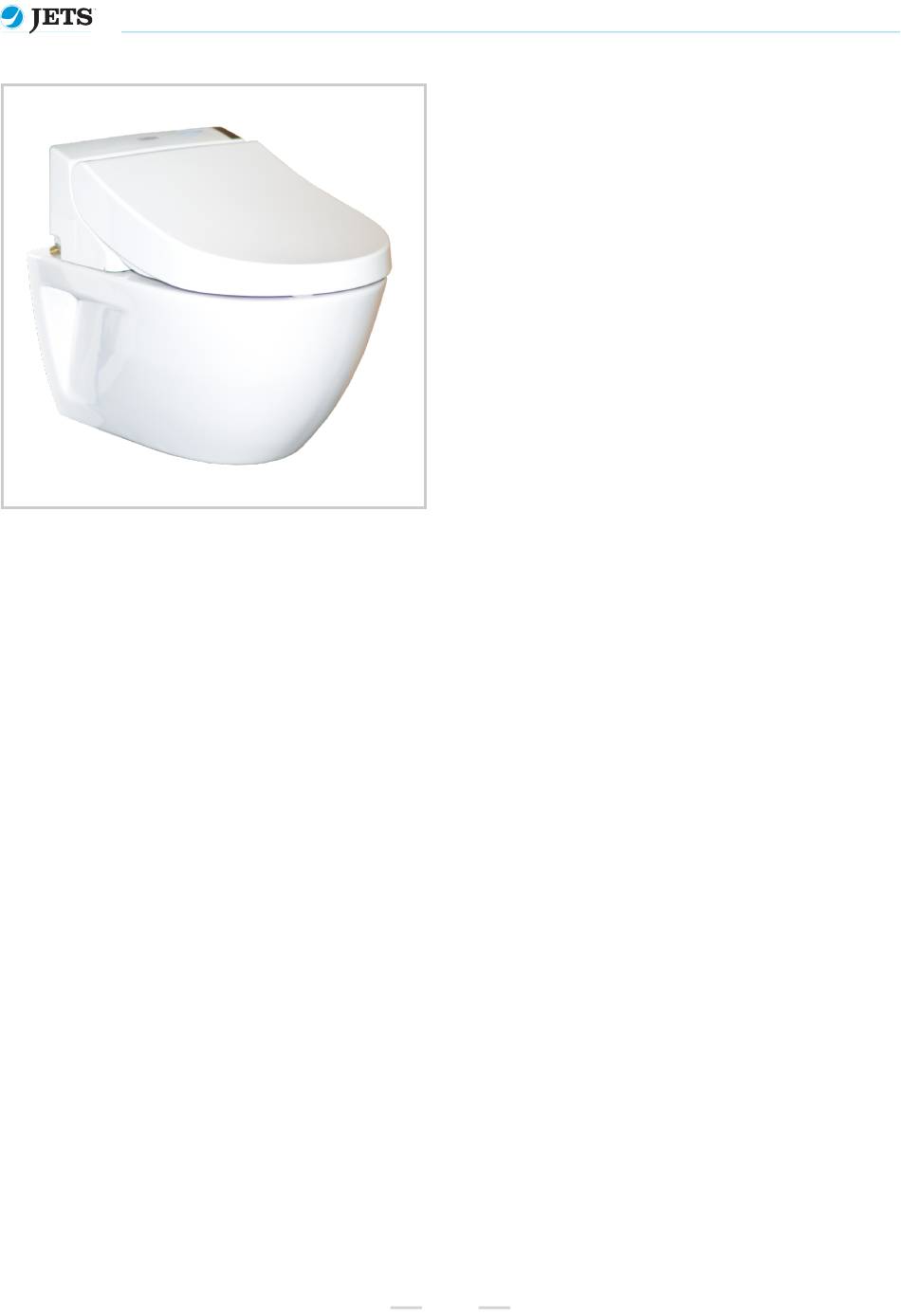

Jets™ Opal Wall Toilet ensures optimal hygiene and comfort. High
quality porcelain in a wall mounted design compliments any
installation.
Features:
● Electronic bidet seat and cover.
● Low water consumption with reliable flush and discharge.
● High quality vitreous china bowl with excellent flushing.
Disclaimer
Note: Our products and services are offered and sold subject to Jets
Vacuum AS' General Sales Conditions, copies of which will be
furnished upon request. Information provided herein is solely for
information purposes, does not constitute any warranty or
representation of any kind and is subject to change without notice.
We strive to reproduce product colors reasonably accurate. Without
prior written approval, this document or any part of may not be
reproduced in any form. Jets™, Vacuumarator™, Helivac™, VC™,
VOD™, CVS™ and Softsound™ are trademarks and/or registered
trademarks of Jets. © Jets AS. All rights reserved.
Technical Data
Outside Dimensions
............................................................................................
Weight
.................................................................................................................
General Tolerance
...............................................................................................
Discharge Valve Outlet
........................................................................................
Water Connection
................................................................................................
Generic Material
..................................................................................................
Coating
................................................................................................................
Operating Data
Flushing Time
......................................................................................................
Discharge Time
...................................................................................................
Water Pressure
...................................................................................................
Operating Vacuum
...............................................................................................
Air Consumption
..................................................................................................
Water Consumption
.............................................................................................
Temperature Range
.............................................................................................
Note:
...................................................................................................................
Values may vary depending on selected components.
* Water Consumption 1L (3bar) listed above is factory set.
The water consumption can be adjusted between 0.4L
and 3.2L depending on water pressure, selected valve
and choice of nozzle on the VPC-V.
1
Doc. Rev.: 4 (2019-01-18)
585 x 390 x 540 mm (LxWxH)
Bowl dimensions ±3%
Outside diameter Ø 50 mm
Recommended 30-55 % Vacuum
Approx. 48 liters at 50% Vacuum
to Maximum 60°C
(unless frost protection measures are taken)
Tel. +47 70 03 91 00
www.jetsgroup.com
Approx. 28 kg
½" male BSP
Porcelain
Vitreous China
5 seconds
2 seconds
2-7 bar
1L (3 bar)
Minimum 1°C
.
Advertisement
Table of Contents
Related Manuals for Jets Opal Wall Toilet TO615PO
Summary of Contents for Jets Opal Wall Toilet TO615PO
- Page 1 ● High quality vitreous china bowl with excellent flushing. Disclaimer Note: Our products and services are offered and sold subject to Jets Vacuum AS’ General Sales Conditions, copies of which will be furnished upon request. Information provided herein is solely for information purposes, does not constitute any warranty or representation of any kind and is subject to change without notice.
- Page 2 Jets™ Opal Wall Toilet Tel. +47 70 03 91 00 www.jetsgroup.com Product No. TO615PO Doc. Rev.: 4 (2019-01-18) Components Accessories Construction Characteristics Toilet Bowl JETS Opal Wall ........................................066607300* Vacuum Breaker Kit..................... 034507320 Flushing Ring ............................................069513600* Rubber Elbow, ø50 w/Hose Clip................. 034505450 Air Inlet ..............................................
-
Page 3: Dimension Drawings
Release button - public toilet height 1050mm N.......................... Bolt length (outside exterior wall) 65mm Fig 1-3 Pipe Connection Dimensions - All measurements given are based on use of a Jets™ rubber elbow/pipe sleeve (required between the pipe and the valve). Fig 4 Full wall cutout This cutout should be used if the toilet valve protrudes from the bowl or if maintenance can be carried out from behind the toilet without removing the toilet bowl from the wall. -
Page 4: Important Health And Safety Information
Goods to be protected against shock, dust, humidity and frost. Suitable adequately dimensioned transporting equipment is to be used. Note that the equipment may contain components that are easily damaged as a result of inappropriate handling. Jets Vacuum AS is not responsible for or liable for delivery delays resulting from occurrences outside of Jets Vacuum AS' immediate control. - Page 5 Standards and Regulations To install a Jets™ product, it is first required that the room be prepared according to all local, state and federal standards and requirements. Industry specific standards must also be met. Considerations that must be made include but are not limited to: ●...
-
Page 6: General Installation Information
Jets™ Opal Wall Toilet Tel. +47 70 03 91 00 www.jetsgroup.com Product No. TO615PO Doc. Rev.: 4 (2019-01-18) Toilet Connections Installation may vary depending on plumbing arrangements. General Installation Information To avoid leakage between the toilet valve and the toilet bowl, it is important that the pipe installation is properly clamped and aligned. Water hoses must be secured with hose clips. - Page 7 (illustrations of the seat and cover may vary from your individual purchase). Note: Jets™ Opal Toilet is delivered with the mounting plate already installed and adjusted on the toilet bowl. Plug in the power connection for the Completed.
-
Page 8: Cleaning Instructions
Spare Parts and Accessories Available spare parts are indicated in the component list for the toilet. Spare parts and accessories can be ordered via your local Jets Vacuum AS supplier. For multi-toilet installations, a complete recommendation for spare parts is available. Contact your Jets Vacuum AS supplier for details. -
Page 9: Troubleshooting
Troubleshooting Jets Vacuum AS provides the following troubleshooting information to assist in resolving issues that may arise with your installation. For more detailed information or assistance, please contact Jets Vacuum AS. Problem...
