Jets Charm Manual

Jets™ Charm Toilet
Product No. TO611PO
Jets™ Charm toilet is a wall model vacuum toilet in a porcelain
design.
Jets™ Charm toilet features low water consumption, reliable flushing
and discharge.
Warranty
All products of the company are sold and all services of the company
are offered subject to Jets Vacuum AS General Sales Conditions
detailing warranty and terms and conditions of sale, copies of which
will be furnished upon request. The information provided herein is for
guidance only; it does not constitute a guarantee of the performance
or specification of any individual product or component.
Technical Data
Outside Dimensions ...................................................................................................
Weight ....................................................................................................
Bowl Weight ....................................................................................................
Discharge Valve Outlet ...............................................................................................
Water Connection ....................................................................................................
Operating Data
Flushing Time ....................................................................................................
Discharge Time ....................................................................................................
Water Pressure ....................................................................................................
Operating Vacuum ....................................................................................................
Air Consumption ....................................................................................................
Water Consumption ....................................................................................................
Note: .................................................................................................... Values are dependent on product selection.
Patents and Trademarks
Jets™, Vacuumarator™, Helivac™, VC™, VOD™, CVS™ and
Softsound™ are trademarks and/or registered trademarks of Jets. ©
Copyright 2011, Jets AS.
Disclaimer
Product color reproduction is as near to actual color as product
methods allow. All rights reserved. Information is subject to change
without notice. No part of this document may be reproduced in any
form without prior written approval.
Options
Optional functions compatible with this product.
VFD: Vacuum Flush and Discharge
CFD: Central Flush and Discharge
LFD: Local Flush and Discharge

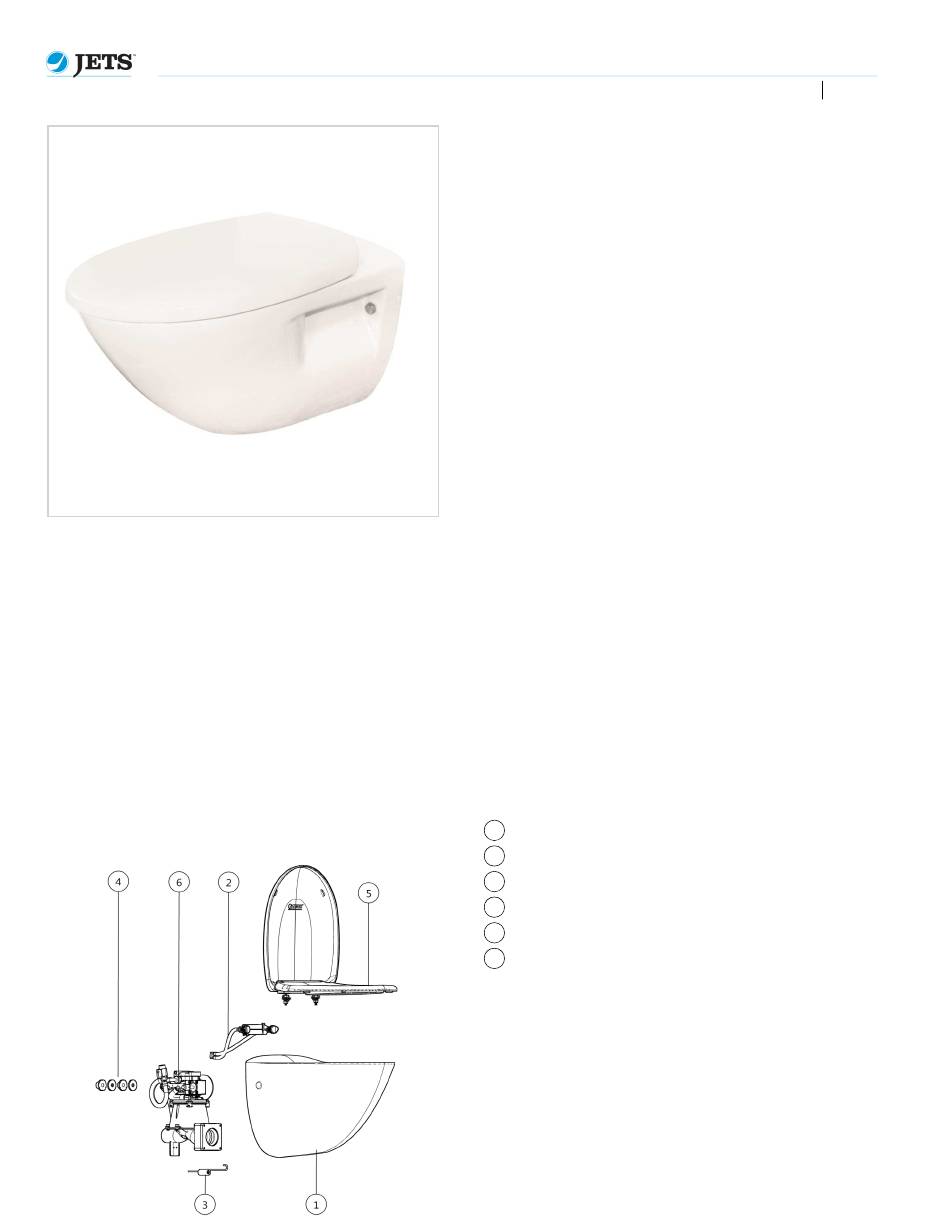

Components
Construction Characteristics
1 Toilet Bowl JETS Charm.....................................................................................
2 Flushing Nozzle Kit.............................................................................................
3 Spring....................................................................................................
4 Fastening Kit, wall...............................................................................................
5 Seat & Cover....................................................................................................
6 Valve....................................................................................................
* Component/s avaliable as replacement parts.
Accessories
Construction Characteristics
Vacuum Breaker Kit....................................................................................................
Rubber Elbow w/hose clip..........................................................................................
Rubber Sleeve w/hose clip.........................................................................................
Rag Hook w/support...................................................................................................
Fastening Kit, wall....................................................................................................
Cap....................................................................................................
Bracket, retrofit toilet..................................................................................................
Pipe Packet....................................................................................................
Coaming....................................................................................................
Tel. +47 70 03 91 00
www.jetsgroup.com
Issued 2013-10-28 Rev 3.0
540 x 370 x 400 mm (LxWxH)
22.5 kg
Approx. 19.4 kg
Outside diameter Ø 50 mm
½" male BSP
5 seconds
2 seconds
2-7 bar
Recommended 30-55 % Vacuum
Approx. 48 liters at 50% Vacuum
1 liter/s (3 bar) (adjustable)
066607100*
069503157*
053531720*
069606400*
Product Selection
See options listed above
034507320
034505450
034505550
034102902
069606302
069606304
069000300
034399300
037609312
