RADIOACTIVE SERIES

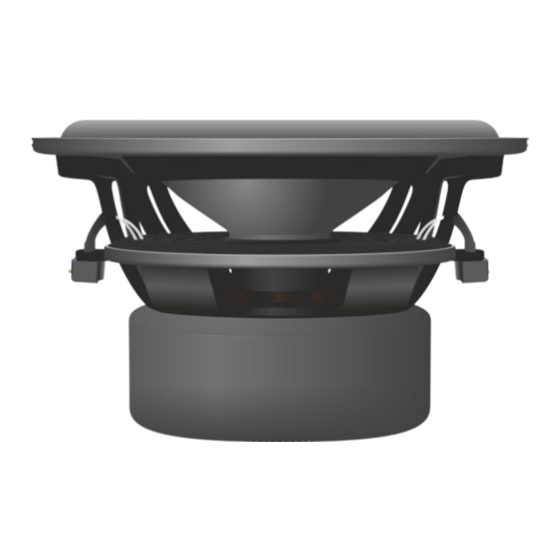

High-Power SPL Subwoofer
GZRW 10XSPL
Anleitung / Owner´s Manual
Ausstattungsmerkmale / Features
(AWV2.1)
• Hochbelastbarer SPL Subwoofer
• 25 cm Durchmesser
• Klippel
®
optimiert
• Verstärkte Papier-Membrane
• 63 mm Kupfer-Schwingspule
• Langhub-Sicke
• Druckkontakt Anschluss
o High-power SPL subwoofer
o 10" diameter
o Klippel
®
optimized
o Reinforced paper cone
o 2.5" copper voice coil
o High-roll surround
o Push terminals
RADIOACTIVE SERIES
Advertisement
Related Manuals for Ground Zero GZRW 10XSPL
Summary of Contents for Ground Zero GZRW 10XSPL
- Page 1 RADIOACTIVE SERIES High-Power SPL Subwoofer GZRW 10XSPL Anleitung / Owner´s Manual (AWV2.1) Ausstattungsmerkmale / Features • Hochbelastbarer SPL Subwoofer • 25 cm Durchmesser • Klippel ® optimiert • Verstärkte Papier-Membrane • 63 mm Kupfer-Schwingspule • Langhub-Sicke • Druckkontakt Anschluss o High-power SPL subwoofer o 10”...
-
Page 2: Einleitung / Introduction
Zusammenstellung der Anlage sowie deren Einbau und Abstimmung den Fachhandel oder eine spezialisierte Fachwerkstatt aufzusuchen. Thank you for choosing a great GROUND ZERO product! We hope you will enjoy this product from the RADIOACTIVE series. This owner´s manual contains information you need to use this product. Please read it carefully in order to achieve the best possible result. -
Page 3: Sicherheitshinweise / Safety Instructions
130 dB or more. Extreme levels can also hinder the perception of important traffic noises and distract from what is happening on the road. Ground Zero GmbH and its sales partners expressly assume no responsibility for hearing damage, physical damage or any damage to property or consequential damage resulting from improper or careless use or improper installation of its products. -
Page 4: Technische Daten / Specifications
GROUND ZERO GZRW 10XSPL Technische Daten / Specifications model Modell / GZRW 10XSPL Durchmesser der Schwingspule / 63 / 2.5" voice coil diameter impedance Impedanz / 2 x 2 wired in serial Re (seriell / 44.3 7.798 0.828 0.749 9 / 0.32 3.092 mH... - Page 5 GROUND ZERO GZRW 10XSPL Belastbarkeit / Power handling Gehäuseempfehlung / Recommended enclosures ented Bassreflex / v 25 Liter netto / 0.883 cu.ft. net recommended enclosure Port 1 x 8 cm / 1 x 3.15” Portlänge / port length* 22.5 cm / 8.89”...
- Page 6 GROUND ZERO GZRW 10XSPL Verkabelungmöglichkeiten / Wiring options RADIOACTIVE SERIES...
- Page 7 GROUND ZERO GZRW 10XSPL Verified with KLIPPEL ® GROUND ZERO is using the worldwide accepted KLIPPEL ® R&D Analyzer KA3 measurement system for speaker development during the German in-house development as well as for QC reporting for most production lines at the factory. The results of LPM and LSI measurements are the basis for evaluating and verifying further development enabling to offer perfectly working products in any practical application.
- Page 8 Some music styles require higher levels while others prefer the soft tones. GROUND ZERO considers all the different wishes of customers during the development of new products. Along with this, the target is to create the most realistic sound, to transfer the soul of the music and the intention of the performer.
