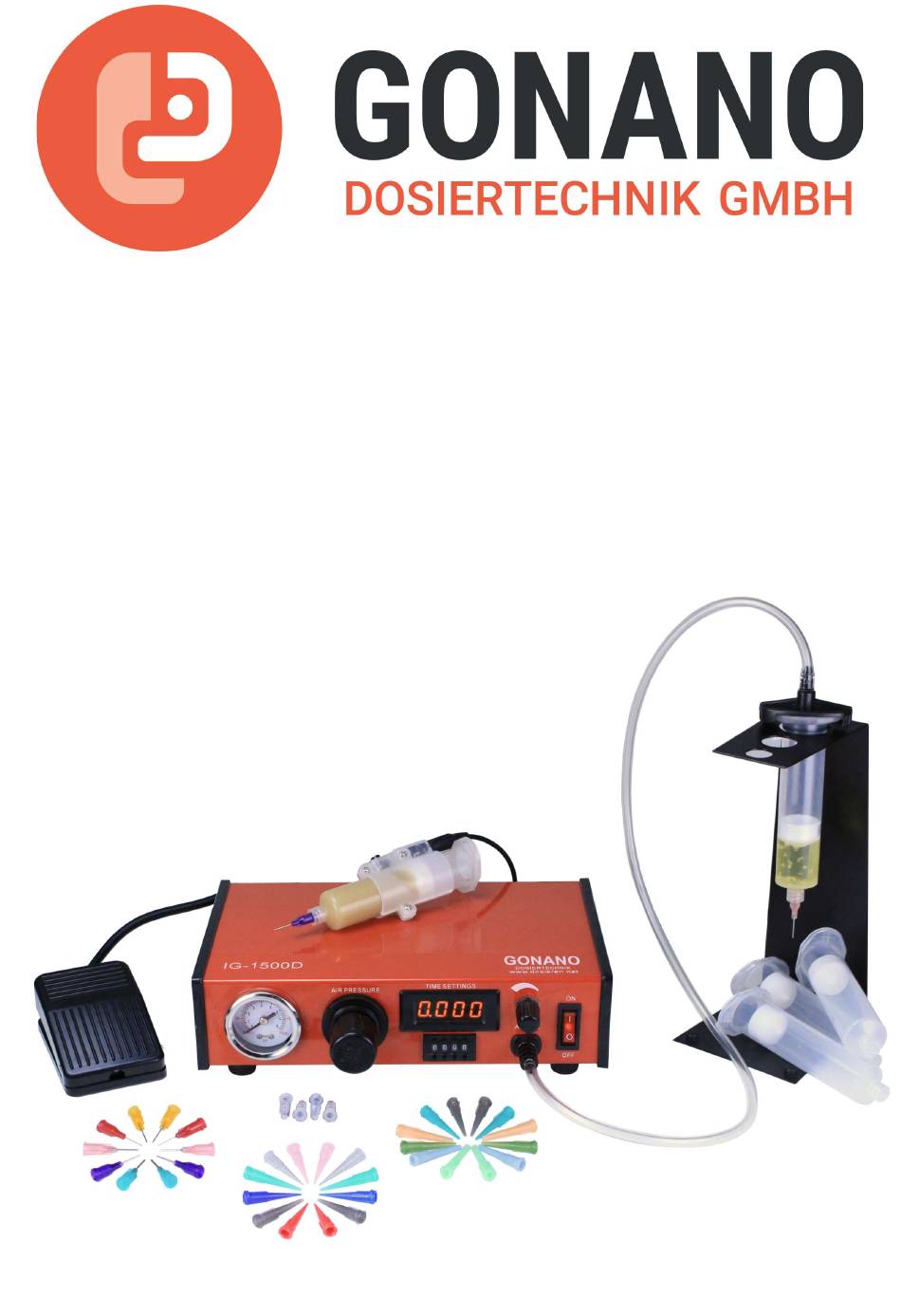

- Page 1 Operating Instructions Digital Dispenser IG - 1500D...
-
Page 2: Table Of Contents
Operating Instructions IG-1500D Content 1 General information 1.1 The IG-1500D 1.2 Intended Use 2 Scope of delivery 3 Safety instructions 3.1 General safety information 3.2 Dangers for the operator 3.3 Electrical safety instructions 3.4 Safety Instructions for Auxiliary- and Operating Materials... -
Page 3: General Information
The IG-1500D dispensing controller series consists of two models which have an output pressure of 0-1 and 0-7 bar respectivly, with no other differences. For this reason, only the model IG-1500D is referred to below. The IG-1500D is used for the precise dispensing of various liquids and pastes. -
Page 4: Scope Of Delivery
Operating Instructions IG-1500D 2 Scope of delivery... - Page 5 Operating Instructions IG-1500D Accessories 0-7 Bar Quantity Designation Size Syringe barrel clear, angled bottom 30cc Piston PE white, angled bottom 30/55cc Tapered tip set consisting of: Tapered tip/light green 10 gauge Tapered tip/light orange 11 gauge Tapered tip/light blue 13 gauge...
-
Page 6: Safety Instructions
Operating Instructions IG-1500D 3 Safety instructions 3.1 General safety information If this device is used for purposes other than those described in this operating manual, personal injury or damage to property may result. Only use the device in accordance with the enclosed instructions. -
Page 7: About Your Dispensing Unit
Operating Instructions IG-1500D 4 About your dispensing unit... -
Page 8: Commissioning
• Connect the hose of the barrel adapter to the compressed air outlet [6] of the IG-1500D and set the pressure with the pressure regulator [2]. Select a low dispensing pressure at the beginning and then increase it step by step. -
Page 9: Connection Diagram
Operating Instructions IG-1500D 5.2 Connection diagram If you have connected all your air lines and wiring correctly your system setup will look something like this:... -
Page 10: Operation
Operating Instructions IG-1500D 6 Operation The different operating modes The IG-1500D has two different operating modes: MANUAL Mode In the manual mode you control the dispensing unit with the foot switch or finger switch. The unit dispenses the material as long as you hold down the switch or the button. -
Page 11: Useful Information
Operating Instructions IG-1500D 8 Useful Information When using barrels without piston, always make sure to keep the barrel pointed tip down and the dispenser in an elevated position. Otherwise material might reach the dispenser and cause damage. Moving of the decimal point: If longer dispensing times are required you can move the decimal point. - Page 12 Operating Instructions IG-1500D • Keep the barrel at an angle of about 60° to the surface. (Fig. 1) • When finished, lift the barrel vertically up from your workpiece. (Fig. 2) • To increase the amount of dispensed material you can either increase the pressure, or use a dispensing tip with a larger diameter.
-
Page 13: Maintenance And Cleaning
Operating Instructions IG-1500D 9 Maintenance and Cleaning The dispensing controller is maintenance-free. Any needed repairs must be performed by the manufacturer. To clean the unit and the housing, use only dry or damp cloths and never use cleaning fluids such as petrol, thinners or any other flammable or corrosive liquid. -
Page 14: Technical Data
Operating Instructions IG-1500D 11 Technical data 250 x 200 x 70 mm incl. Pressure Outer dimensions (D x W x H) regulator Weight ca.1,9 kg Power supply 230 V AC 50/60 Hz Internal voltage 24 V DC Dispensing duration 0,01 bis 9999 seconds... -
Page 15: Declaration Of Conformity
Operating Instructions IG-1500D 12 Declaration of Conformity Product: Dispensing Controller Modell: IG-1500D IG-1500D-0-1-BAR Parameter: 110-230V AC, 50/60Hz, 15W _________________________________________________________________________________ We confirm that the design and construction of the above-mentioned products comply with the provisions of the European Community directives listed below and the requirements for obtaining a CE mark.
