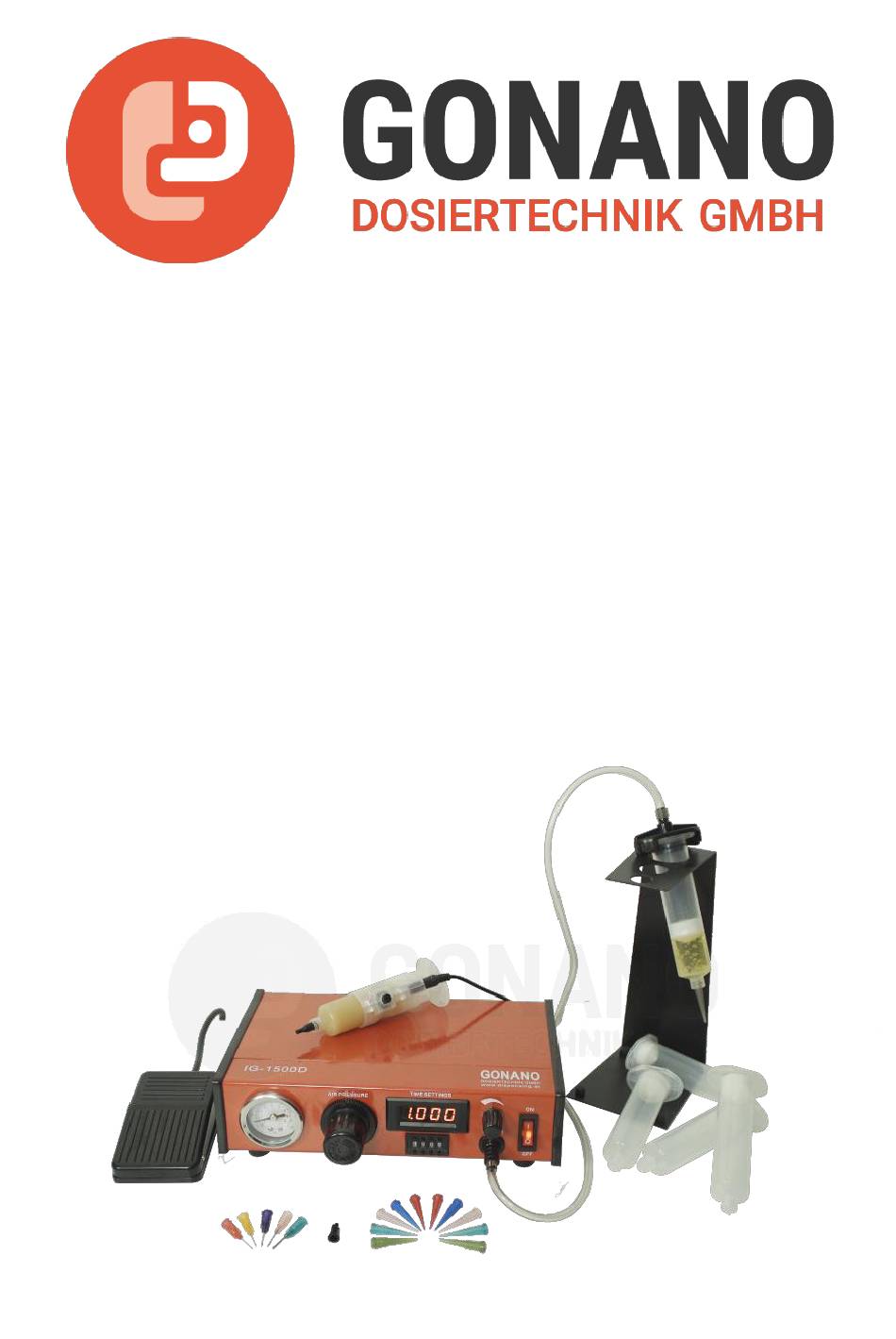

- Page 1 Instruction manual digital dispenser IG-1500D...
- Page 2 Instruction manual digital dispenser IG-1500D...
-
Page 3: Table Of Contents
Instruction manual digital dispenser IG-1500D Dear customer Thank you for your purchase. To facilitate the operation of our IG-1500D, we have included this manual. Please read this manual carefully before putting it into operation and observe the safety instructions. We hope you enjoy your new device. -
Page 4: Intended Use
Instruction manual digital dispenser IG-1500D 1. Intended use The dispenser IG-1500D is available in different versions, with varying technically details depending on the variant. Please note, that only the base version will be mentioned in the following. Should you have any model specific questions please contact us directly. -
Page 5: Safety Instructions
Use the dispenser only for the intended purposes, which are explained in this manual. Gonano Dosiertechnik GmbH cannot be held responsible for any material or personal damage, which may occur because of incorrect use. -
Page 6: Scope Of Delivery
Instruction manual digital dispenser IG-1500D 3. Scope of delivery dispenser IG-1500D power cord 230V AC air hose syringe barrel holder (Art-Nr.: eIG-8101000SS) foot switch (Art-Nr.: eIG-8101000F) finger switch (Art-Nr.: eIG-8101000HS) barrel adapter 30/55cc (Art-Nr.: eIG-TEAE30/55B-6.20) Further accessories you can find in the following table... -
Page 7: Technical Data
230 V AC 50/60 Hz inlet pressure 5-7 bar outlet pressure 0,1 - 7 bar * standards CE - marking weight ca. 2,2 kg *) By the dispenser variant IG-1500D-0-1-BAR, the outlet pressure is 0.1-1 bar. -
Page 8: Dispenser
Instruction manual digital dispenser IG-1500D 5. Dispenser 1 pressure gage for air outlet 7 main switch 2 pressure regulator 8 air outlet for vacuum suck.back 3 time display 9 compressed air inlet 4 digital time setting 10 plug for foot/fingerswitch... -
Page 9: Start-Up
Instruction manual digital dispenser IG-1500D 6. Start-up 6.1 Function test without material in the cartridge Connect the compressed air connection [9] on the device with the compressed air network, using a hose (dry air preferred) Connect the foot or finger switch with the connection socket [10] Connect the 30 / 55cc cartridge adapter with the compressed air outlet [5] and the cartridge. - Page 10 Instruction manual digital dispenser IG-1500D 6.2 Manual dispensing Repeat from point 7 (with medium setting on pressure gauge [1]). Connect the cartridge filled with material with the appropriate adapter to the compressed air outlet [5]. Cartridge can be used with or without a piston, depending on the material.
-
Page 11: Maintenance And Cleaning
Instruction manual digital dispenser IG-1500D 6.3 Useful hints • Hold the cartridge at an angle of approx. 60° • After the dispensing process, lift the dispensing tip vertically from the component. • To increase the dosage, you can increase the pressure (the dosing time for points) or you can use a dispensing needle with a larger inner diameter. - Page 12 Instruction manual digital dispenser IG-1500D...
