Summary of Contents for GONANO IG-101D

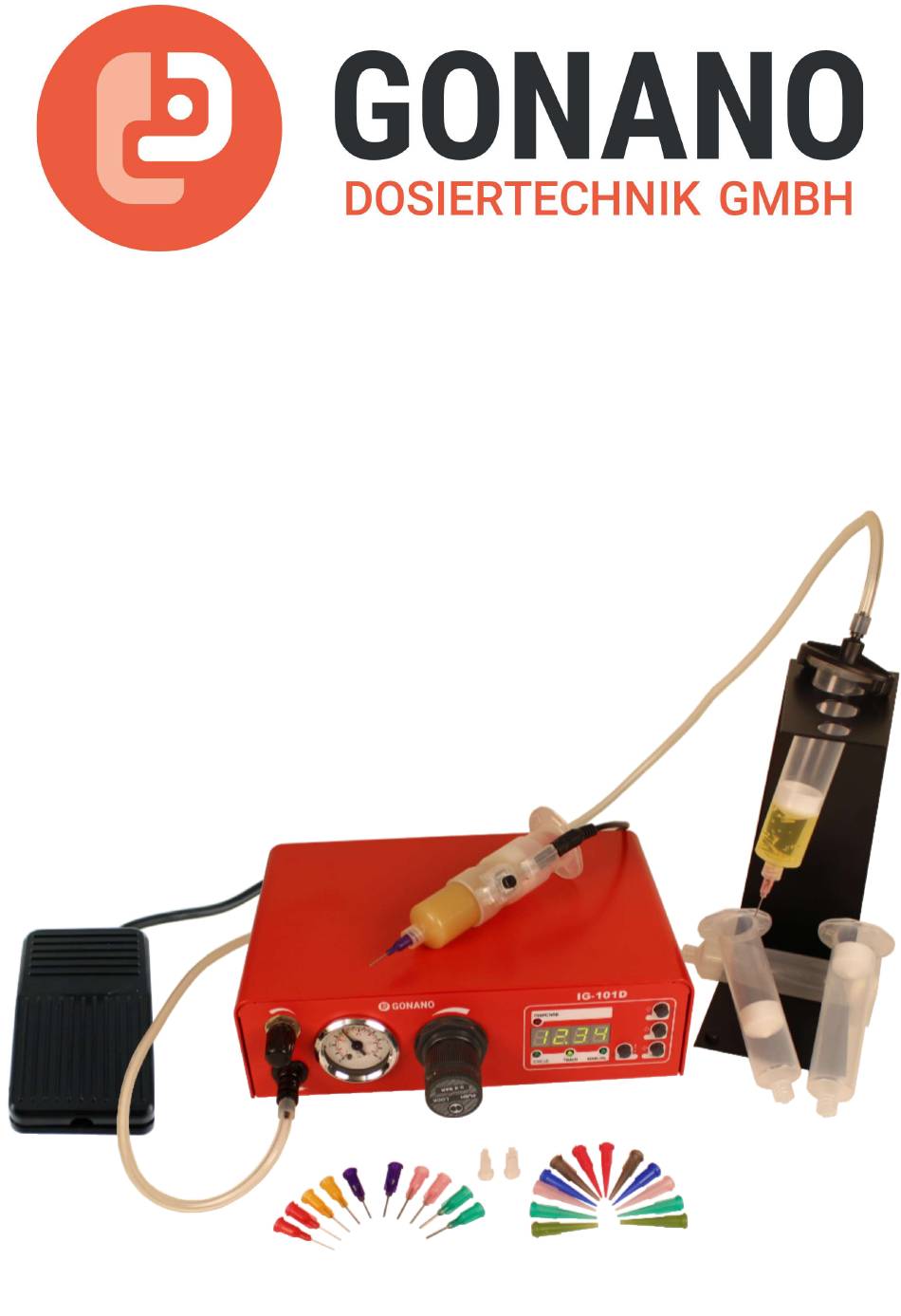

- Page 1 Operating Instructions Digital Dispenser IG - 101D...
-
Page 2: Table Of Contents
Operating Instructions IG-101D Content 1 General information 1.1 The IG-101D 1.2 Intended Use 2 Scope of delivery 3 Safety instructions 3.1 General safety information 3.2 Dangers for the operator 3.3 Electrical safety instructions 3.4 Safety Instructions for Auxiliary- and Operating Materials... -
Page 3: General Information
The IG-101D dispensing controller series consists of two models which have an output pressure of 0-1 and 0-7 bar respectivly, with no other differences. For this reason, only the model IG-101D is referred to below. The IG-101D is used for the precise dispensing of various liquids and pastes. -
Page 4: Scope Of Delivery
Operating Instructions IG-101D 2 Scope of delivery... - Page 5 Operating Instructions IG-101D Accessories 0-7 Bar Quantity Designation Article Number Syringe barrale 30cc IP1E30 Piston PE 30cc IP2E30/55 Tapered tip set consisting of: Tapered tip/light green IP510 Tapered tip/light orange IP511 Tapered tip/light blue IP513 Tapered tip/olive IP514 Tapered tip/gray...
-
Page 6: Safety Instructions
Operating Instructions IG-101D 3 Safety instructions 3.1 General safety information If this device is used for purposes other than those described in this operating manual, personal injury or damage to property may result. Only use the device in accordance with the enclosed instructions. -
Page 7: About Your Dispensing Unit
Operating Instructions IG-101D 4 About your dispensing unit... -
Page 8: Commissioning
• Connect the hose of the barrel adapter to the compressed air outlet [5] of the IG-101D and set the pressure with the pressure regulator [3]. Select a low dispensing pressure at the beginning and then increase it step by step. -
Page 9: Connection Diagram
Operating Instructions IG-101D 5.2 Connection diagram If you have connected all your air lines and wiring correctly your system setup will look something like this:... -
Page 10: Operation
Operating Instructions IG-101D 6 Operation 6.1 The different operating modes The IG-101D has three different operating modes, which can be selected with the MODE button. The mode that is set is indicated by an illuminated status LED. MANUAL Mode In the manual mode (MANUAL) you control the dispensing unit with the foot switch or finger switch (optional) or by pressing the PURGE key . -
Page 11: Setting The Dispensing Time
Operating Instructions IG-101D 6.2 Setting the dispensing time Press the MODE button to switch to the TIMER mode.To set a dispensing time, press the SET button. The right most digit of the 4-digit display will start to flash. Then set the desired numerical value with the arrow up ( ⇧ ) and arrow down ( ⇩... -
Page 12: Setting The Waiting Time
Operating Instructions IG-101D It often makes sense to save a manually determined dispensing time as a program. To do this, simply press the foot switch in MANUAL mode until the desired amount of material has been dispensed. At this point, the digital display shows the elapsed dispensing time. -
Page 13: Saving The Waiting Time
Press the MEM button again to switch to the memory locations.The display shows "Sv 1" The IG-101D has a total of nine memory locations. It is important to store the "waiting time" setting in a different memory location than the "dispensing time"... -
Page 14: Starting The Dispensing Process
Operating Instructions IG-101D 6.7 Starting the dispensing process The dispensing process can be started in various ways. In the MANUAL mode, press and hold the foot switch, finger switch or PURGE button for the desired dispensing duration. In the TIMER and the CYCLE modes, start the dispensing process by pressing the foot switch, finger switch or PURGE key once. -
Page 15: Pressure Monitoring
Operating Instructions IG-101D 7 Pressure monitoring Your dispensing unit is equipped with a monitoring device for the input air pressure. If there is a drop in pressure or if the pressure falls below the preset pressure level, the device does not allow any further dispensing operations and the message "P-AL"... -
Page 16: Setting The Minimum Pressure For Pressure Monitoring
Operating Instructions IG-101D 7.3 Setting the minimum pressure for pressure monitoring After confirming the pressure, you can set a value for the minimum pressure with the arrow up ( ⇧ ) and arrow down ( ⇩ ) keys. Press the EXIT key to accept the value and restart the instrument. -
Page 17: Maintenance And Cleaning
Operating Instructions IG-101D 9 Maintenance and Cleaning The dispensing controller is maintenance-free. Any needed repairs must be performed by the manufacturer. To clean the unit and the housing, use only dry or damp cloths and never use cleaning fluids such as petrol, thinners or any other flammable or corrosive liquid. -
Page 18: Technical Data
Operating Instructions IG-101D 11 Technical data 235 x 210 x 75 mm incl. Pressure Outer dimensions (D x W x H) regulator Weight ca.1,30 kg Power supply 85 – 264 V AC 50/60 Hz Internal voltage 24 V DC Dispensing duration... -
Page 19: Declaration Of Conformity
Operating Instructions IG-101D 12 Declaration of Conformity Product: Dispensing Controller Modell: IG-101D IG-101D-0-1-BAR Parameter: 85-264V AC, 50/60Hz, 15W _________________________________________________________________________________ We confirm that the design and construction of the above-mentioned products comply with the provisions of the European Community directives listed below and the requirements for obtaining a CE mark.
