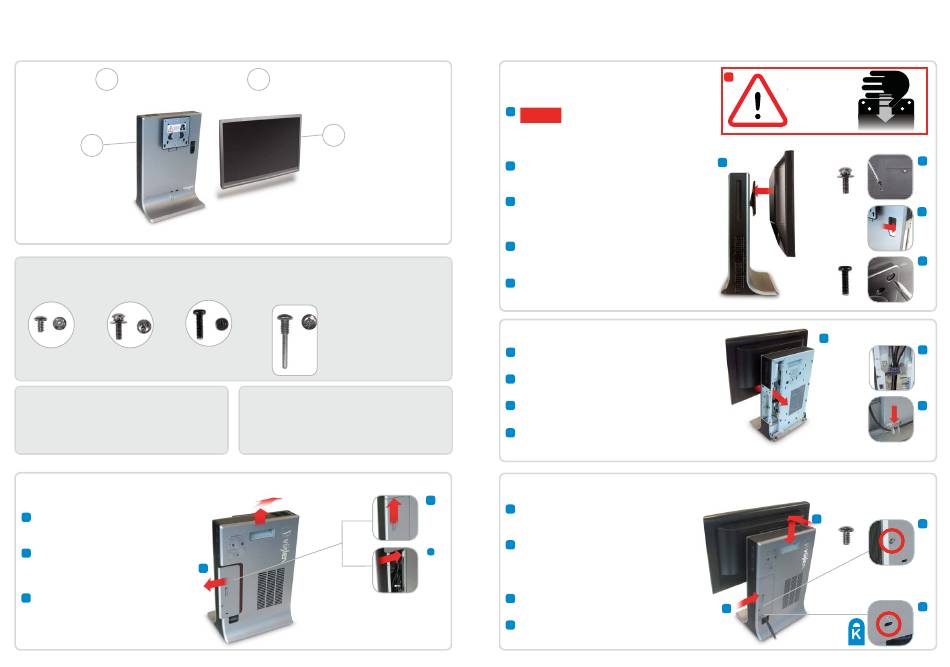

Viglen Integra Getting Started Manual

Integra
Viglen Getting Started Guide
Contents
1
Base Unit
1
Included fittings Your Viglen Integra has been shipped with a multi-purpose screw pack. You may not need
to use all the screws in the pack to complete this assembly. You will require the screws
shown below:
Screw A Screw B
( x 1) ( x 2 )
Included cables
Depending on your configuration you will receive one split power
cable for the base unit and monitor and one or more of the
following cables: video, audio.
Step 1
Remove the Back Cover
1
Slide the locking catch on the cable
cover up and slide the cover to the
left to remove the cable cover.
2
Push the metal locking catch to the
right and slide the plastic back cover
straight upwards. Lift the cover away
from the base unit.
3
Optional - Slide the middle section of
the side panel to the rear to provide
additional access to the cable bay.
2
Monitor
2
Screw J
(pre-fitted to
Screw C monitor stand)
( x 3 ) ( x 1 )
Tools required
Cross-head (philips-head) screwdriver
Optional security screwdriver (order EMSECDRV from Viglen)
3
Step 2
Attach the Monitor
1
Take care when loosening the
CAUTION!
monitor stand screw
The monitor stand contains a strong spring under pressure.
Apply firm pressure to the top of the monitor bracket
before unscrewing Anchor Screw J.
2
Fix 2x Screw B (lug screw) to the lower VESA mounting holes
in the rear of the monitor. Refer to your monitor manual for
instructions on how to remove the monitor's stand.
3
Unlock the cable window in the base unit and feed the
monitor signal and power cables through. Place the
monitor face down in front of the base unit and connect
the monitor cables.
4
Lift the monitor onto the monitor stand VESA bracket and
hang the monitor by engaging the lug screws in the lower
holes.
5
Hold the monitor in place and secure it using 2x Screw C.
Step 3
Connect Cables
1 Connect the monitor signal cable, mouse, keyboard and
other accessories.
2
Secure the mouse, keyboard, power and other external
cables using the cable strap at the bottom of the cable bay.
3
Optional: Cables can be channelled via the routing clips at
the base of the unit.
4
Optional: Replace the side panel of the cable bay.
Step 4
Replace the Back Cover
1
1
Replace the back cover by applying it flat to the back of
the base unit, engaging its lugs and pushing firmly
downwards.
2
Replace the cable cover by sliding it from the left until it
2
locks in place.
Care should be taken to ensure that all cables are
routed through the cable window below the cable cover.
3
Optional: Fit 1x Security Screw A into the locking clip to
deter unauthorised opening.
4
Optional: Fit a Kensington-style locking cable or clip to lock
the cover and secure the Viglen Integra to the desktop.
Viglen recommends Windows 8.
1
WARNING
Compressed Spring
Apply firm pressure to
the top of the monitor
bracket before
. .
loosening anchor screw
4
x2
x2
1
1
x1
2
Integra Start Guide 2013-03
