Viglen Genie Ultra Micro Getting Started Manual

Viglen Getting Started Guide
Genie Ultra Micro

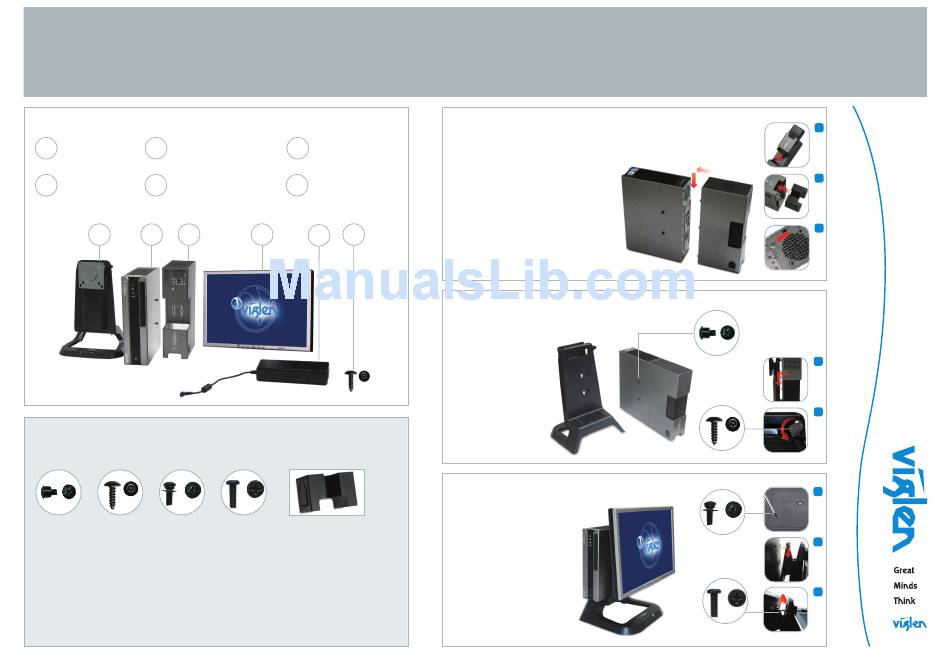

Contents
1 2
Monitor stand Genie Ultra Micro chassis
(optional)
Monitor Power Adapter
4 5
(optional)
1 2 3
Included fittings
If you purchased your Genie Ultra Micro from Viglen, the fitting lugs (2x screw A) will already be in place.
Otherwise you will need to fit the lugs shown below.
Screw A Screw B Screw C
( x 2 ) ( x 2 ) ( x 2 )
Additional parts
Depending on the configuration you purchased,
you may also receive the following items:
Internal Speaker (mounted in the Cable Cover)
u
Split Mains Power Cable for the base unit and monitor
u
(includes a converter for the AC adapter)
3
Cable cover
(optional)
Fittings (see 'included
6
fittings' below)
4 6
5
Screw D Cable Cover Block
( x 2 ) ( x 1 )
Tools required
Cross-head screwdriver
Step 1
Mounting the cable cover
Feed all cables through the aperture in the bottom of the
u
cable cover and attach them to the ports on the
motherboard, including the cables from the optional
monitor stand and optional internal speaker.
Slide the AC Adapter into the cable cover and insert the
u
retaining block (figure 1 and 2).
u Attach the power connector to the power socket at the
rear of the chassis (figure 3).
Attach the cable cover on to the Genie Ultra Micro
u
chassis by engaging its lugs in the corresponding holes at
the rear of the chassis and slide down firmly until you
hear it clip into place.
An optional Kensington-style locking device can be used
u
to lock the cable cover in place.
Step 2
Attach the chassis to the stand
u Ensure that screws A are fitted
to chassis. Align the chassis
onto the monitor stand and slot
into place.
u Slot the chassis down into the
slots marked 2 to lock into
place (figure 1).
Turn the retaining clips to
u
secure the chassis and lock the
chassis using optional screws B
provided through the low holes
on the retaining clips (figure 2).
Step 3
Securing the monitor to the stand
Ensure that screws C are fitted
u
to the two bottom monitor VESA
points (figure 1). Align the rear
VESA mount of the monitor with
the VESA bracket on the
monitor stand.
u Ensure the monitor is now
slotted in place on the VESA
plate (figure 2).
Hold the monitor in place and
u
secure it using the screws D
provided to the upper holes
(figure 3).
1
1
2
2
3
Screw A 1
2
Screw B
1
2
Screw C
3
Screw D
Start Guide - Genie Ultra Micro (2009-06)
