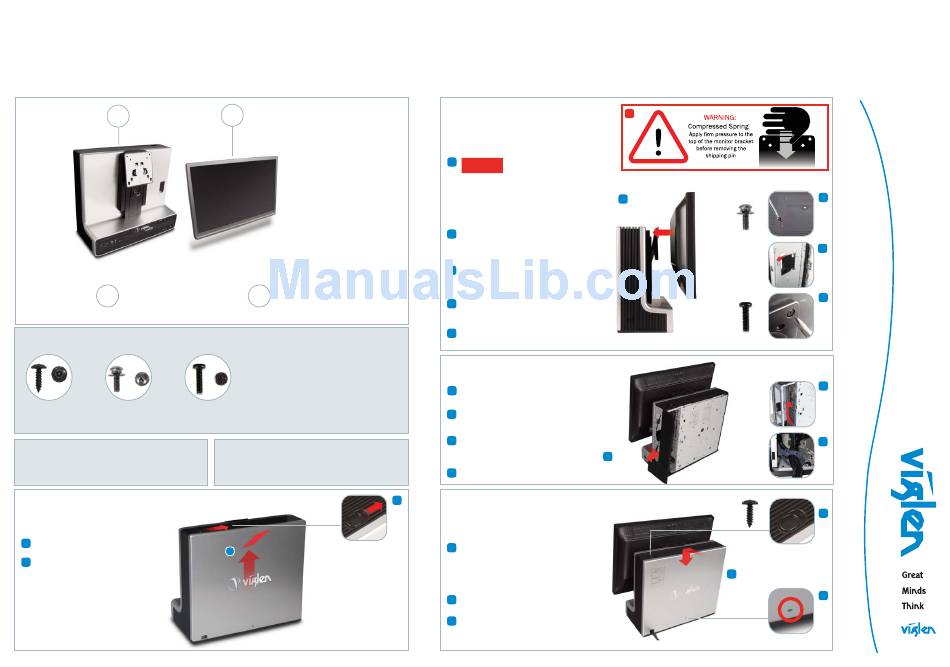

Viglen Omnino 4 Getting Started Manual

Viglen Getting Started Guide

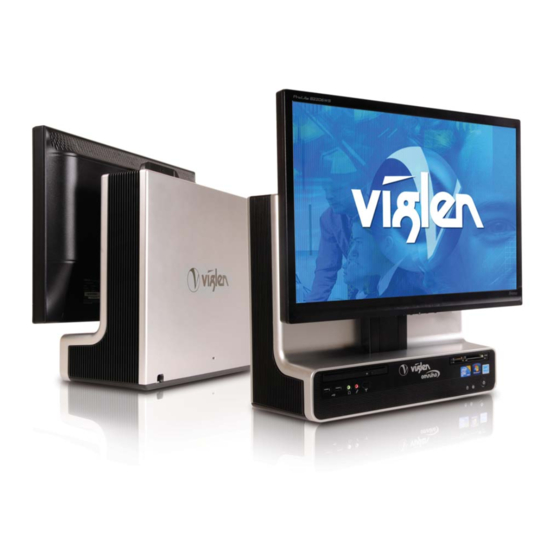

Omnino 4
1
Contents
1
Base Unit
Your Omnino 4 has been shipped with a multi-purpose screw pack. You will not need to use all the
Included fittings
screws in the pack to complete this assembly. You will require the screws shown below:
Screw A Screw B
( x 1) ( x 2 )
Included cables
Depending on your configuration you will receive one split
power cable for the base unit and monitor and one or more
of the following cables: video, audio.
Step 1
Remove the Back Cover
Slide the locking latch to release the back
1
cover
2 Slide the back cover up, then pull it away
from the base unit.
2
2
Monitor
Screw C
( x 3 )
Tools required
Cross-head (philips-head) screwdriver
Optional security screwdriver (order EMSECDRV from Viglen)
2
Step 2
Attach the Monitor
1
Take care when removing the
CAUTION!
monitor stand shipping pin.
The monitor stand contains a strong spring under
pressure. Apply firm pressure to the top of the
monitor bracket before pulling the pin out.
Optional: Fit 1x Screw C in the shipping pin hole
to restrict downward movement of large monitors.
Fix 2x Screw B (lug screw) to the lower VESA
2
mounting holes in the rear of the monitor. Refer
to your monitor manual for instructions on how to
remove the monitor's stand.
Unlock the cable window in the base unit and feed
3
the monitor signal and power cables through.
Place the monitor face down in front of the base
unit and connect the monitor cables.
4 Lift the monitor onto the monitor stand VESA
bracket and hang the monitor by engaging the lug
screws in the lower holes
Hold the monitor in place and secure it using 2x
5
Screw C.
Step 3
Connect Cables
Remove the side panel of the cable bay by
1
sliding it backwards and lifting it away.
Connect the monitor signal cable, mouse,
2
keyboard and other accessories.
Secure the mouse, keyboard, power and
3
other external cables using the cable strap at
the bottom of the cable bay.
4 Replace the side panel of the cable bay.
1
Step 4
Replace the Back Cover
Replace the back cover by applying it flat to
1
the back of the base unit, engaging its lugs
and pushing firmly downwards.
Care should be taken to ensure that all
cables are routed through the cable window
in the bottom of the cover.
Optional: Fit 1x Security Screw A into the
2
locking clip to deter unauthorised opening.
Optional: Fit a Kensington-style locking cable
3
or clip to lock the cover and secure the
Omnino 4 to the desktop.
1
. .
4
x2
x2
1
x1
1
2
3
5
2
3
2
3
Start Guide - Omnino 4 (2010-06)
