USER MANUAL
1. BILL OF MATERIAL
Monitor
Power Wire
2. Features & Specification

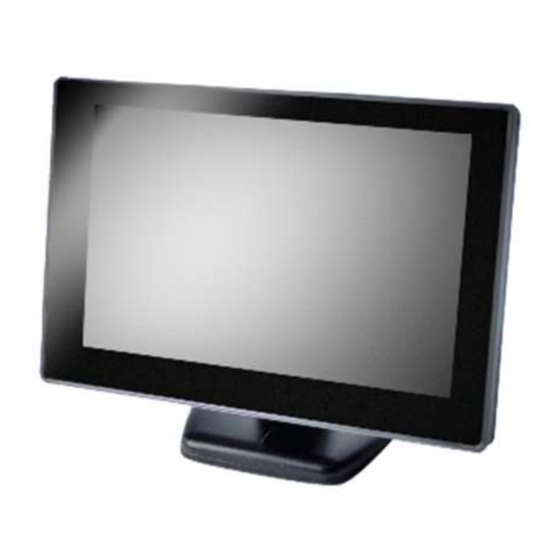

Monitor
5" Digital TFT LCD Display Monitor with
Slim and Sleek Design
Resolution: 800x400
Display Format: 16:9
Contrast: 350:1
2 Video Inputs
NTSC / PAL Auto Switch
Power Consumption: 3W+
Operating Voltage: 12VDC
Dimension: 4.125" x 3.5" x 0.5"
For technical support, call (888) 942-3060 or email
5" MONITOR AND LICENSE PLATE CAMERA
Camera
Video / Trigger Ext Cable
Sunshade
Power Harness
Camera
Concealed License Plate Backup Camera with Parking
Lines
High Sensitivity ¼" HD Color CMOS Sensor (1099)
Super Low Lux Performance
Reverse / Non-Reverse Image Selectable
Parking Guidelines On/Off Switch
IP68 Waterproof Rating
Operating Voltage: 12VDC
info@visiontechamerica.com
VTC175M
Windshield Mount
Dash Mount
www.VisionTechAmerica.com
Mounting
Bracket
Advertisement
Table of Contents
Related Manuals for Boyo VTC175M
Summary of Contents for Boyo VTC175M
- Page 1 VTC175M 5” MONITOR AND LICENSE PLATE CAMERA USER MANUAL 1. BILL OF MATERIAL Mounting Monitor Camera Sunshade Bracket Power Wire Video / Trigger Ext Cable Power Harness Windshield Mount Dash Mount 2. Features & Specification Monitor Camera 5” Digital TFT LCD Display Monitor with...
- Page 2 3. Wiring 12V Connector wire: 12VDC (ACC+) BLACK: Ground / Chassis BLUE Trigger wire: Reverse Light + Video Input Camera Input RED: to BLUE trigger wire RED: to backup light (+) Loop Switches Video / Trigger Extension WHITE: Uncut: Reverse image Cut: Non-reverse image Blue:...
