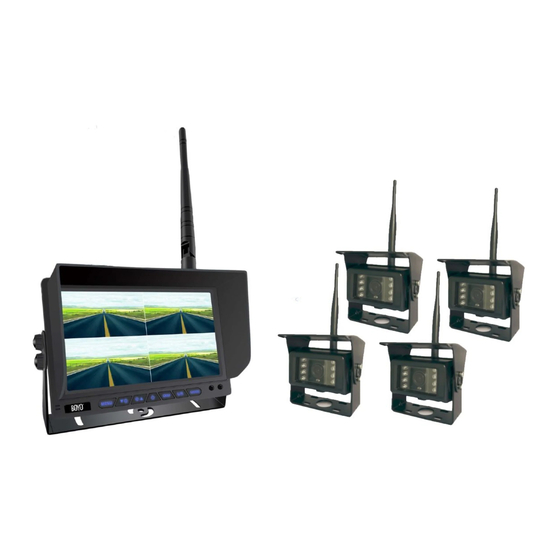

- Page 1 VTC701AHD-Q2 VTC701AHD-Q4 7” 1080P Full HD Digital Wireless 2/4 Channel Monitor and Camera System with Digital Video Recorder USER MANUAL Please read the instructional complete before use and keep it for future reference.
-
Page 2: Product Features
Product Features • 1080P Full HD Image Quality System • 7” All View Angle IPS TFT LCD Panel • 4 Channel Wireless Monitor with Single, Dual, or Quad View • Waterproofed, Heavy Duty Wireless Camera • Reliable Wireless Operational Range up to 300 ft •... -
Page 3: Monitor Wiring
Wiring a. Monitor wiring: Trigger: The reverse backup light or turn signals are used for trigger input. For example: pair a camera to Ch 3 to a backup camera facing backup of the vehicle and connect reverse backup light positive to the blue (Ch 3) wire. Whenever, a gear is put in reverse and the backup light is turned on, it will trigger the monitor to display the backup camera. -
Page 4: Monitor Installation
Monitor Installation a. Install the monitor bracket using the 3 self- tapping screws. • Screw in the center. • Adjust the angle. • Tighten all screws. b. Install the monitor using 2 bolts on each sided. * Do not tighten bolts. c. - Page 5 1. Monitor Button Functions Split Screen Multi-Channel Display Mode Function Button MENU Audio Channel - Audio Channel + Display On / Off Video Ch + MODE Single Channel Screen Display Mode Function Button Enter Menu MENU Brightness - Brightness + Display On / Off Video Channel + MODE...
- Page 6 2. Menu Button – Single Channel Screen Display Mode Pairing: By pairing assign a camera to each channel Picture Setting: Brightness, Contrast, Saturation, Audio Volume Picture Orientation: Flip L/R, Flip U/D Screen Display Settings: Dual, or Quad split screen on/off Camera Settings: Camera on/off, Display Scan time System Settings:...
- Page 7 3. Pairing: For a wireless camera to transmit video to a monitor, each camera must be paired with specific monitor channel (or screen division). In the following example, Ch 1 has been selected (Ch 1 single screen display mode). Menu button is pressed. ‘Pairing’...
- Page 8 4. Picture Settings: Decrease Increase Brightness Contrast Volume...
- Page 9 5. Picture Orientation: Normal Camera pointing forward: An object at the front-right side of the vehicle is displayed on the right side of the screen. Normal Camera pointing backward - installed as a rearview camera: Flip image horizontally. An object at the rear- right side of the vehicle is displayed on the right side of the screen.
- Page 10 OK button to select. Selected screen divisions will pink background VTC701AHD-Q2: There are only two cameras and if they are paired with Ch 1 and Ch 2, then only will be enabled for selection.
- Page 11 Auto Scan ON or OFF. Display a camera for the specified auto scan time and display next camera for the specified auto scan time. And so Defaults: VTC701AHD-Q2: Camera 1 and Camera 2 are turned on from the factory. VTC701AHD-Q4: All cameras are turned on from the factory.
- Page 12 8. System Settings: Set System Time Select UI Language Auto Dim On or Off. The setting dims the display when it becomes dark Trigger off display delay If set to 0, the turn signal triggers will cause the display to blink. Parking guidelines on/Off Reset system to the factory defaults...
- Page 13 9. Playback Recording: The recorded video can be played on the monitor. Here are steps: a. From the main menu, select ‘Play’ and the available storage media will be displayed. b. Select a storage media (by clicking the button) and the recording list will be displayed.
- Page 14 10. Record Settings: ON: Overwrite the oldest recording when storage is full. OFF: Stop recording when storage is full. ON: Format SD card. Support up to 128GB Class 10...
-
Page 15: Monitor Specification
Built-in Speaker with Volume Control Buttons Image Control: Reverse / Non-Reverse (Horizontal Flip) Parking Guidelines: Display / No-Display (Selectable) Trigger: 2 x Trigger Input (VTC701AHD-Q2) 4 x Trigger Input (VTC701AHD-Q4) Video Recording: 720P, 1080N Memory Card: C10 SD up to 128GB Operating Voltage：... - Page 16 RX Sensitivity: -89dBm(Typical)@4MHz BER:<1E-3 RF Bit Rate: 4MHz BER<1E-3 Spread Spectrum: FHSS Distance: > 300 ft Open Line of Sight 4. DVR Specification Recording: Per channel Resolution: 1024 x 608 Frame per Second 30fps Memory Card SD Class 10 or above Storage Size Max.
- Page 17 BOYO®- brand parts. This warranty is VOID if you purchased this product as used, floor model sample, or refurbished;...
